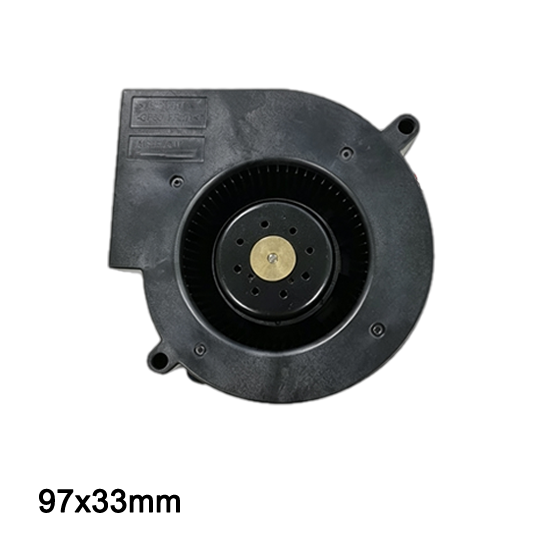

9BMC Air Blower | 97x33mm High Pressure Brushless DC Centrifugal Fans

Overcoming Severe Thermal Congestion: How the 9BMC Air Blower Delivers High Static Pressure to Next-Gen Dense Electronics

In modern electronic hardware architectures, thermal congestion has become an inevitable challenge. As micro-processors, server rack nodes, telecommunication power modules, 3D printers, and medical instruments become increasingly complex and compact, standard axial fans quickly reach their performance limits. When forced to push air through high-density heat sinks, restrictive dust filters, and narrow internal conduits, axial fans encounter heavy aerodynamic stalling and backflow, which leads to overheating, performance throttling, and premature hardware failure.

To solve this exact industry pain point, the industrial-grade 9BMC air blower series stands out as an indispensable thermal breakthrough. Engineered specifically to convert rotational velocity into powerful radial energy, a 9BMC air blower can intake air axially and expel it forcefully at a 90-degree angle. This centrifugal structural layout allows the blower to maintain high static pressure and absolute volumetric stability, even under severe backpressure environments that would stall standard cooling systems.

Featuring peak performance specifications—such as a rated speed up to 8,200 RPM, an airflow capacity of 1.85 m³/min (65.3 CFM), and an exceptional maximum static pressure of 1950 Pa (7.83 inchH₂O)—the 9BMC air blower series (including the 12V 9BMC12P2G001 and the 24V 9BMC24P2G001) provides unmatched heat dissipation efficiency. Integrated intelligent PWM duty cycle control allows system developers to dynamically scale speed down to 2,800 RPM during low-load operations, significantly lowering sound pressure levels to 44 dB(A) and saving critical operational power. For high-reliability data systems, industrial controls, and medical environments, deploying the 9BMC air blower guarantees continuous thermal safety and long-term system stability.

Advanced Thermal and Pneumatic Solutions with 9BMC Micro Centrifugal Blowers

Key Mechanical Features & Engineering Performance Highlights

• Industrial High Static Pressure: Capable of delivering a remarkable 1950 Pa (7.83 inchH₂O) maximum pressure, ensuring reliable air delivery across complex, narrow, and crowded electronic enclosures without performance drop-offs.
• Smart PWM Dynamic Duty Control: Features an integrated pulse sensor supporting wide-range PWM control. Seamlessly adjust operational output between 100% duty cycle (8,200 RPM for maximum performance) and 20% duty cycle (2,800 RPM for silent, energy-efficient idle modes).
• Wide Input Voltage Resilience: Designed to maintain strict rotational stability despite fluctuating power buses. 12V models operate reliably from 10.8V to 13.2V, while 24V variants confidently manage a 21.6V to 26.4V range.
• Long Life & Robust Temperature Envelope: Features an impressive expected operating lifespan of up to 70,000 hours at 40°C (and 40,000 hours at 60°C). Operates reliably in harsh conditions spanning from -20°C up to +70°C.
• Acoustically Balanced Performance: Utilizes advanced mechanical design and dynamic impeller balancing to minimize micro-vibrations, ensuring smooth transitions and keeping low-frequency acoustic hum under control.
