PAPR Fan & PAPR Blower Solutions (High-Static Pressure)
As a leading PAPR fan and PAPR blower manufacturer, TKFAN specializes in designing high-performance PAPR fans and PAPR blowers engineered for powered air-purifying respirator (PAPR) systems. Our compact, high-static pressure PAPR blowers utilize an advanced brushless DC (BLDC) motor and low-noise centrifugal design to efficiently push continuous air through heavy HEPA filters and restrictive breathing tubes. Built for extended battery runtime, absolute operational reliability, and maximum wearer comfort, TKFAN’s PAPR fan solutions deliver optimal respiratory protection across demanding industrial, medical, and cleanroom environments. Whether you require standard 12V/24V models or custom OEM/ODM PAPR blower configurations, we provide certified, low-vibration airflow solutions tailored to your life-safety equipment requirements.
High-Static Pressure PAPR Fan & PAPR Blower Solutions
PAPR Fan & PAPR Blower Selection Matrix
Compare our industrial-grade PAPR fan and high-pressure PAPR blower models below. Designed to help OEM manufacturers easily achieve NIOSH (42 CFR Part 84) and CE EN 12941 / EN 12942 compliance. Download 3D STEP models for rapid SolidWorks CAD prototyping.
← Scroll horizontally to view full table →
| Model / Series | Size (mm) | Voltage (V) | Speed (RPM) | Airflow (CFM) | Max Static Pressure | Noise (dBA) | Protection Rating | 3D CAD File |
|---|---|---|---|---|---|---|---|---|
| CA7020H12X-A | 70x20 | 12V | 9,200 | 42.8 | 0.47 kPa (470 Pa) | < 52 dBA | IP54 / IP67 | 📥 STEP File |
| CA7025H12X-A | 70x70x25 | 12V | 11,100 | 32.3 | 0.45 kPa (450 Pa) | < 54 dBA | IP54 / IP67 | 📥 STEP File |
| U97LM-005KK | 98x101x57 | 5V / 12V | 8,500 | 15.9 | 0.50 kPa (500 Pa) | < 49 dBA | IP67 / ATEX | 📥 STEP File |
In demanding industrial welding, pharmaceutical processing, and medical isolation environments, Powered Air Purifying Respirators (PAPRs) serve as critical life-safety gear. At the core of every certified respiratory pack is a specialized PAPR fan or high-pressure PAPR blower. Its primary task is delivering continuous, positive-pressure airflow (typically >170 to 230 L/min) through dense multi-stage HEPA filters and organic gas cartridges.
As a specialized PAPR fan manufacturer and global PAPR blower supplier, TKFAN builds ultra-compact brushless centrifugal blowers specifically engineered to maintain steep P-Q airflow curves under heavy dust loading while maximizing battery shift life and ensuring wearer comfort.
Core Engineering Challenges in PAPR Fan & PAPR Blower Design
Designing a reliable PAPR blower system requires overcoming significant mechanical, pneumatic, and compliance constraints:
- High Static Pressure Resistance: As HEPA filters capture particulates, static resistance rises dramatically. Standard axial fans quickly stall under high backpressure, requiring high-torque centrifugal blowers capable of maintaining stable pressure above 0.45–0.50 kPa.
- Extended Battery Shift Runtime: Waist-worn PAPR battery packs demand ultra-low energy draw. Our custom brushless DC (BLDC) motors support dynamic PWM duty-cycle speed control to optimize power consumption, achieving extended 8 to 12-hour continuous battery runtime.
- Ergonomic Noise & Vibration Control: Because the respirator pack is mounted on the user’s waist or headgear, acoustic noise (<52–55 dBA) and mechanical vibration must be minimized to prevent long-term fatigue.
- International Safety & IP Certification: To assist OEMs in obtaining NIOSH (42 CFR Part 84), CE EN 12941/EN 12942, and ATEX/IECEx intrinsically safe approvals, our PAPR blowers offer sealed motor encapsulations up to IP67.
Key Advantages of TKFAN PAPR Fan & Blower Engineering
1. Precision Dynamic Balancing for Ultra-Low Vibration & Quiet Operation
Dynamic imbalance is the primary cause of high-frequency housing vibration and acoustic whining in high-RPM PAPR blowers. TKFAN implements dual-plane dynamic balancing calibration during both automated impeller injection molding and post-assembly motor testing, keeping residual unbalance within tight micro-gram limits.
❌ Ordinary PAPR Fan Design
Single-plane or uncalibrated impellers create excessive centrifugal force at 10,000+ RPM, causing audible buzz, rapid bearing wear, and discomfort for the wearer.✔ TKFAN Precision Engineering
Automated multi-plane dynamic balancing ensures silky-smooth rotation, reducing noise to <52 dBA and extending bearing fatigue life beyond 50,000 hours.2. Riveted Metal Hub Construction for Maximum Impeller Integrity
Micro centrifugal blowers operating at high velocities experience severe thermal and torque stresses. Conventional press-fit plastic hubs tend to expand, stress-crack, or slip off the steel shaft over time. TKFAN utilizes an advanced reinforced engineering design: the central shaft is precision-riveted into a stainless-steel metal hub shell before being overmolded into the polymer impeller.
❌ Ordinary Plastic Press-Fit Hub
Direct plastic-to-shaft press fitting suffers from thermal expansion mismatch, leading to micro-cracking, shaft slippage, or total impeller detachment.✔ TKFAN Metal-Riveted Hub Structure
Riveted stainless steel hub overmolding creates a permanent mechanical lock, preventing hub deformation and ensuring zero shaft torque slippage.3. High-Integrity Ultrasonic Fusion Welding for Two-Piece Impellers
To achieve high static pressure, PAPR centrifugal impellers use complex enclosed blades welded between upper and lower shroud plates. TKFAN optimizes ultrasonic welding parameters—including horn resonance frequency, melt depth control, and specialized joint geometry—to guarantee complete molecular fusion along every blade seam.
❌ Weak Hot-Melt / Glue Bonding
Inconsistent welding seams or adhesive bonding under high static backpressure causes shroud delamination and drastic airflow leakage.✔ TKFAN Ultrasonic Fusion Lock
Optimized ultrasonic energy directors achieve 100% molecular shroud bonding, guaranteeing high structural integrity even under maximum stall pressures.4. Ultra-Strict Bearing Concentricity for Multi-Axis Operation
PAPR blowers worn by active workers constantly tilt and move across multiple axes. Any angular misalignment between upper and lower ball bearing seats causes uneven axial loads and rapid wear. TKFAN enforces strict CNC machining tolerances and automated coaxiality verification on all bearing housings, keeping concentricity within micrometers.
❌ Loose Bearing Seat Tolerances
Coaxial misalignment leads to uneven shaft loads, excessive acoustic chatter, and premature bearing seizure during multi-angle movement.✔ Precision Concentric Seat Alignment
Micron-level coaxial alignment guarantees balanced radial loading across 360-degree orientation changes, preventing premature mechanical fatigue.5. Ultra-High-Temperature Copper Wire Windings for Superior Thermal Endurance
General-purpose fan motors use lower-grade polyurethane magnet wires that risk insulation melting under continuous high loads or elevated ambient temperatures. TKFAN exclusively utilizes industrial-grade, high-temperature insulated copper magnet wire that withstands extreme thermal stress without short-circuiting.
OEM / ODM Customization Engineering Workflow
Partner with TKFAN to accelerate your PAPR respirator development from design to certified mass production.
01
P-Q Curve Matching
Analyze HEPA filter static resistance and target airflow (L/min) requirements.
02
Rapid Prototyping
Deliver customized samples with specified connectors, wire harnesses, and 3D STEP files in 7-10 days.
03
Rigorous Testing
Multi-axis vibration, IP67 washdown testing, thermal shock, and noise chamber evaluation.
04
Mass Production
Automated assembly and 100% dynamic balance verification for OEM compliance.

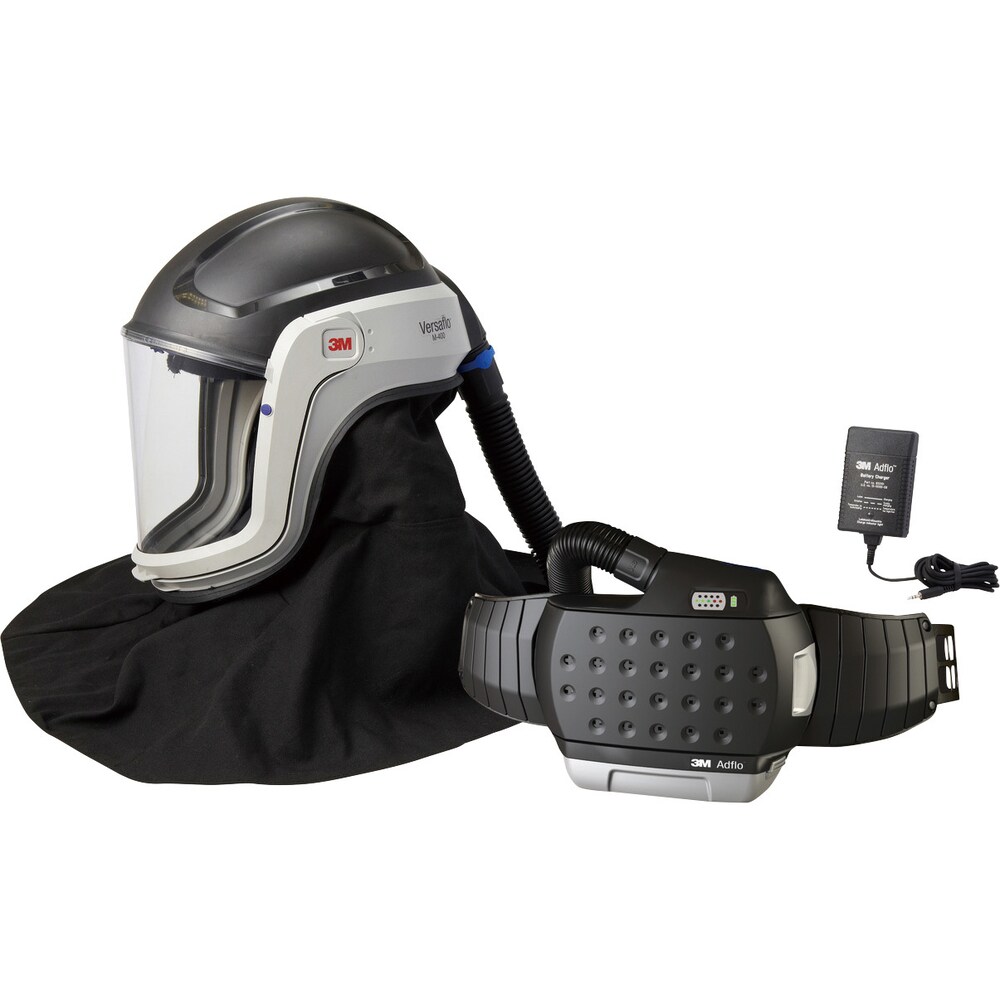

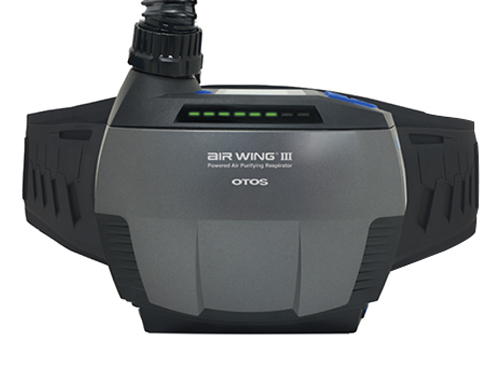

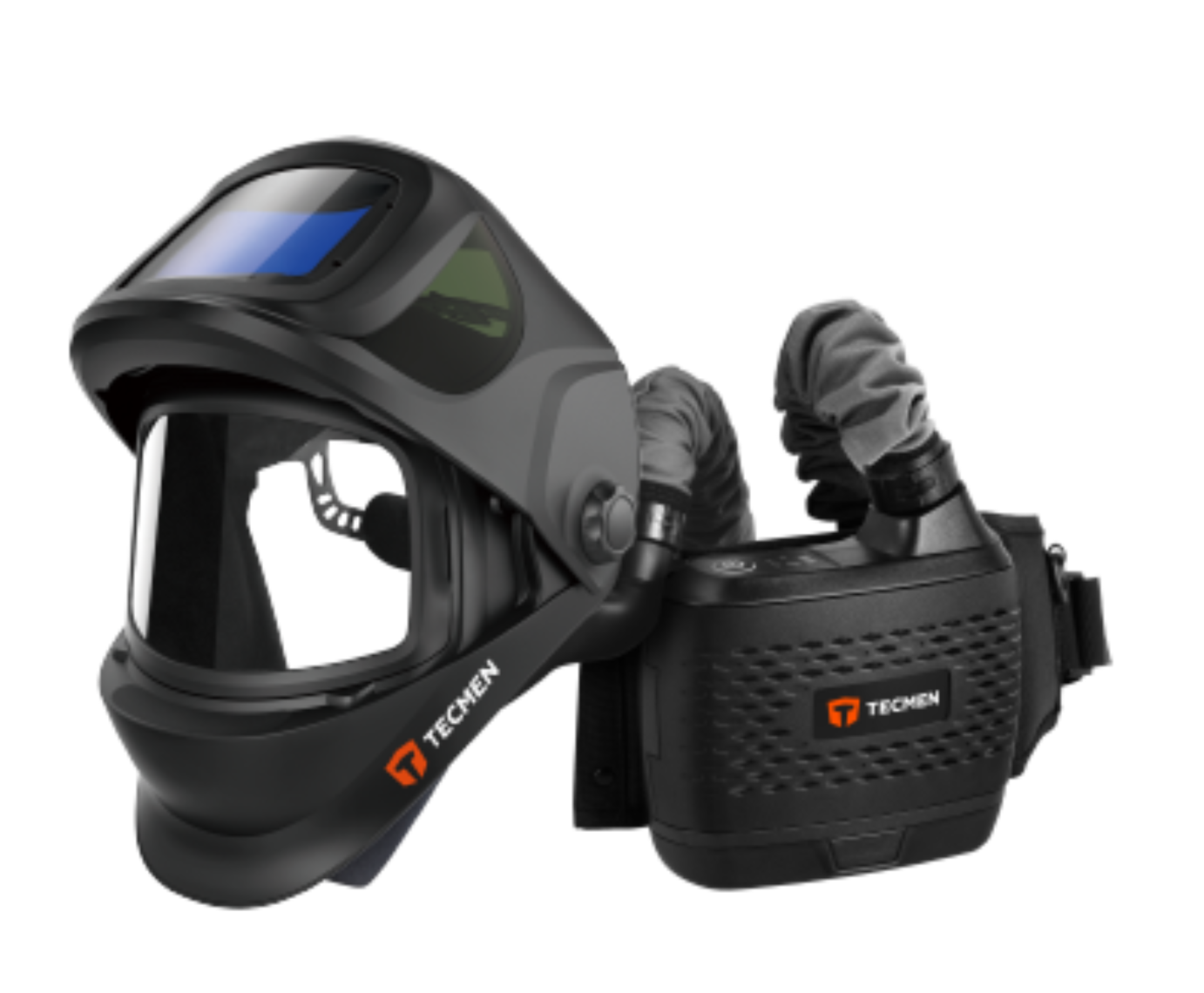

Trusted by Global PAPR Machine OEMs
Our high-static PAPR blowers power leading respiratory protection devices worldwide. (Click image to view in full size)
× ![Zoomed PAPR Device Image]()
PAPR Fan & PAPR Blower - Technical FAQ
Seeking technical clarity on selecting and integrating high-pressure PAPR fans and blowers for respiratory protection? Explore our expert FAQ guide below.
Q1: How do TKFAN PAPR blowers assist OEMs in achieving NIOSH and CE certification?
Our PAPR fans are engineered to deliver stable airflows exceeding 170-230 L/min against high-impedance HEPA filters. Stable airflow curves and spark-free BLDC motors ensure seamless compliance with NIOSH 42 CFR Part 84 and European CE EN 12941/EN 12942 standards.
Q2: Why choose a centrifugal PAPR fan over a traditional axial cooling fan?
A centrifugal PAPR fan intakes air axially and discharges it at a 90-degree angle to generate high static pressure. This static capability is mandatory to force air through dense HEPA filters, whereas a traditional axial fan would stall under high backpressure.
Q3: Can your factory supply intrinsically safe (ATEX/IECEx certified) PAPR blower units?
Yes, TKFAN manufactures intrinsically safe PAPR blower models utilizing spark-free brushless motors and encapsulated electronics, custom-engineered for certified respiratory equipment used in hazardous environments.
Q4: Can TKFAN customize housing dimensions, voltage, or connectors for OEM PAPR fan projects?
Yes, we provide full OEM/ODM customization for all PAPR fan and blower lines. We can adjust wire lengths, attach specified connectors (JST, Molex, Hirose), and modify housing shapes to fit your custom respirator layout.
Q5: Can we request custom PAPR blower samples for prototype testing?
Engineers can request custom PAPR blower prototype samples tailored to your target voltage, dimensions, static pressure, and airflow specifications. Contact our sales engineers to arrange sample delivery.
Q6: What is the typical service lifespan of a TKFAN PAPR fan under industrial operation?
Equipped with dual precision ball bearings and ultra-high-temperature copper windings, each industrial-grade PAPR fan features a continuous operating lifespan rating exceeding 50,000 hours under standard ambient temperature and rated voltage conditions.
Q7: How does Pulse Width Modulation (PWM) control extend PAPR blower battery runtime?
PWM speed regulation enables the main controller to dynamically adjust PAPR blower speed based on filter load or user breathing requirements, optimizing power consumption and significantly lengthening battery shift life.
Q8: What ingress protection (IP) ratings are available for a PAPR fan during decontamination?
We offer customizable IP ratings from IP54 up to IP67 for our PAPR fan models, ensuring internal electronic components remain fully protected against dust ingress and liquid splashes during wipe-downs or washdowns.
Q9: How do low-inertia impellers improve dynamic response in a PAPR blower?
Lightweight, low-inertia polymer impellers reduce rotational mass, enabling a PAPR blower to achieve near-instantaneous acceleration and deceleration to maintain steady positive pressure during active breathing cycles.
Q10: Are dual ball bearings standard across all TKFAN PAPR fan models?
Yes, we exclusively utilize premium dual ball bearings in every high-speed PAPR fan to guarantee reliable multi-axis mounting, lower rotational friction at high RPMs, and higher thermal endurance compared to sleeve bearings.
