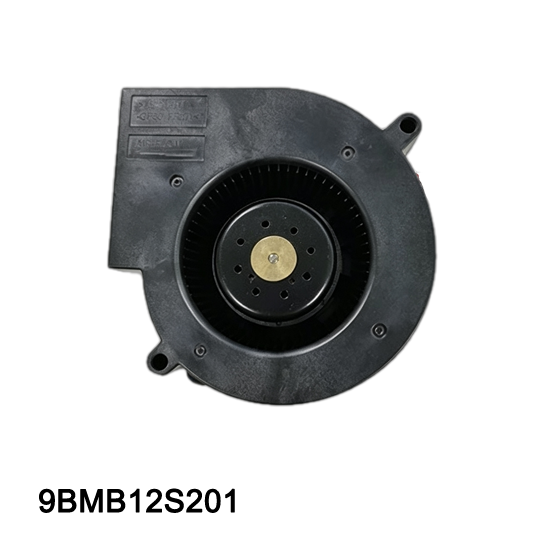

9BMB12S201 air blower
9BMB12S201 air blower

9BMB12S201 air blower

Voltage: DC 12V
Speed: 5250rpm
Current: 1.4A

Request a Sample

Large Airflow & Fast Cooling

This 9BMB12S201 air blower generates steady strong airflow to rapidly cool down electronic and industrial equipment effectively.

Smooth Running & Low Noise

Optimized internal structure reduces vibration greatly, keeping quiet and stable operation during long continuous work.

Sturdy Build & Durable Use

Made of high-quality materials with fine workmanship, it resists wear and maintains consistent performance for prolonged service.

Wide Range of Application

Versatile blower suits equipment heat dissipation, air circulation, household and industrial ventilation scenarios widely.

Technical Specifications

Model9BMB12S201
Size97*33 mm
Operating Voltage12 VDC
Rated Current1.4 Amp
Rated Speed5250 RPM
Maximum Flow Rate43.1 CFM
Maximum Static Pressure610pa

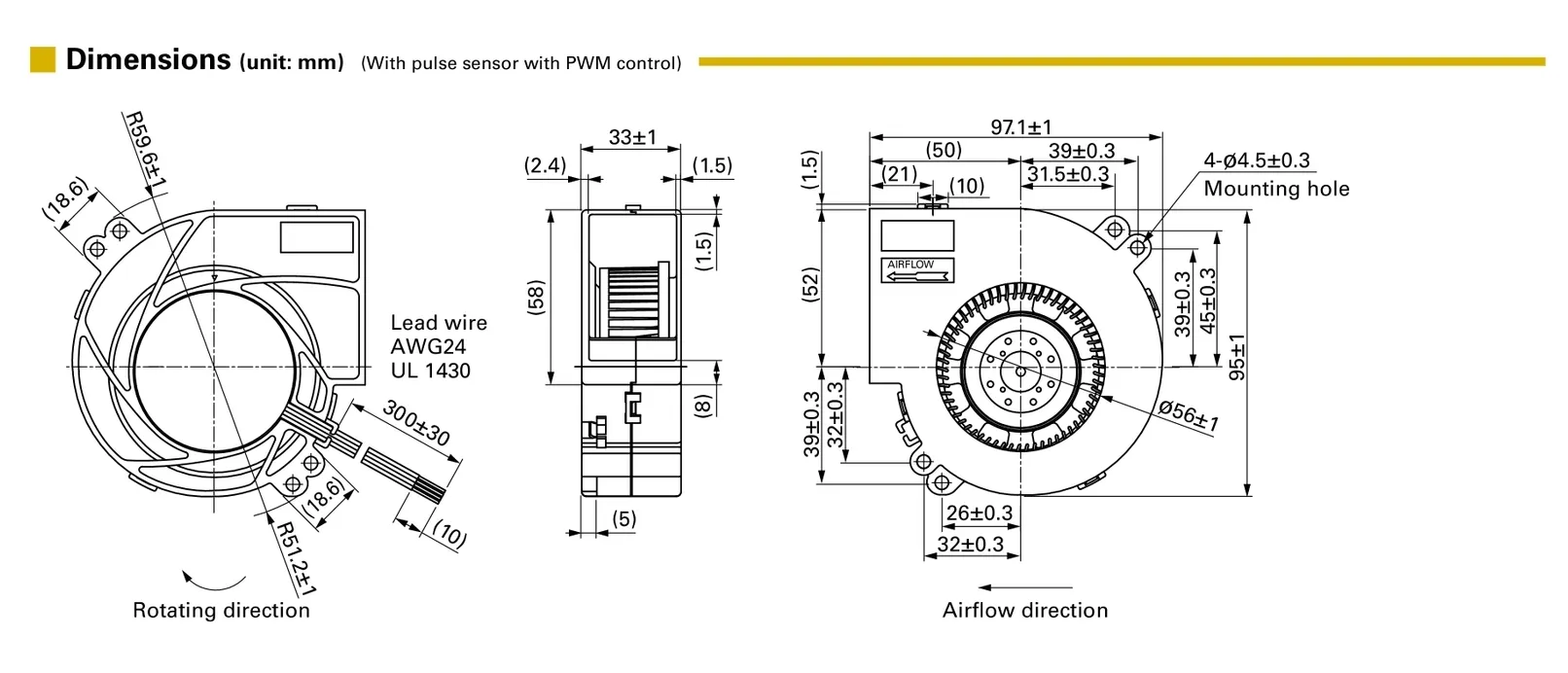

structure drawing of 9BMB12S201 air blower.webp

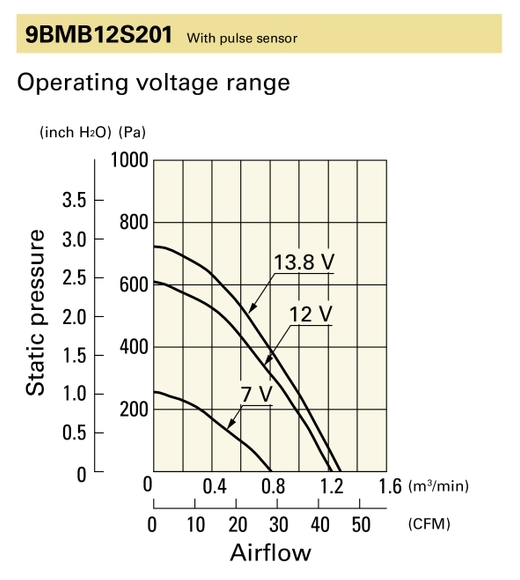

PQ curve for 9BMB12S201 air blower.png




Video Showcase

Need a Custom Modification?

We can customize voltage (5V/12V), wire length, and connectors. Prototypes ready in 48 hours.

Contact Our Engineers
