9BMB12P2G01 air blower
9BMB12P2G01 air blower

9BMB12P2G01 air blower

Voltage: DC 12V
Speed: 5750rpm
Current: 1.8A

Request a Sample

High Static Pressure & Strong Air Delivery

This 12V DC centrifugal air blower features outstanding static pressure and stable airflow output, perfectly meeting heat dissipation demands of high-resistance equipment for efficient cooling performance.

Precise PWM Speed Adjustable Design

Built-in standard PWM speed control function enables flexible speed regulation, intelligently adjusts air volume according to actual temperature, saves power and achieves quiet & energy-saving operation.

Durable Ball Bearing & Long Lifespan

Adopts high-precision double ball bearing structure, stable operation with low wear, supports long-term continuous working, greatly extends service life and reduces later maintenance cost.

Wide Temperature Resistance & Safe Application

Works steadily in wide temperature range, equipped with multiple safety protection functions, compliant with international environmental and safety standards, reliable for medical, industrial, server and household cooling scenes.

Technical Specifications

Model9BMB12P2G01
Size97*33 mm
Operating Voltage12 VDC
Rated Current1.8 Amp
Rated Speed5750 RPM
Maximum Flow Rate47.3 CFM
Maximum Static Pressure760pa

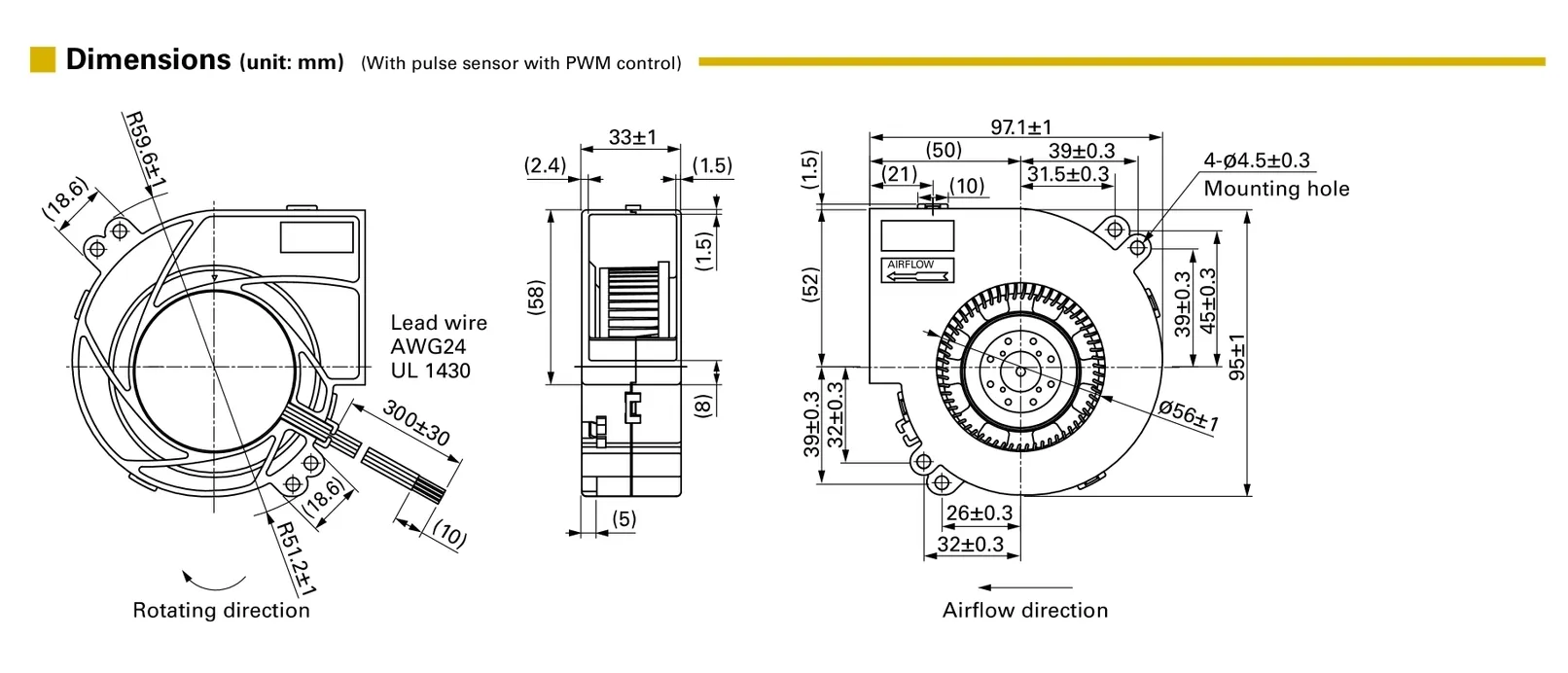

structure drawing of 9BMB12P2G01 air blower.webp

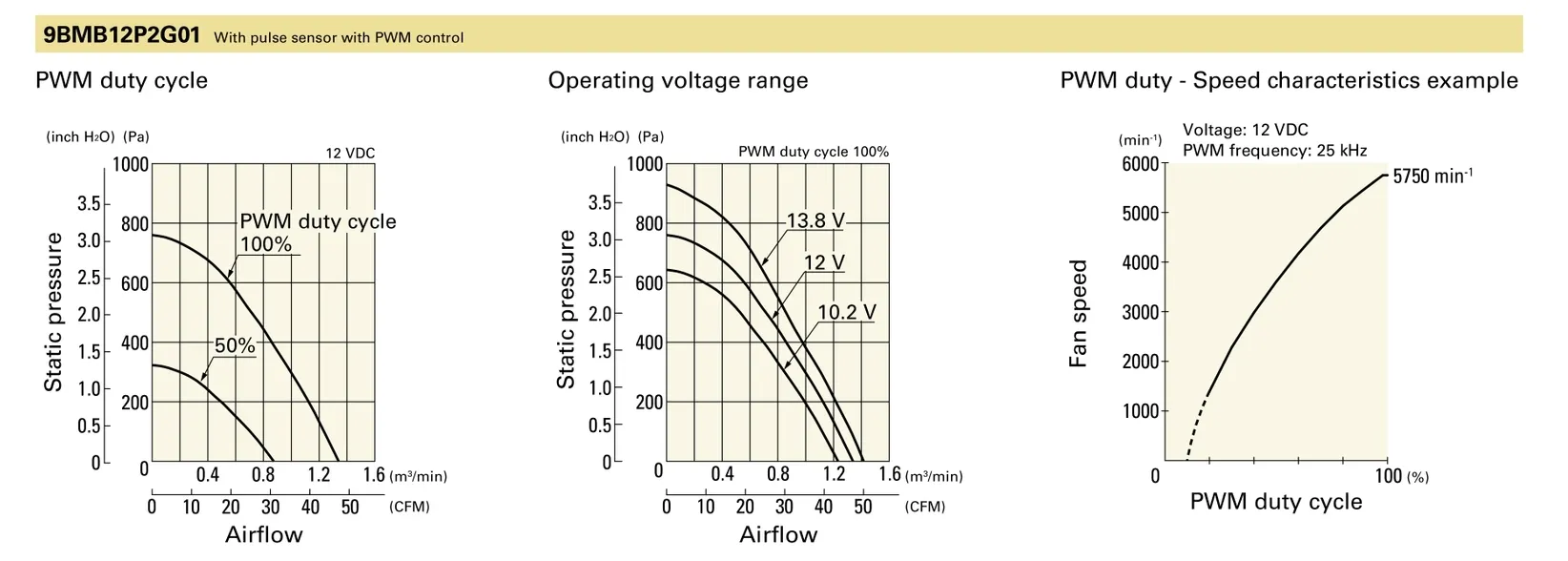

PQ curve for 9BMB12P2G01 air blower.webp




Video Showcase

Need a Custom Modification?

We can customize voltage (5V/12V), wire length, and connectors. Prototypes ready in 48 hours.

Contact Our Engineers
