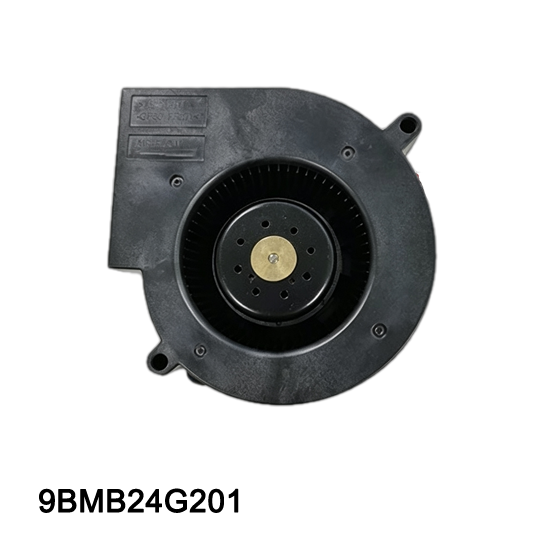

9BMB24G201 air blower
9BMB24G201 air blower

9BMB24G201 air blower

Voltage: DC 24V
Speed: 5750rpm
Current: 0.83A

Request a Sample

High Air Volume & Efficient Heat Removal

This 9BMB24G201 air blower produces abundant airflow to rapidly dissipate accumulated heat and safeguard normal equipment operation.

Reinforced Body & Outstanding Stability

Solid structural design enhances compression resistance, maintaining steady working state even under heavy load operating conditions.

Low Vibration & Silent Operation

Well-tuned internal parts minimize running noise and vibration, creating quiet working surroundings for long time application.

Quality Build & Extended Service Life

Made of robust raw materials with fine processing, the blower features great durability and less failure rate in daily usage.

Technical Specifications

Model9BMB24G201
Size97*33 mm
Operating Voltage24 VDC
Rated Current0.83 Amp
Rated Speed5750 RPM
Maximum Flow Rate47.3 CFM
Maximum Static Pressure760pa

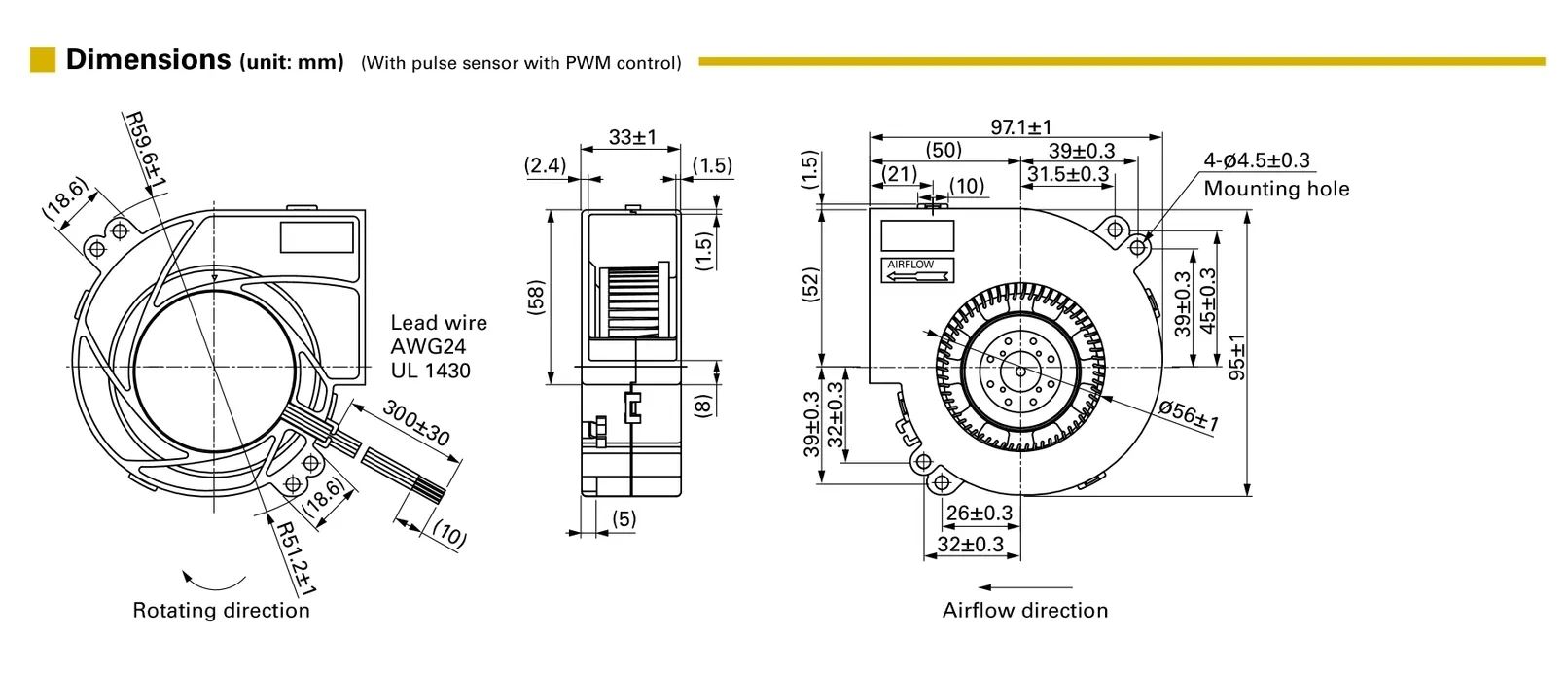

structure drawing of 9BMB24G201 air blower.webp

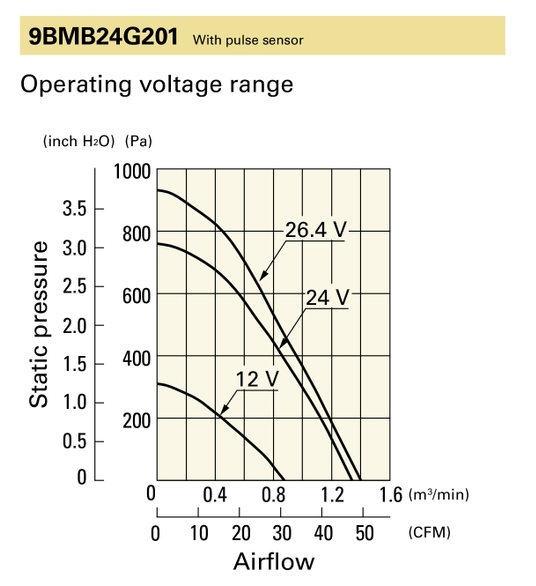

PQ curve for 9BMB24G201 air blower.png




Video Showcase

Need a Custom Modification?

We can customize voltage (5V/12V), wire length, and connectors. Prototypes ready in 48 hours.

Contact Our Engineers
