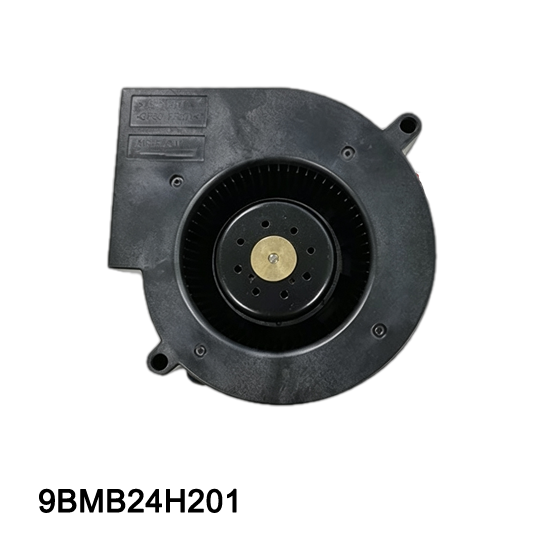

9BMB24H201 high speed DC blower air fan
Voltage: DC 24V
Speed: 4850rpm
Current: 0.55A
Request a Sample

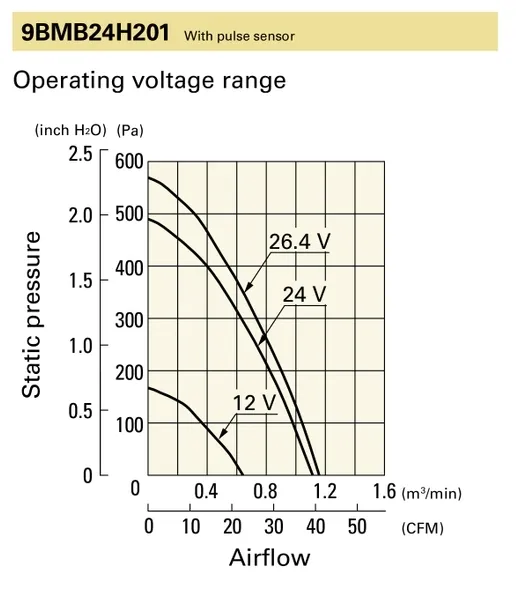

Strong Static Pressure Air Supply
Compact 97×33mm structure provides powerful 490Pa static pressure and large airflow up to 1.11m³/min, perfectly serving high-resistance ventilation and heat dissipation use.
Wide Voltage Stable Performance
Supports DC 12V-26.4V wide voltage input, runs steadily with low power consumption and stable current even under unstable power supply conditions.
Ultra Long Service Lifespan
Adopts premium ball bearing structure, durable enough to work tens of thousands of hours, and adapts to wide temperature range for long-term continuous operation.
Safe & Easy Installation Design
Built-in multiple circuit protection functions, fully compliant with international safety and environmental standards, lightweight body enables quick and convenient mounting.
Technical Specifications
Video Showcase
Applications
Need a Custom Modification?
We can customize voltage (5V/12V), wire length, and connectors. Prototypes ready in 48 hours.
