9BMB12P2K01 air blower
9BMB12P2K01 air blower

9BMB12P2K01 air blower

Voltage: DC 12V
Speed: 6850rpm
Current: 3.4A

Request a Sample

High Static Pressure Strong Airflow

This 12V DC turbo blower delivers powerful static pressure and large air volume with stable rotating speed, achieving excellent heat dissipation effect for high-resistance industrial and electronic equipment.

Precise PWM Speed Regulation

Equipped with professional PWM speed control function, it supports flexible speed adjustment to match different cooling demands, effectively saving power consumption and realizing intelligent temperature control operation.

Compact Size Easy Installation

Standard 97mm compact structure with lightweight design and reserved mounting holes, convenient to install and wire, widely compatible with various mainstream mechanical and electrical equipment.

Low Noise & Full Certifications

Features low operating noise, complies with RoHS environmental standards and passes multiple international safety certifications, safe, eco-friendly and suitable for commercial, medical and household application scenarios.

Technical Specifications

Model9BMB12P2K01
Size97*33 mm
Operating Voltage12 VDC
Rated Current3.4 Amp
Rated Speed6850 RPM
Maximum Flow Rate56.8 CFM
Maximum Static Pressure1280pa

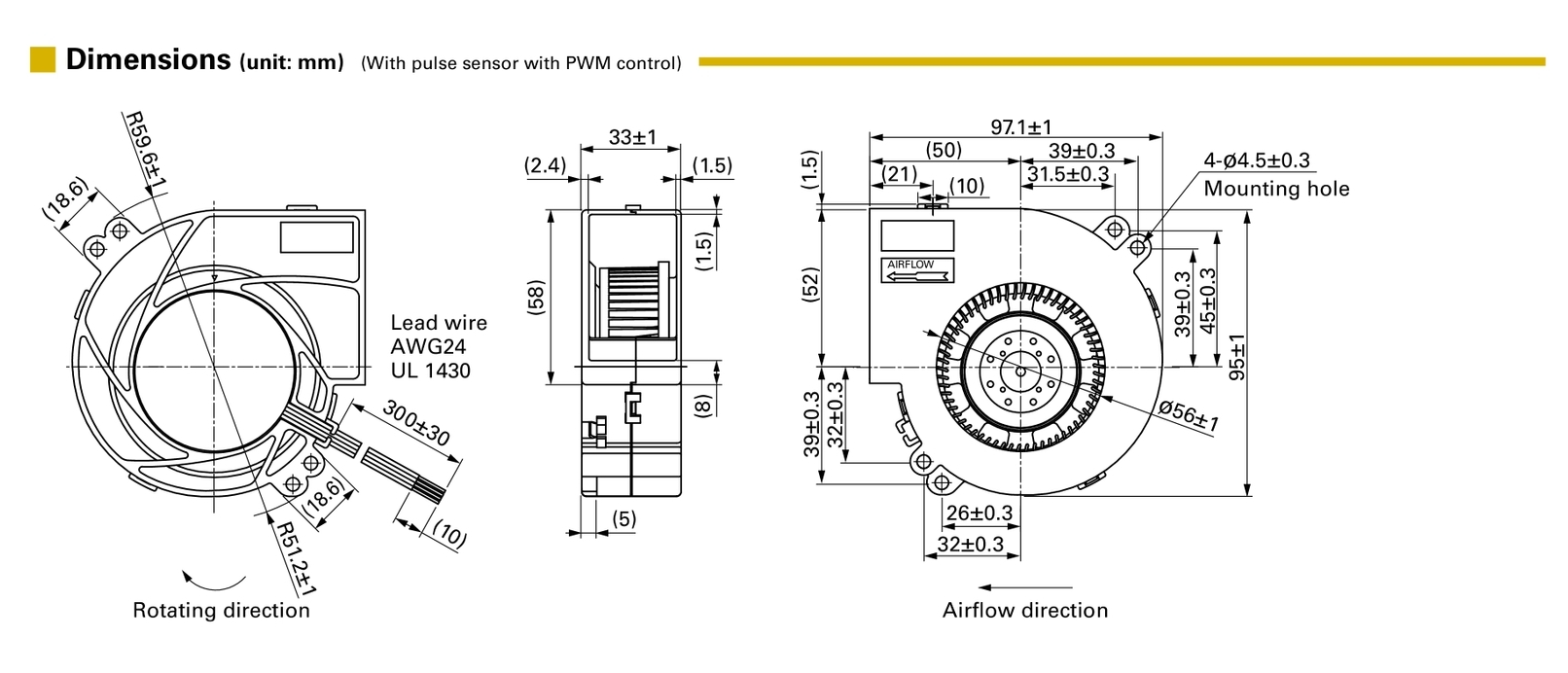

structure drawing of 9BMB12P2K01 air blower.png

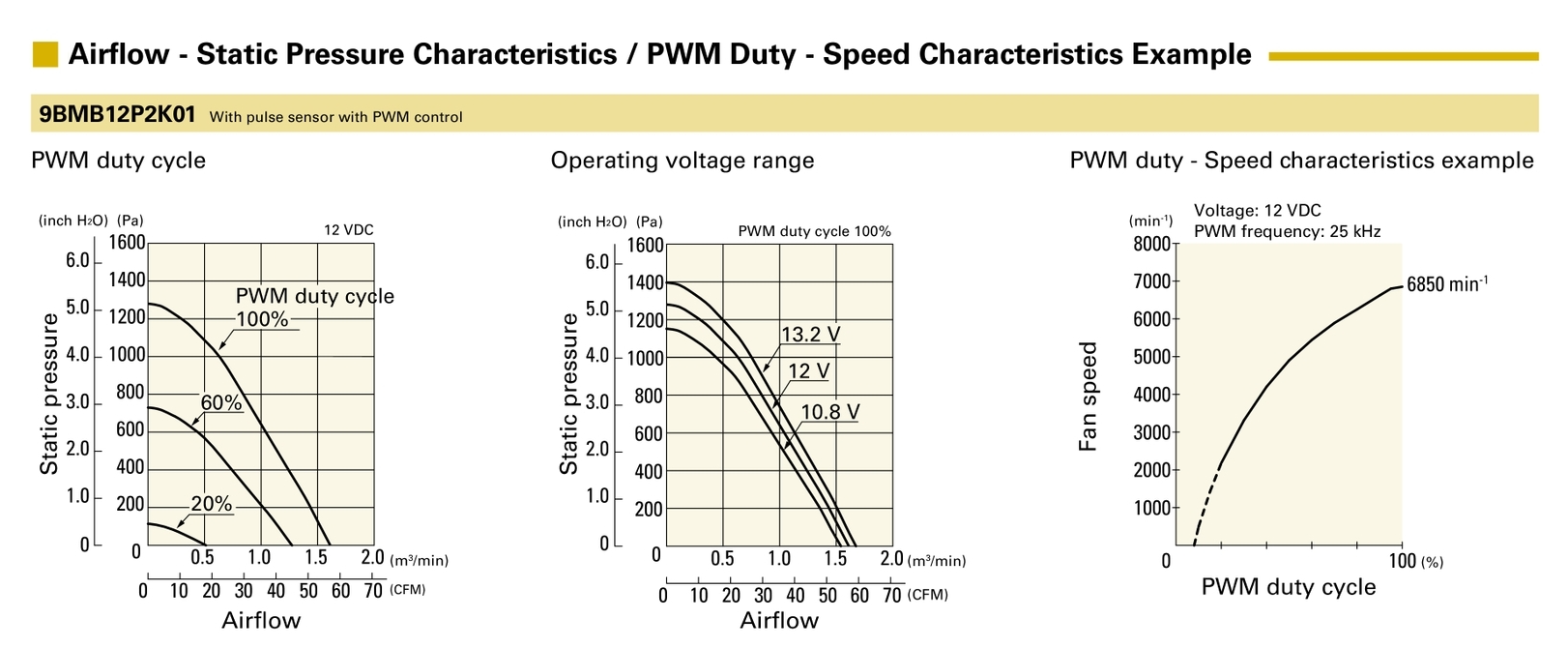

PQ curve for 9BMB12P2K01 air blower.png




Video Showcase

Need a Custom Modification?

We can customize voltage (5V/12V), wire length, and connectors. Prototypes ready in 48 hours.

Contact Our Engineers
