The core function of an air cushion machine—encompassing both desktop-style inflators and industrial-grade high-speed inflation systems—is to provide a rapid, stable, and continuous airflow for packaging air cushions and pillows. As the central component responsible for generating air pressure, the performance of the inflation blower directly determines the quality of the seal, the inflation saturation level, and overall production efficiency. In industrial packaging environments, equipment frequently faces challenges such as prolonged continuous operation, exposure to environmental dust, and frequent start-stop cycles. Consequently, the blower must possess exceptional dynamic response speed, heat dissipation capabilities, and structural durability to ensure the smooth operation of the packaging line and extend the service life of the equipment.
For the air cushion packaging sector, there are currently two primary blower application solutions:
High-Speed Integrated Inflation Solution:This approach utilizes compact Brushless DC (BLDC) centrifugal blowers, harnessing the kinetic energy generated by their high rotational speeds to achieve instantaneous inflation. These blowers are typically integrated into small, portable air cushion machines; they support millisecond-level start-stop logic and can precisely adjust airflow volume based on varying film thicknesses, ensuring that every air bubble bag reaches its ideal inflation pressure without rupturing.
Industrial-Grade High-Volume Continuous Flow Solution: Designed for integrated production lines or multi-unit air supply systems, this solution employs high-power, high-pressure-resistant industrial-grade blowers. This approach focuses on addressing thermal stability issues; by optimizing airflow channel designs and heat dissipation structures, it supports 24-hour uninterrupted operation, thereby preventing system downtime caused by motor overheating.

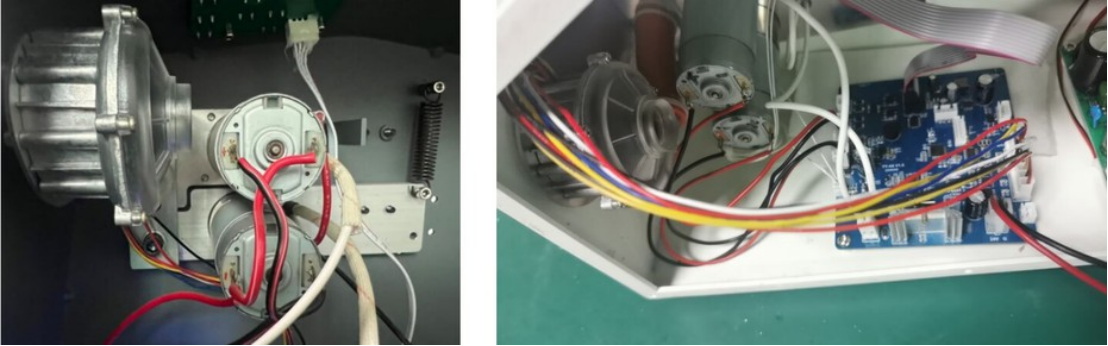

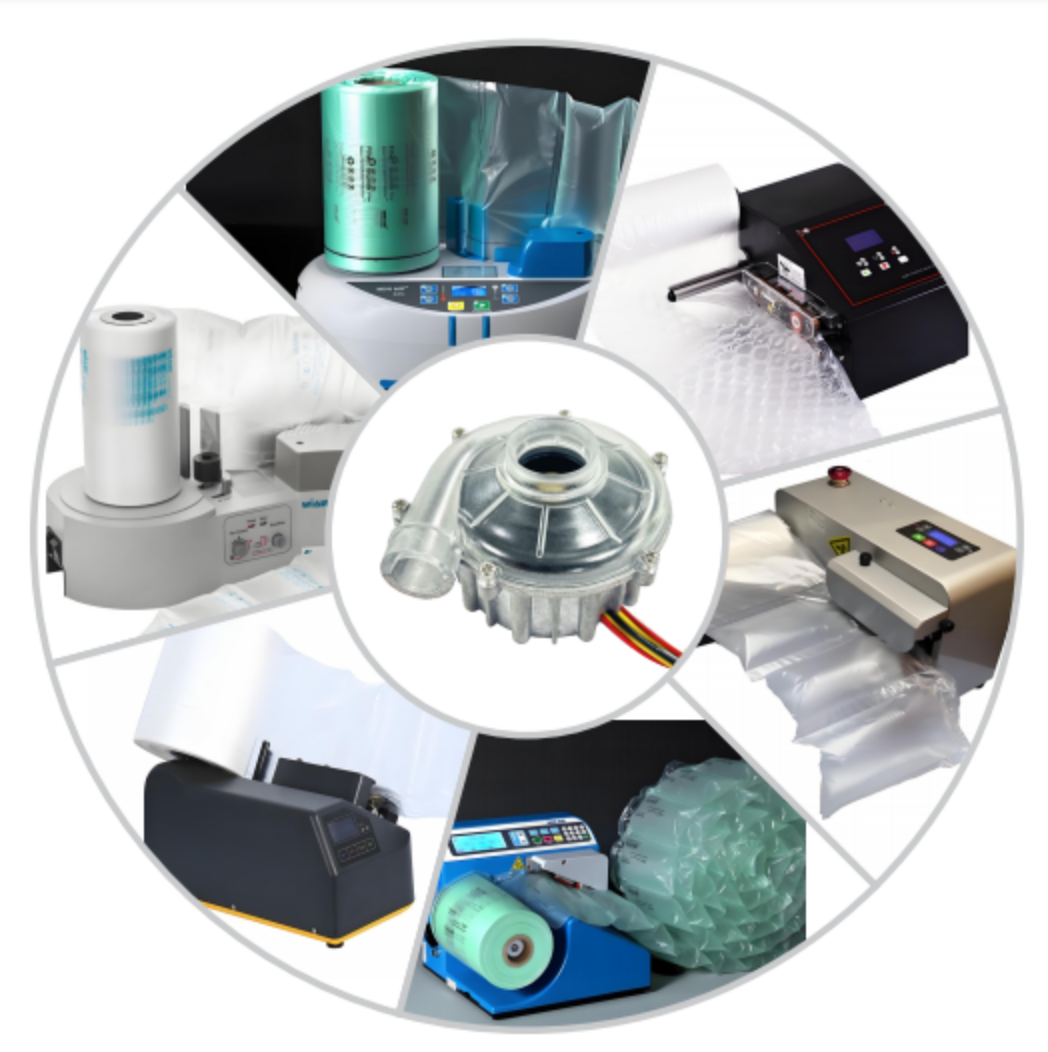

Our company manufactures two blower models specifically designed for air cushion machines, covering a wide range of application scenarios—from e-commerce packaging to large-scale logistics and warehousing operations. We offer products in various specifications to meet the compatibility requirements of diverse air packaging equipment (such as air cushion pillow machines and air column bag machines).

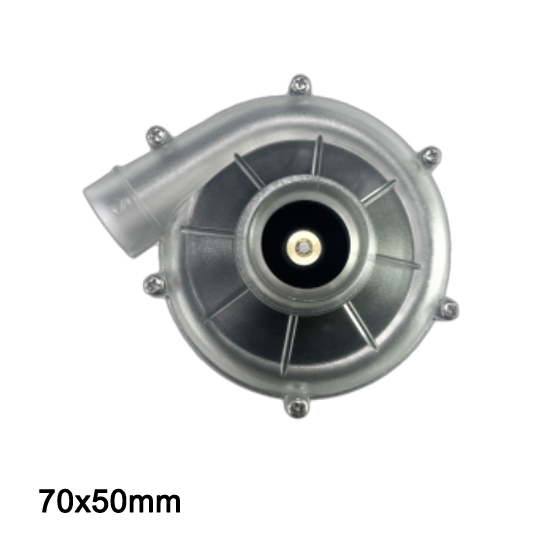

Small Air Cushion Machine Blower (Approx. 60–70 mm): Suitable for desktop-style portable inflators, providing an adjustable air pressure of 4–6 kPa. Its compact design facilitates seamless integration into small equipment housings, enabling a single unit to achieve a production speed of 8–15 meters per minute.

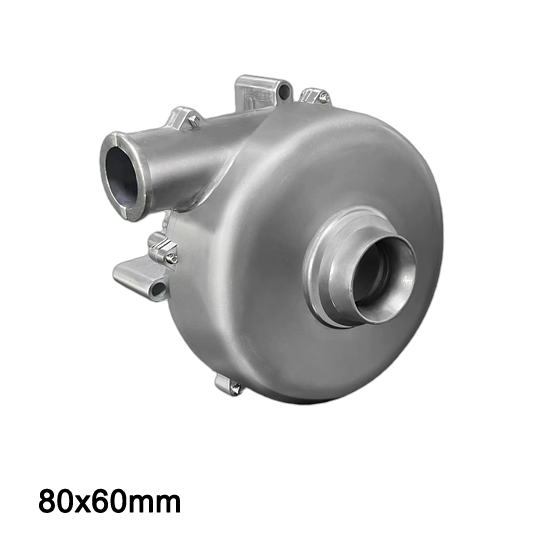

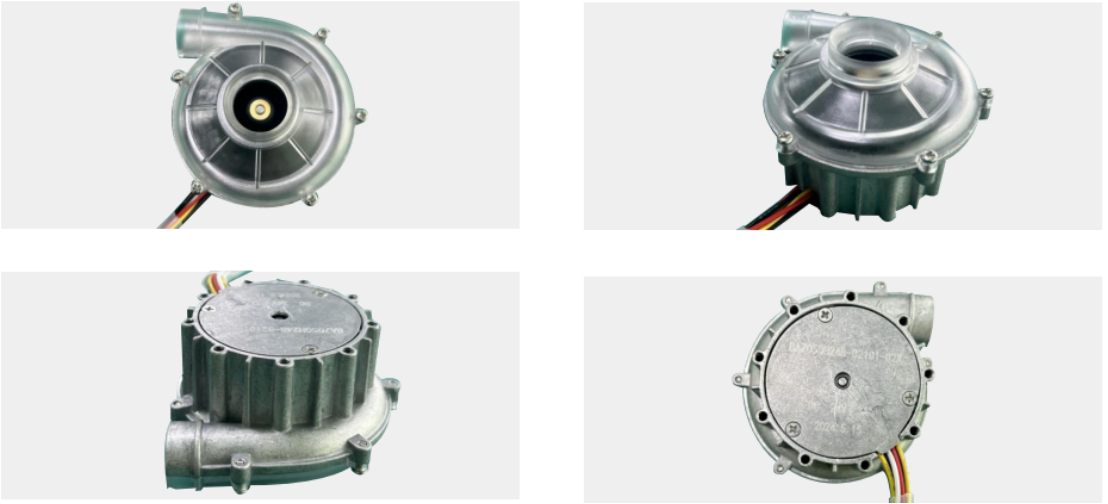

Heavy-Duty Industrial Inflation Blower (Approx. 85–110 mm): Suitable for high-speed production lines, providing significantly higher air pressure and airflow volume. This fan series features reinforced bearings and an optimized impeller design, effectively balancing the need for quiet operation with stable air pressure output under high-intensity working conditions.
Key Technical Specifications:
Environmental Durability: Achieves a minimum protection rating of IP42, preventing fine fibers and dust from the packaging workshop environment from entering the motor interior, thereby ensuring long-term, stable operation.
Voltage Compatibility: Standard operating voltages are 12V or 24V DC; a wide voltage range (10–28V) ensures compatibility with the switching power supply standards of various countries and regions.
Operating Temperature: Capable of normal operation within an ambient temperature range of -10°C to 60°C, while maintaining undiminished performance during frequent start-stop cycles.
Intelligent Control: Integrates a BLDC driver with PWM speed control support, allowing for real-time adjustment of air pressure based on film material and thickness, and features a rotor lock protection function.
Regulatory Compliance: Core components hold CE and RoHS certifications, complying with safety standards for packaging machinery as well as electromagnetic compatibility requirements.
Priority should be given to fans featuring high air pressure, rapid start-stop capabilities, and a 24V BLDC centrifugal design. It is essential to ensure they possess comprehensive drive protection and long-life characteristics to guarantee the stable, efficient, and safe operation of inflatable packaging equipment.
We offer customization services from wire length to full mold design. Get a prototype in 48 hours.
