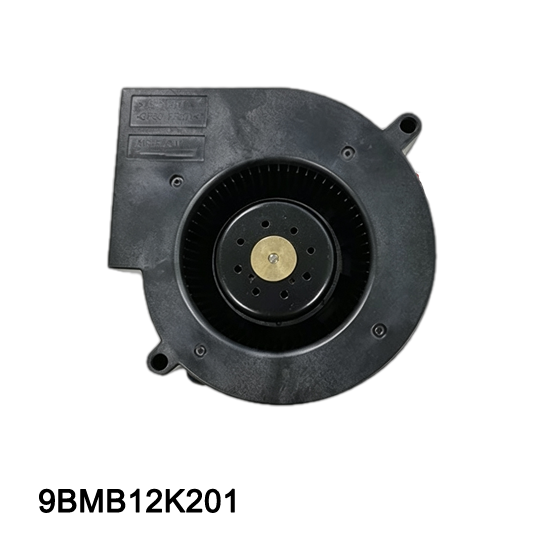

9BMB12K201 air blower
9BMB12K201 air blower

9BMB12K201 air blower

Voltage: DC 12V
Speed: 6850rpm
Current: 3.4A

Request a Sample

High Airflow & Fast Heat Dissipation

This 9BMB12K201 air blower delivers powerful airflow to rapidly exhaust heat and maintain ideal operating temperature for electronic devices.

Compact Mini Size for Easy Installation

Space-saving compact structure fits narrow equipment interiors, enabling simple mounting and flexible assembly in various slim devices.

Stable Low Noise Operation

Precision manufacturing reduces vibration effectively, ensuring quiet and steady running even under long continuous working conditions.

Wide Compatibility & Versatile Use

Suitable for industrial cooling, household ventilation, medical equipment and multiple electronic heat dissipation applications.

Technical Specifications

Model9BMB12K201
Size97*33 mm
Operating Voltage12 VDC
Rated Current3.4 Amp
Rated Speed6850 RPM
Maximum Flow Rate56.8 CFM
Maximum Static Pressure1280pa

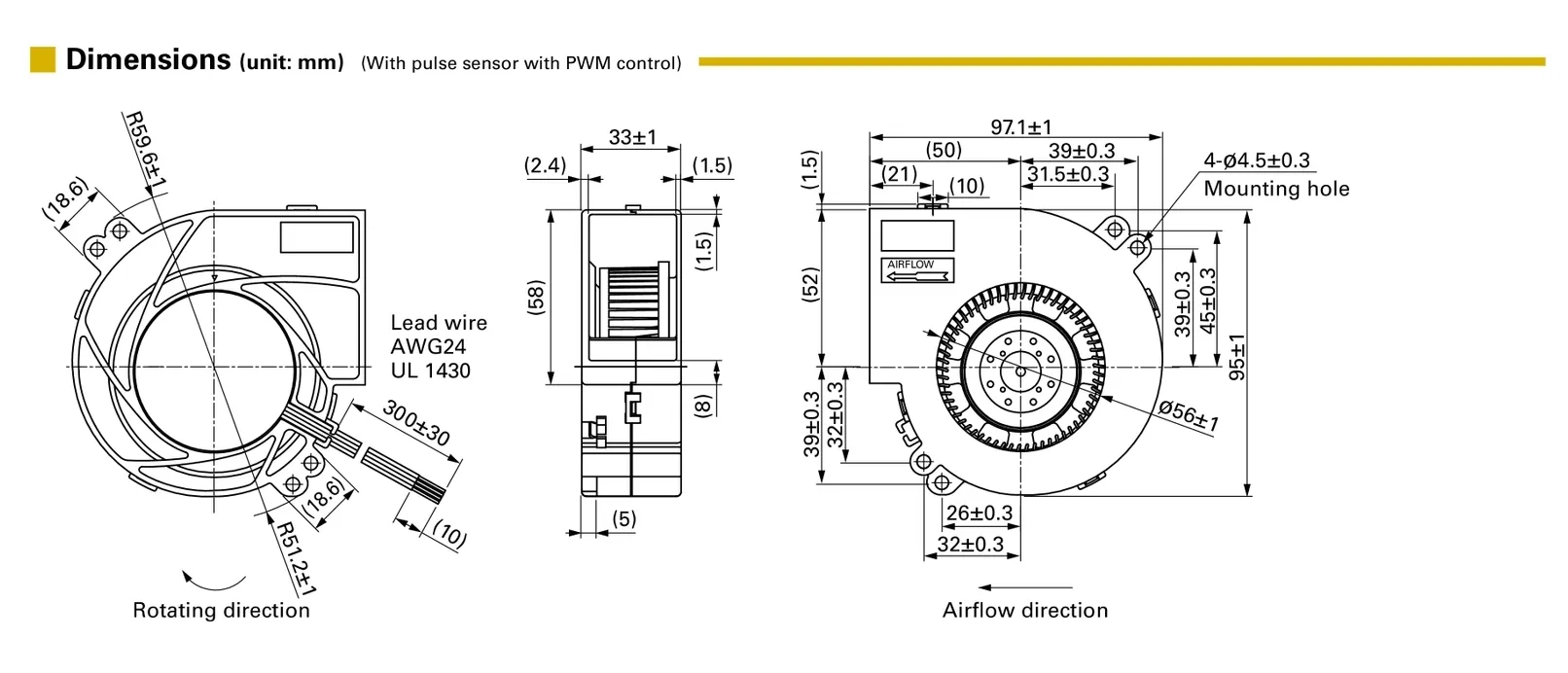

structure drawing of 9BMB12K201 air blower.webp

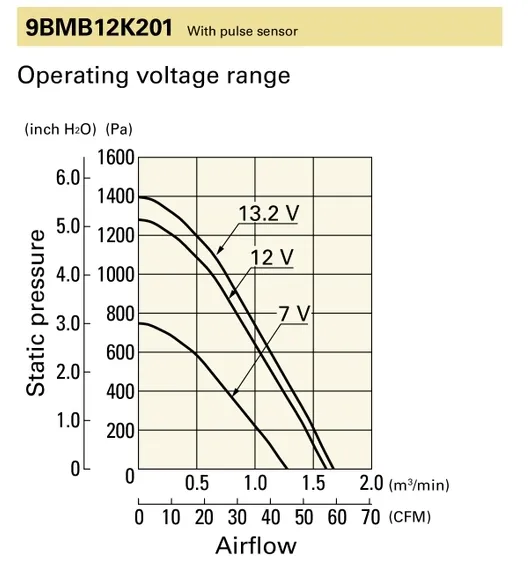

PQ curve for 9BMB12K201 air blower.webp




Video Showcase

Need a Custom Modification?

We can customize voltage (5V/12V), wire length, and connectors. Prototypes ready in 48 hours.
