9BMB12P2H01 air blower
9BMB12P2H01 air blower

9BMB12P2H01 air blower

Voltage: DC 12V
Speed: 4850rpm
Current: 1.1A

Request a Sample

9BMB12P2H01 High Static Pressure DC Air Blower

This 12V PWM blower delivers strong wind pressure and stable airflow, offering efficient heat dissipation and reliable running performance for industrial and server cooling systems.

9BMB12P2H01 Industrial Cooling Blower Fan

Standard 97x33mm compact size with durable internal structure supports long continuous operation, suitable for diverse electronic equipment installation and daily heat removal work.

9BMB12P2H01 PWM Adjustable Speed Air Blower

Equipped with pulse feedback function and flexible speed control, this high airflow fan realizes intelligent temperature management and adapts to complex working environment demands.

Long Lifespan 9BMB12P2H01 Cooling Blower

Wear-resistant and heat-resistant design ensures steady operation under heavy load, effectively lowering maintenance frequency and extending service life of cooling devices.

Technical Specifications

Model9BMB12P2H01
Size97*33 mm
Operating Voltage12 VDC
Rated Current1.1 Amp
Rated Speed4850 RPM
Maximum Flow Rate39.2 CFM
Maximum Static Pressure490pa

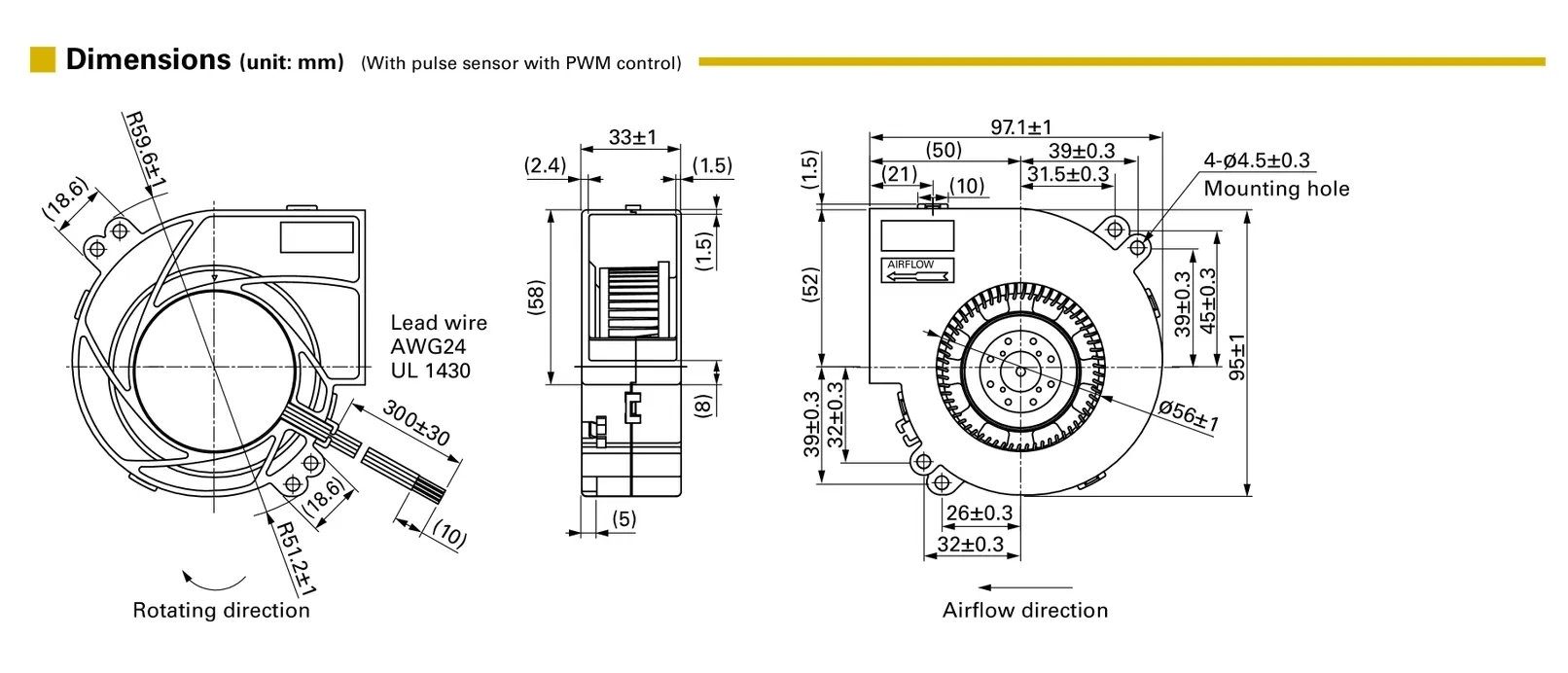

structure drawing of 9BMB12P2H01 air blower.webp

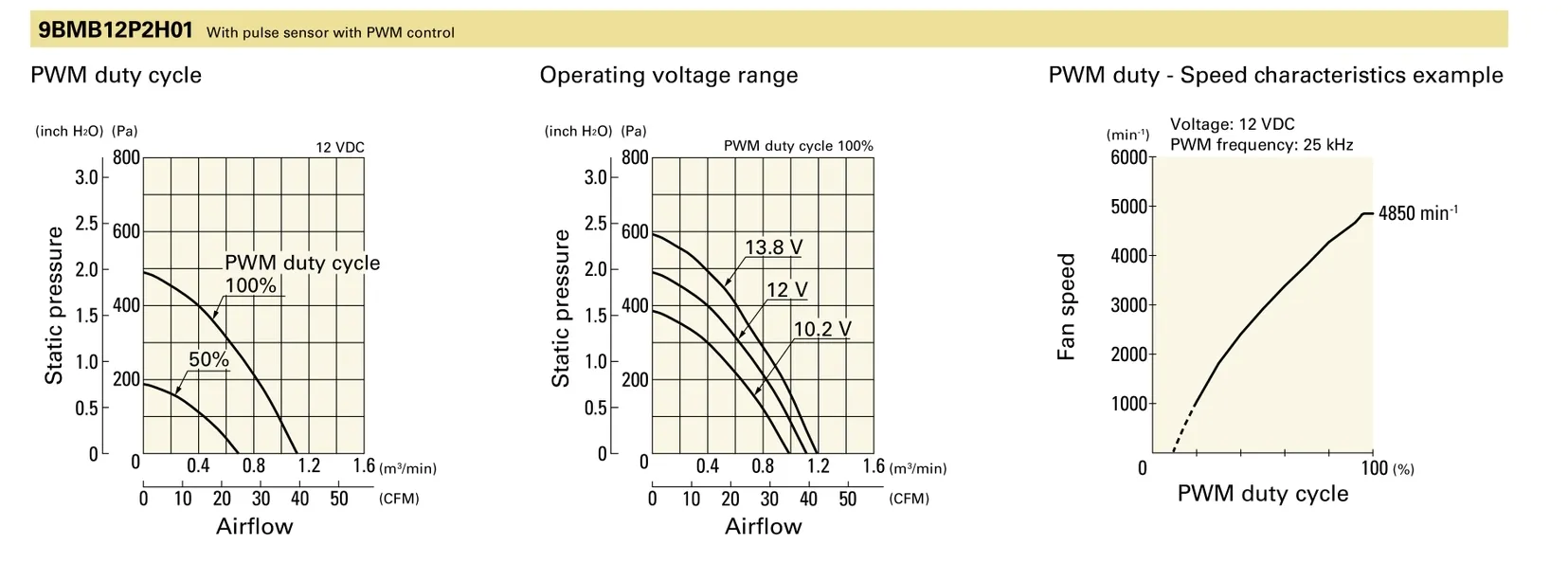

PQ curve for 9BMB12P2H01air blower.webp




Video Showcase

Need a Custom Modification?

We can customize voltage (5V/12V), wire length, and connectors. Prototypes ready in 48 hours.

Contact Our Engineers
