Cooling Fan for Charger | High-Efficiency DC Fans Manufacturer
Introducing TKFAN’s specialized cooling fan series for chargers, engineered to deliver exceptional thermal management for EV charging piles, industrial battery chargers, and high-power supply units. Built to sustain continuous airflow under high backpressure, this high-performance brushless DC fan combines superior electrical efficiency with advanced motor protection to prevent thermal throttling, extend charger service life, and ensure safe 24/7 continuous operation.

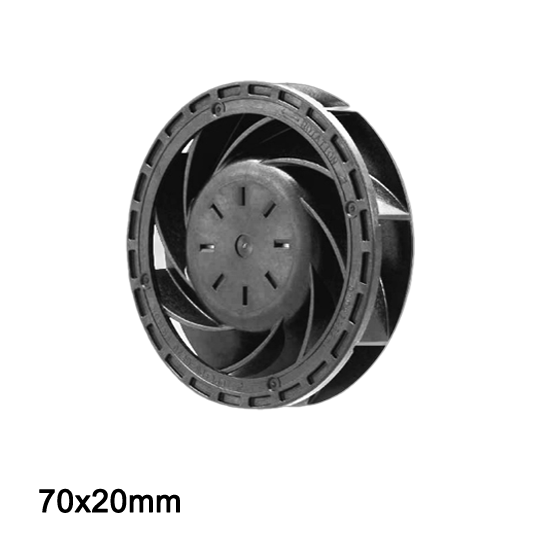

 .png "TKFAN Cooling fan for charger CA7020H12B-A (Direct Replacement for SANYO Denki 9TD12P6G001 9TD12P6G) .png")
Cooling Fan for Charger Selection Guide
Compare key operational parameters including input voltage, dimensions, rotational speed, and static pressure to select the ideal cooling fan for your EV charging stations and battery management systems.
| Model / Series | Dimensions | Voltage (V) | Direct Replacement For |
|---|---|---|---|
| CA7020H12B-A | 70x20mm | 12V | SANYO Denki 9TD12P6G001 / 9TD12P6G |
Engineered Thermal Management: How TKFAN Cooling Fans Protect EV Chargers and Power Station Infrastructure
In the rapidly expanding electric mobility and renewable energy sectors, electric vehicle (EV) charging piles, high-rate battery chargers, and power conversion units face continuous thermal stress. Rapid energy transfer inherently produces intense resistive heating within compact transformer housings, power MOSFETs, and power modules. Uncontrolled heat build-up triggers thermal throttling, reduces electrical efficiency, and accelerates component degradation. Installing a heavy-duty Cooling Fan for Charger systems ensures continuous thermal equilibrium, protecting high-power charging units under peak operating conditions.
Specially designed for demanding electrical power setups, TKFAN's high-efficiency Cooling Fan for Charger range—such as the CA7020H12B-A model—delivers focused volumetric airflow with elevated static pressure to penetrate high-impedance internal assemblies. Engineered as a pin-to-pin direct replacement for industry-standard units like the SANYO Denki 9TD12P6G001 and 9TD12P6G, these compact 70x20mm centrifugal blowers and DC axial fans feature precision-balanced impellers and rugged brushless motors. They dissipate thermal loads effectively while maintaining low acoustic output and minimal electrical noise.
Optimized Thermal Architecture: Value Delivered by Advanced Charger Cooling Fans
1. Continuous High-Power Fast Charging Protection
Integrated with high-torque motor drivers and optimized impeller aerodynamics, TKFAN charger fans prevent localized heat stagnation during peak DC fast-charging cycles. This guarantees stable current output and prevents premature system shutdown triggered by over-temperature sensors.
2. Seamless OEM & Aftermarket Replacement
Our charger fan series is built to standard dimensional and mounting specifications (e.g., 70x20mm compact footprints), serving as direct replacements for legacy components like the SANYO Denki 9TD12P6G series with full mechanical and electrical compatibility.
Engineering Excellence and Key Features of TKFAN Charger Cooling Fans
TKFAN designs and manufactures a specialized portfolio of industrial-grade Cooling Fans for Chargers engineered to withstand 24/7 continuous operation in challenging indoor and outdoor installation sites:
- High-Reliability Dual Ball Bearings: Built with premium Japanese dual ball bearing assemblies, ensuring an operational lifespan of over 70,000 hours at high operating temperatures, independent of mounting orientation.
- Optional IP54 / IP68 Ingress Protection: Vacuum-encapsulated motor windings isolate internal electronics from dust, moisture, and corrosive atmospheric pollutants typical of outdoor EV charging locations.
- Intelligent Speed Control (PWM & Tachometer Output): Supports Pulse-Width Modulation (PWM) for real-time temperature-based speed control, alongside Tachometer (FG) signal monitoring to optimize energy consumption and acoustic performance.
- Built-In Circuit Protection Safeguards: Standard features include Locked-Rotor Auto-Restart Protection, Reverse Polarity Protection, and Over-Voltage Protection to guard against electrical anomalies in industrial environments.
- Low Noise and Dynamic Balance Tuning: Precision 3D dynamic balancing minimizes vibration transmission into power enclosures, prolonging mechanical durability and keeping acoustic noise within acceptable levels.
Cooling Fan for Charger — Technical & Application FAQ
Find expert answers regarding fan selection, replacement compatibility, environmental protection ratings, and custom cooling solutions for industrial chargers, EV stations, and power supply hardware.
Q1: Why is a specialized cooling fan critical for high-power battery chargers and EV charging piles?
High-power battery chargers generate substantial internal heat during energy conversion. Without effective forced-air cooling, elevated temperatures cause thermal throttling, lower charging efficiency, and risk permanent damage to sensitive power electronics. A specialized Cooling Fan for Charger delivers consistent, high-static airflow to dissipate concentrated heat loads and maintain safe continuous operation.
Q2: Is the TKFAN CA7020H12B-A model a direct replacement for SANYO Denki 9TD12P6G001 / 9TD12P6G fans?
Yes. The TKFAN CA7020H12B-A is engineered as a direct replacement for SANYO Denki 9TD12P6G001 and 9TD12P6G models. It matches the original physical dimensions (70x20mm), voltage requirements (12V DC), mounting holes, and electrical interface specifications, making it a drop-in alternative for both OEM production and field maintenance.
Q3: What ingress protection (IP rating) options are available for charger cooling fans used outdoors?
For outdoor EV charging piles and exposed industrial equipment, TKFAN offers optional IP54 and true IP68 waterproof/dustproof protection. The motor stator and PCB are fully encapsulated with a protective potting resin, shielding internal components from rain, high humidity, airborne dust, and chemical contaminants.
Q4: What frame sizes and voltages are available in the charger cooling fan series?
In addition to the compact 70x20mm centrifugal blower series, TKFAN produces charger cooling fans in various standard frame sizes (e.g., 60mm, 80mm, 92mm, 120mm) and input voltage options including 12V DC, 24V DC, and 48V DC to match different power supply architectures.
Q5: How does PWM speed control benefit industrial charger thermal design?
Integrated PWM control allows the charger’s main controller to dynamically adjust fan speed based on actual temperature readings. During low-power charging or low ambient temperatures, the fan operates at lower speeds to conserve energy and reduce acoustic noise, ramping up to full speed only when heat output increases.
Q6: What bearing system is recommended for 24/7 continuous charger operation?
Dual ball bearing systems are strongly recommended for industrial and commercial charging applications. Dual ball bearings provide superior resistance to elevated operating temperatures, handle continuous high-RPM rotation, and offer an expected operating lifespan of up to 70,000 hours ($L_{10}$ rating at $40^\circ\text{C}$).
Q7: How do centrifugal blowers compare to standard axial fans in compact charger enclosures?
Centrifugal blowers (such as the 70x20mm blower type) intake air axially and discharge it at a 90-degree angle. This configuration generates higher static pressure, making blowers ideal for narrow, densely packed charger enclosures where air must be driven through tight internal paths and high-resistance heat sinks.
Q8: Can TKFAN customize harness lengths, connector types, and tachometer signals for OEM orders?
Yes. TKFAN provides full OEM/ODM customization services. Procurement and engineering teams can specify custom wire lengths, terminal connector brands (e.g., JST, Molex, Hirose), lead-wire insulation, and custom signal outputs (FG tachometer or RD alarm signals) to match existing system wiring harnesses.
Q9: What built-in safety protections prevent fan failure from damaging the charger?
TKFAN charger fans feature automatic locked-rotor restart protection. If an obstruction stops the impeller, the drive circuit automatically cuts power to prevent coil overheating, attempting periodic restarts once the blockage is cleared. Reverse polarity protection is also integrated to prevent circuit damage from accidental wiring errors during installation.
Q10: How can B2B procurement managers request samples and engineering data?
Engineering and procurement teams can request product samples, 3D CAD files, and technical datasheets directly through our official global website at www.tkfan.com. Our application engineers provide direct support for fan selection, thermal simulations, and custom prototyping.
Partner with TKFAN for Reliable Industrial Charger Thermal Solutions
Securing stable, long-term thermal performance for charging infrastructure requires proven engineering, consistent manufacturing quality, and strict testing standards. As a trusted partner for global power supply and EV charging manufacturers, TKFAN (www.tkfan.com) delivers factory-direct cooling solutions backed by comprehensive ISO-certified quality control. Contact our technical sales team today to discuss your cooling requirements, request engineering samples, or explore drop-in replacement solutions for your charging equipment.
