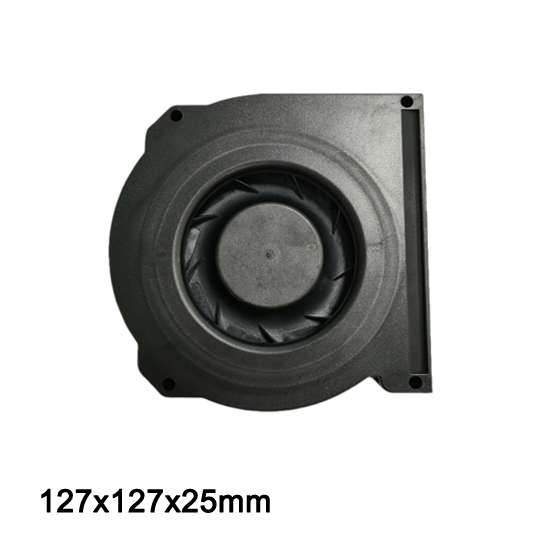

48V Air Blower for Industrial & Telecom Cooling Systems
Introducing TKFAN’s premium 48V DC brushless blower series, engineered for high-voltage industrial systems, telecom infrastructure thermal management, and heavy-duty forced-air cooling. Optimized to handle high systemic resistance, these micro centrifugal blowers deliver maximum static pressure and dense volumetric airflow while maintaining exceptional electrical efficiency and structural durability under continuous peak operations.
High-Performance 48V Air Blower Selection Guide
Compare dimensions, speed, airflow, and static pressure to select the right 48V brushless DC blower for your heavy-duty systems.
| Model / Series | Size (mm) | Voltage (V) | Speed (RPM) | Airflow (CFM) | Max Pressure (Kpa) |
|---|---|---|---|---|---|
| BA12032HV48B-B | 120*120*32 | 48 | 5000 | 65.96 | 0.83 |
| BA12032H48X | 127*127*25 | 48 | 4800 | 34.8 | 0.39 |
How a 48V Air Blower Overcomes Thermal Bottlenecks and High Backpressure in High-Voltage Systems
In the modern landscape of telecom infrastructure, data centers, renewable energy storage, and industrial automation, systems are transitioning to higher voltage rails to achieve better electrical efficiency. However, this power density migration creates a critical challenge: massive localized heat generation within tightly sealed, high-impedance enclosures. Standard low-voltage or axial fans often stall when encountering high airflow resistance, leading to rapid heat accumulation and system failure. This is exactly where an industrial-grade 48V air blower becomes an indispensable thermal management asset.
Operating directly on standard 48V DC power distribution lines, a premium 48V air blower eliminates the need for additional step-down voltage converters, streamlining hardware design and minimizing power conversion losses. Utilizing sophisticated micro-centrifugal internal geometry, these heavy-duty blowers draw air axially and compress it to exhaust perpendicularly with exceptional force. This architectural layout yields industry-leading static pressure, allowing the 48V air blower to punch through packed PCBs, dense copper heatsinks, and complex air-filtering systems to exhaust hot waste air safely out of the chassis.
Advanced Thermal Solutions Using 48V Air Blower Technology
1. Overcoming Complex Air Path & Filter Resistance
Equipped with extreme pressure thresholds, a rugged 48V air blower effortlessly conquers high backpressure inside convoluted air ducts. It maintains consistent, stable volumetric airflow even when pushed through restrictive HEPA filters and ultra-fine dust screens, making it ideal for harsh outdoor cabinets.
2. Targeted High-Velocity Spot Cooling
By channeling a concentrated, high-velocity jet stream of cool air directly onto high-power components—such as telecom rectifiers, server CPUs, or battery management systems (BMS)—a specialized 48V air blower prevents thermal throttling and structural fatigue under continuous peak loads.
Key Product Requirements & Performance Features
TKFAN designs and manufactures an extensive catalog of industrial-grade 48V air blower models optimized for high-voltage, continuous peak operations. Our blowers are engineered to solve tough thermodynamic limitations across diverse demanding fields:
- Seamless 48V DC Motor Topology: Tailored specifically for industrial 48V power architecture, easily tolerating minor voltage fluctuations and eliminating conversion infrastructure costs.
- Exceptional Static Force Geometry: The custom centrifugal impeller design maximizes static force, effortlessly driving dense airflow through micro-cooling channels and fine ventilation profiles.
- Low NVH Engineering & Dynamic Balancing: Structured with high-grade dual-ball bearings to sustain ultra-high rotational speeds up to 43,000 RPM while keeping acoustics, vibration, and friction to a minimum.
- Harsh Environment Protection: Fully customizable with IP55 to IP68 water and dustproof ratings, ensuring absolute reliability and extended lifespan under aggressive chemical, dust, or high-humidity conditions.
48V Air Blower - FAQ
Find professional answers about 48V blowers, covering selection criteria, static pressure, speed control, customization, and application fields.
Q1: What are the primary advantages of utilizing a 48V air blower over 12V or 24V configurations?
A 48V air blower is optimized for high-power industrial and telecom environments. By operating at a higher voltage, it significantly reduces the electrical current required to deliver the same or superior performance, lowering wire gauge requirements, reducing I²R power losses, and allowing direct integration into 48V power rails without step-down components.
Q2: How does a 48V air blower perform under high system impedance compared to axial fans?
Axial fans excel in free-flow environments but stall under backpressure. A 48V air blower relies on a centrifugal engineering mechanism that compresses air and discharges it at a 90-degree angle. This architecture generates immense static pressure, ensuring consistent volumetric airflow even when pushing through dense PCBs, restrictive heatsinks, or air filters.
Q3: Can TKFAN's 48V air blowers be deployed in harsh outdoor telecom cabinets?
Yes, absolutely. Our 48V air blower series is engineered precisely for outdoor telecom infrastructure, server shelves, and industrial machinery. We provide customizable protective upgrades including IP55, IP67, and IP68 water and dustproof ratings, along with anti-salt spray coatings to withstand extreme outdoor weather conditions.
Q4: Do your 48V brushless DC blowers support dynamic speed control for intelligent thermal management?
Yes. Most of our 48V air blower models support customizable Pulse-Width Modulation (PWM) speed regulation inputs and FG (frequency generator) tachometer outputs. This enables your system's central MCU or controller to scale the blower's RPM dynamically in real-time, matching actual thermal demands to maximize efficiency and reduce acoustics.
Q5: What industries most frequently implement high-speed 48V air blowers?
The high-performance 48V air blower is widely adopted in telecommunication base stations (5G infrastructure), data center server cooling, renewable energy storage ventilation, commercial printing systems, industrial fuel cells, and large-scale automated machinery where 48V power systems are standard.
Q6: What type of bearing system is used in your 48V air blower series, and what is its lifespan?
TKFAN uses industrial-grade, precision dual-ball bearings for all high-speed 48V models. Dual-ball bearings allow the blower to operate reliably in any physical mounting orientation, offer excellent resistance against structural vibration, and achieve an extended L10 operational life expectancy of up to 70,000 hours at 40°C.
Q7: Is it possible to customize the dimensions, voltage range, or connectors of the 48V blower?
Yes, TKFAN is a professional manufacturer offering full OEM/ODM customization services. We can adjust the working voltage thresholds, adapt alternative cable lengths, integrate specific terminal connectors, and fine-tune blade designs or rotational speeds to fulfill your precise hardware engineering specifications.
Q8: How does the wide input voltage tolerance look for TKFAN's 48V air blowers?
Recognizing that industrial and battery systems can experience voltage spikes or drops, our premium 48V air blower circuits are designed with broad operational voltage windows (typically from 36V to 56V DC or wider). Built-in over-voltage, over-current, and reverse-polarity protections safeguard internal brushless motors from electrical damage.
48V Air Blower Performance Demo
Watch our high-performance 48V DC air blower series demonstrate outstanding volumetric airflow and static pressure in harsh resistance testing.
