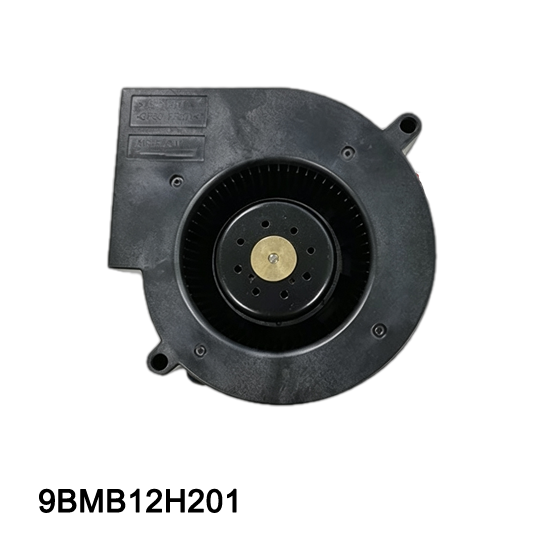

9BMB12H201 air blower
9BMB12H201 air blower

9BMB12H201 air blower

Voltage: DC 12V
Speed: 4850rpm
Current: 1.1A

Request a Sample

Strong Airflow & Efficient Heat Dissipation

9BMB12H201 air blower delivers powerful wind volume to quickly disperse heat and protect normal operation of various devices.

Mini Compact Structure & Easy Installation

Slim body design saves mounting space, easy to assemble and compatible with different compact equipment interiors.

Low Vibration & Silent Operation

Optimized internal structure minimizes running shake, realizing quiet and smooth working state all the time.

Premium Material & Long Service Life

Adopted high-grade raw materials and precise processing, the blower features excellent wear resistance and lasting stable performance.

Technical Specifications

Model9BMB12H201
Size97*33 mm
Operating Voltage12 VDC
Rated Current1.1 Amp
Rated Speed4850 RPM
Maximum Flow Rate39.2 CFM
Maximum Static Pressure490pa

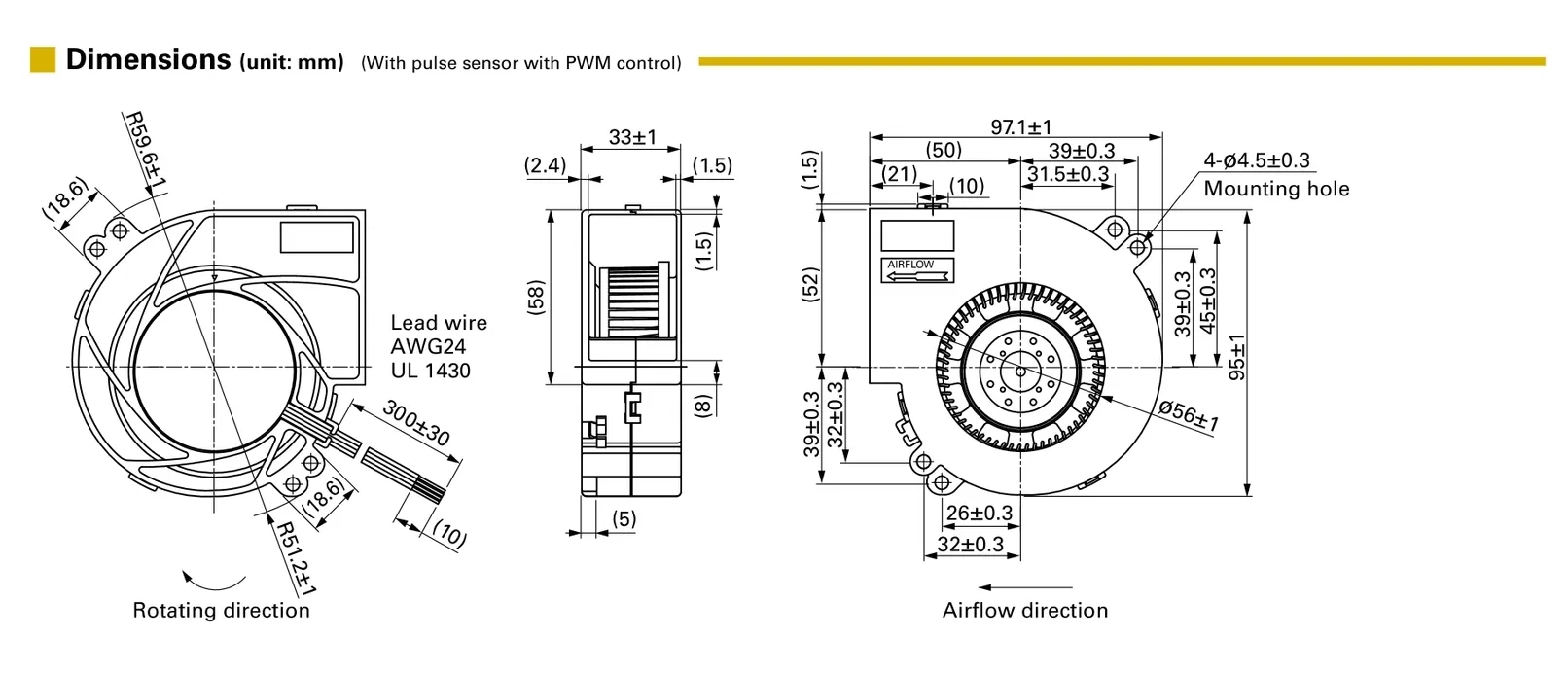

structure drawing of 9BMB12H201 air blower.webp

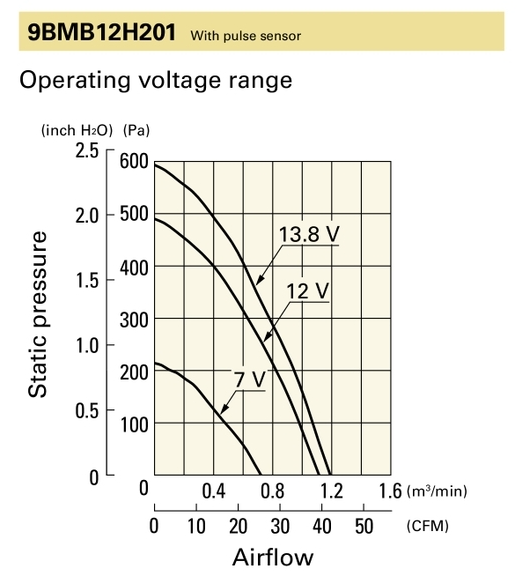

PQ curve for 9BMB12H201 air blower.png




Video Showcase

Need a Custom Modification?

We can customize voltage (5V/12V), wire length, and connectors. Prototypes ready in 48 hours.

Contact Our Engineers
