9BMB24P2S01 air blower
9BMB24P2S01 air blower

9BMB24P2S01 air blower

Voltage: DC 24V
Speed: 5250rpm
Current: 0.7A

Request a Sample

9BMB24P2S01 24V High Static Pressure Air Blower

This 24V DC blower features powerful wind pressure and steady airflow, delivering excellent cooling effect for industrial equipment and cabinet heat dissipation.

9BMB24P2S01 Industrial Cooling Blower

Adopted sturdy internal structure, the fan runs continuously stably with long service life and wide compatibility for various installation scenarios.

Durable Long Life 9BMB24P2S01 Ventilation Blower

Heat and wear resistant design ensures stable performance under heavy load, effectively reducing later maintenance costs and replacement frequency.

Original 9BMB24P2S01 Electronic Cooling Blower

Standard original specification guarantees reliable performance, perfectly applicable to power units, servers and medical device thermal management.

Technical Specifications

Model9BMB24P2S01
Size97*33 mm
Operating Voltage24 VDC
Rated Current0.7 Amp
Rated Speed5250 RPM
Maximum Flow Rate43.1 CFM
Maximum Static Pressure610pa

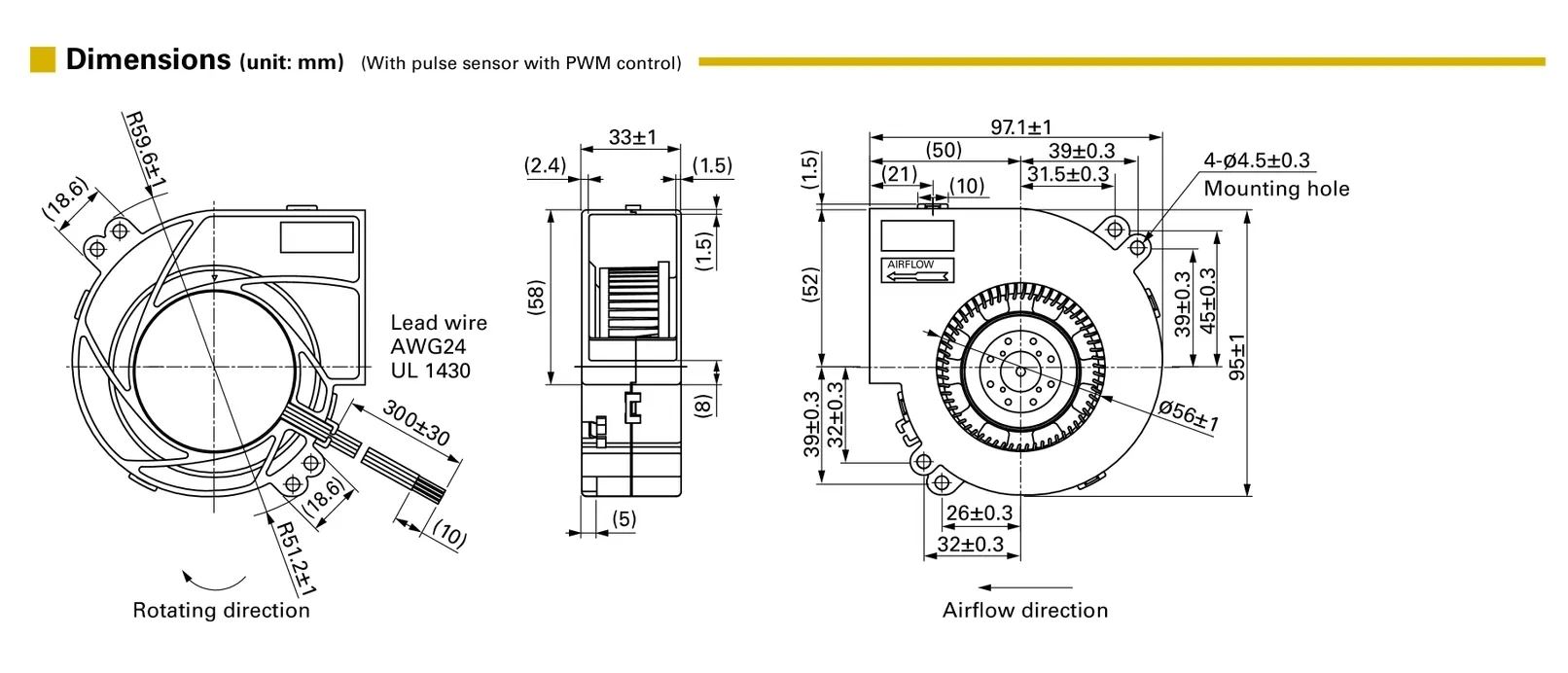

structure drawing of 9BMB24P2S01 air blower.webp

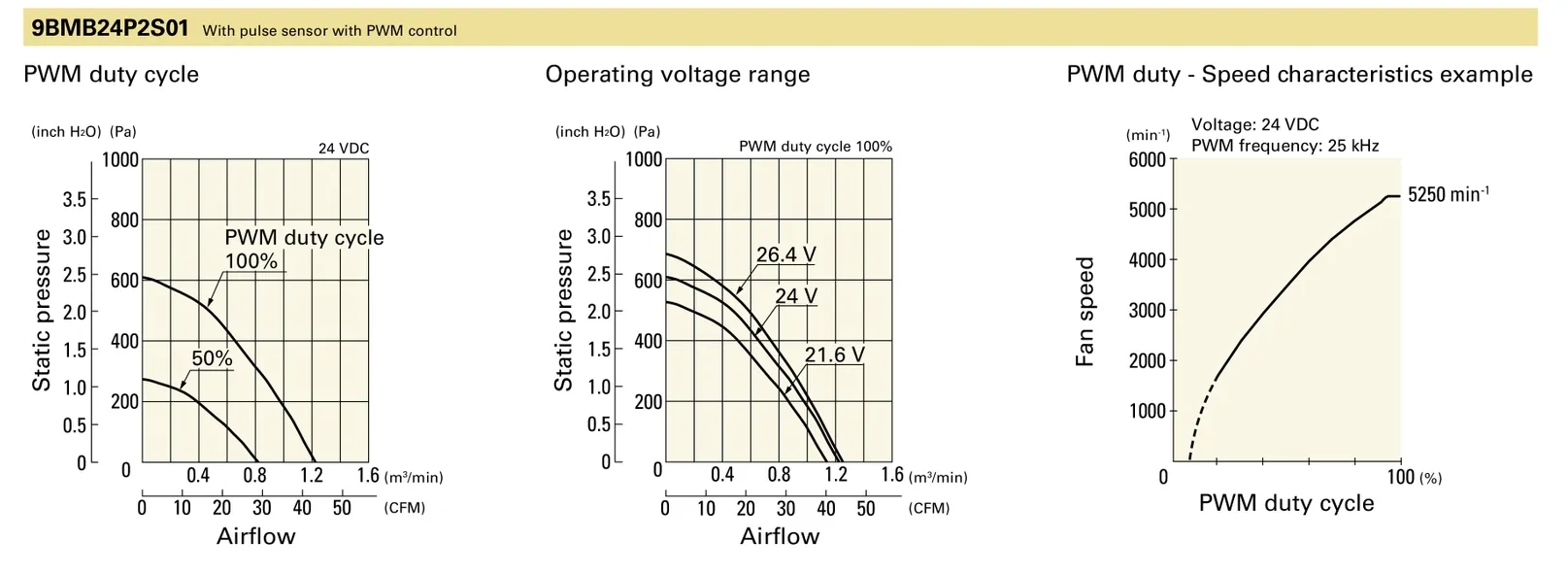

PQ curve for 9BMB24P2S01 air blower.webp




Video Showcase

Need a Custom Modification?

We can customize voltage (5V/12V), wire length, and connectors. Prototypes ready in 48 hours.

Contact Our Engineers
