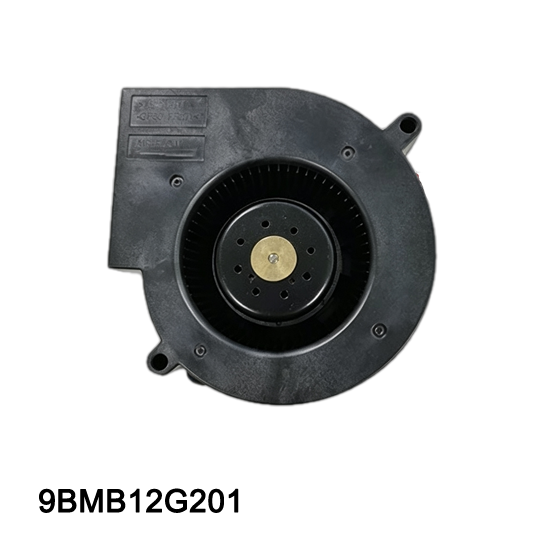

9BMB12G201 air blower
9BMB12G201 air blower

9BMB12G201 air blower

Voltage: DC 12V
Speed: 5750rpm
Current: 1.8A

Request a Sample

Powerful Air Volume & Efficient Heat Dissipation

9BMB12G201 air blower comes with strong wind output, quickly dissipates accumulated heat and keeps equipment running safely.

Low Vibration & Quiet Operation

Optimized internal structure cuts down running vibration, realizing low noise working status without disturbing use environment.

Premium Material & Long Service Life

Adopted high-grade production materials, the blower owns great wear resistance and maintains stable performance for long-term use.

Wide Application & Strong Compatibility

Flexible applicable for electronic products, industrial devices, ventilation cooling and multiple heat dissipation occasions.

Technical Specifications

Model9BMB12G201
Size97*33 mm
Operating Voltage12 VDC
Rated Current1.8 Amp
Rated Speed5750 RPM
Maximum Flow Rate47.3 CFM
Maximum Static Pressure760pa

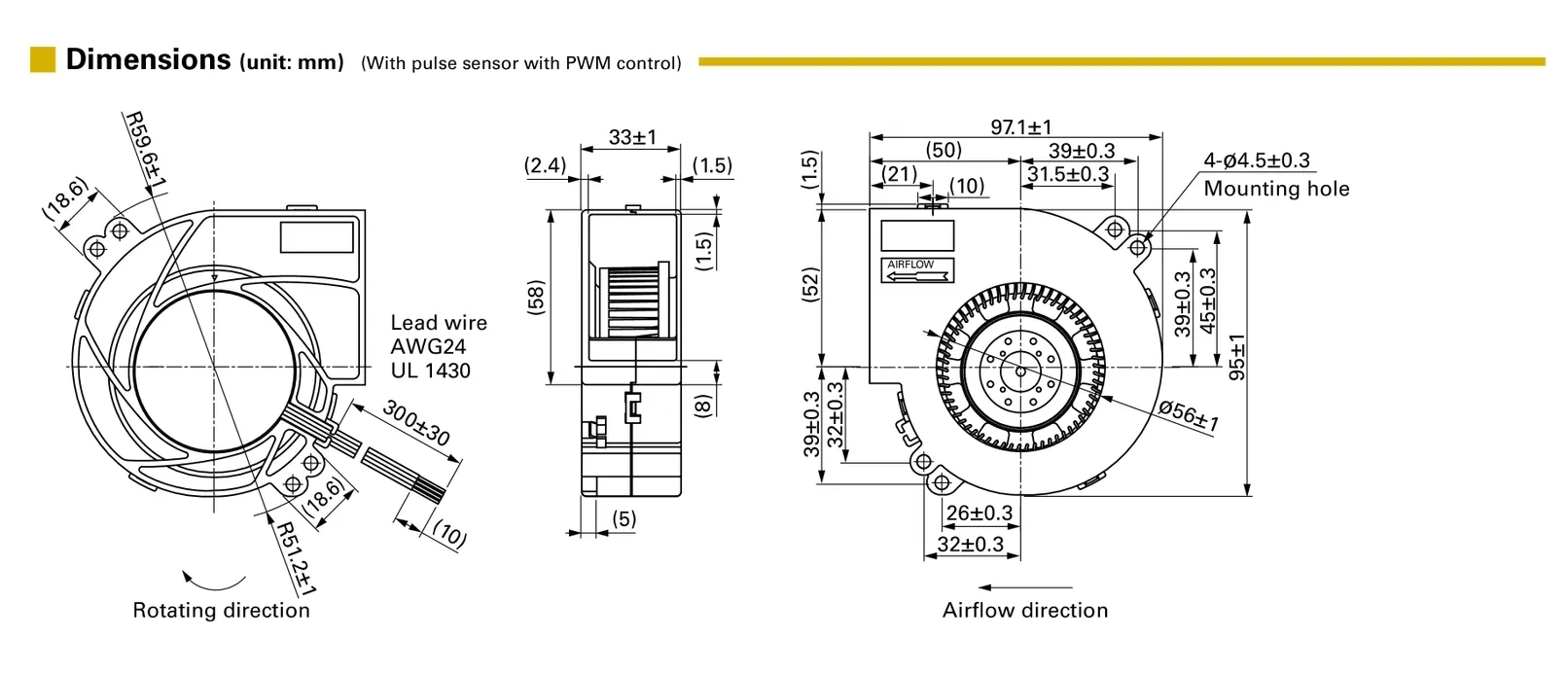

structure drawing of 9BMB12G201 air blower.webp

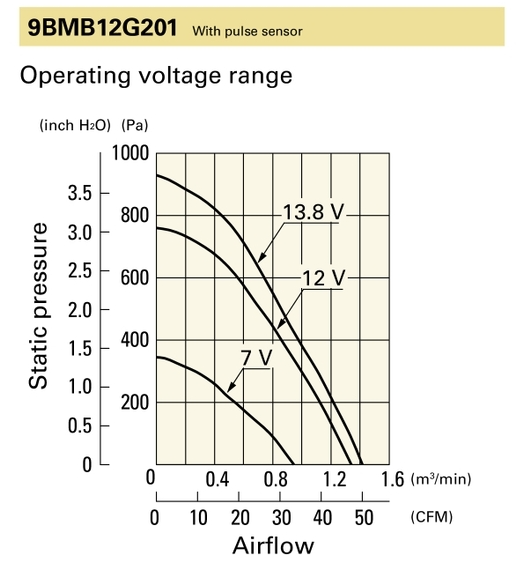

PQ curve for 9BMB12G201 air blower.png




Video Showcase

Need a Custom Modification?

We can customize voltage (5V/12V), wire length, and connectors. Prototypes ready in 48 hours.

Contact Our Engineers
