9BMB24S201 air blower
9BMB24S201 air blower

9BMB24S201 air blower

Voltage: DC 24V
Speed: 5250rpm
Current: 0.7A

Request a Sample

Large Airflow & Fast Heat Dissipation

The 9BMB24S201 air blower generates powerful airflow to quickly disperse heat and keep industrial devices working efficiently.

Solid Structure & High Operation Stability

Rugged body construction resists pressure and impact, maintaining consistent performance under long heavy-load working conditions.

Premium Materials & Long Service Span

Adopted durable raw materials and precise craftsmanship, the blower owns wear resistance and long reliable service life.

Wide Compatibility & Versatile Application

Widely applied in equipment cooling, industrial ventilation and various large air circulation scenarios.

Technical Specifications

Model9BMB24S201
Size97*33 mm
Operating Voltage24 VDC
Rated Current0.7 Amp
Rated Speed5250 RPM
Maximum Flow Rate43.1 CFM
Maximum Static Pressure610pa

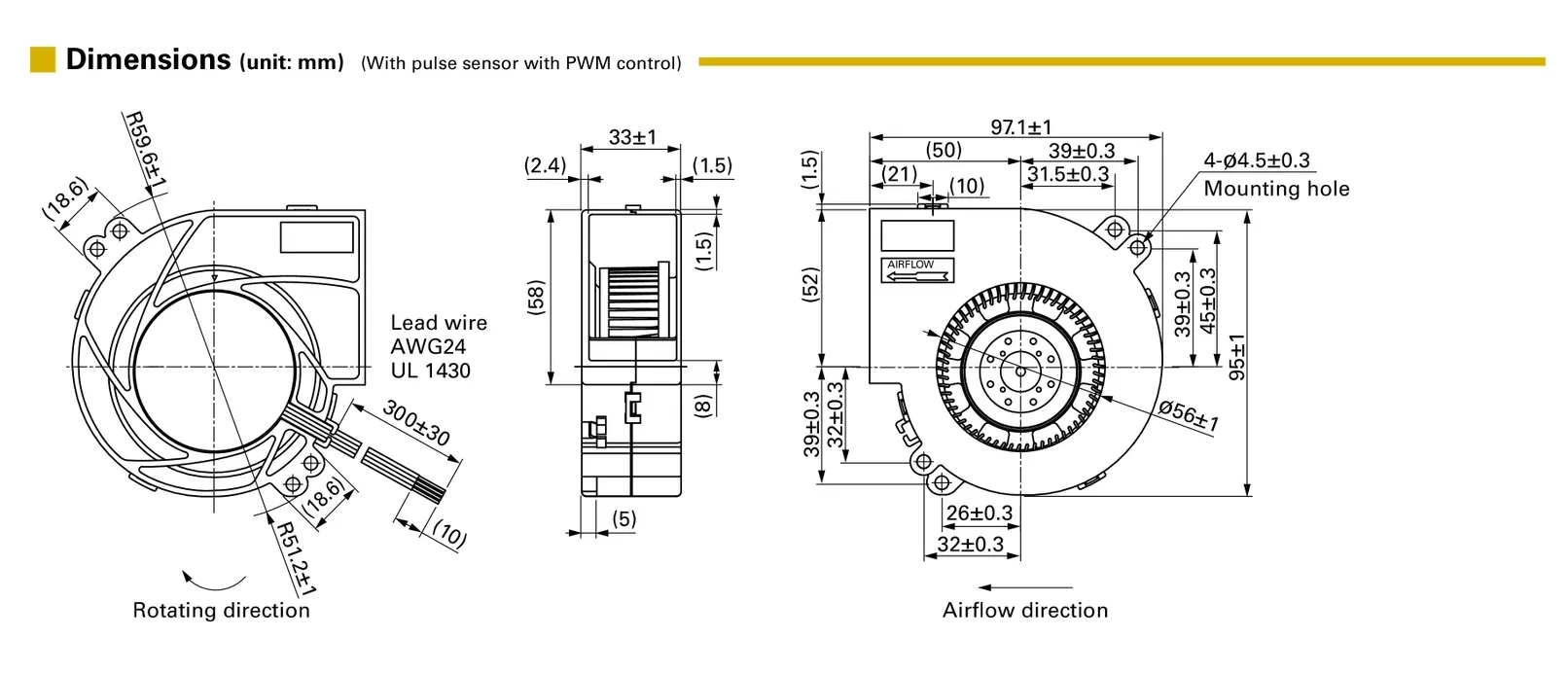

structure drawing of 9BMB24S201 air blower.webp

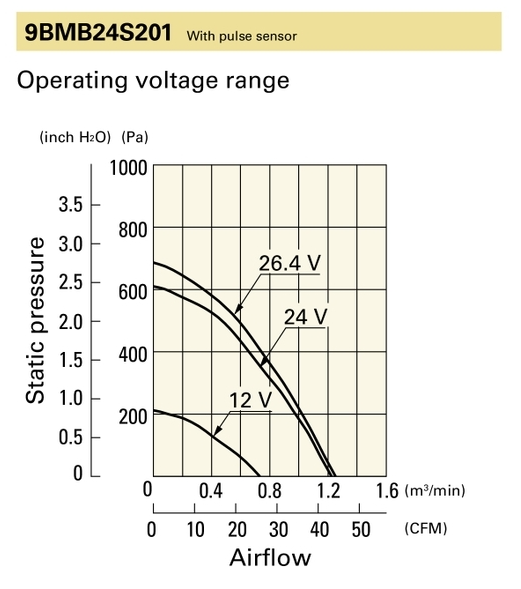

PQ curve for 9BMB24S201 air blower.png




Video Showcase

Need a Custom Modification?

We can customize voltage (5V/12V), wire length, and connectors. Prototypes ready in 48 hours.

Contact Our Engineers
