9BMB24P2H01 air blower
9BMB24P2H01 air blower

9BMB24P2H01 air blower

Voltage: DC 24V
Speed: 4850rpm
Current: 0.55A

Request a Sample

9BMB24P2H01 24V High Static Pressure Air Blower

24V DC powered blower boasts powerful static pressure and consistent airflow, achieving efficient heat removal for industrial cabinet and electronic equipment.

9BMB24P2H01 Industrial Cooling Blower

Solid internal craftsmanship ensures smooth long-term operation, featuring great adaptability to various equipment assembly environments.

9BMB24P2H01 PWM Adjustable Speed Blower Fan

Equipped with PWM speed regulation function, it can flexibly adjust wind volume to cope with different temperature dissipation demands.

Long Service Life 9BMB24P2H01 Ventilation Blower

Excellent heat and abrasion resistance keeps stable performance under heavy load, cutting down maintenance and replacement expenses.

Technical Specifications

Model9BMB24P2H01
Size97*33 mm
Operating Voltage24 VDC
Rated Current0.55 Amp
Rated Speed4850 RPM
Maximum Flow Rate39.2 CFM
Maximum Static Pressure490pa

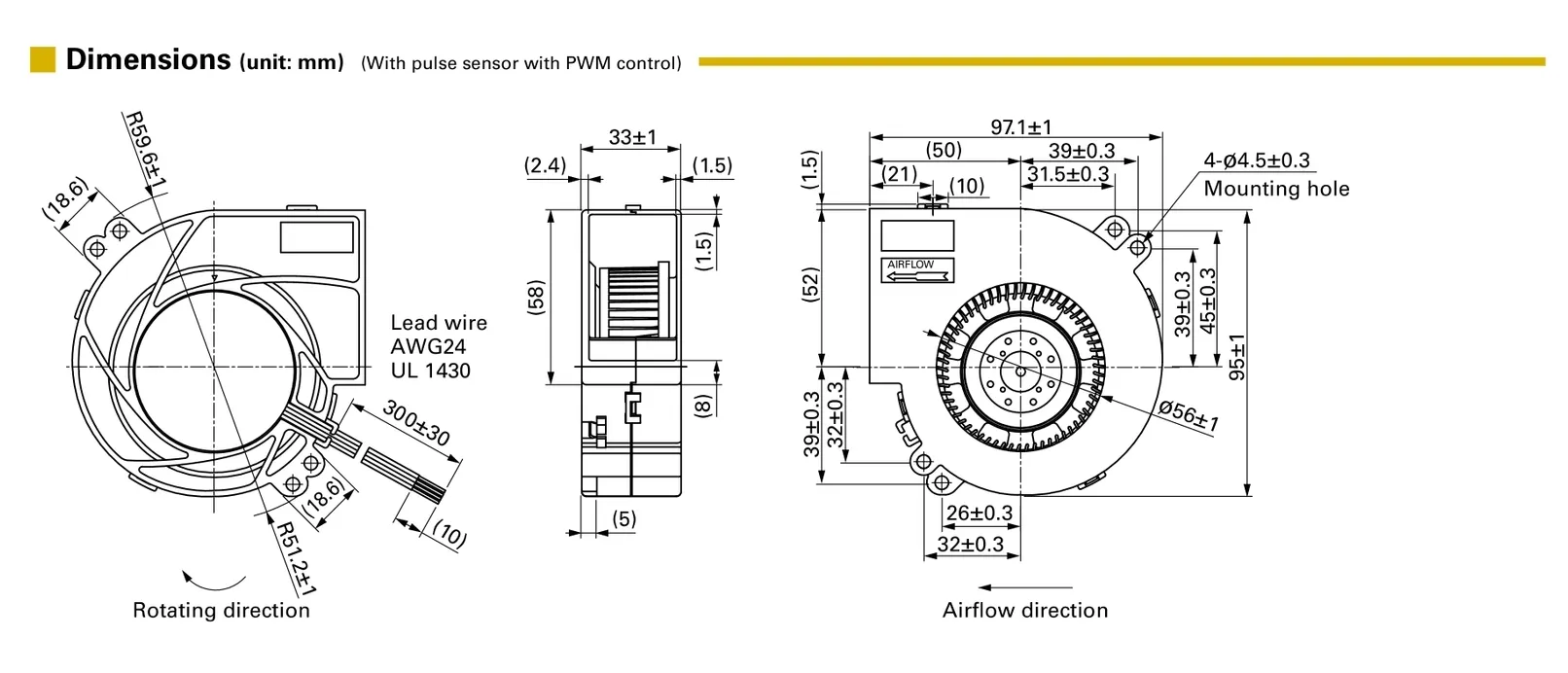

structure drawing of 9BMB24P2H01 air blower.webp

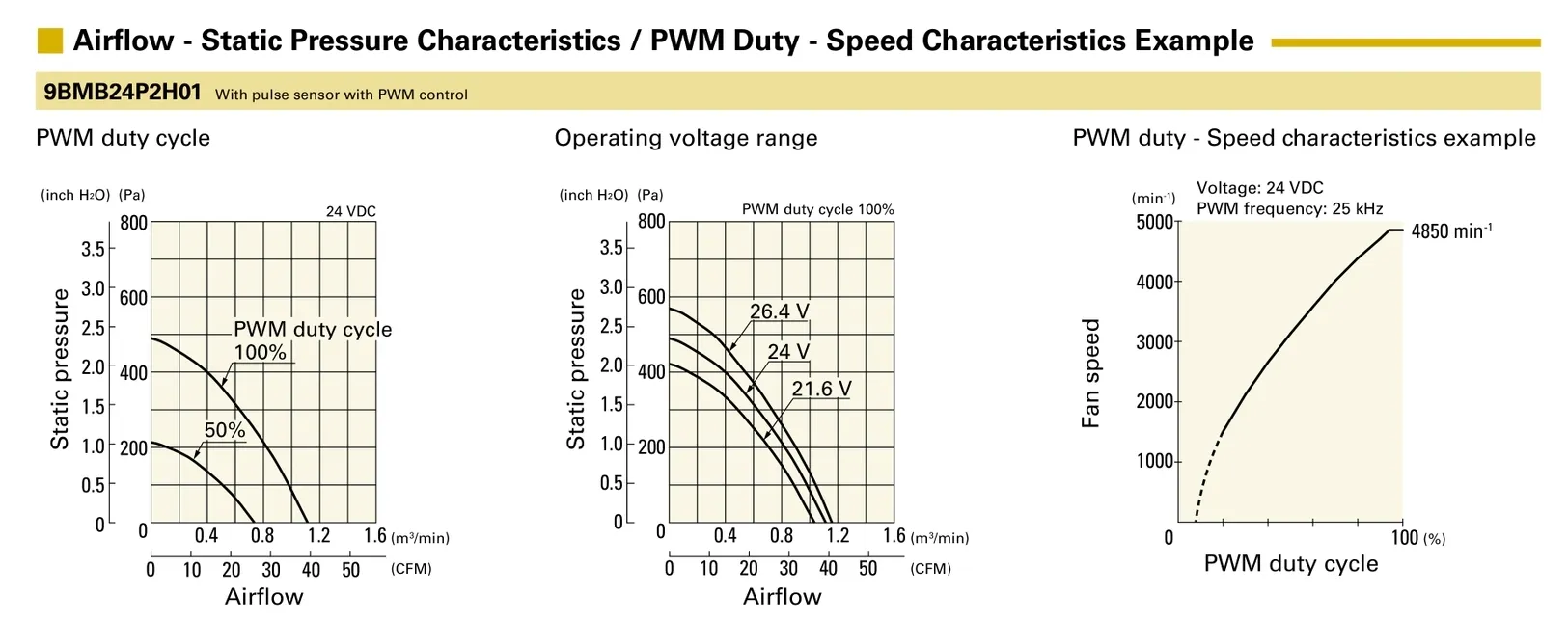

PQ curve for 9BMB24P2H01 air blower.webp




Video Showcase

Need a Custom Modification?

We can customize voltage (5V/12V), wire length, and connectors. Prototypes ready in 48 hours.

Contact Our Engineers
