9BMB24K201 air blower
9BMB24K201 air blower

9BMB24K201 air blower

Voltage: DC 24V
Speed: 6850rpm
Current: 1.62A

Request a Sample

Strong Airflow & Excellent Cooling Effect

9BMB24K201 air blower delivers powerful air output to swiftly dissipate heat and guarantee safe operation of industrial equipment.

Sturdy Structure & High Stability

Reinforced body design effectively resists external pressure and keeps consistent performance under heavy working loads.

Low Vibration & Quiet Running

Optimized internal assembly reduces shake and noise, bringing comfortable working environment during long-duration operation.

Premium Material & Long Lifespan

Adopts wear-resistant raw materials and elaborate craftsmanship, capable of enduring frequent and continuous daily use.

Technical Specifications

Model9BMB24K201
Size97*33 mm
Operating Voltage24 VDC
Rated Current1.62 Amp
Rated Speed6850 RPM
Maximum Flow Rate56.8 CFM
Maximum Static Pressure1280pa

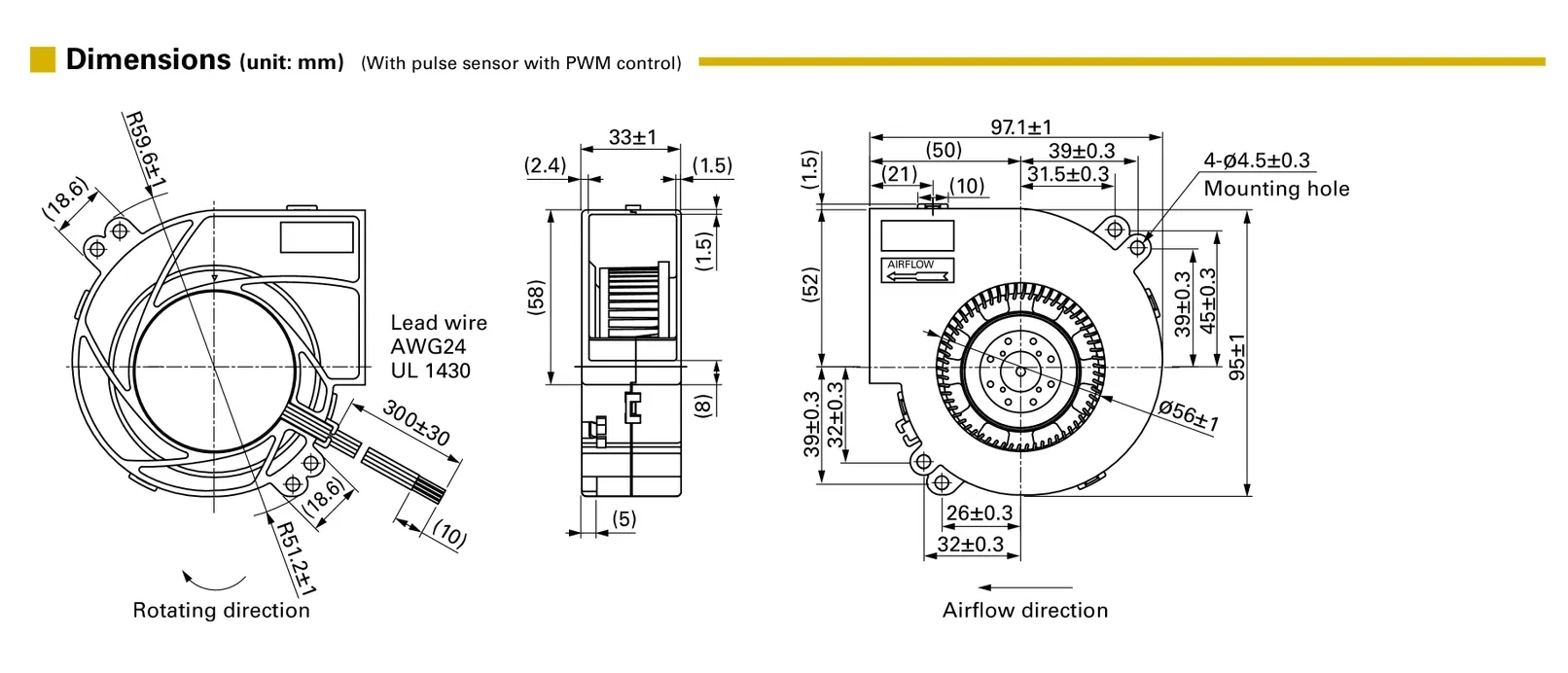

structure drawing of 9BMB24K201 air blower.webp

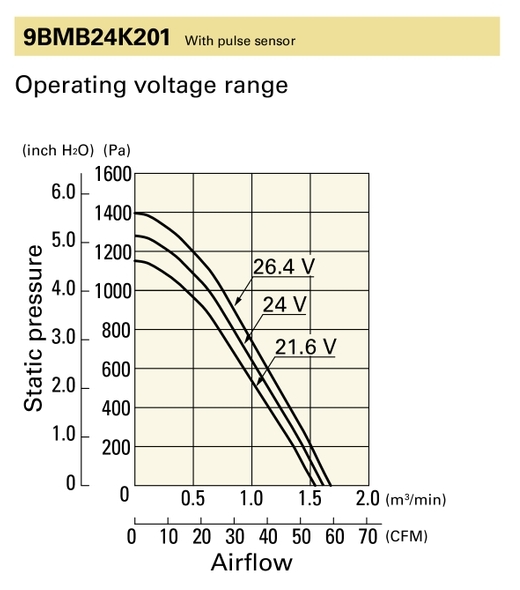

PQ curve for 9BMB24K201 air blower.png




Video Showcase

Need a Custom Modification?

We can customize voltage (5V/12V), wire length, and connectors. Prototypes ready in 48 hours.

Contact Our Engineers
