9BMB24P2F01 air blower
9BMB24P2F01 air blower

9BMB24P2F01 air blower

Voltage: DC 24V
Speed: 4500rpm
Current: 0.45A

Request a Sample

9BMB24P2F01 24V High Static Pressure Air Blower

This 24V DC blower delivers powerful static pressure and steady airflow, efficiently dissipating heat for industrial facilities and electronic cabinets.

9BMB24P2F01 PWM Speed Adjustable Blower Fan

Built-in PWM speed control system allows flexible air volume adjustment to match varying heat dissipation demands of equipment.

Long Lifespan 9BMB24P2F01 Ventilation Blower

Heat and wear resistant structure ensures stable performance under heavy load, effectively lowering daily maintenance and replacement costs.

Original 9BMB24P2F01 Electronic Cooling Blower

Strictly manufactured per original specifications, it works reliably for power supply, server and medical thermal management fields.

Technical Specifications

Model9BMB24P2F01
Size97*33 mm
Operating Voltage24 VDC
Rated Current0.45 Amp
Rated Speed4500 RPM
Maximum Flow Rate36.7 CFM
Maximum Static Pressure410pa

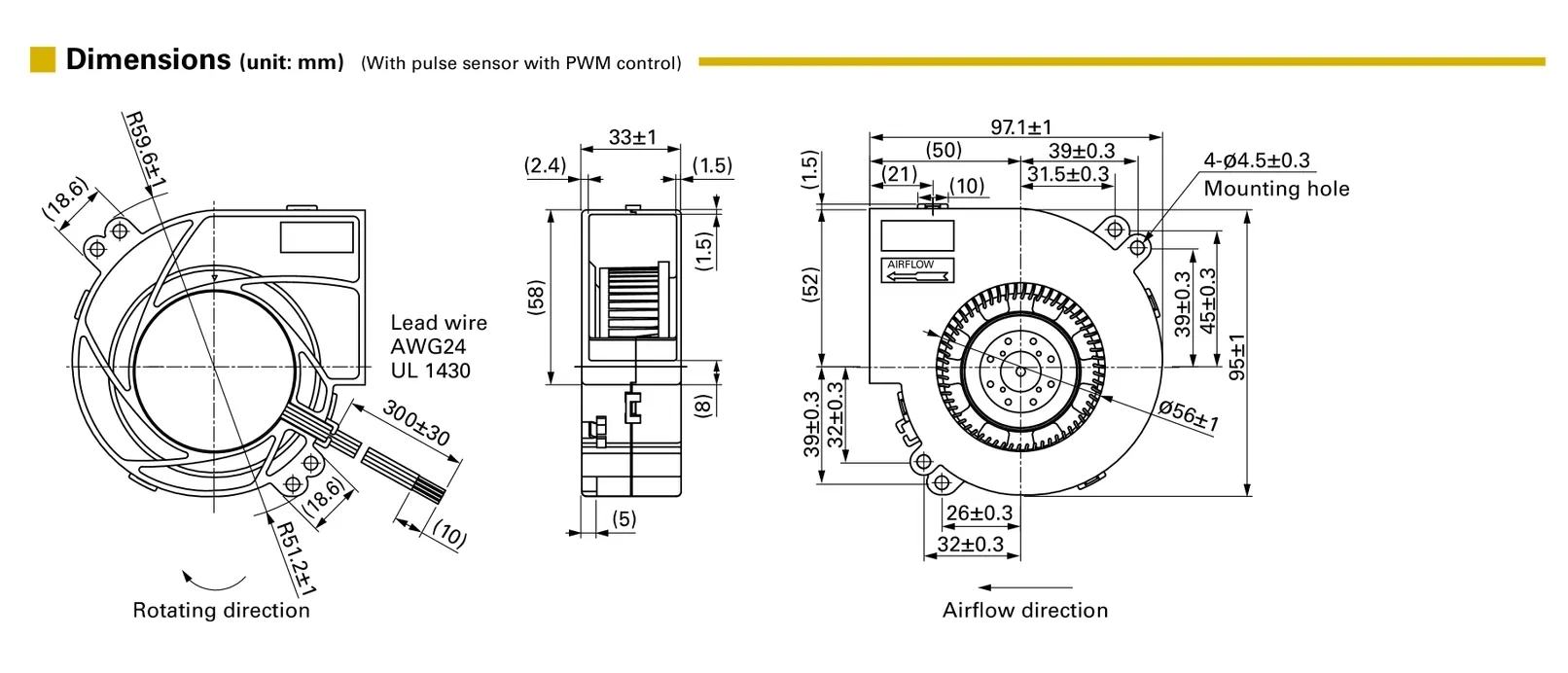

structure drawing of 9BMB24P2F01 air blower.webp

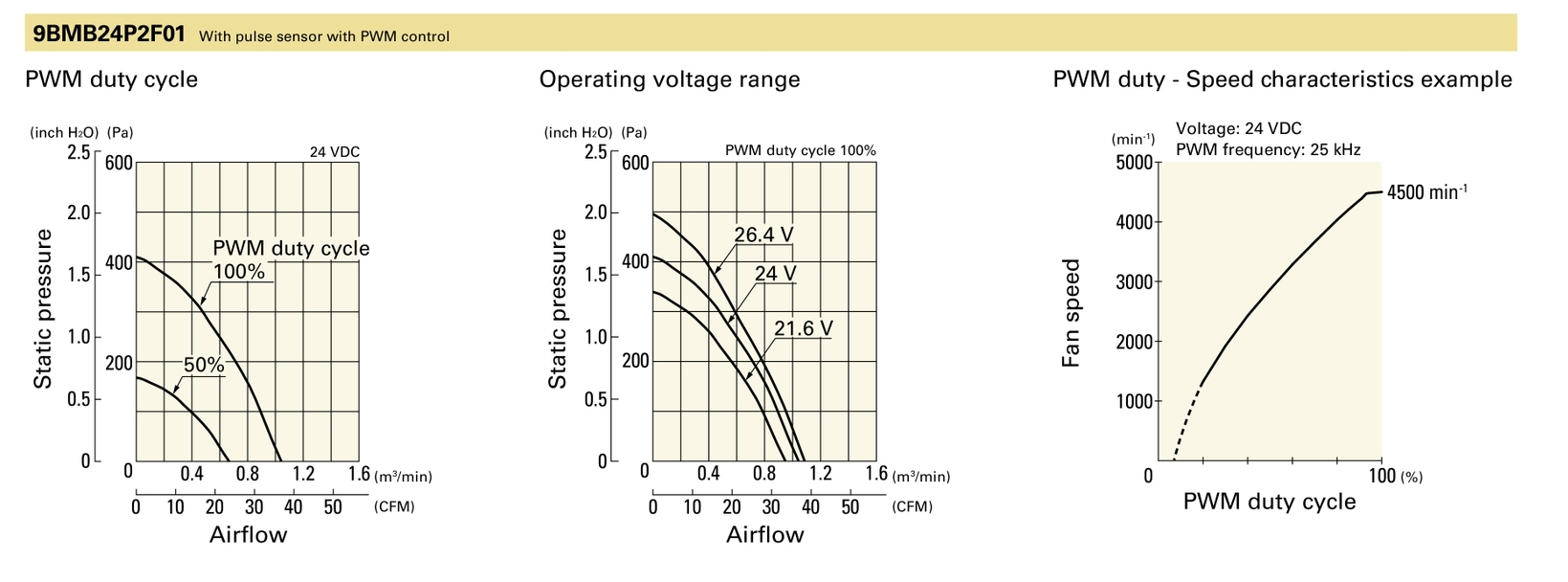

PQ curve for 9BMB24P2F01 air blower.png




Video Showcase

Need a Custom Modification?

We can customize voltage (5V/12V), wire length, and connectors. Prototypes ready in 48 hours.

Contact Our Engineers
