Introducing TKFAN’s ultra-rugged waterproof DC brushless fan series, engineered for high-reliability thermal management in extreme environments, outdoor installations, and high-moisture applications. Fully sealed with advanced eco-friendly potting and boasting premium IP-rated ingress protection, these durable axial fans resist water submersion, oil mist, salt-spray corrosion, and dense dust penetration without compromising rotational speed or cooling efficiency.
Waterproof dc fan DA6025HHV12B
Voltage 12V 60*60*25mm
7500rpm/min
Max 39.5 cfm,0.16 kpa
View Details
Waterproof dc fan DAW8038M24B
Voltage 24V 80*80*38mm
4300rpm/min
Max 47.3 cfm,0.08 kpa
View Details
Waterproof dc fan DDW9225HH12B
Voltage 12V 92*92*25mm
5500rpm/min
Max 106.7 cfm,0.20 kpa
View Details
Waterproof dc fan DA17251HV48X
Voltage 48V 172*150*51mm
5000rpm/min
Max 362 cfm,0.45 kpa
View Details
Waterproof dc fan DA17251H24B-D26071809
Voltage 24V,173*153.5*50.5mm
3500rpm/min IP68
Max239.4 cfm,0.22 kpa
View Details
1
Ultimate Guide to Waterproof Fans: Choosing IP55 vs IP68 Waterproof DC Fans
Prevent costly downtime in outdoor telecom cabinets and energy storage systems by choosing high-performance industrial waterproof fans with the right protection level.
1. Why Standard Fans Fail
Moisture and salt spray lead to short circuits and bearing seizure. TKFAN's heavy-duty waterproof fan series solves these issues through Full Vacuum Potting.
2. IP Rating Comparison
| Feature | IP55 Waterproof Fan | IP68 Waterproof Fan |
|---|---|---|
| Protection | Water jets | Submersible |
| Technology | Conformal Coating | Vacuum Encapsulation |
2.5 Waterproof DC Fan Quick Product Selection Guide
Compare voltage, dimensions, speed, airflow, and IP protection levels to select the right waterproof cooling fan for your equipment design.
| Model / Series | Size (mm) | Voltage (V) | Speed (RPM) | Airflow (CFM) | IP Rating | Action |
|---|---|---|---|---|---|---|
| DDW9225HH12B | 92 * 92 * 25 | 12V | 5500 RPM | 106.7 CFM | IP55 / IP68 | View Details |
| DA17251HV48X | 172 * 150 * 51 | 48V | 5000 RPM | 362.0 CFM | IP68 Only | View Details |
| Custom Series | 60 * 60 * 25 / 120 * 120 * 38 | 24V / 220V | Customizable | Up to 150 CFM | IP55 / IP68 | Get Quote |
* Can't find the perfect specifications? We support extensive OEM/ODM customization options from lead wire terminal type to PWM speed control integration. Request a custom solution.
3. IP Waterproof Rating Chart (IEC 60529 Standard)
| IP Level | Protection Level | Test Conditions & Duration |
|---|---|---|
| IPX4 | Splashing water | Water splashing against the enclosure from any direction. (10 min) |
| IPX5 | Water jets | Water projected by a nozzle (6.3 mm) against enclosure. (3 min) |
| IPX6 | Powerful water jets | Water projected in powerful jets (12.5 mm nozzle). (3 min) |
| IPX7 | Temporary immersion | Immersion in water up to 1 meter depth. (30 min) |
| IPX8 | Continuous immersion | Suitable for continuous submersion specified by manufacturer. |
| IPX9K | High-pressure steam | Protected against high-pressure (80–100 bar) water jets. |
* While IPX8 standards vary, TKFAN’s IP68 waterproof cooling fans are tested to withstand 3 meters depth for 72+ hours of continuous powered operation.
4. Advanced Waterproof Structures & Technologies
To satisfy diverse industrial needs, TKFAN utilizes two core manufacturing processes to deliver custom waterproof fan solutions. Whether you require cost-effective splash protection or a reliable, fully submersible industrial waterproof fan, our engineering ensures peak thermal performance.
Technology 1: Parylene Conformal Coating (For IP55 Waterproof Fans)
For environments exposed to high humidity, dust, or light splashing, we apply an ultra-thin, pinhole-free Parylene coating directly onto the PCB assembly of our waterproof cooling fans using advanced gas-phase deposition.
- Space-Grade Material: Provides 360-degree, uniform coverage on complex electronic components with negligible weight and thickness.
- No Loss of Efficiency: Unlike heavy shielding, Parylene preserves the waterproof fan's original dimensions and dynamic balance.
- Deep Dive: Want to learn how this technology safeguards your electronics? Read our technical guide: What is Parylene Conformal Coating & How It Works in a Waterproof Fan.

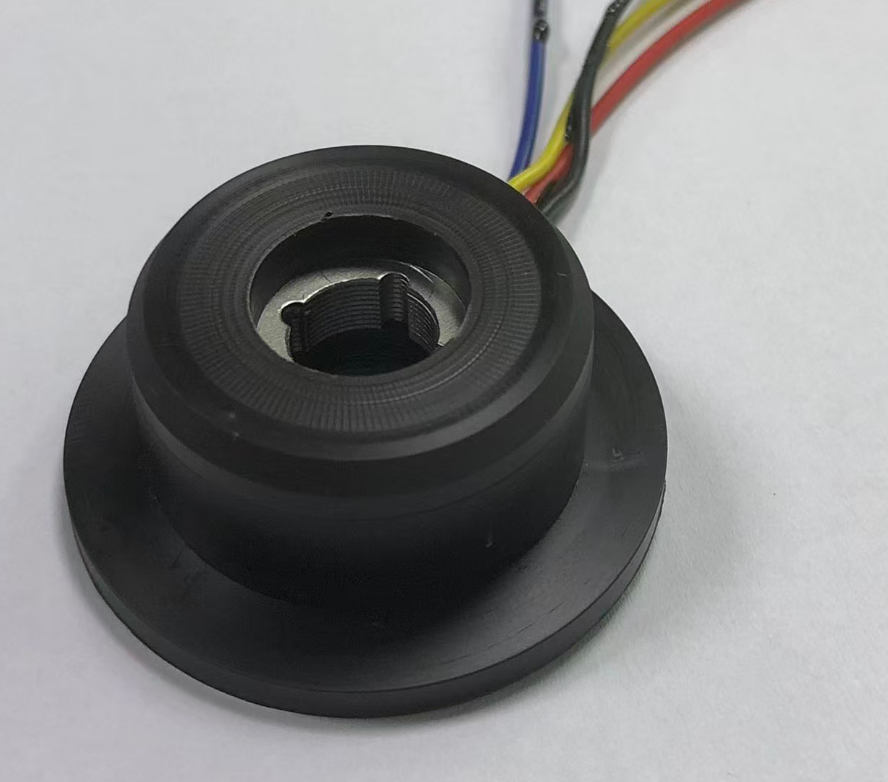

Technology 2: Full Vacuum Potting & Encapsulation (For IP68 Waterproof Fans)
For extreme applications demanding constant, trouble-free operation underwater, we utilize our signature epoxy resin potting technology to manufacture our premium IP68 waterproof fans under a complete vacuum chamber.
- Total Isolation: The entire motor and stator assembly of the waterproof DC fan are completely sealed inside a solid, high-density resin block.
- Maximum Durability: Eliminates internal air bubbles, keeping water, moisture, and high-pressure oil completely isolated from active electrics.

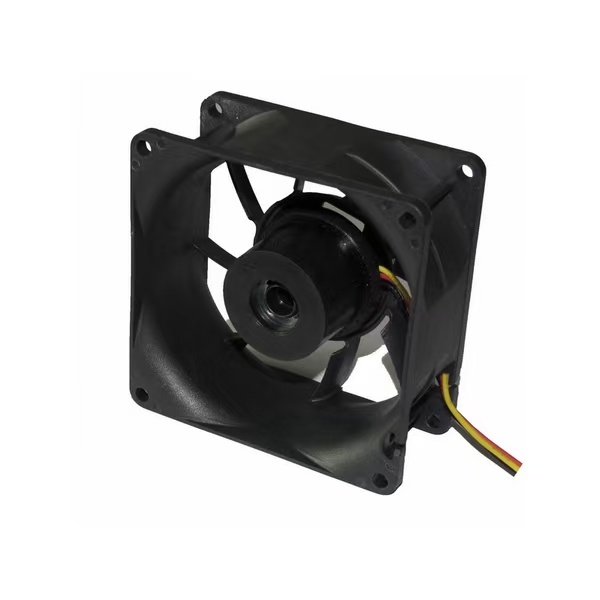

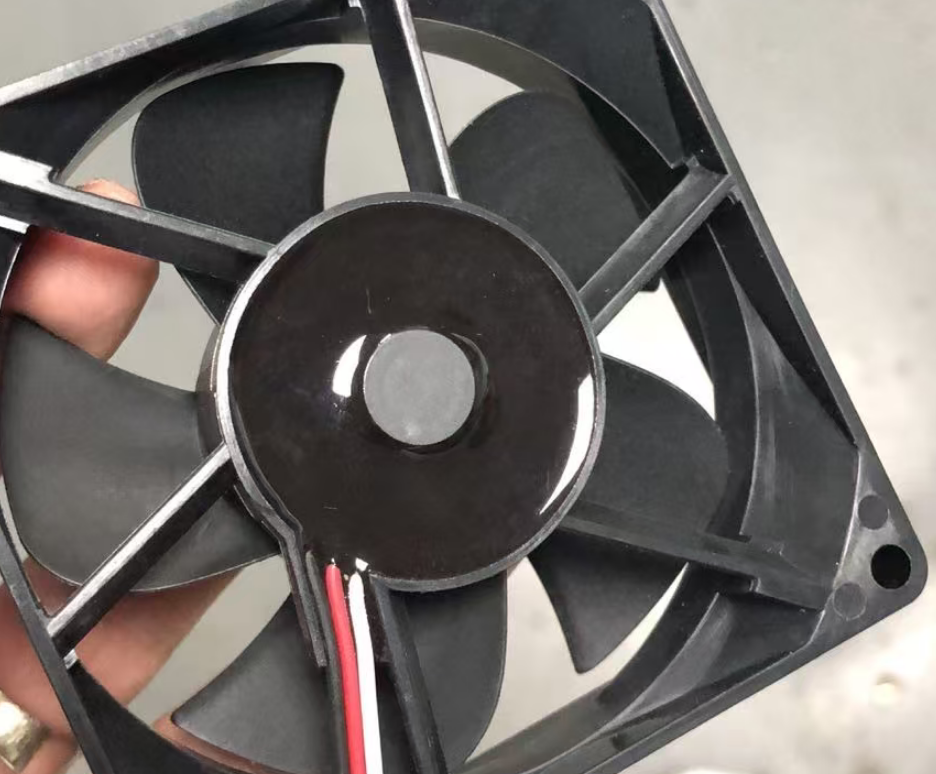

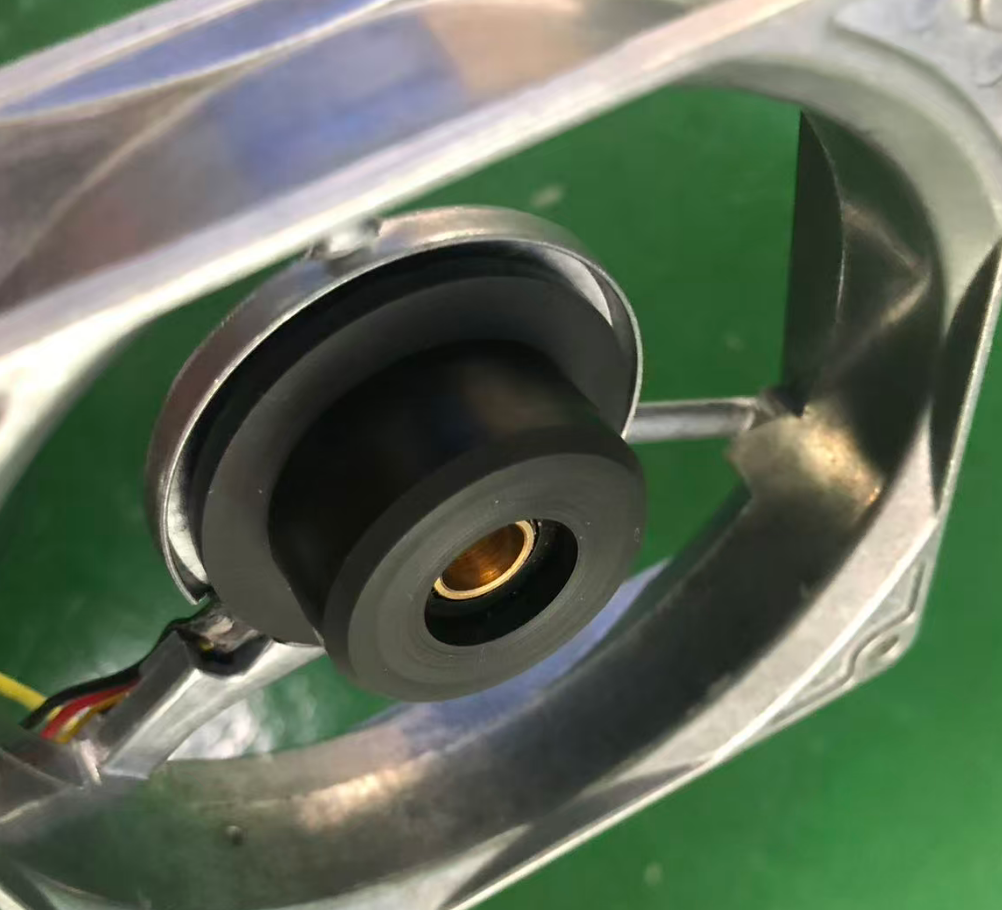

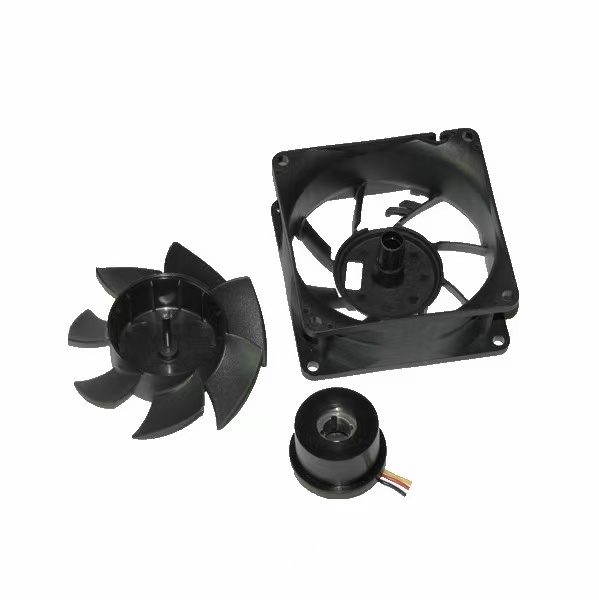

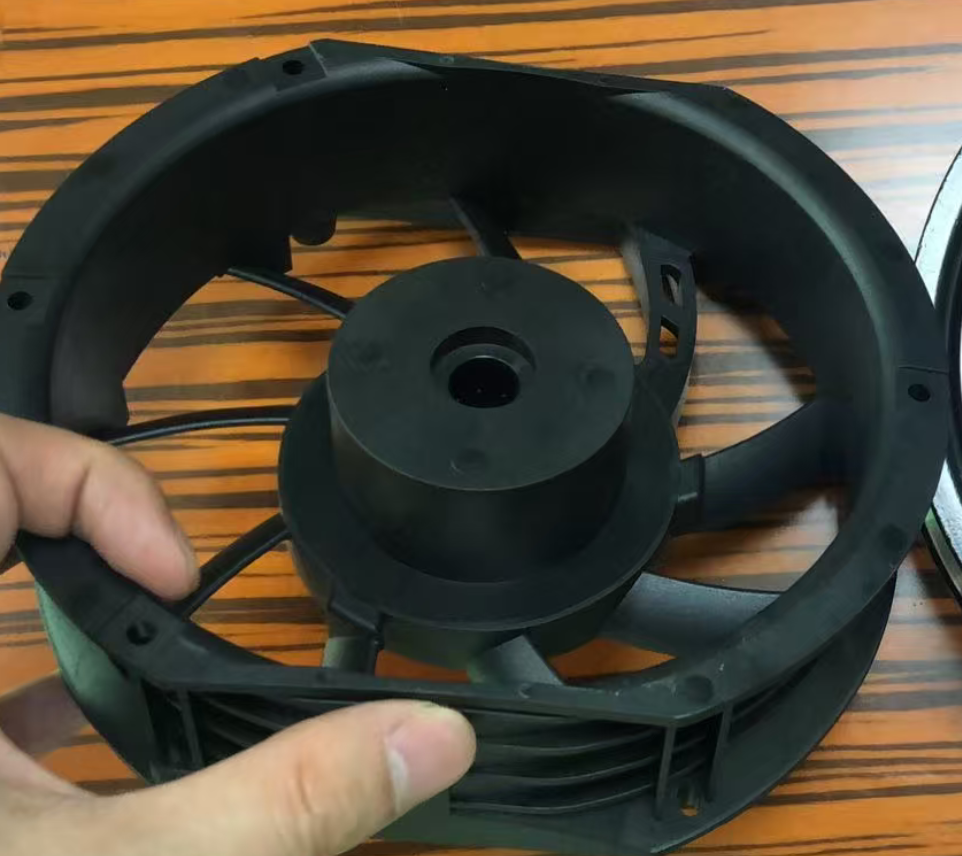

Detailed teardown and structural explanation of high-performance waterproof axial fans.
GET A QUOTE
5. Real-World Performance Testing
Watch our IP68 waterproof fan series operate continuously under extreme water submersion.
Testing our high-airflow IP68 waterproof fan under continuous submersion.
6. Extensive Applications of TKFAN Waterproof Fans
Our high-performance waterproof fans are engineered for reliable cooling in the most demanding environments, providing unmatched protection against water, salt spray, and dust.
1. Renewable Energy & Infrastructure
- EV Charging Stations: Cooling high-power modules using a heavy-duty waterproof DC fan.
- Solar Inverters: Reliable thermal management with our robust waterproof fan.
- Energy Storage Systems (ESS): Stable, moisture-resistant airflow for outdoor battery containers.
2. Industrial & Marine Equipment
- Marine & Offshore: Salt-air corrosion protection with an IP68 waterproof cooling fan.
- Outdoor LED Displays: Keeping high-brightness billboards cool with our waterproof cooling fan.
- Agricultural Technology: Wet-environment heat dissipation for automated farming systems.
3. Smart City & Telecommunications
- 5G Base Stations: Outdoor telecom cabinets equipped with a high-cfm waterproof DC fan.
- CCTV & Security: Compact waterproof fans to prevent internal fogging and overheating.
- Smart Lighting: Durable cooling solutions for outdoor high-lumen street lighting.
4. Commercial & Home Appliances
- Outdoor Refrigeration: High-efficiency condenser cooling using a reliable waterproof fan.
- Smart Toilets: Moisture-resistant ventilation with an integrated waterproof DC fan.
- Kitchen Ventilation: Heavy-duty exhaust and airflow in humid industrial kitchens.
5. Transportation & Automotive
- Automotive Cooling: Mud and water-resistant auxiliary waterproof cooling fans.
- Charging Piles: All-weather ventilation for public electric vehicle infrastructure.
Need a Custom Waterproof Fan Solution?
Get a professional waterproof fan prototype customized to your exact specifications in 48 hours.
GET A QUOTE
Frequently Asked Questions (FAQs)
Q1: What is the main difference between IP55 and IP68 waterproof ratings for DC fans?
An IP55 waterproof fan provides conformal coating protection against direct water jets, while an IP68 waterproof fan utilizes Full Vacuum Potting to allow for constant underwater submersion and operation.
Q2: How does TKFAN ensure the longevity of a waterproof cooling fan in coastal environments?
Every industrial waterproof fan designed for coastal use features specialized Epoxy Resin Sealing and undergoes rigorous Salt Spray Testing to block corrosive salt air.
Q3: Can I get a customized waterproof fan for my project?
Yes, we specialize in OEM/ODM waterproof fan manufacturing. We can customize the operating voltage, PWM control, connectors, and lead wire lengths. Custom prototypes are ready in 48 hours.
Q4: Will the vacuum potting affect the airflow of the waterproof DC fan?
No. Our precision vacuum potting process ensures perfect dynamic balance. Our high-performance waterproof fans maintain a strong airflow of up to 106.7 CFM without performance loss.
