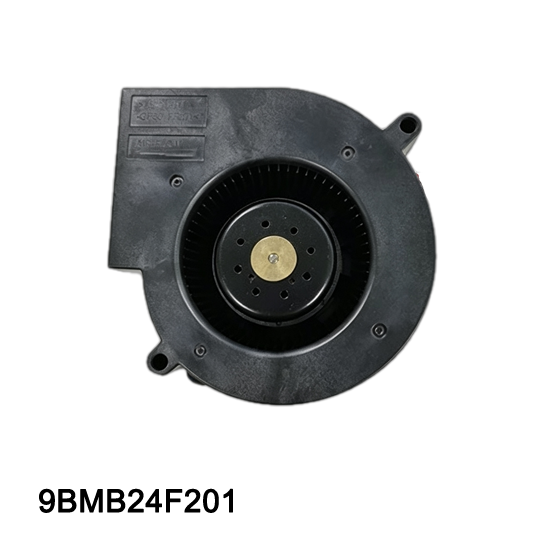

9BMB24F201 air blower
9BMB24F201 air blower

9BMB24F201 air blower

Voltage: DC 24V
Speed: 4500rpm
Current: 0.45A

Request a Sample

High Static Pressure Airflow

Compact 97×33mm blower generates strong static pressure and steady airflow, offering efficient cooling for high resistance industrial devices.

Stable DC Voltage Operation

24V rated working voltage features low power draw, maintaining reliable running status amid diverse power supply conditions.

Low Noise Smooth Rotation

Optimized rotating speed ensures quiet running performance without compromising overall heat dissipation efficiency.

Safe Structure & Wide Application

Equipped with complete circuit protection and certified quality, lightweight structure allows simple installation for multiple ventilation scenarios.

Technical Specifications

Model9BMB24F201
Size97*33 mm
Operating Voltage24 VDC
Rated Current0.45 Amp
Rated Speed4500 RPM
Maximum Flow Rate36.7 CFM
Maximum Static Pressure410pa

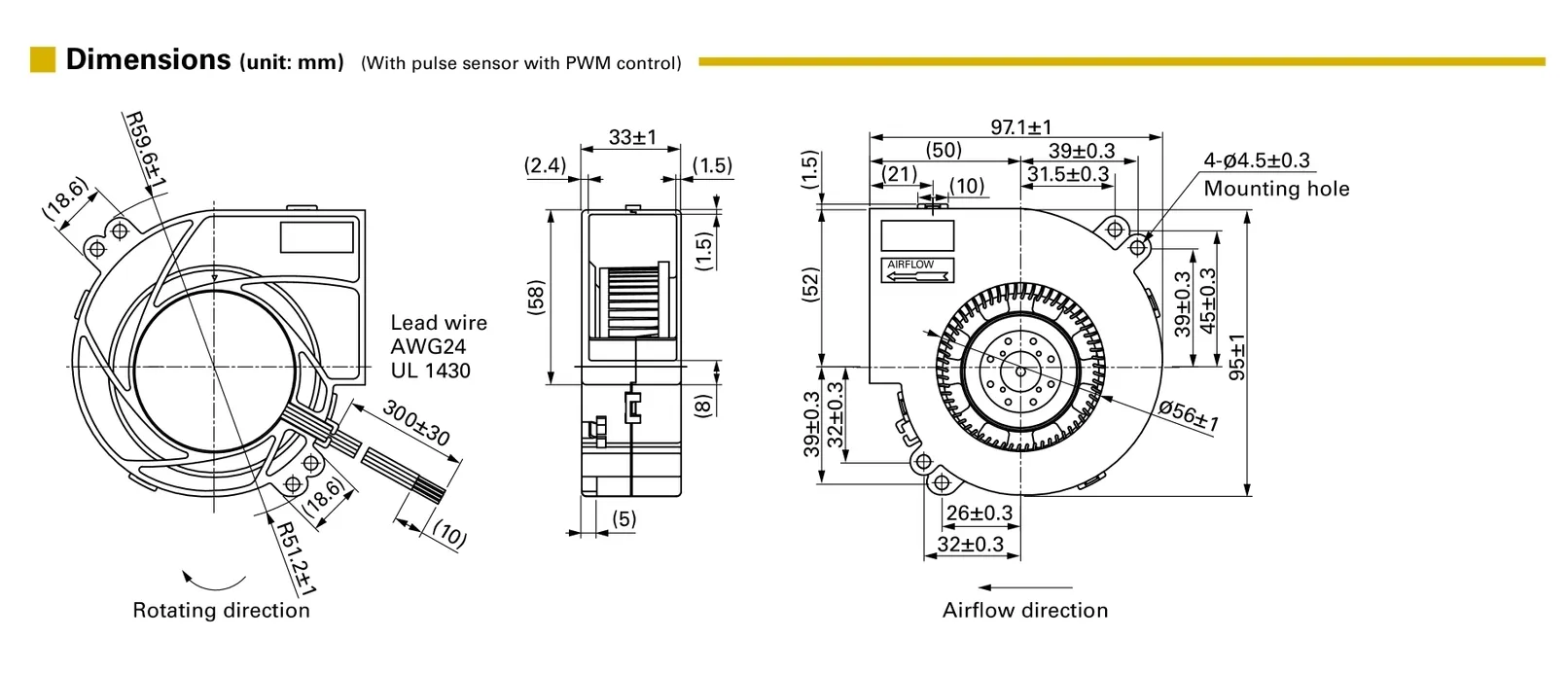

structure drawing of 9BMB24F201 air blower.webp

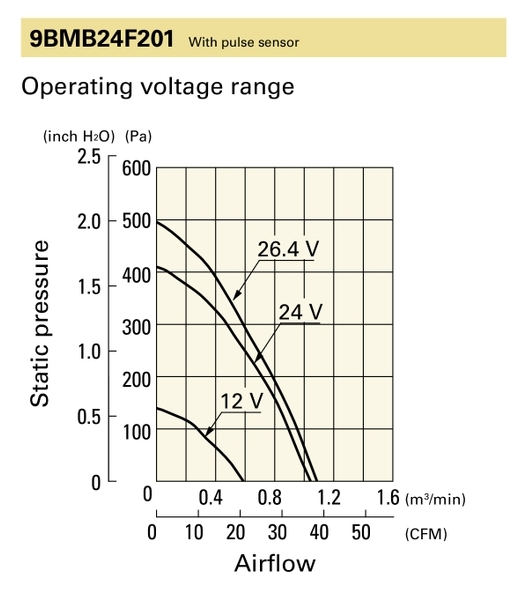

PQ curve for 9BMB24F201 air blower.png




Video Showcase

Need a Custom Modification?

We can customize voltage (5V/12V), wire length, and connectors. Prototypes ready in 48 hours.

Contact Our Engineers
