24V Air Blower BA7060H24B
24V Air Blower BA7060H24B

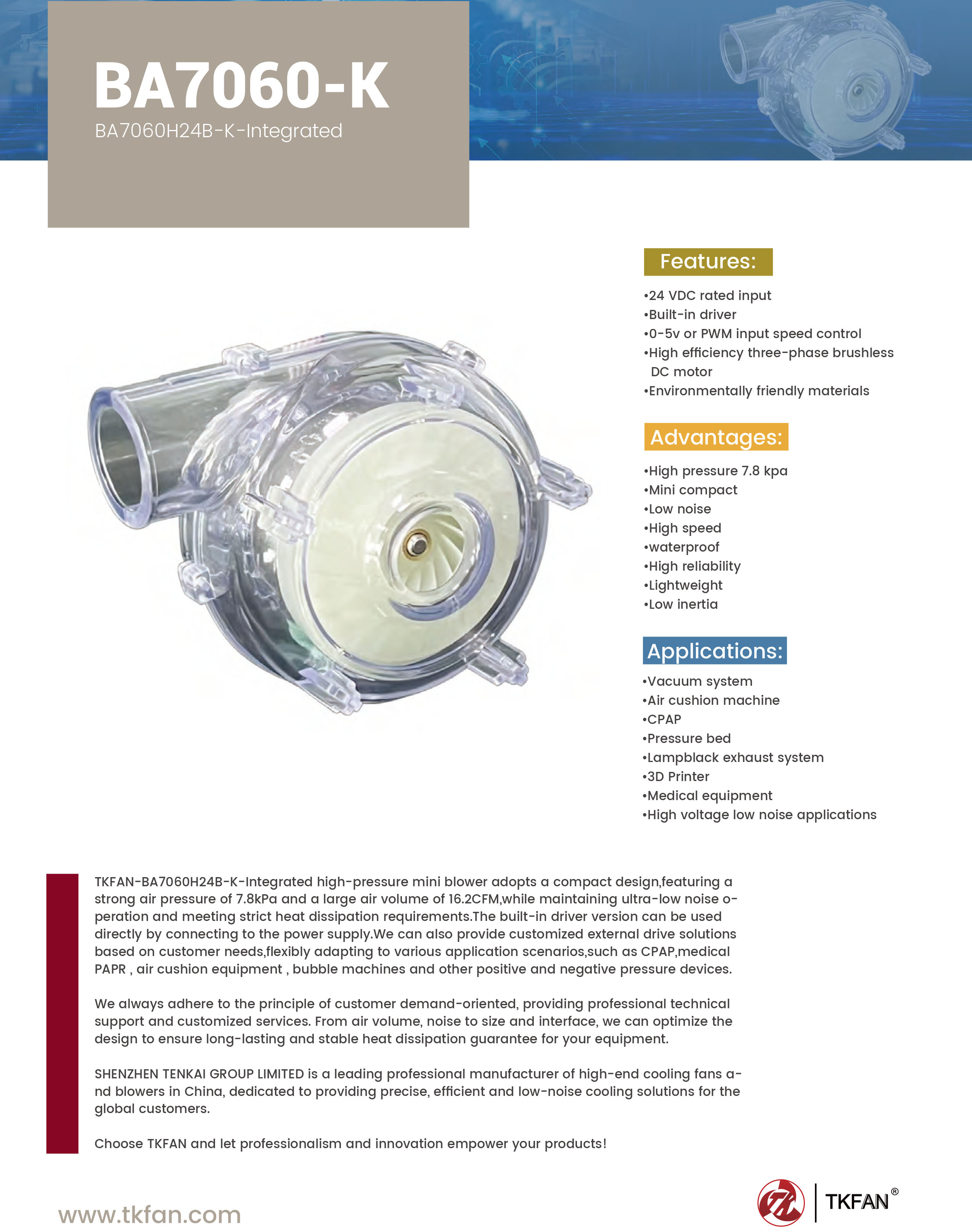

24V Air Blower BA7060H24B-K-Integrated

Integrated driver 24v
36000rpm/min
Max 16cfm,7.4kpa

24V DC Brushless Motor Design

Adopts high-performance brushless DC motor, ensuring maintenance-free operation, long service life, high efficiency and stable output during long-time working.

Waterproof & Reliable Structure

Features a waterproof design to enhance environmental adaptability, enabling stable operation in humid and harsh working conditions.

Wide Application for CPAP & Vacuum Systems

Specifically designed for CPAP machines, medical breathing apparatus, vacuum pumps, air mattresses, inflatable equipment and pneumatic systems.

Stable & Durable Performance

Ensures consistent airflow and pressure output with low power consumption, high reliability and long lifespan for industrial and medical use.

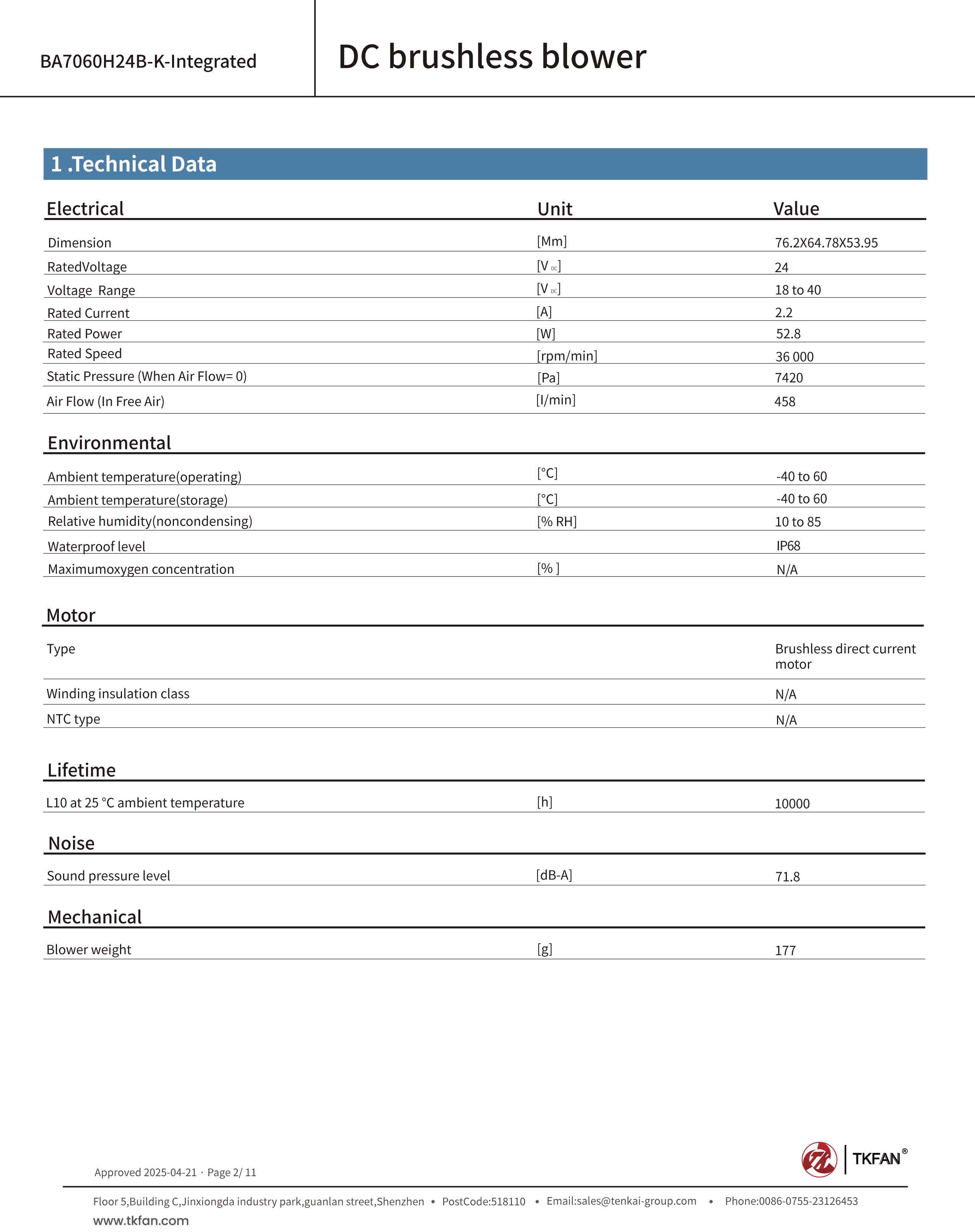

Technical Specifications

ModelBA7060H24B-K-Integrated
Size70*70*60 mm
Operating Voltage24 VDC
Rated Current2.2 Amp
Rated Speed36000 RPM
Maximum Flow Rate16.2 CFM
Maximum Static Pressure7.4 kpa

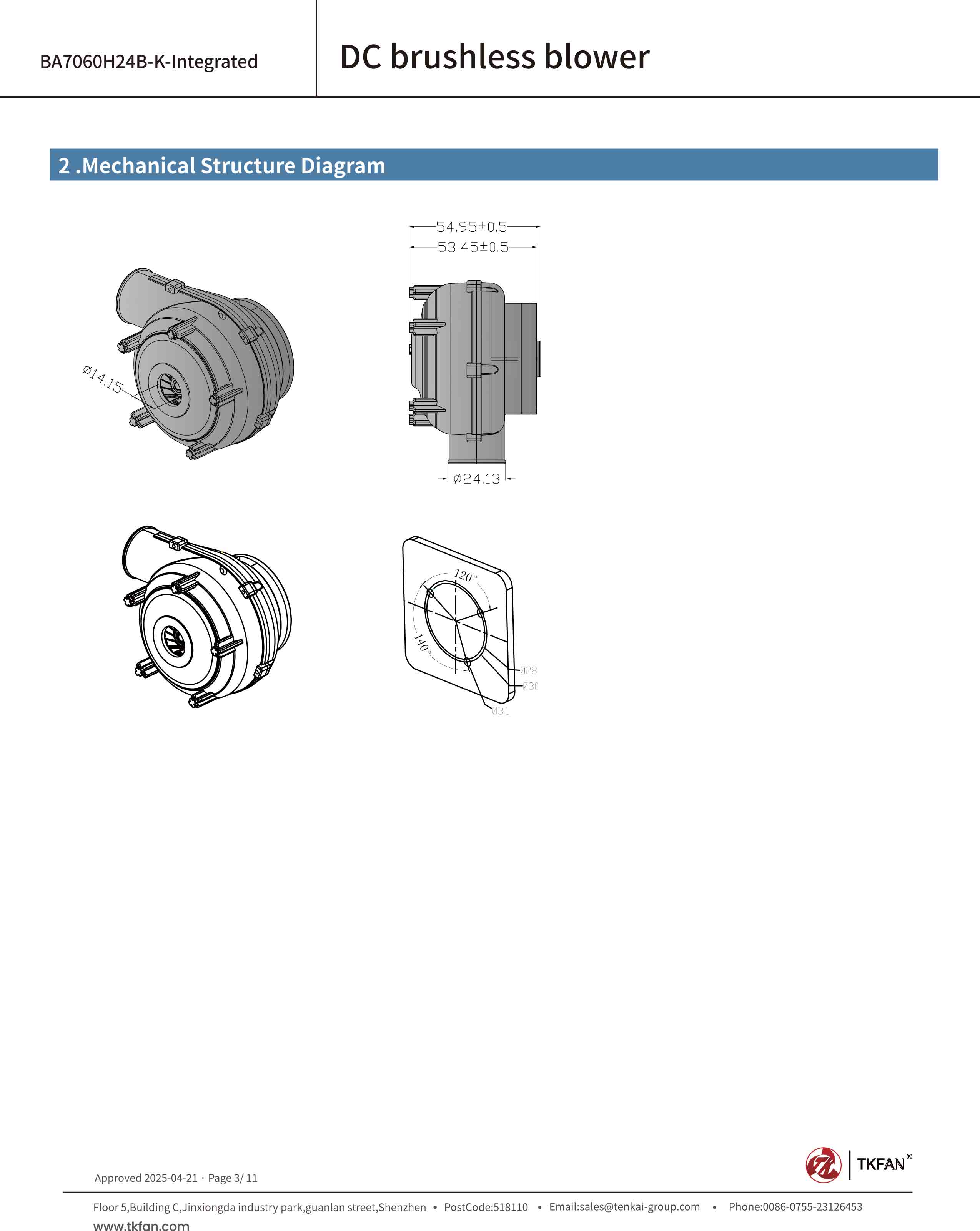

Mechanical structure and outline dimension diagram of 24V Air Blower BA7060H24B-K Integrated

24V Air Blower BA7060H24B-K-Integrated Mechanical Structure Diagram

This comprehensive mechanical structure diagram illustrates the precise internal and external engineering layout of the 24V Air Blower BA7060H24B-K-Integrated version. It details the integrated structural design, mounting interface dimensions, casing profile, and air inlet/outlet configurations.

Engineered for compact space utilization and robust mechanical stability, this blueprint provides structural engineers and product designers with accurate spatial references, ensuring seamless hardware integration into advanced ventilation, medical devices, and automated pneumatic systems.

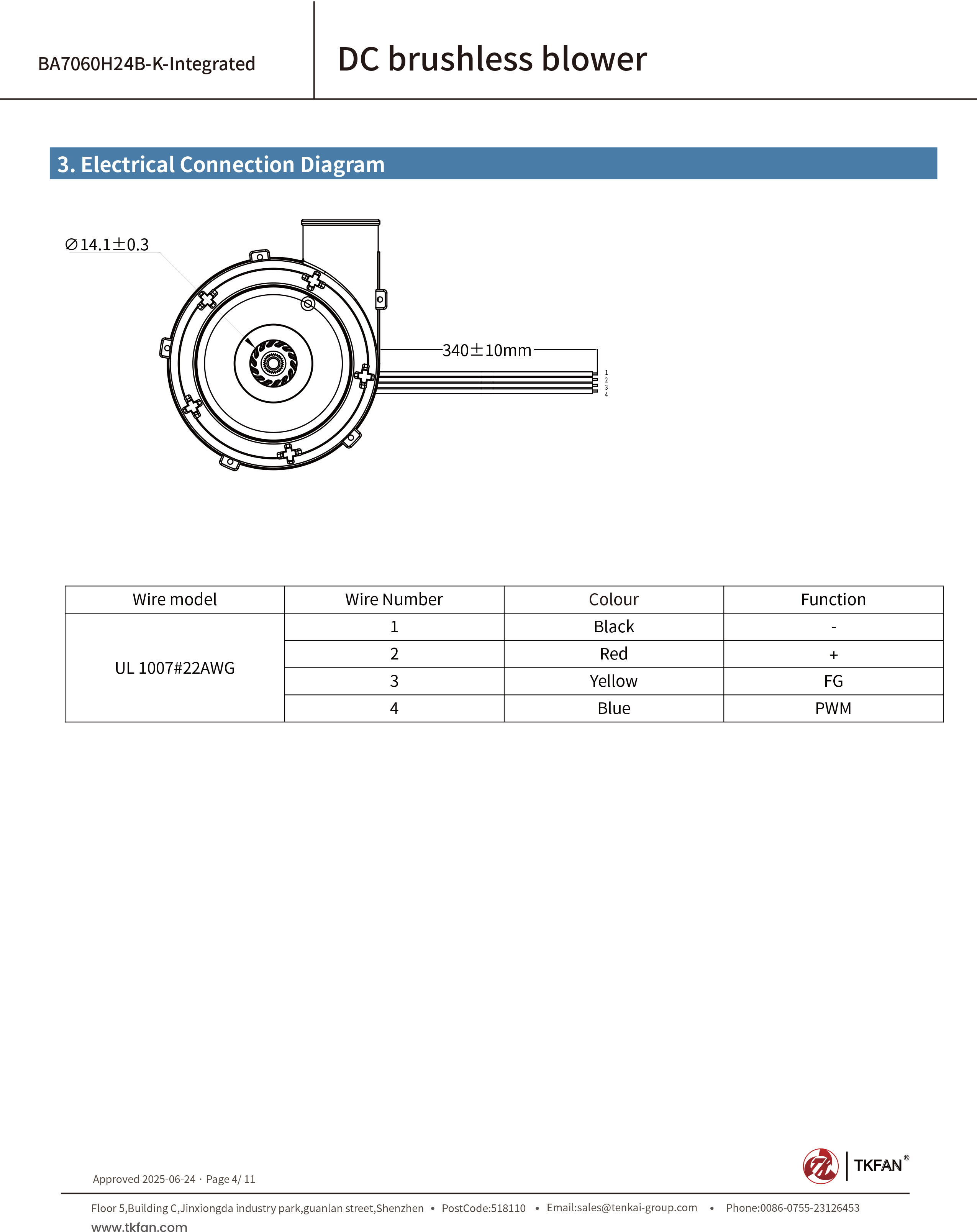

Electrical wiring and pin connection diagram of 24V Air Blower BA7060H24B-K Integrated

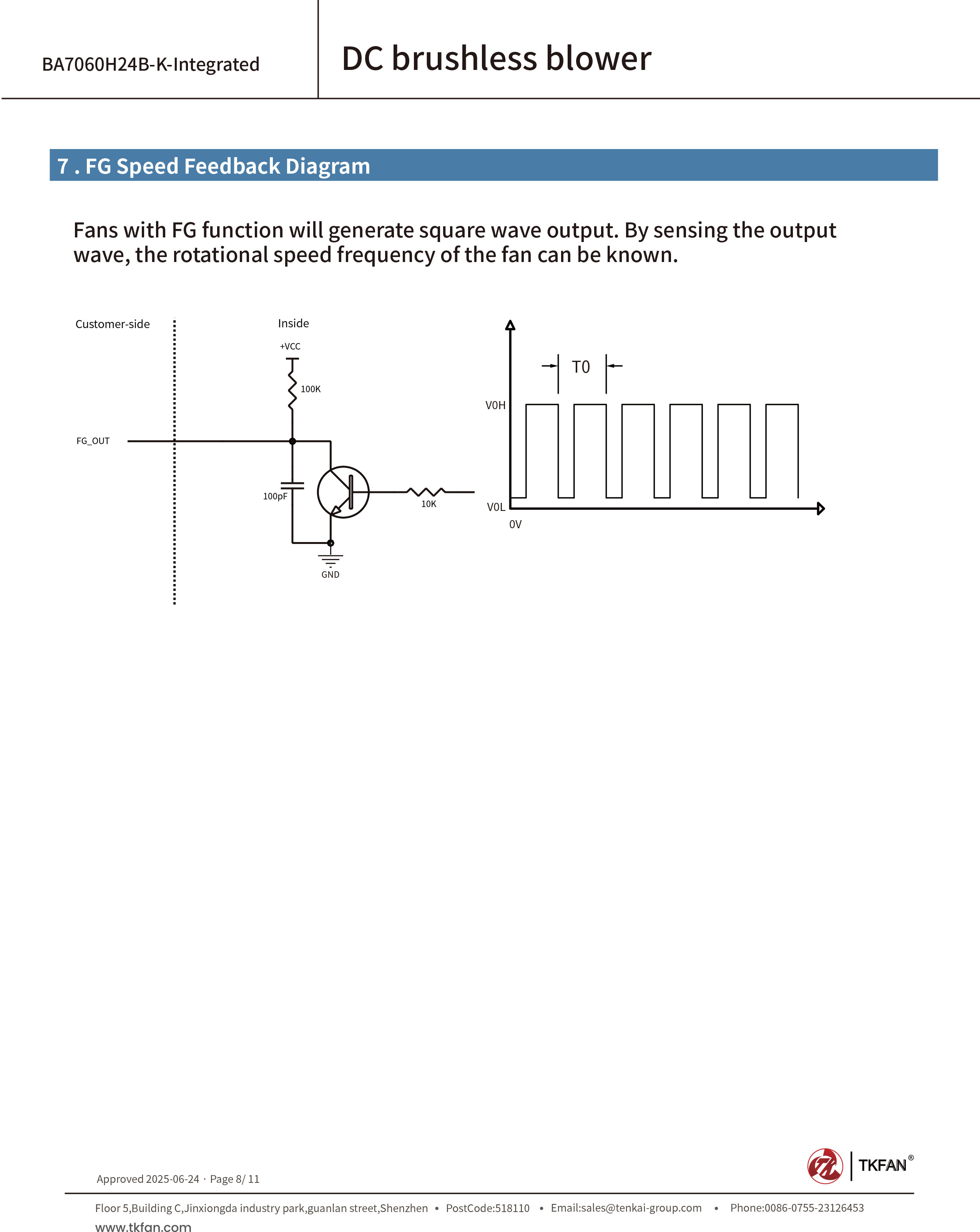

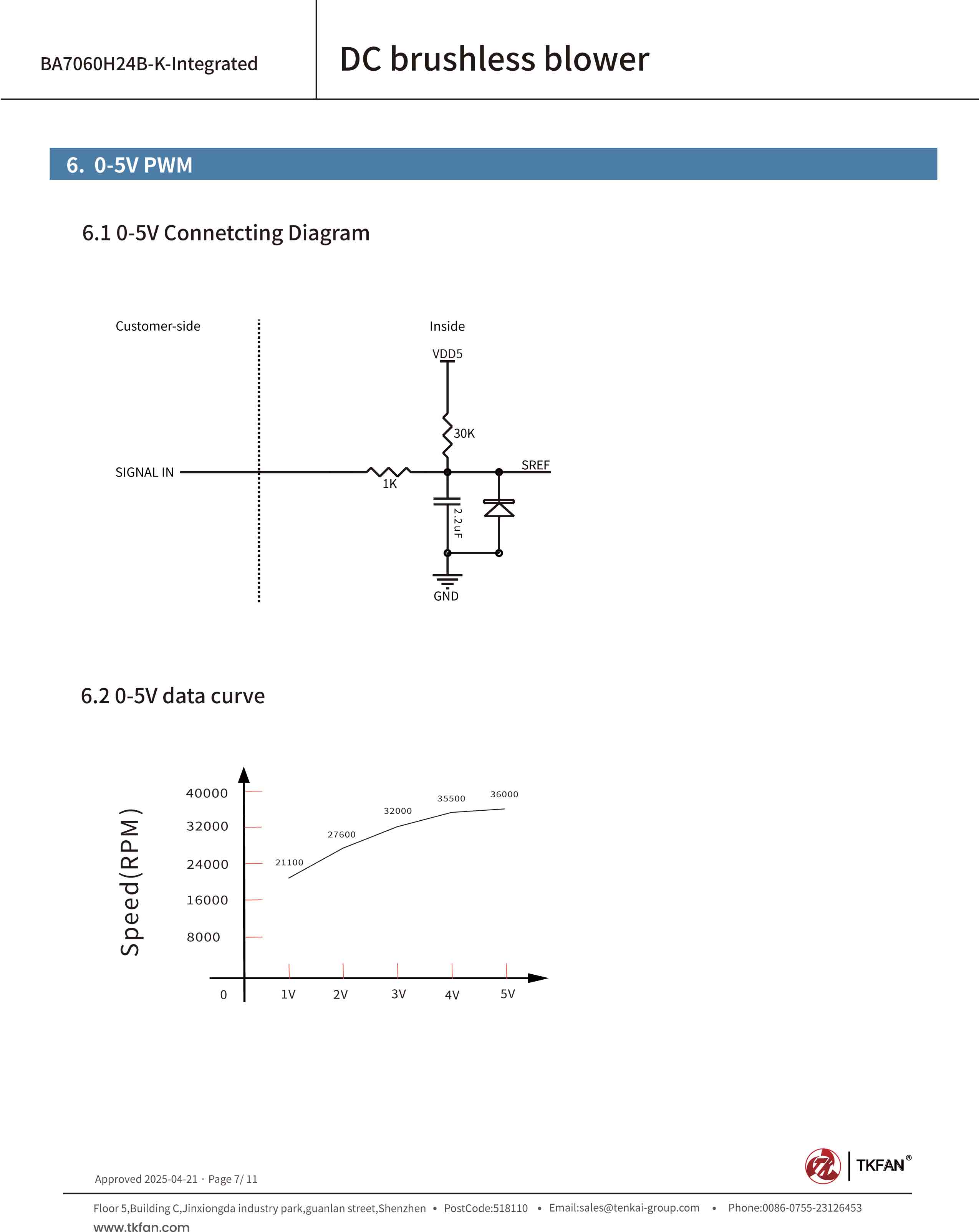

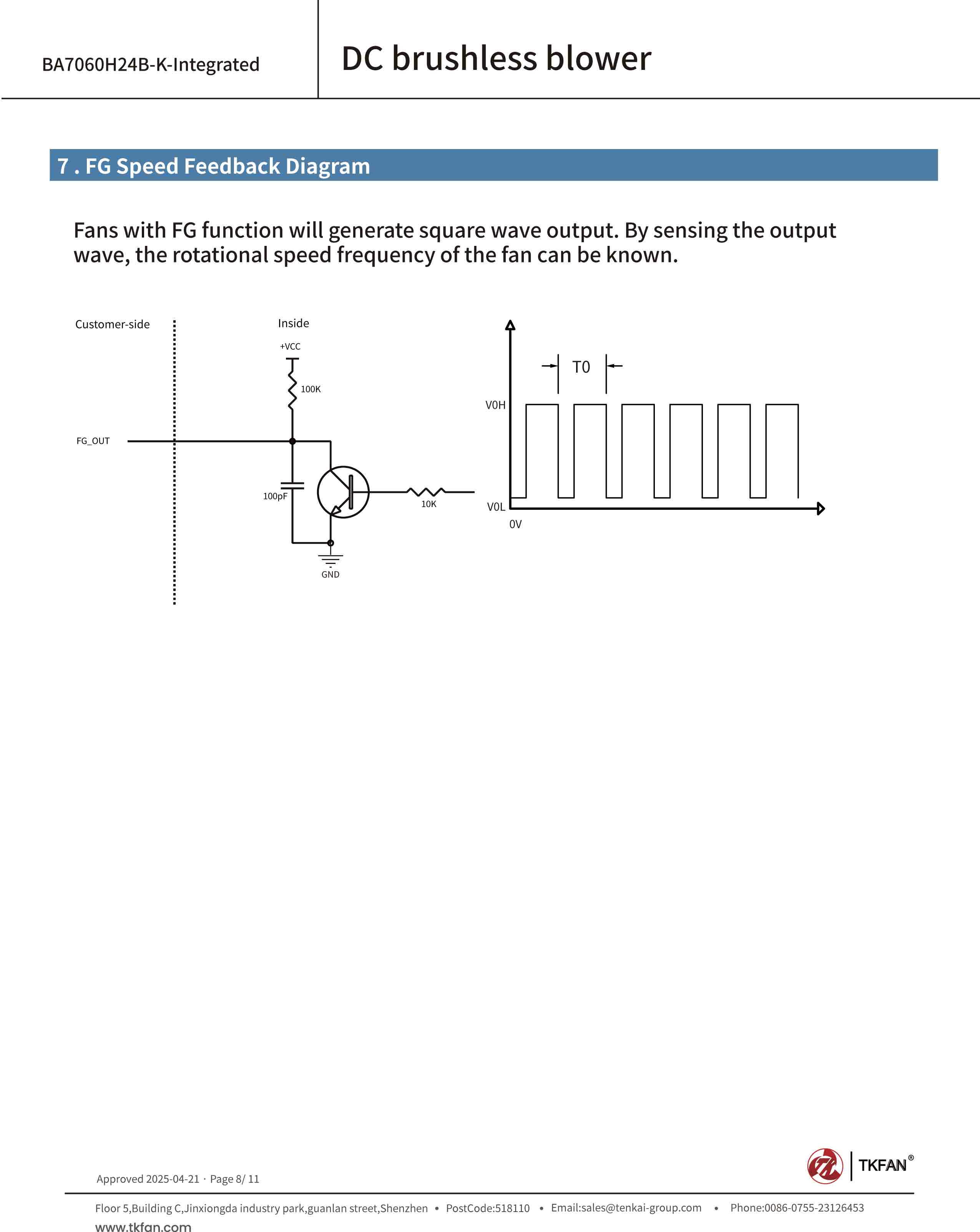

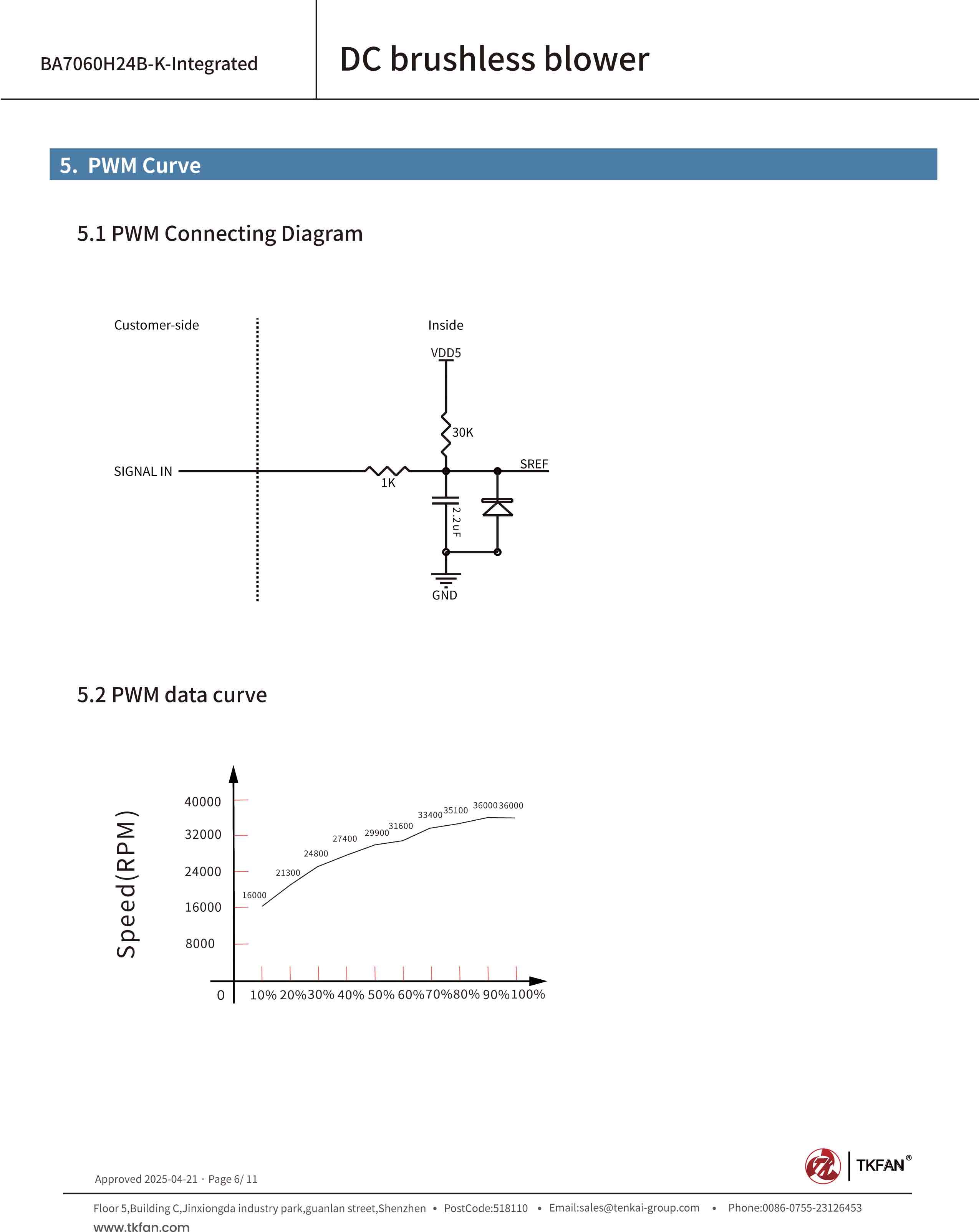

24V Air Blower BA7060H24B-K-Integrated Electrical Connection Diagram

The electrical connection diagram clearly outlines the wiring configurations, pin assignments, power supply input guidelines, and control signal interfaces for the 24V Air Blower BA7060H24B-K-Integrated model. It provides explicit instructions for connecting the internal brushless motor driver.

Designed to support safe and efficient circuitry deployment, this guide helps electrical engineers properly wire power lines, speed regulation signals, and feedback channels, preventing wiring errors and ensuring stable, long-term electrical performance.

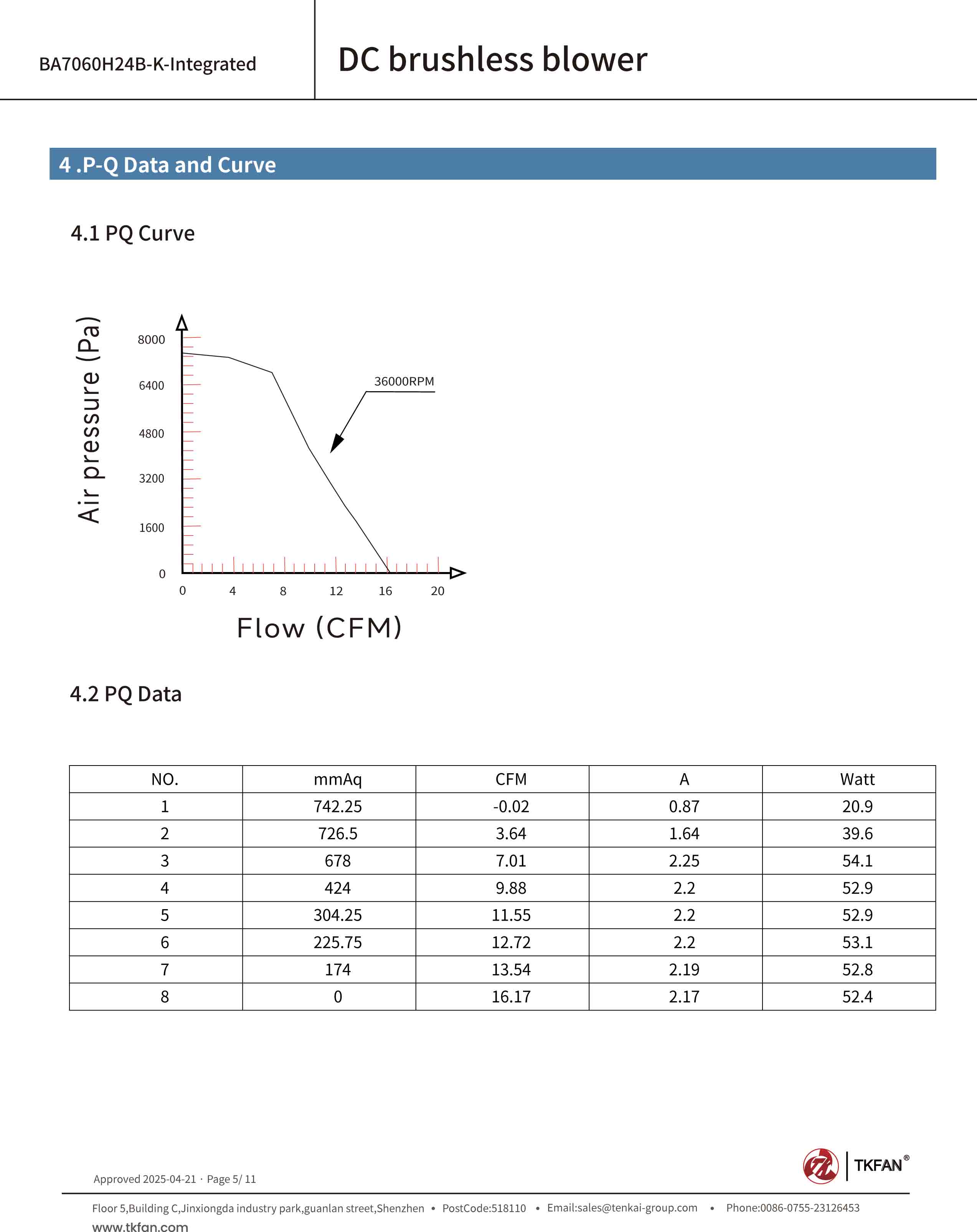

24V Air Blower BA7060H24B-K-Integrated P-Q Curve

This performance P-Q (Pressure-Flow) curve graph maps out the aerodynamic capability and airflow characteristics of the 24V Air Blower BA7060H24B-K-Integrated. It details the precise interaction between static pressure performance and delivered airflow volume across various operation points.

Optimized for high-pressure output and superior aerodynamic efficiency, the blower delivers steady and reliable air performance. This curve serves as an essential technical reference for system developers to calibrate air resistance, optimize duct design, and achieve desired ventilation targets.

Static pressure and airflow P-Q performance curve graph of 24V Air Blower BA7060H24B-K Integrated
