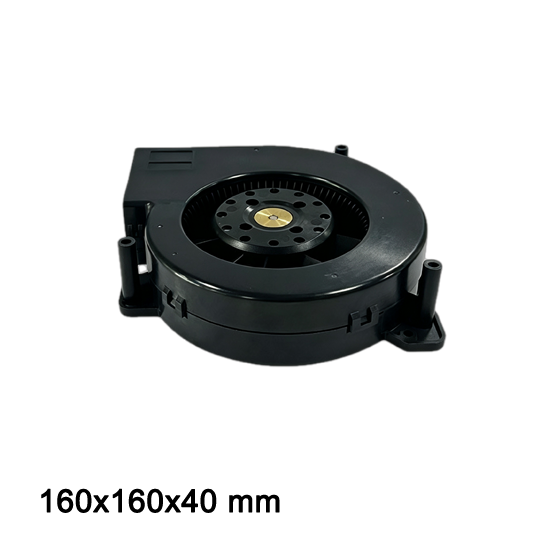

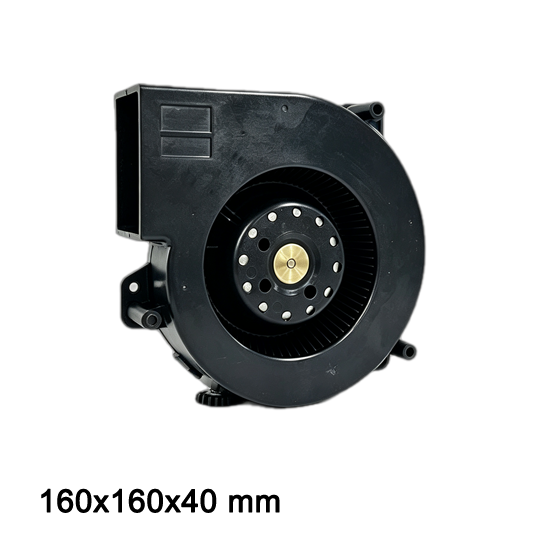

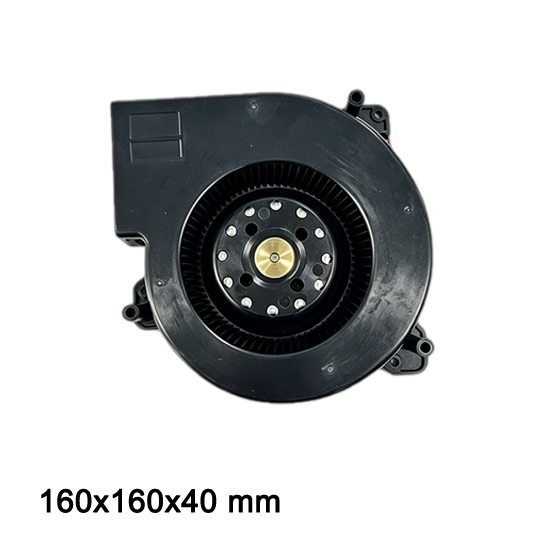

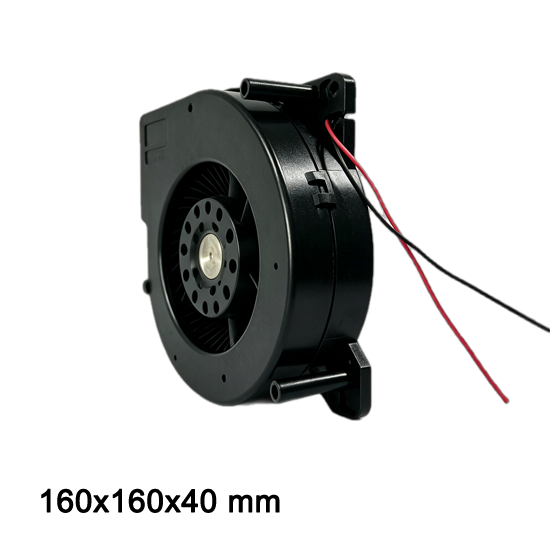

24V DC Air Blower BA16040HV24B-A (Sanyo Denki 109BG24MC1 / 109BG24HC1 Cross Reference)
24V DC Air Blower BA16040HV24B-A (Sanyo Denki 109BG24MC1 / 109BG24HC1 Cross Reference)
Voltage 24V
4500rpm/min
Max 117.1 cfm,0.9 kpa
Request a Sample
Structure Drawing
Technical Specifications
Sanyo Denki Cross-Reference Alternative
Looking for a drop-in replacement for the discontinued or high-cost Sanyo Denki 109BG24MC1 or 109BG24HC1 24V blower? The TKFAN BA16040HV24B-A offers identical 160x160x40mm dimensions, pin-to-pin compatibility, and high static pressure performance.

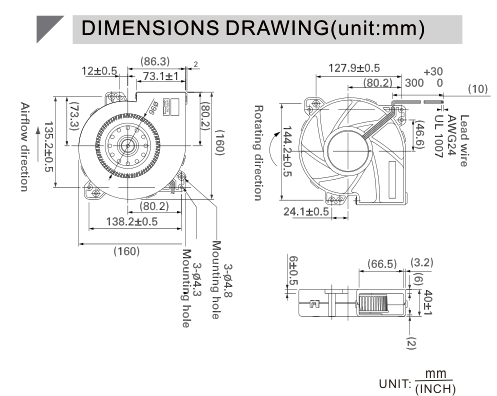

24V Air Blower BA16040HV24B-A Dimensions & Mounting Drawing
Detailed mechanical dimensions drawing for the 24V Air Blower BA16040HV24B-A. Engineered with identical mounting hole patterns to match the Sanyo Denki 109BG24MC1 / 109BG24HC1 series, it provides precise measurements for housing, inlet/outlet specifications, and wiring pinouts to ensure seamless mechanical replacement.

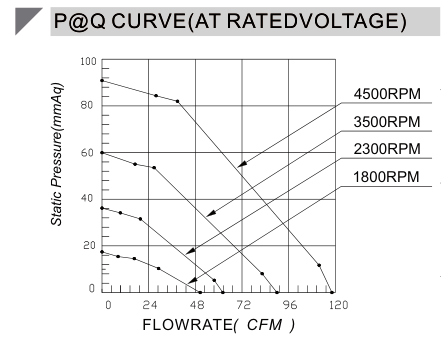

24V Air Blower BA16040HV24B-A PQ Performance Curve
Airflow and static pressure performance curve (P-Q curve) for the 24V Air Blower BA16040HV24B-A. This chart demonstrates the stable relationship between static pressure and airflow volume (up to 117.1 CFM and 0.9 kPa), ensuring high-efficiency thermal management for heavy-duty industrial applications.
BA16040-A Series Air Blower Selection Guide
Compare key performance parameters across different voltage options (12V, 24V, 48V), power ratings, speed levels, maximum airflow, and static pressure to match your exact replacement or engineering needs.
| Model | P/N Code | Rated Voltage | Operating Voltage Range | Rated Current | Rated Input Power | Speed | Maximum Air Flow | Maximum Air Pressure | Noise | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| VDC | VDC | Amp | Watt | R.P.M | M³/min | CFM | mmH2O | InH2O | dB-A | ||
| BA16040H12B | AY | 12 | 7.5 ~ 13.5 | 0.8 | 9.6 | 1800 | 1.45 | 50.0 | 17.2 | 0.68 | 50.9 |
| BA16040HH12B | 12 | 7.5 ~ 13.5 | 1.4 | 16.8 | 2300 | 1.74 | 61.5 | 35.8 | 1.41 | 55.3 | |
| BA16040VH12B | 12 | 7.5 ~ 13.5 | 4.8 | 57.6 | 3500 | 2.29 | 89.1 | 59.4 | 2.34 | 64.2 | |
| BA16040HV12B | 12 | 7.5 ~ 13.5 | 8.0 | 96 | 4500 | 3.31 | 117.1 | 90.1 | 3.55 | 71.4 | |
| BA16040H24B | 24 | 18 ~ 26.5 | 0.4 | 9.6 | 1800 | 1.45 | 50.0 | 17.2 | 0.68 | 50.9 | |
| BA16040HH24B | 24 | 18 ~ 26.5 | 0.7 | 16.8 | 2300 | 1.74 | 61.5 | 35.8 | 1.41 | 55.3 | |
| BA16040VH24B | 24 | 18 ~ 26.5 | 2.4 | 57.6 | 3500 | 2.29 | 89.1 | 59.4 | 2.34 | 64.2 | |
| BA16040HV24B (109BG24MC1/HC1 Alt) | 24 | 18 ~ 26.5 | 4.0 | 96 | 4500 | 3.31 | 117.1 | 90.1 | 3.55 | 71.4 | |
| BA16040H48B | 48 | 36 ~ 54 | 0.2 | 9.6 | 1800 | 1.45 | 50.0 | 17.2 | 0.68 | 50.9 | |
| BA16040HH48B | 48 | 36 ~ 54 | 0.35 | 16.8 | 2300 | 1.74 | 61.5 | 35.8 | 1.41 | 55.3 | |
| BA16040VH48B | 48 | 36 ~ 54 | 1.2 | 57.6 | 3500 | 2.29 | 89.1 | 59.4 | 2.34 | 64.2 | |
| BA16040HV48B | 48 | 36 ~ 54 | 2 | 96 | 4500 | 3.31 | 117.1 | 90.1 | 3.55 | 71.4 | |
BA16040HH24B Blower & Series Overview Video Demonstration
Watch this detailed product demonstration video showcasing the physical build quality, operation, and high-performance capabilities of the BA16040HH24B / BA16040HV24B-A 24V DC Centrifugal Blower (160x160x40mm). Designed for demanding thermal management environments, it features robust dual-ball bearings and precise PWM speed control.
In this video, you can observe its smooth operation running at 2570RPM (up to 4500RPM for HV versions) delivering powerful airflow up to 64.3CFM and beyond. It highlights the pin-to-pin mechanical compatibility and why it serves as an ideal direct replacement for legacy cooling units.
- Dimensions: Standard 160x160x40mm footprint for easy integration.
- Performance: High static pressure and optimized airflow for restricted spaces.
- Intelligence: Built-in PWM speed control and tachometer signal options available.
- Durability: Long life expectancy supported by high-grade ball bearing systems.
