24V Air Blower BA9080H24B-A-Integrated
Integrated driver 24v
48000rpm/min
Max 72cfm,18kpa

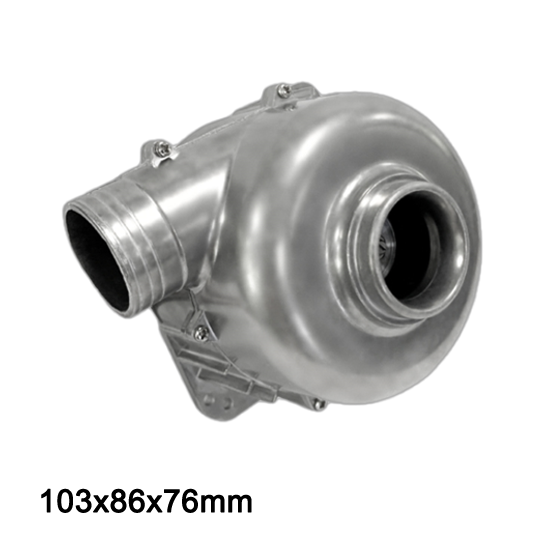

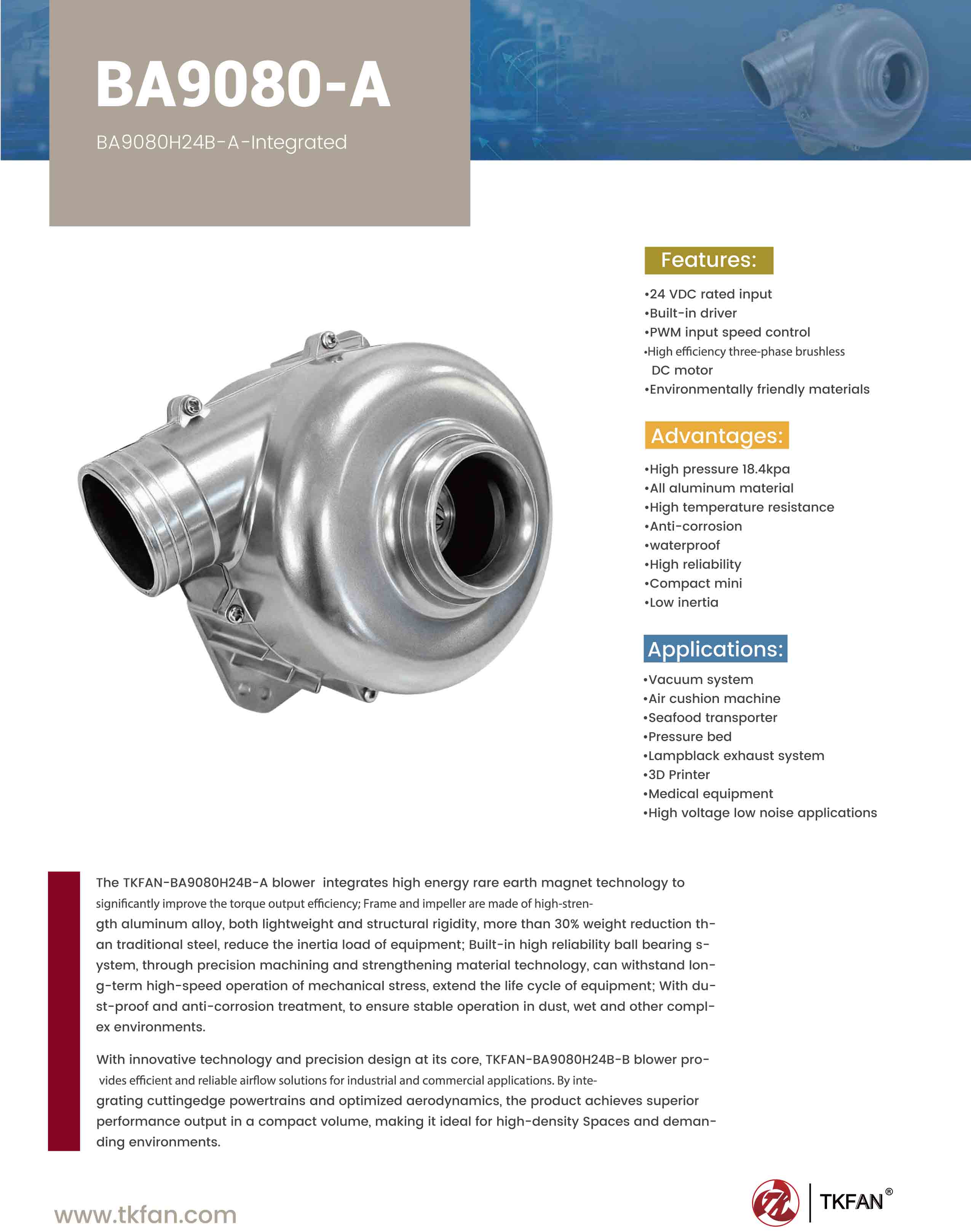

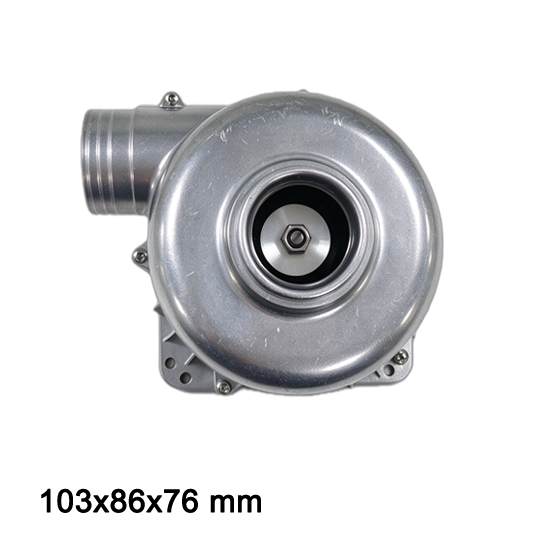

BA9080H24B-A-Integrated 24V High Static Pressure Air Blower
Integrated built-in driver design enables plug-and-play operation, this centrifugal blower delivers powerful airflow and stable pressure for industrial heat dissipation.

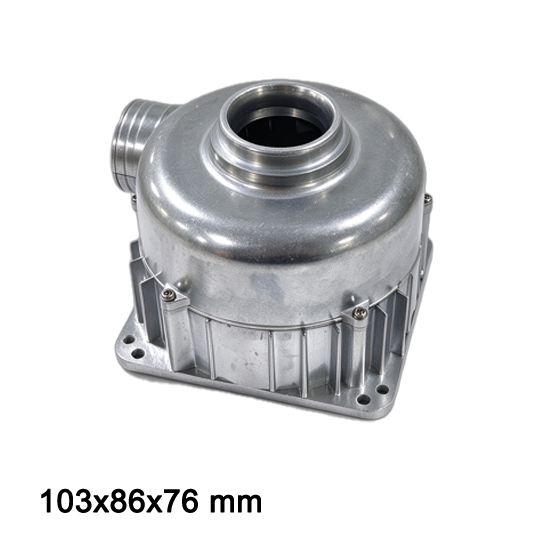

High Flow 24V DC Air Blower BA9080H24B-A 103×86×76mm Integrated
High-performance brushless DC motor provides large air volume output with integrated control circuit, supporting stable continuous operation.
Long Lifespan Integrated 24V Air Blower BA9080H24B-A
Premium durable bearing structure and built-in drive module ensure extended service life, low power consumption and low vibration for 24-hour running.
Heavy Duty Reliable 24V Air Blower BA9080H24B-A Integrated
Stable 24V DC power input, excellent overall performance and integrated circuit design, widely used in medical devices, pipeline ventilation and industrial equipment cooling.

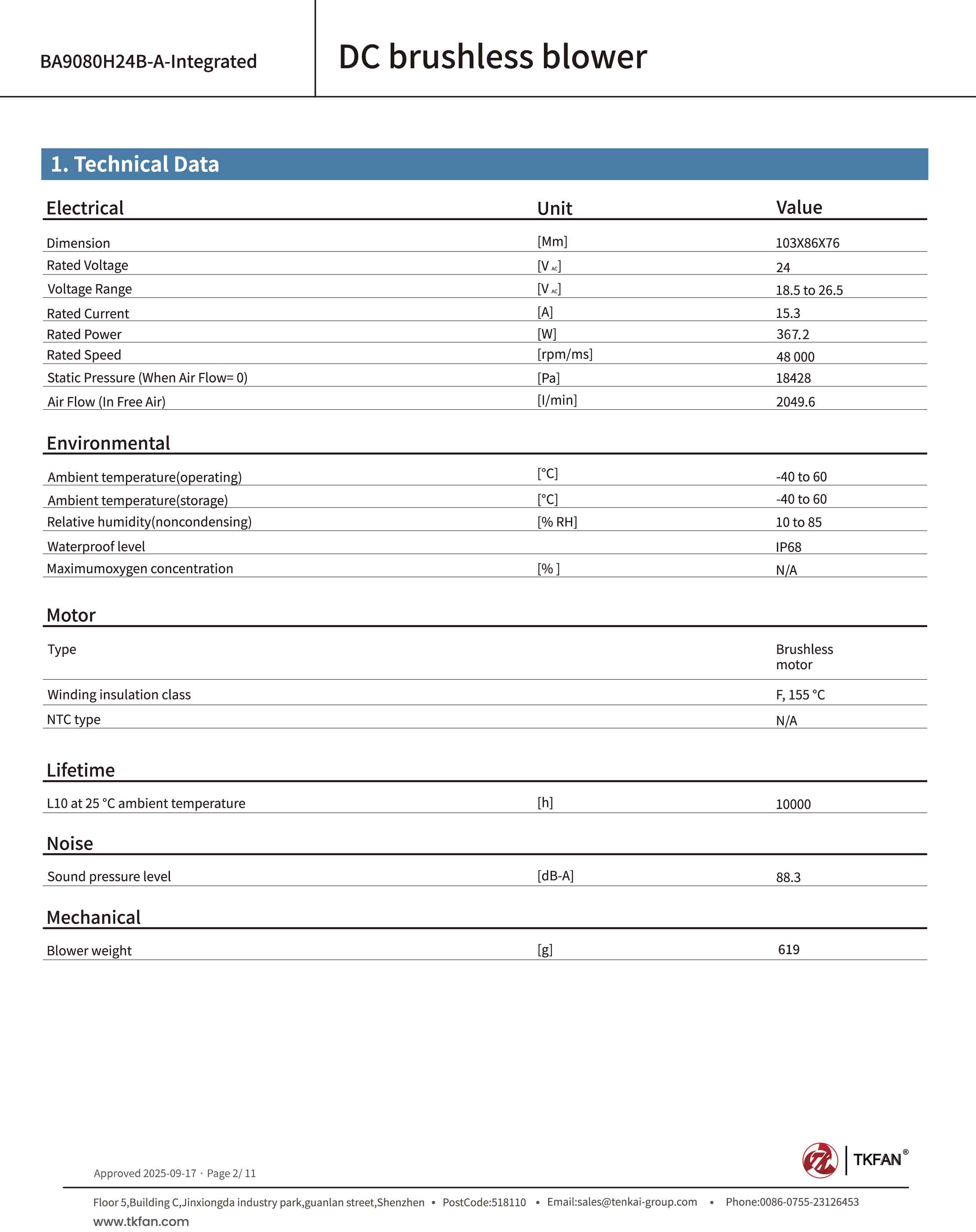

Technical Specifications

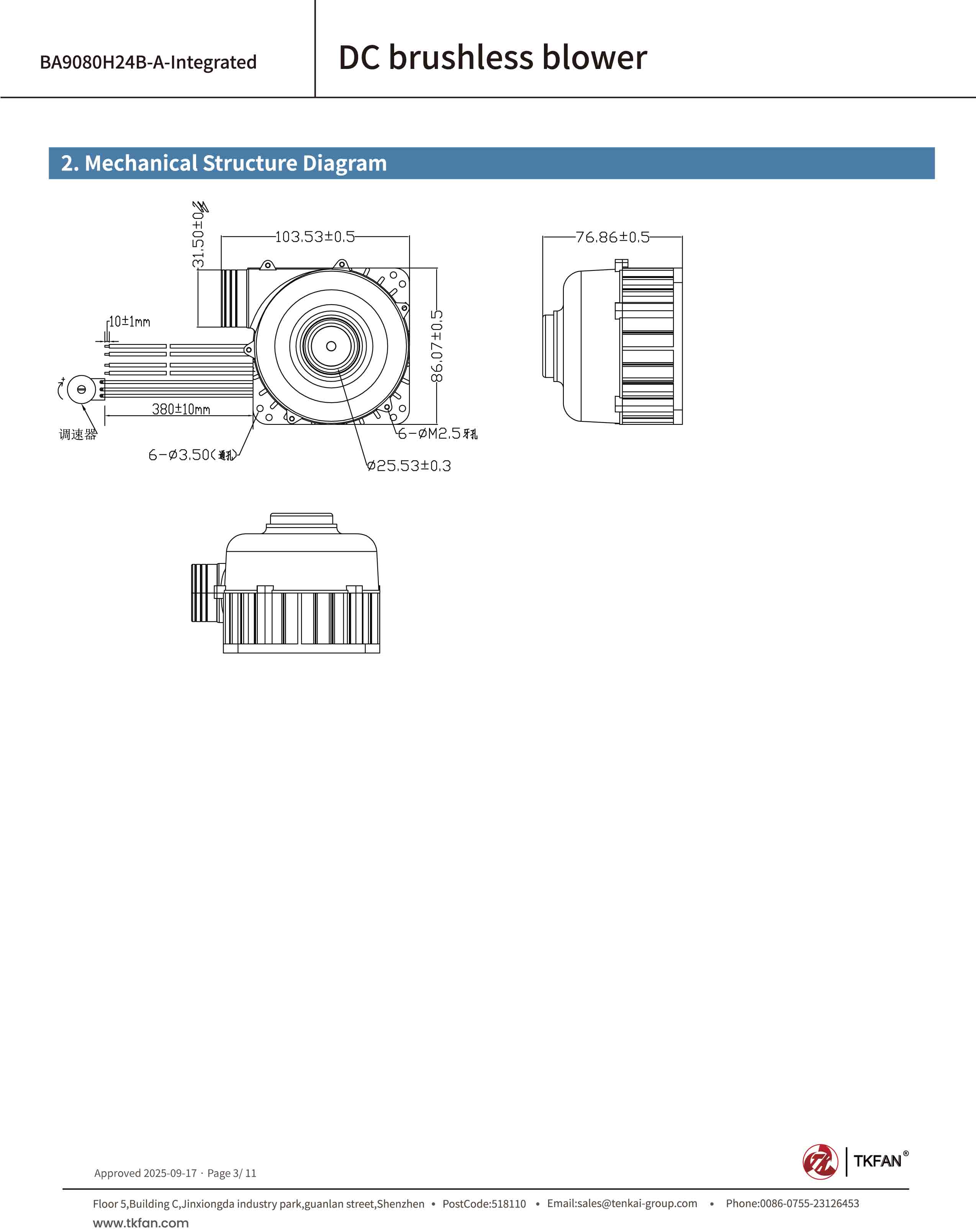

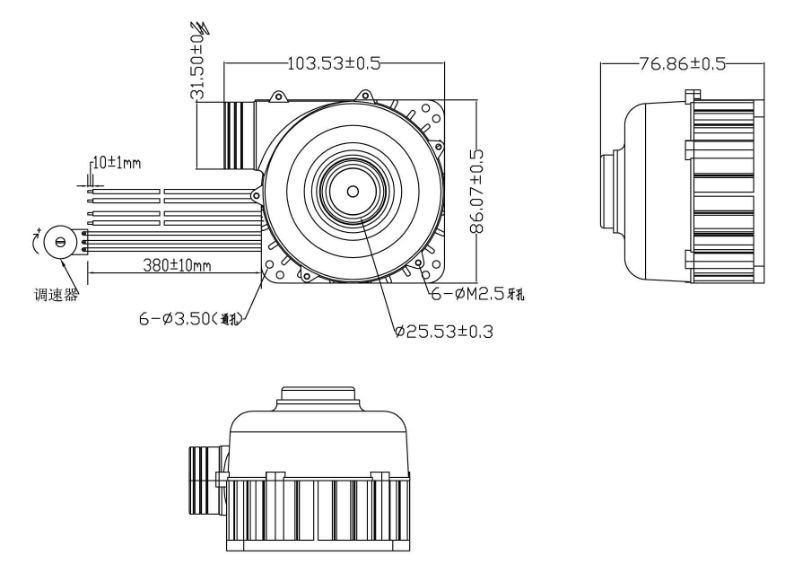

24V Air Blower BA9080H24B-A-Integrated Mechanical Structure Diagram
This mechanical structure diagram outlines the precise engineering dimensions, mounting hole locations, and compact spatial layout of the BA9080H24B-A blower. Designed with an integrated housing, it ensures high structural rigidity, minimal vibration during high-speed rotation, and seamless integration into space-constrained medical, industrial, or pneumatic systems.

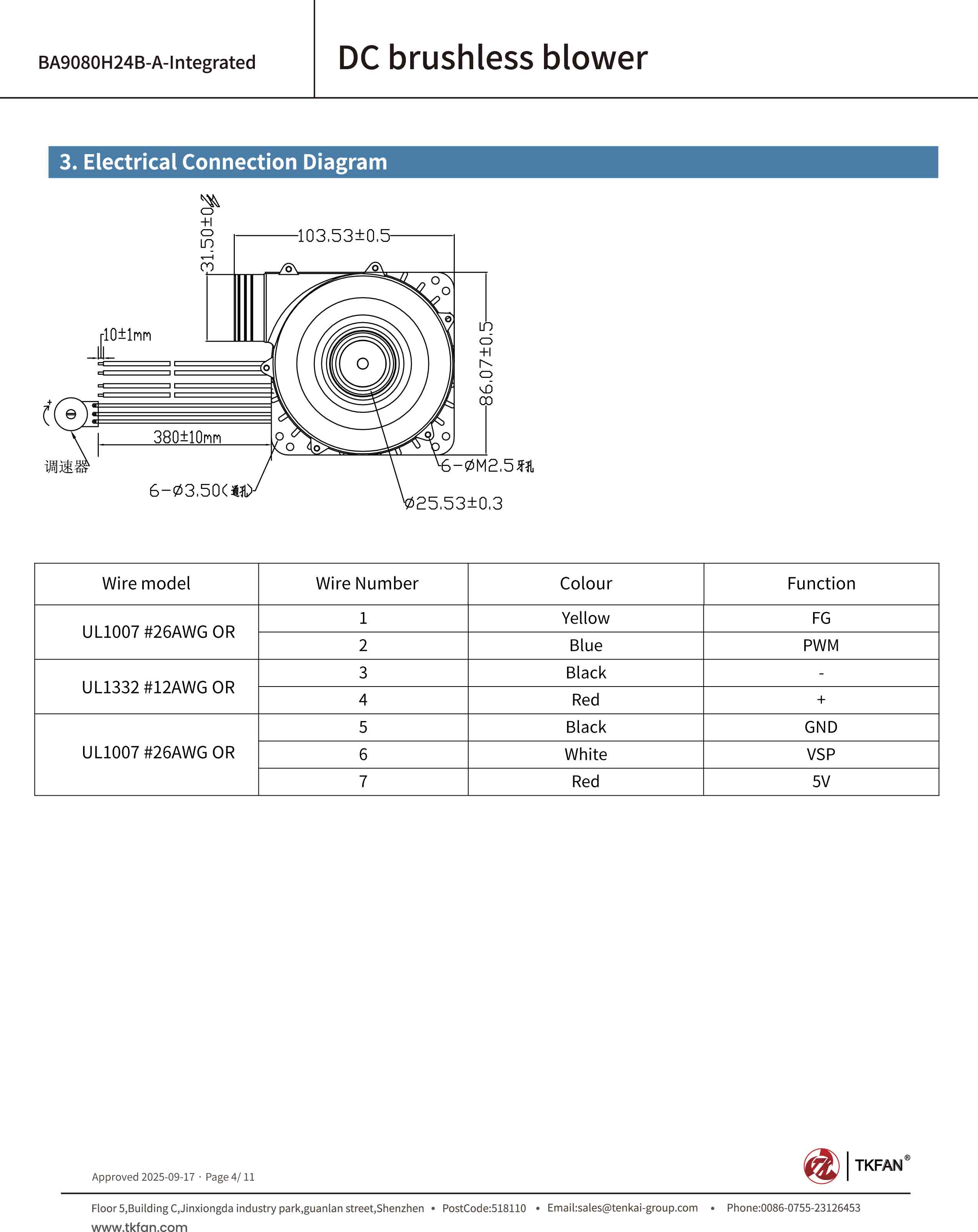

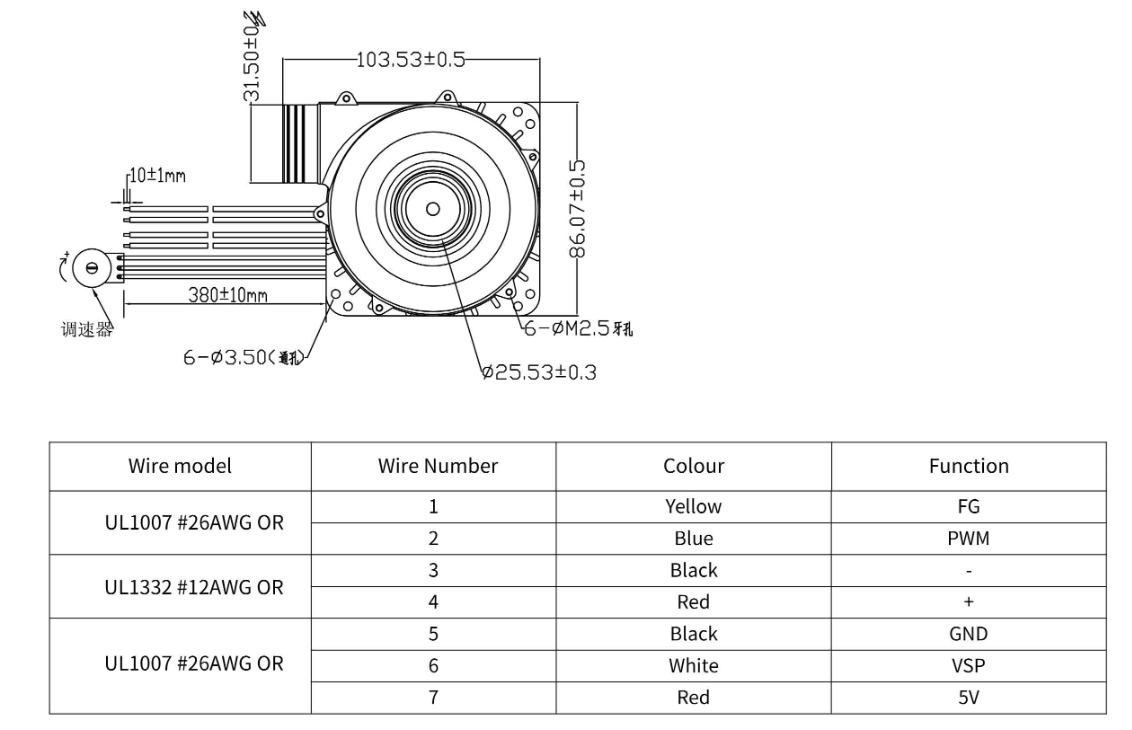

24V Air Blower BA9080H24B-A-Integrated Electrical Connection Diagram
The electrical wiring and connection schematic provides clear guidelines for safe power input, PWM speed control, and signal feedback integration. Adhering strictly to this diagram ensures proper setup of the brushless motor driver, protecting the internal circuitry against miswiring while enabling precise speed regulation and performance monitoring.

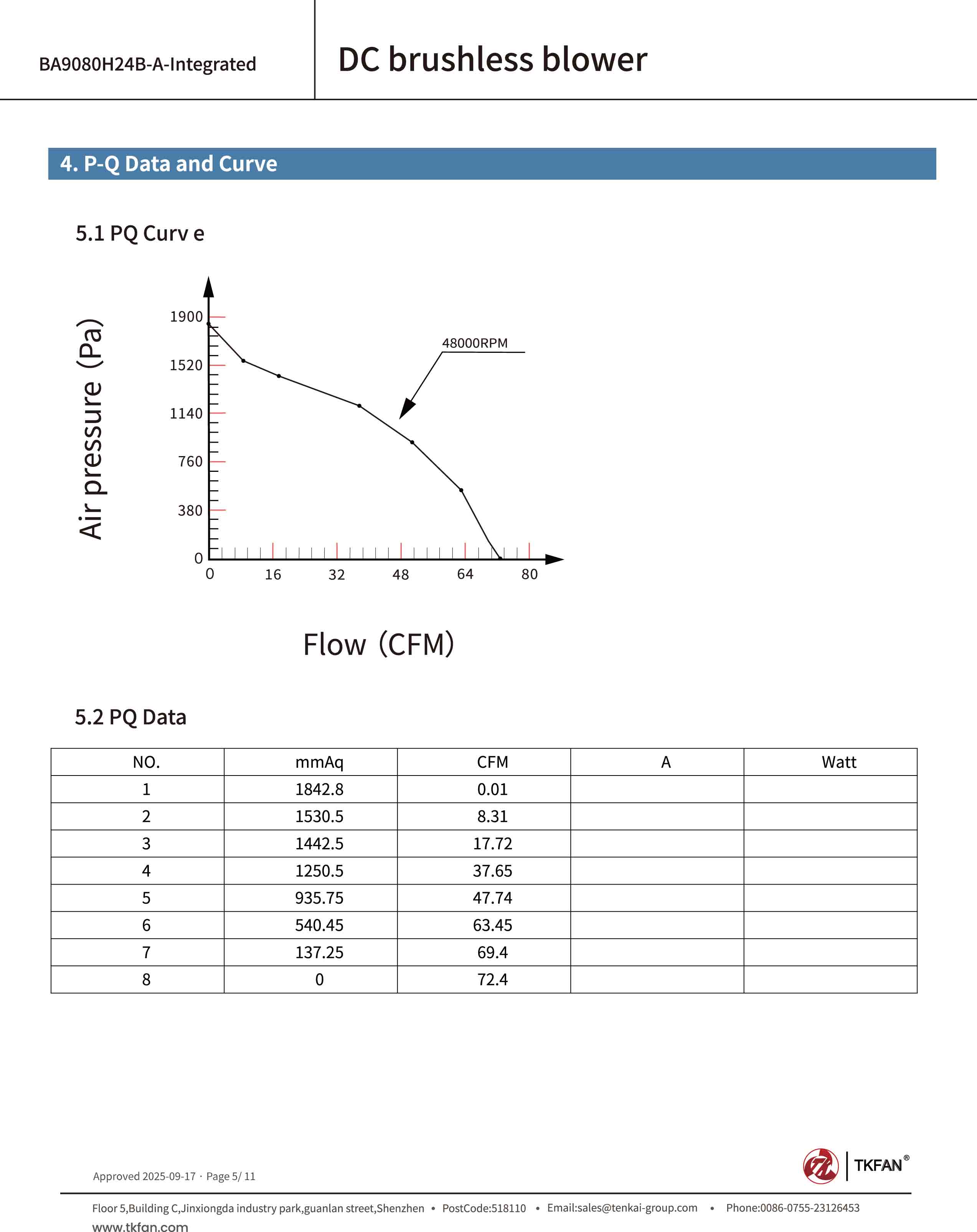

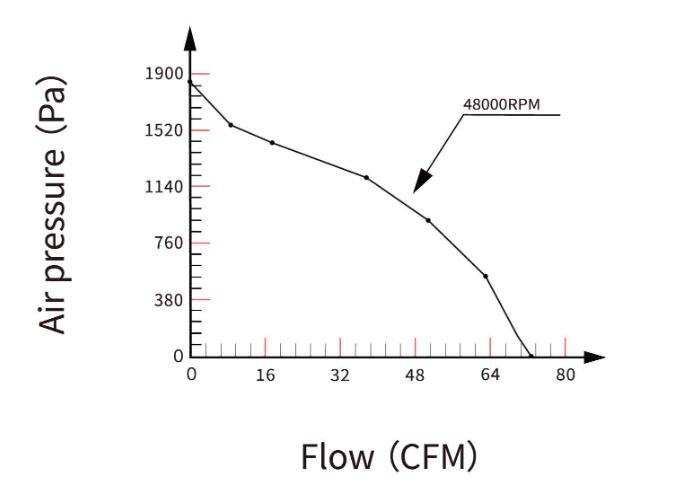

24V Air Blower BA9080H24B-A-Integrated P-Q Curve
The Pressure-Flow (P-Q) performance curve illustrates the exceptional aerodynamic efficiency and output stability of the BA9080H24B-A across various operational backpressures. Engineers can utilize this performance graph to evaluate static pressure capabilities and airflow delivery, ensuring optimal matching for target applications such as air cushion machines, fuel cells, or vacuum packaging.
Watch Video: Practical operation and user guide for the BA9080H24B high-pressure 24V DC air blower. Learn how to connect, run, and optimize its performance in your application.
Looking for different sizes or specifications?
Explore our full range of 24V Blower, or choose from similar models below.
24V Blower
Need a Custom Modification?
We can customize voltage (5V/12V), wire length, and connectors. Prototypes ready in 48 hours.
Contact Our Engineers
