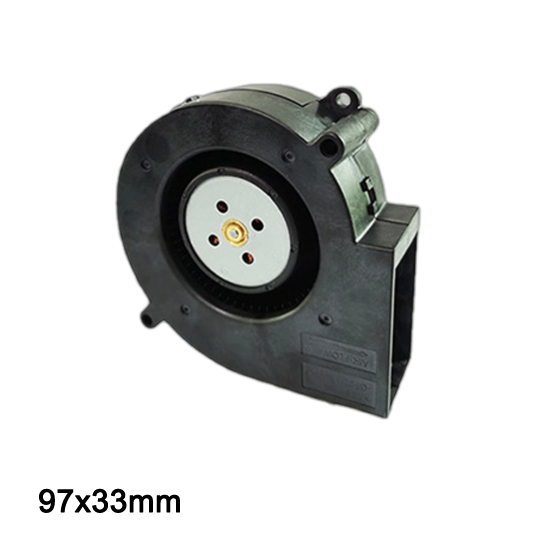

24V Air Blower BA9733HV24B-B 8200rpm (Direct Replacement for Sanyo Denki 9BMC24P2G001 / 9BMC24P2G)
24V Air Blower BA9733HV24B-B 8200rpm (Direct Replacement for Sanyo Denki 9BMC24P2G001 / 9BMC24P2G)
Voltage 24V
8200rpm/min
Max 65.3 cfm,1.98 kpa
Request a Sample
Structure Drawing
Technical Specifications

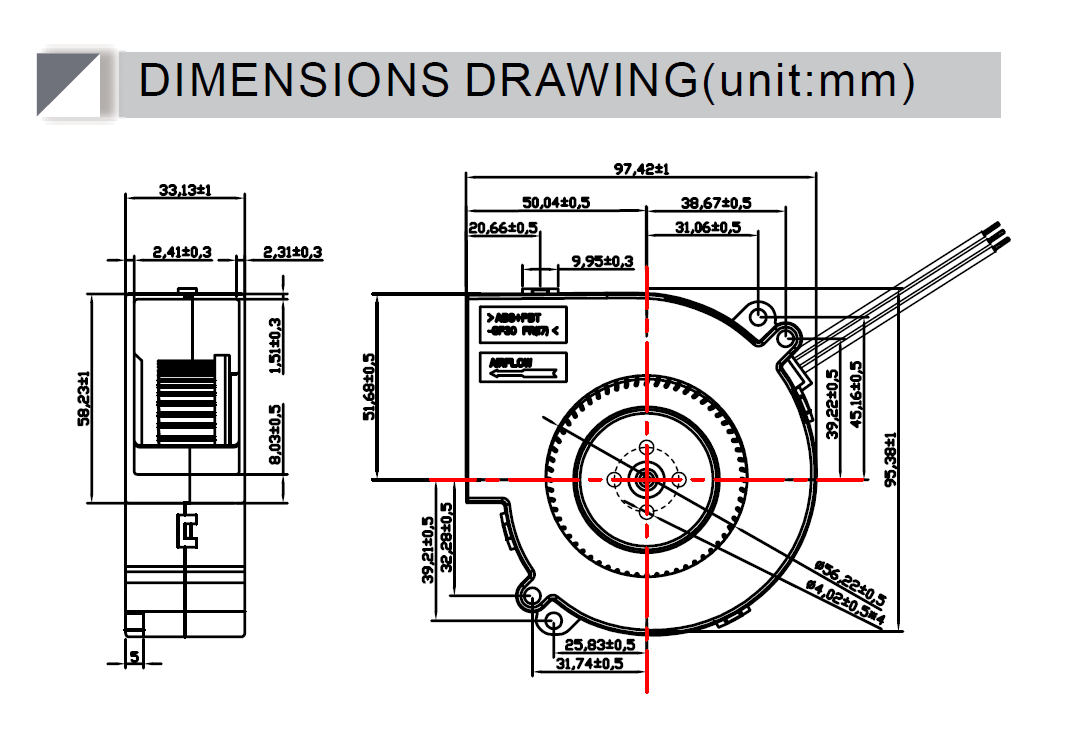

24V Air Blower BA9733HV24B-B 8200rpm Dimensions Drawing
The detailed dimensional drawing provides precise structural specifications for the 24V Air Blower BA9733HV24B-B series. Featuring an identical 97x95x33mm form factor, mounting hole pattern, and housing geometry, it offers a 100% mechanical drop-in replacement for the Sanyo Denki San Ace 97 (9BMC24P2G001 / 9BMC24P2G download pdf datasheet here) series in complex industrial ventilation enclosures.

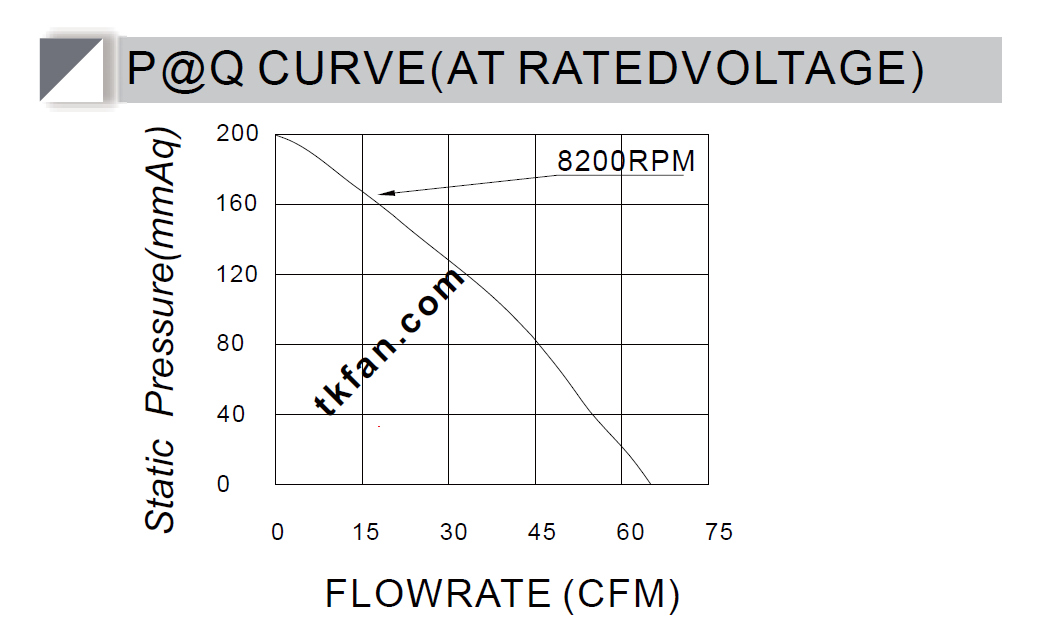

24V Air Blower BA9733HV24B-B 8200rpm PQ Curve
The Air Performance (P-Q Curve) graph illustrates the relationship between static pressure and airflow volume for the BA9733HV24B-B series. With up to 1.98 kPa high static pressure and 65.3 CFM air volume, this performance curve matches and exceeds the thermal requirements of Sanyo Denki 9BMC24P2G001, enabling precise cooling under high system impedance.
Cross Reference: TKFAN BA9733HV24B-B vs. Sanyo Denki 9BMC24P2G001
Direct equivalent replacement guide for Sanyo Denki San Ace 97 9BMC24P2G001 / 9BMC24P2G DC centrifugal blowers.
| Specification | TKFAN BA9733HV24B-B | Sanyo Denki 9BMC24P2G001 / 9BMC24P2G | Compatibility & Advantage |
|---|---|---|---|
| Dimensions (mm) | 97 × 95 × 33 mm | 97 × 95 × 33 mm | 100% Drop-in Fit |
| Rated Voltage | 24 VDC | 24 VDC | Direct Power Matching |
| Max Airflow | 65.3 CFM (1.85 m³/min) | ~60 - 65 CFM | Equivalent Air Performance |
| Max Static Pressure | 1.98 kPa (198.77 mmH₂O) | High Static Pressure Class | High-Impedance Cooling |
| Speed / Control | 8200 RPM (PWM / FG Optional) | PWM Speed Control | Custom Harness & Connector Support |
Air Blower BA9733-B Selection Guide
Compare voltage, dimensions, speed, airflow, and static pressure to select the perfect Air Blower BA9733-B for your equipment design.
| Model | P/N Code | Rated Voltage | Operating Voltage Range | Rated Current | Rated Input Power | Speed | Maximum Air Flow | Maximum Air Pressure | Noise | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| VDC | VDC | Amp | Watt | R.P.M | M³/min | CFM | mmH2O | InH2O | dB-A | ||
| BA9733HV12B | BY | 12 | 10.8~13.2 | 6.2 | 74.4 | 8200 | 1.85 | 65.3 | 198.77 | 7.83 | 69 |
| BA9733HV24B | 24 | 21.6~26.4 | 3.1 | 74.4 | 8200 | 1.85 | 65.3 | 198.77 | 7.83 | 69 | |
24V Air Blower BA9733HV24B-B 8200rpm Video Operation
Watch the operation and dynamic performance demonstration of the 24V Air Blower BA9733HV24B-B. Featuring a high-efficiency brushless DC motor, this compact centrifugal fan delivers up to 65.3 CFM airflow and robust high-static pressure, serving as a high-reliability direct alternative to Sanyo Denki 9BMC24P2G001 blowers in industrial thermal management applications.
Frequently Asked Questions
Q: Is TKFAN BA9733HV24B-B a direct drop-in replacement for Sanyo Denki 9BMC24P2G001?
Yes, the BA9733HV24B-B 8200rpm features identical outer dimensions (97x95x33mm), mounting hole spacing, and rated voltage (24V DC). It can directly replace Sanyo Denki 9BMC24P2G001 and 9BMC24P2G without any mechanical design modifications.
Q: Can I customize wire length, pinouts, or PWM speed control signals for Sanyo replacement?
Absolutely. TKFAN provides full wire harness customization, including custom lead wire lengths, connector crimping (JST, Molex, AMP), and specific PWM/FG signal definitions to seamlessly match your existing system's pin configuration.
