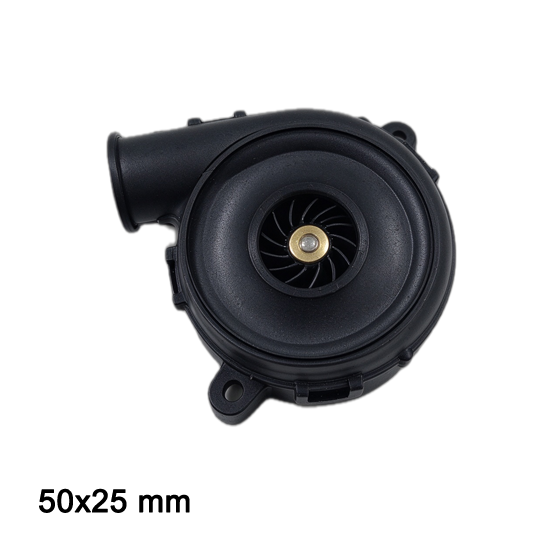

BA5025H24B-A 24V DC centrifugal blower fan 50x25mm.png

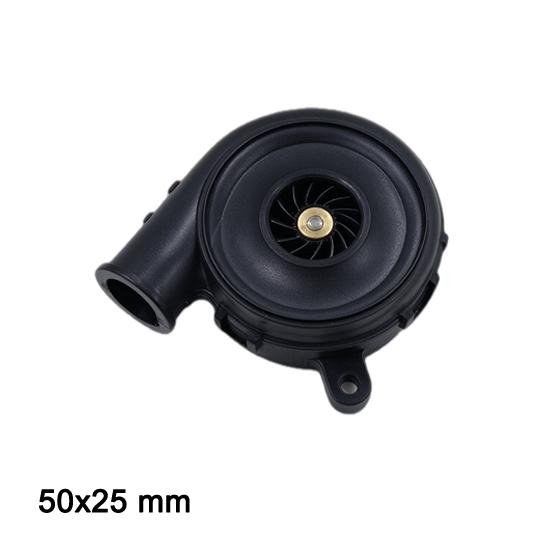

BA5025H24B-A 24V brushless DC blower 5025 small centrifugal air blower.png

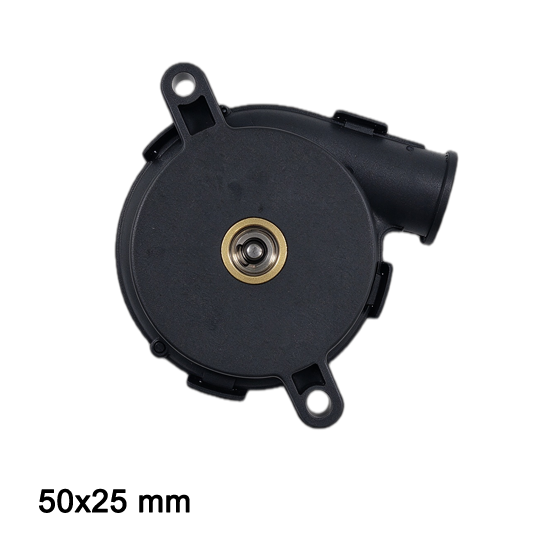

BA5025H24B-A 24V Brushless DC Small Centrifugal Air Blower 5025mm.png
Air Blower 24V BA5025H24B-A-Integrated.png
BA5025H24B-A 24V DC centrifugal blower fan 50x25mm.png
BA5025H24B-A 24V brushless DC blower 5025 small centrifugal air blower.png
BA5025H24B-A 24V Brushless DC Small Centrifugal Air Blower 5025mm.png
Air Blower 24V BA5025H24B-A-Integrated.png

24V Air Blower BA5025H24B-A-Integrated

Voltage 24V
38000rpm/min
Max 11.1 cfm,4.81 kpa

24V DC Stable Power Operation

Supports standard 24V DC voltage for steady continuous running. Low power consumption achieves energy-efficient working performance. Good voltage resistance avoids sudden operating anomalies.

Powerful Airflow Efficient Cooling

Produces strong wind pressure to accelerate internal air convection. It rapidly discharges redundant heat inside electronic devices. Greatly reduces the risk of component overheating damage.

High-quality Brushless Motor Core

Built-in reliable brushless motor ensures smooth and silent rotation. Minor mechanical wear extends the whole service life effectively. Stable output keeps consistent cooling capacity all the time.

Wide Versatile Application Range

Suitable for power supply, industrial equipment and precision instruments. Integrated design brings higher structural stability and safety. It satisfies various ventilation and heat dissipation demands.

Technical Specifications

ModelBA5025H24B-A-Integrated
Size54.5*51*25 mm
Operating Voltage24 VDC
Rated Current1.2 Amp
Rated Speed38000 RPM
Maximum Flow Rate11.1 CFM
Maximum Static Pressure4.81 kPa
Structure drawing of 24V Air Blower BA5025H24B-A-I.png

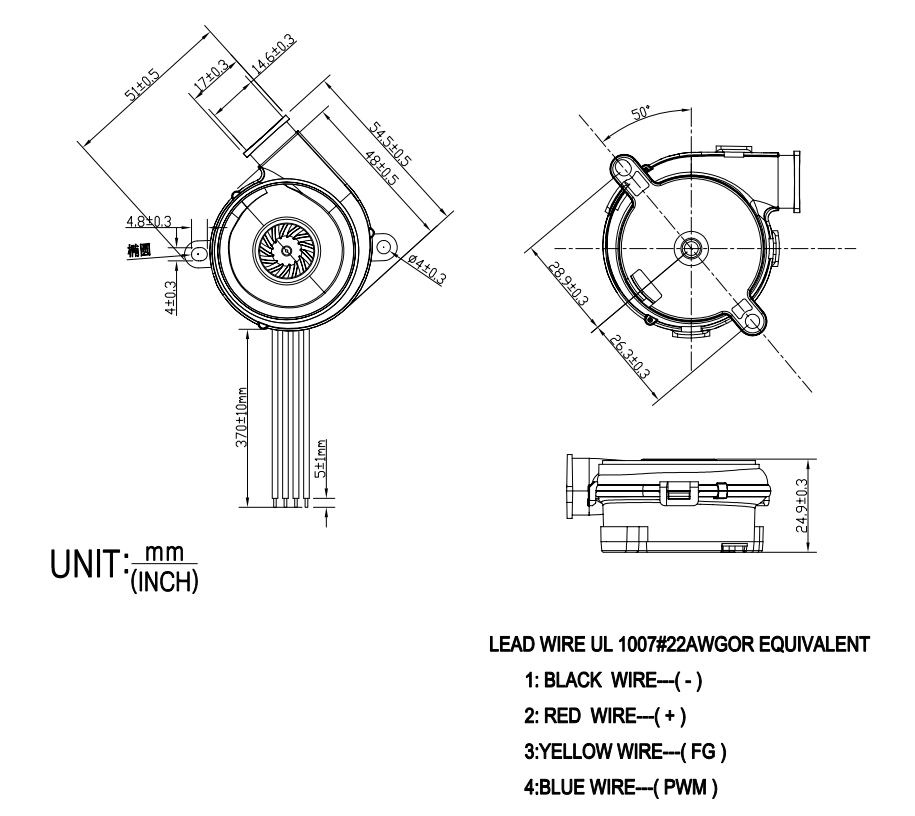

24V Air Blower BA5025H24B-A-Integrated dimensions drawing

This comprehensive mechanical dimension drawing outlines the precise external geometry, mounting interface layouts, and critical spatial clearances of the integrated 24V Air Blower model BA5025H24B-A-I. Featuring a built-in driver design, it saves valuable internal system space by eliminating external control boards. Engineers and system designers can rely on these accurate structural specifications to ensure seamless physical integration, reliable mechanical alignment, and secure housing installation in compact medical devices, portable analytical instruments, and precision ventilation systems.

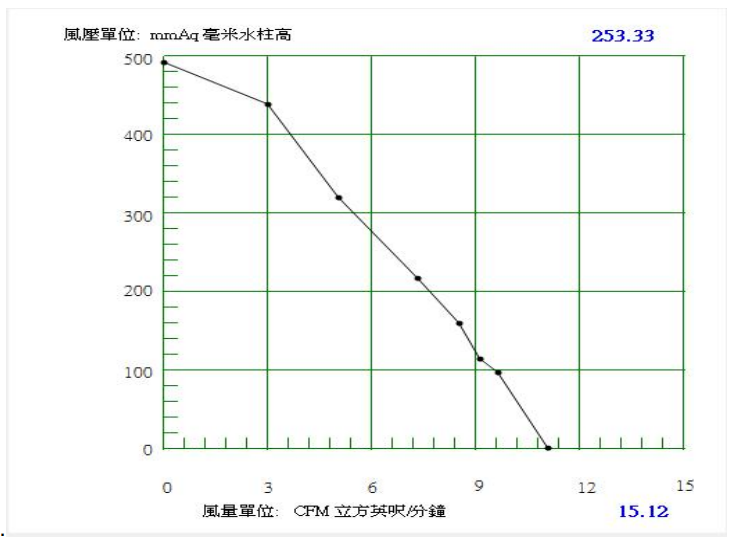

24V Air Blower BA5025H24B-A-Integrated PQ curve

The Pressure-Flow (P-Q) performance curve illustrates the aerodynamic efficiency, static pressure capabilities, and airflow output characteristics of the BA5025H24B-A-I integrated centrifugal blower across various operational loads. It provides a clear, quantitative mapping of how the blower performs under different back-pressure conditions, enabling engineers to accurately evaluate pneumatic output, determine optimal working points, and match the blower's high-speed and high-pressure dynamics to specific application requirements such as fuel cells, air sampling, and localized cooling.

PQ curve for 24V Air Blower BA5025H24B-A-I.png

Product Overview: Demonstration of the BA5025H24B high-pressure air blower featuring an integrated driver design for compact installation, efficient thermal dissipation, and reliable airflow performance.
