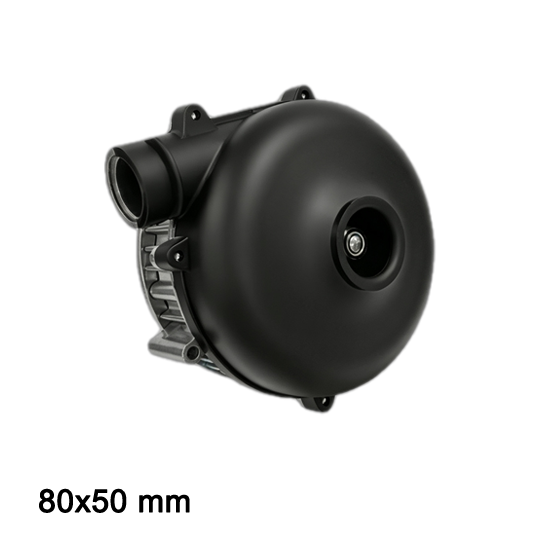

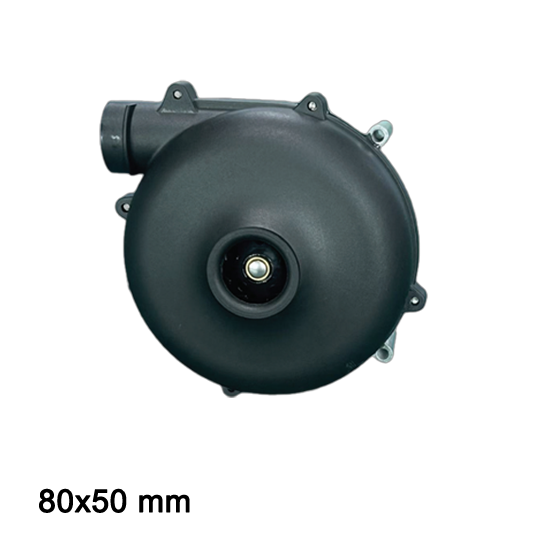

BA8050H24B-A 24V High Pressure Air Blower – Direct Replacement for MOOG AMP45

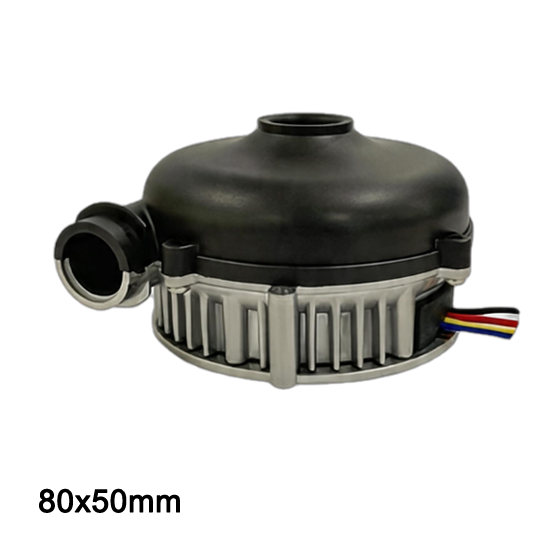

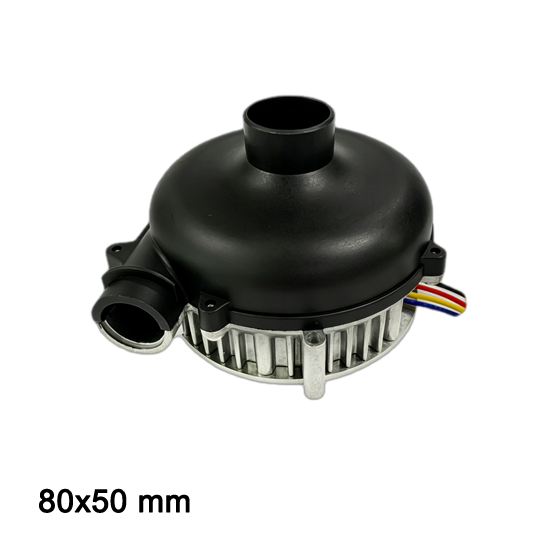

.png "TKFAN BA8050H24B-A 24V High-Pressure Blower (Extended Intake)")
BA8050H24B-A 24V High Pressure Air Blower – Direct Replacement for MOOG AMP45
Integrated driver 24v
45000rpm/min
Max 26 cfm,13.3kpa
High-Efficiency 24V BLDC Motor
Delivers stable airflow with low power consumption, reduced heat generation and long operational life.
Compact 80×50mm Frame
Space-saving design for easy integration into equipment enclosures, cabinets and tight installations.
Strong Airflow & Static Pressure
Balanced air volume and pressure for reliable cooling, ventilation and heat dissipation in demanding setups.
Quiet & Durable Construction
Built with premium bearings for low vibration, low noise and maintenance-free long-term use.

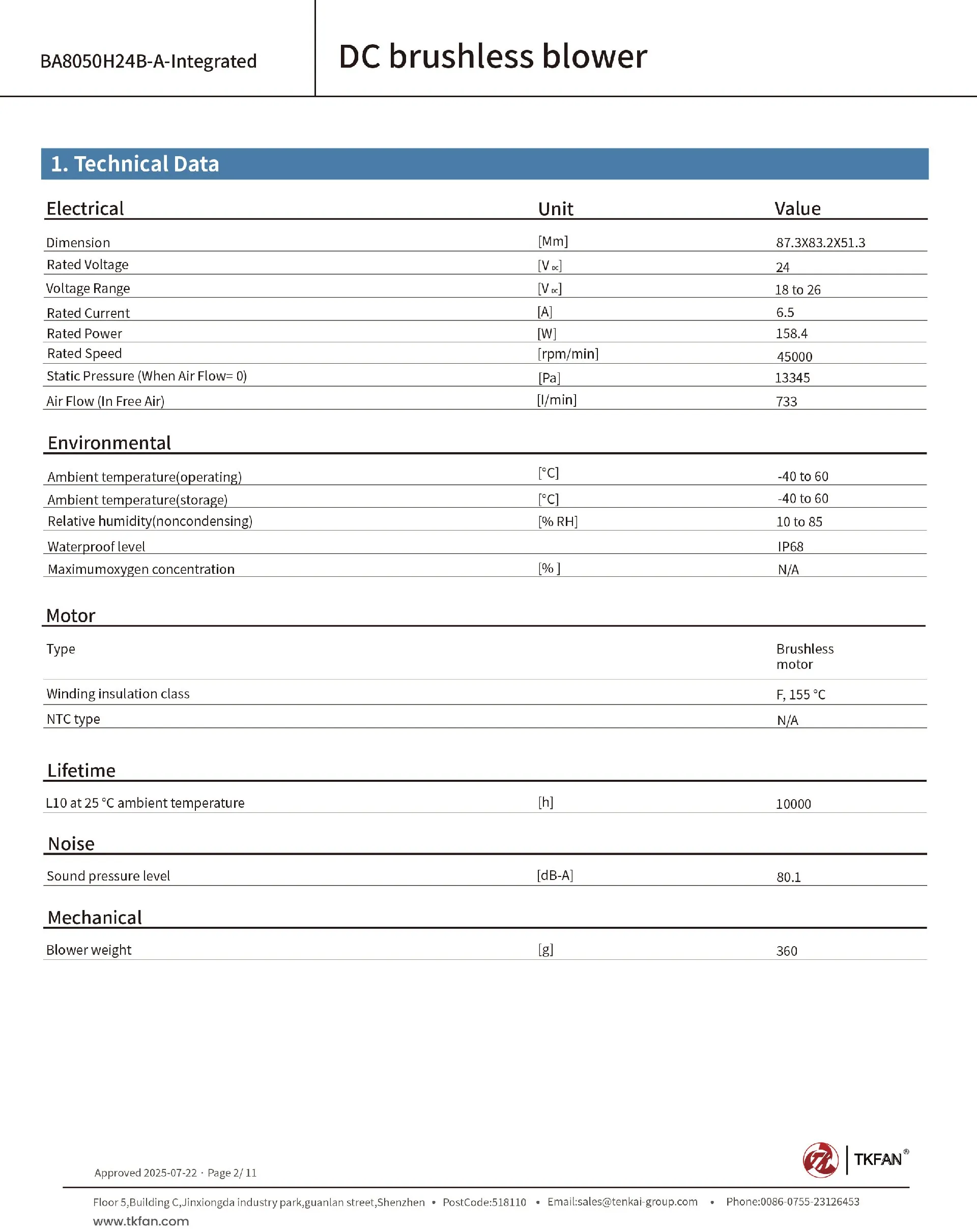

Technical Specifications
Direct Replacement Notice for MOOG AMP45
The TKFAN BA8050H24B-A is engineered as a direct high-performance equivalent to the MOOG AMP45 high-pressure brushless air blower. It shares matching 24V operating voltage, 45,000 RPM high-speed rating, and 13.3 kPa max static pressure.
Cross Reference: MOOG AMP45 vs TKFAN BA8050H24B-A
| Specification | MOOG AMP45 Blower | TKFAN BA8050H24B-A (Replacement) |
|---|---|---|
| Operating Voltage | 24 VDC | 24 VDC |
| Rated Speed | High Speed (~45,000 RPM) | 45,000 RPM |
| Max Static Pressure | ~13.3 kPa | 13.3 kPa |
| Max Airflow Rate | ~26 CFM | 25.9 CFM |
| Motor Type | Brushless DC (BLDC) | Brushless DC (BLDC) with Integrated Driver |
| Dimensions | Compact High Pressure Frame | 80 × 50 mm |

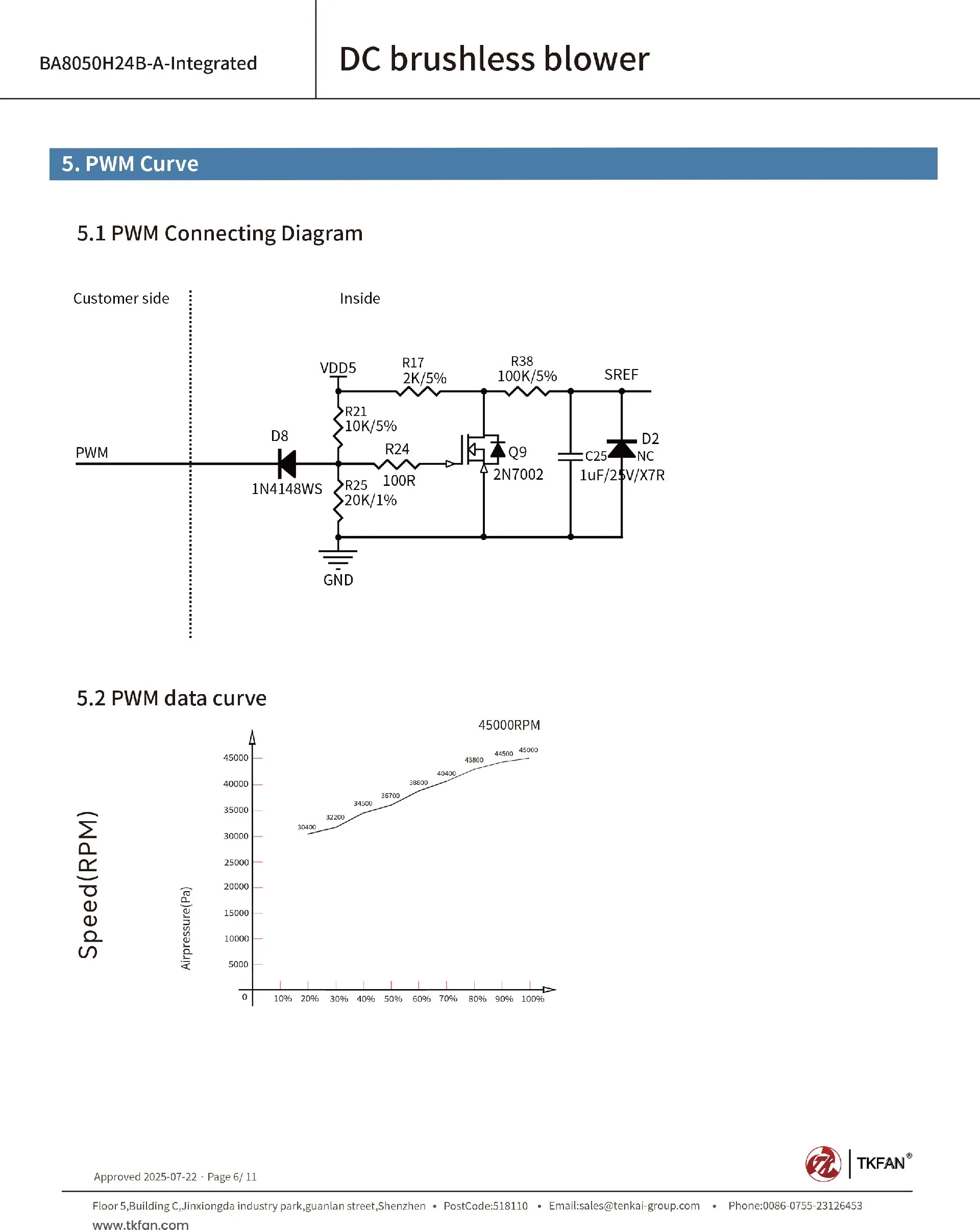

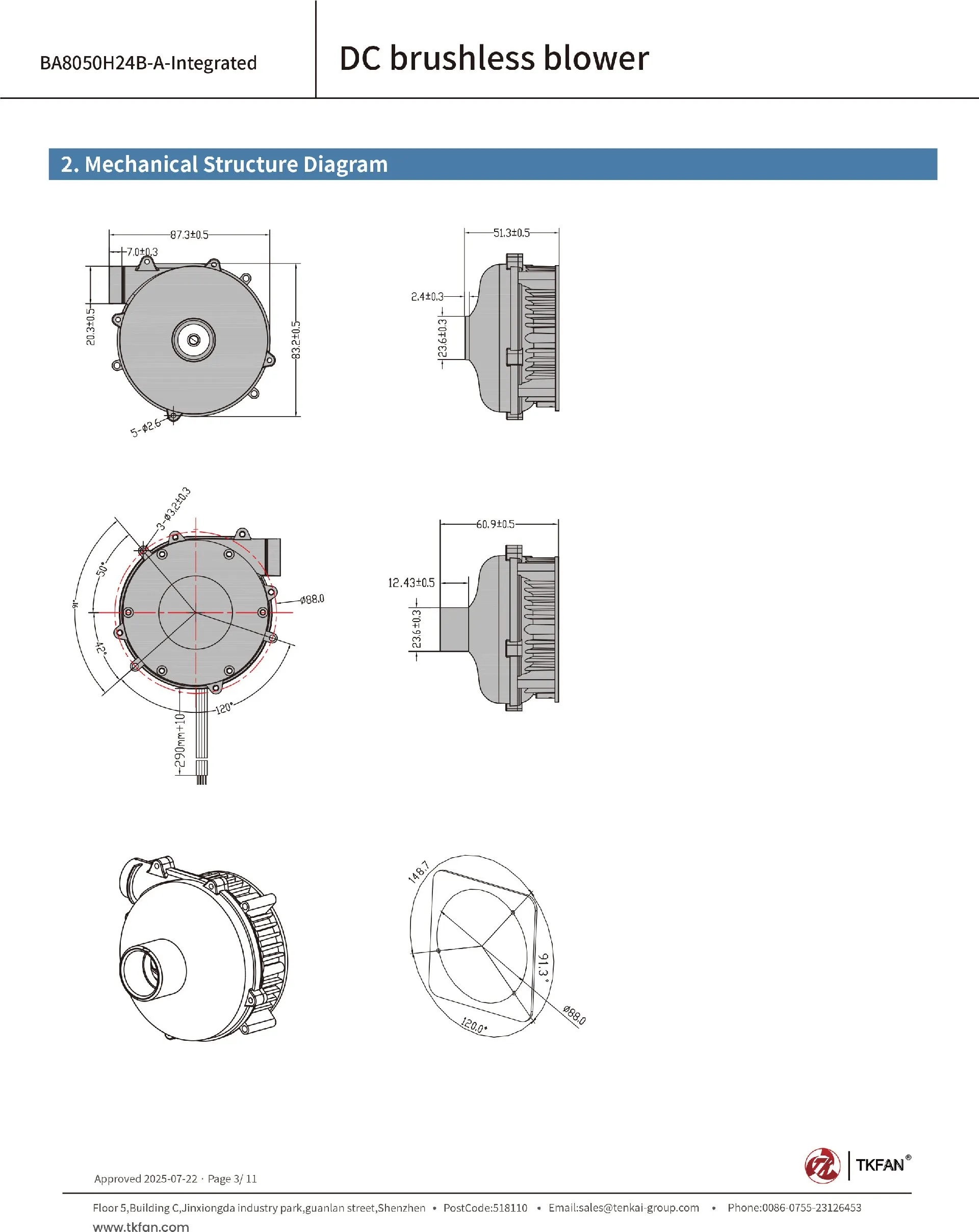

Technical Diagrams & Performance Charts
Video Guide: Watch the operation and performance testing of the TKFAN BA8050H24B High Pressure 24V Centrifugal Air Blower Fan (MOOG AMP45 equivalent).
Frequently Asked Questions (FAQ)
Q1: Can the TKFAN BA8050H24B-A directly replace the MOOG AMP45 blower?
A: Yes. The BA8050H24B-A is designed as a direct equivalent to the MOOG AMP45 blower. It features the same 24V DC input, 45,000 RPM operation, integrated driver, and delivers matching 13.3 kPa pressure and 25.9 CFM airflow performance.
Q2: What applications is this AMP45 replacement blower used for?
A: This 24V high-pressure centrifugal blower is commonly used in PAPR helmets, particle counters, medical ventilation systems, automotive sensor cleaning, and specialized electronic heat dissipation setups.
Q3: Do you offer custom wiring and connector options for replacing MOOG AMP45?
A: Yes, TKFAN provides custom harness lengths, custom connectors, and custom PWM speed control options to ensure drop-in compatibility with your existing system designs.
Looking for different sizes or specifications?
Explore our full range of 24V Blower, or choose from similar models below.
24V Blower
Need a Custom Modification?
We can customize voltage (5V/12V), wire length, and connectors. Prototypes ready in 48 hours.
Contact Our Engineers
