Waterproof dc fan DAW8038M24B
Waterproof dc fan DAW8038M24B

Waterproof dc fan DAW8038M24B

Voltage 24V 80*80*38mm
4300rpm/min
Max 47.3 cfm,0.08 kpa

Request a Sample
Download Datasheet

Technical Specifications

ModelDAW8038M24B

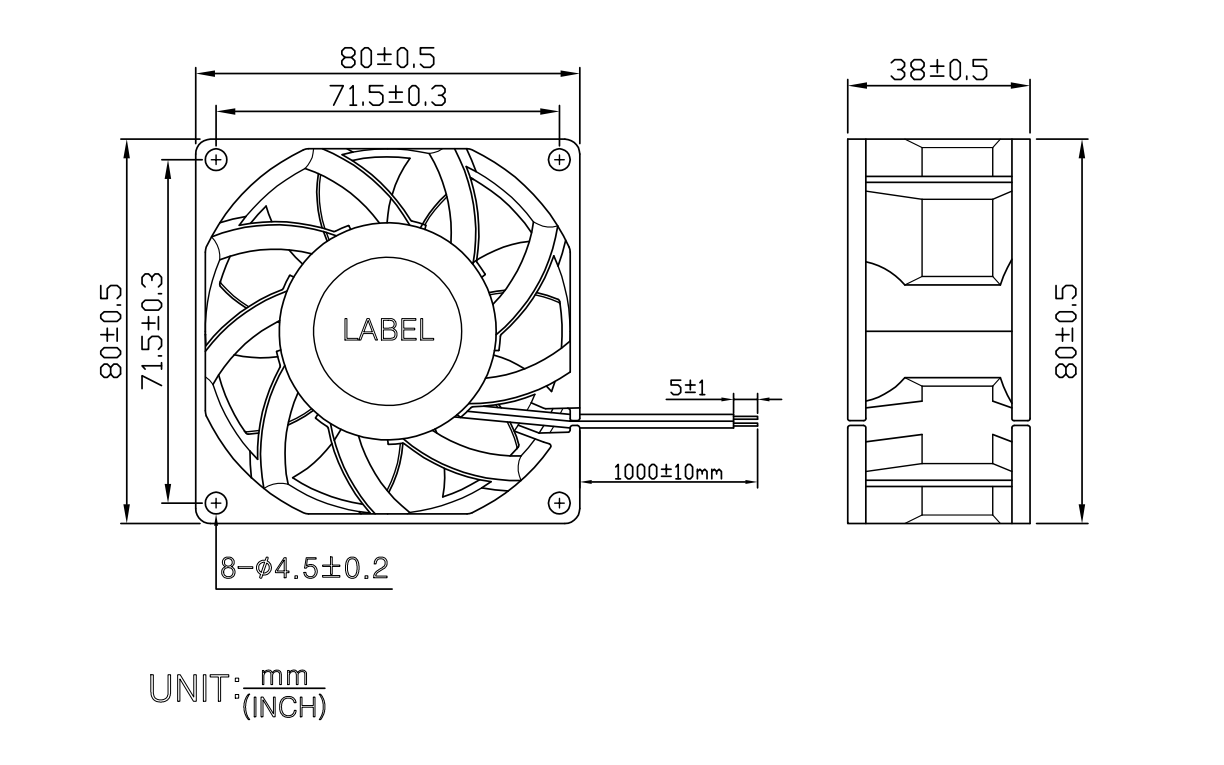

Size80*80*38 mm
Operating Voltage24 VDC
Rated Current0.2 Amp
Rated Speed4300 RPM

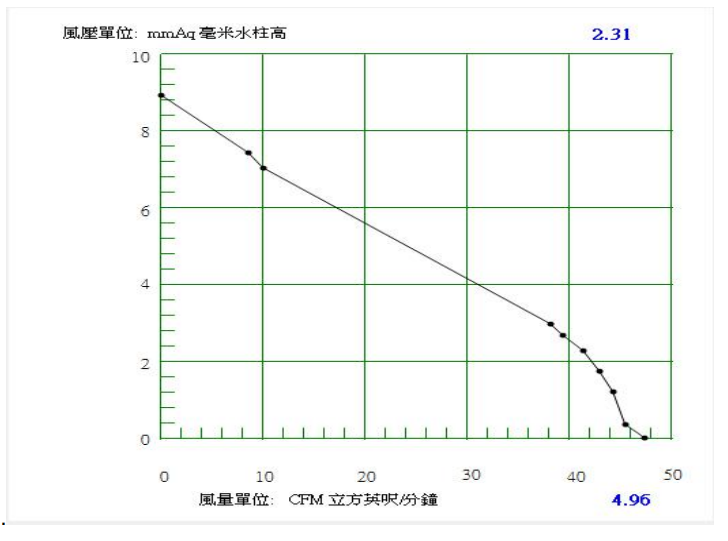

Maximum Flow Rate47.3 CFM
Maximum Static Pressure0.08 kPa


This is an operation video for the waterproof fan DAW8038M24B



Looking for different sizes or specifications? Explore our full range of Waterproof fan, or choose from similar models below.

Need a Custom Modification?

We can customize voltage (5V/12V), wire length, and connectors. Prototypes ready in 48 hours.
