Home  >   Products  >   DC fan  >   Waterproof fan  >   Waterproof dc fan DA17251H24B-D26071809

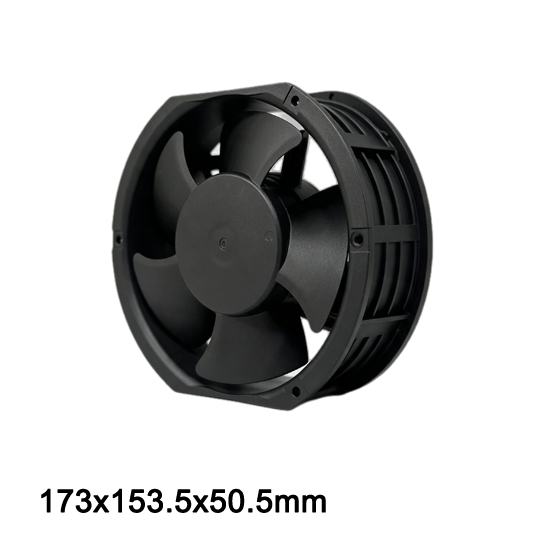

Waterproof dc fan DA17251H24B-D
Waterproof dc fan DA17251H24B-D

Waterproof dc fan DA17251H24B-D26071809

Voltage 24V,173*153.5*50.5mm
3500rpm/min IP68

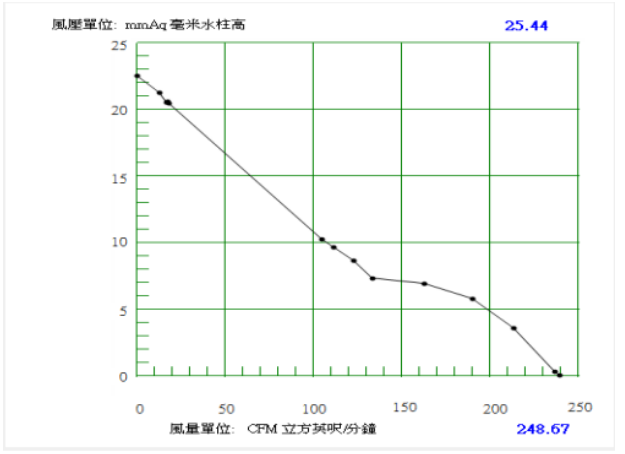

Max239.4 cfm,0.22 kpa

Request a Sample
Download Datasheet

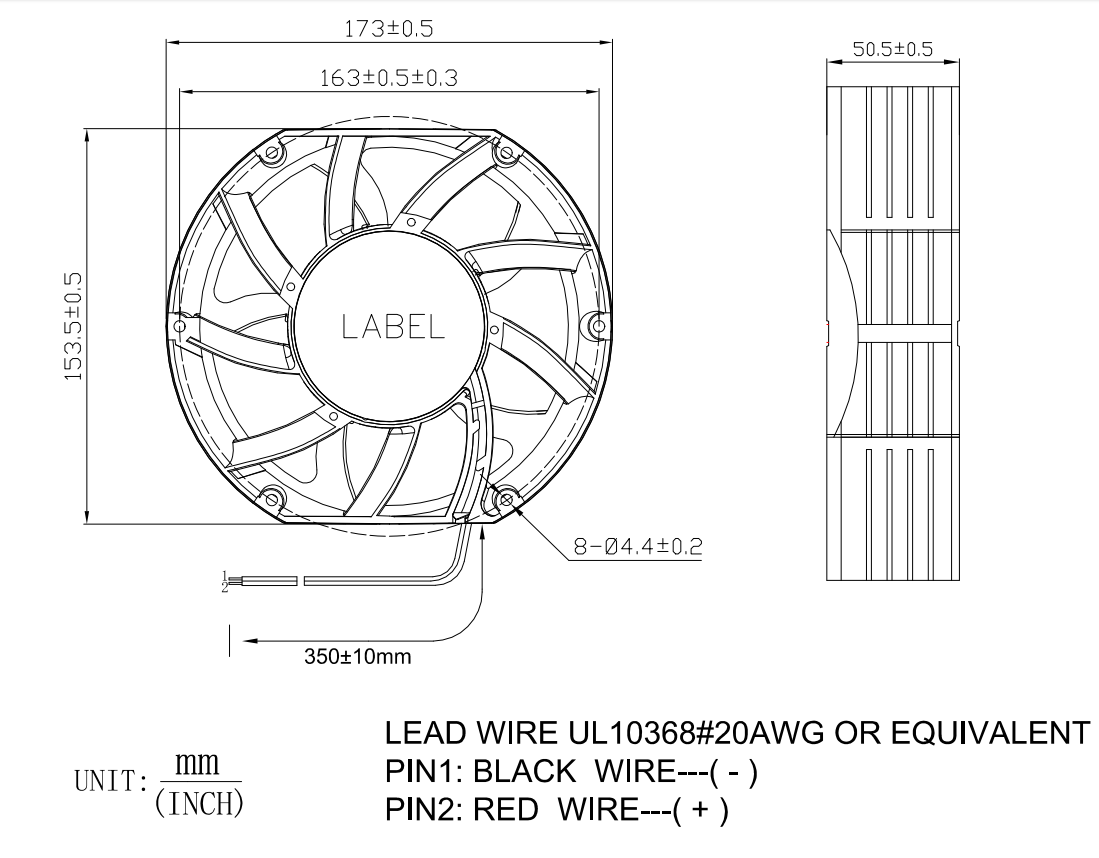

Structure Drawing

Technical Specifications

Model DA17251H24B-D26071809
Size17*150*51 mm
Operating Voltage24 VDC
Rated Current0.94 Amp
Rated Speed3500 RPM
Maximum Flow Rate239.4 CFM
Maximum Static Pressure0.22 kPa


DA17251H24B Waterproof Fan Operation & Installation Guide
DA17251H24B Waterproof Fan Teardown & Internal Structure Analysis

Need a Custom Modification?

We can customize voltage (5V/12V), wire length, and connectors. Prototypes ready in 48 hours.

Contact Our Engineers
