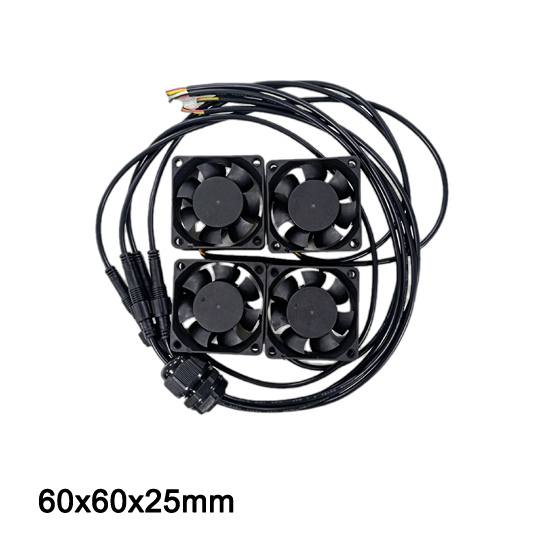

Waterproof dc fan DA6025HHV12B
Waterproof dc fan DA6025HHV12B

Waterproof dc fan DA6025HHV12B

Voltage 12V 60*60*25mm
7500rpm/min
Max 39.5 cfm,0.16 kpa

Request a Sample

Technical Specifications

ModelDA6025HHV12B
Size60*60*25 mm
Operating Voltage12 VDC
Rated Current0.31 Amp
Rated Speed7500 RPM
Maximum Flow Rate39.5 CFM
Maximum Static Pressure0.16 kPa

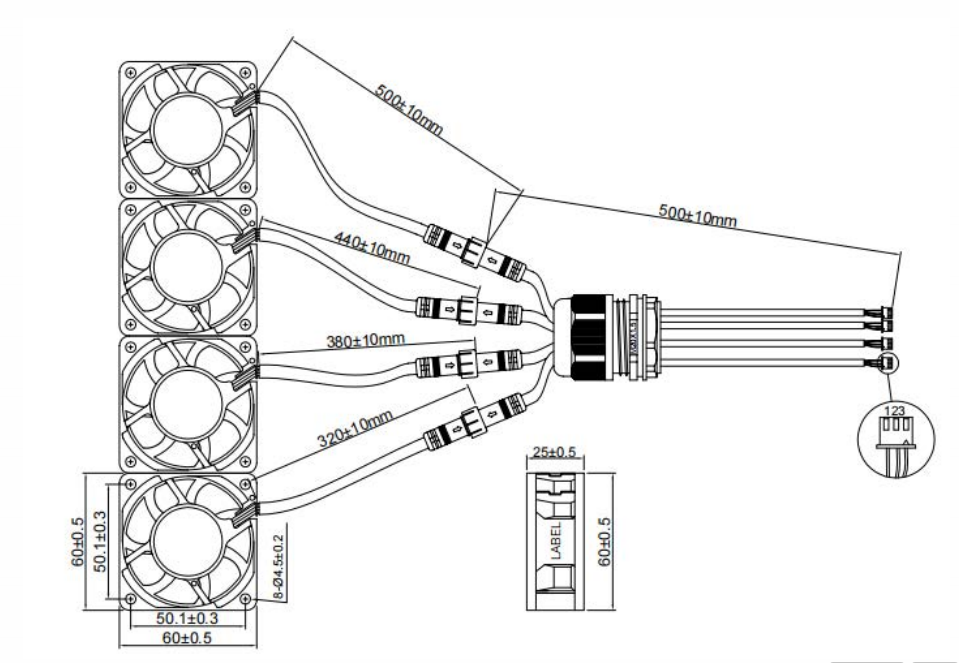

Waterproof DC Fan DA6025HHV12B Dimensions Drawing

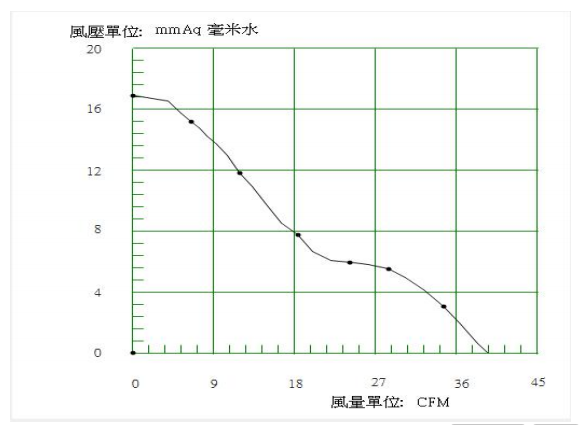

Waterproof DC Fan DA6025HHV12B P-Q Performance Curve

Video Demonstration: Live waterproof performance testing, dynamic operation, and practical application display of the DA6025HHV12B DC axial cooling fan.

Looking for different sizes or specifications?

Explore our full range of Waterproof fan, or choose from similar models below.

Waterproof fan

Need a Custom Modification?

We can customize voltage (5V/12V), wire length, and connectors. Prototypes ready in 48 hours.

Contact Our Engineers
