Waterproof dc fan DA17251HV48X
Waterproof dc fan DA17251HV48X

Waterproof dc fan DA17251HV48X

Voltage 48V 172*150*51mm
5000rpm/min
Max 362 cfm,0.04 kpa

Request a Sample

Fully Waterproof & Dustproof Design

A sealed structure allows for use in humid, spray-prone, and dusty environments, effectively preventing moisture and dust from entering and damaging the motor.

High Airflow + High Air Pressure Cooling

Designed for high-power equipment cooling, it quickly dissipates heat, preventing overheating and shutdown, and improving equipment reliability and lifespan.

Wide Temperature Range, Adaptable to Harsh Conditions

High temperature resistant and anti-aging, suitable for outdoor cabinets, energy storage systems, charging piles, communication base stations, industrial equipment, and other scenarios.

Multiple Safety Protections:

Supports overcurrent, stall, overvoltage, and reverse connection protection, ensuring safer operation and reducing the risk of equipment failure.

Technical Specifications

ModelDA17251HV48X
Size172*150*51 mm
Operating Voltage48 VDC
Rated Current2.5 Amp
Rated Speed5000 RPM
Maximum Flow Rate361.69 CFM
Maximum Static Pressure0.04 kPa

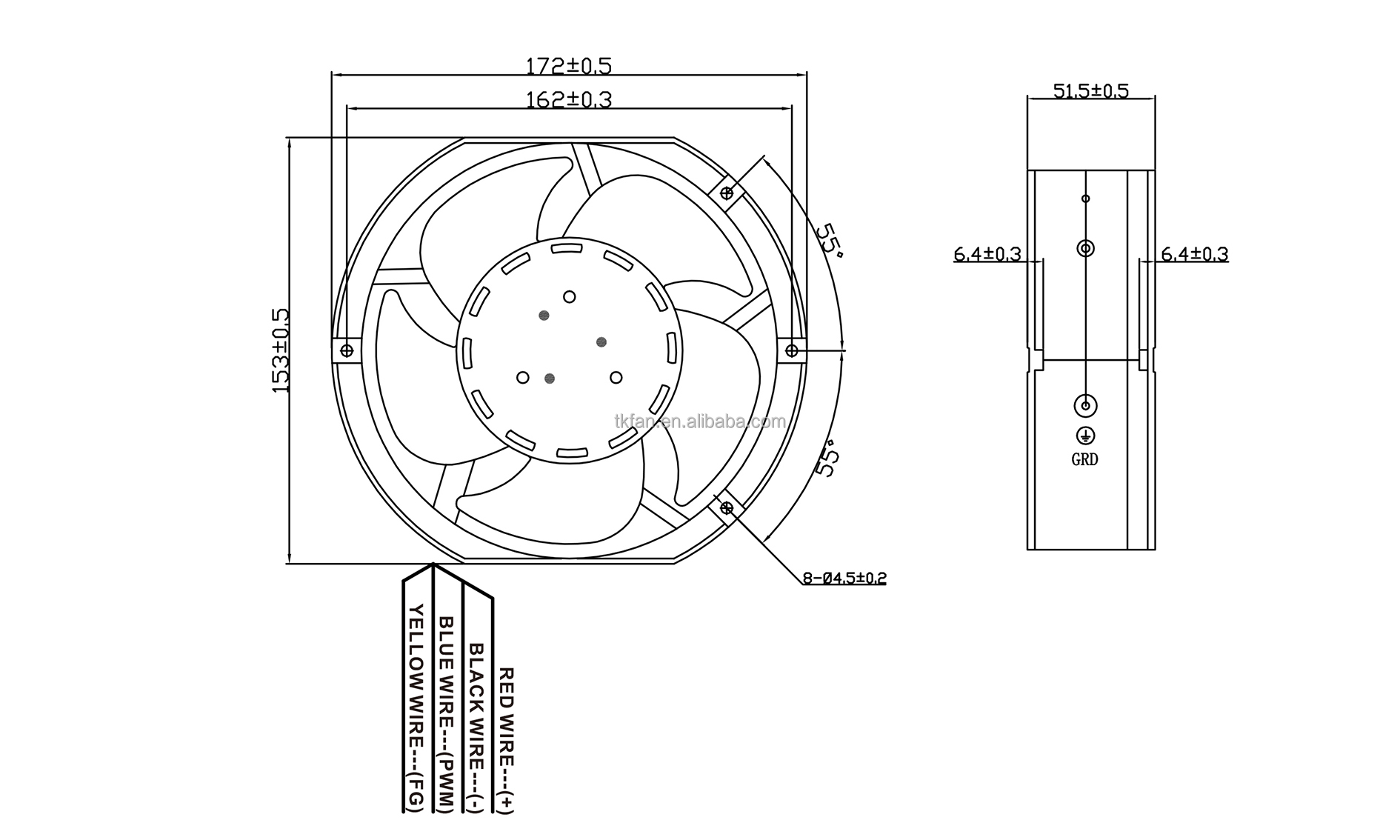

structure drawing of Waterproof dc fan DA17251HV48X

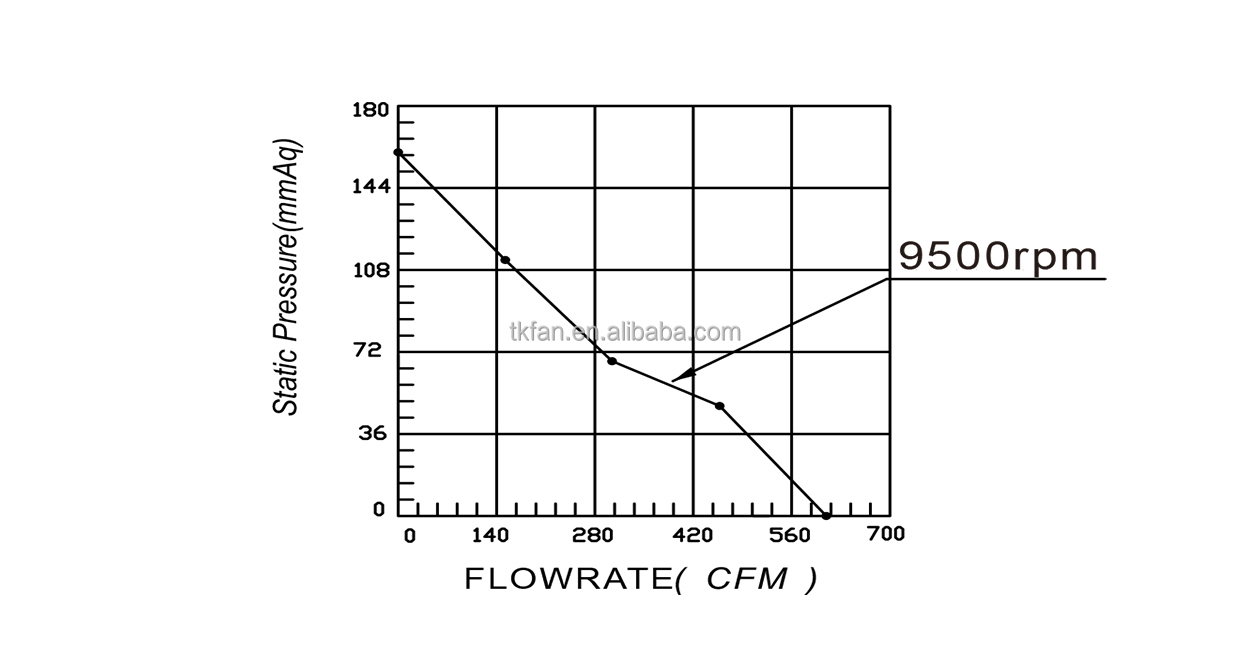

PQ curve for Waterproof dc fan DA17251HV48X

Video Showcase

Need a Custom Modification?

We can customize voltage (5V/12V), wire length, and connectors. Prototypes ready in 48 hours.

Contact Our Engineers
