BA8060H24B | 24V DC Centrifugal Blower
BA8060H24B | 24V DC Centrifugal Blower
Voltage 24V
52000rpm/min
Max 33.7 cfm,18.24 kpa
Request a Sample
Structure Drawing
24V BA8060H24B High Pressure Air Cushion Blower
8060 large airflow brushless blower delivers strong static pressure for fast inflation and stable pressure holding of air cushion machines.
BA8060H24B DC Brushless Blower for Air Cushion Machine
Adopts premium bearing structure, supporting long-term continuous stable operation for industrial and household air cushion equipment.
Low Noise BA8060H24B Air Cushion Blower
Optimized air duct design realizes quiet operation without disturbing the working and using environment of air cushion system.
PWM Speed Control BA8060H24B Blower
Compatible with PWM speed regulation to freely adjust airflow and pressure, widely applicable to various air cushion inflation equipment.
Technical Specifications

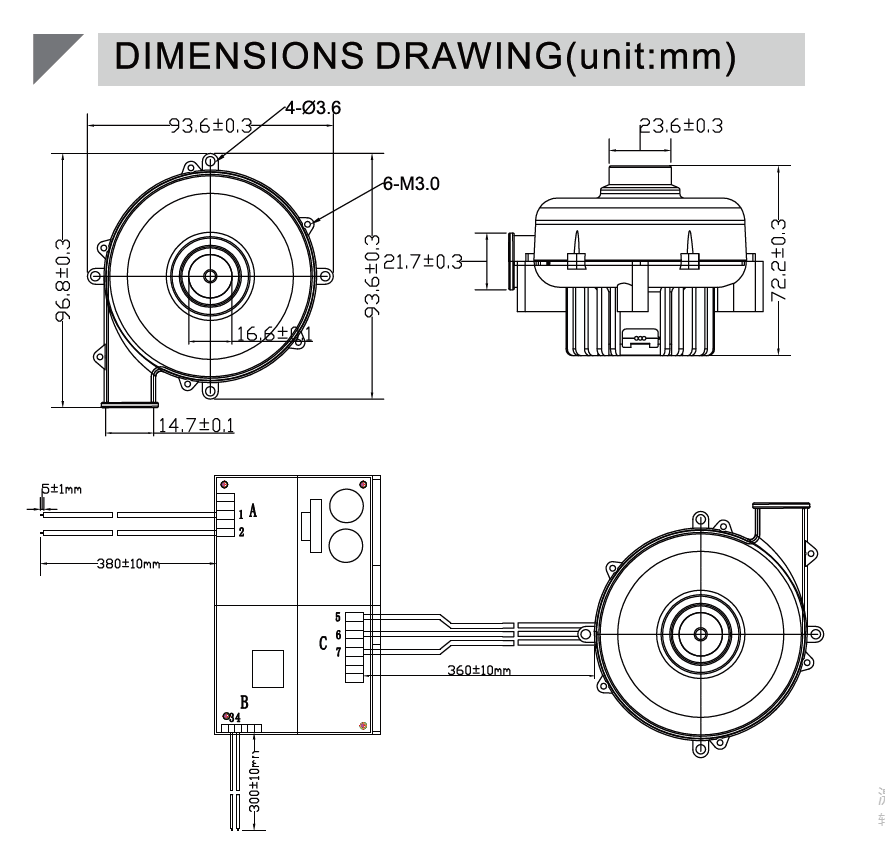

BA8060H24B | 24V DC Centrifugal Blower Dimensions Drawing
This engineering drawing details the critical external dimensions and mounting hole positions of the BA8060H24B 24V DC centrifugal blower. Featuring a compact structural design and precise tolerance control, it ensures a seamless fit during product integration and mechanical design. Whether you are dealing with space-constrained internal environments or strict airflow duct requirements, this dimension drawing provides reliable data support to ensure stable installation and optimal performance within your equipment.

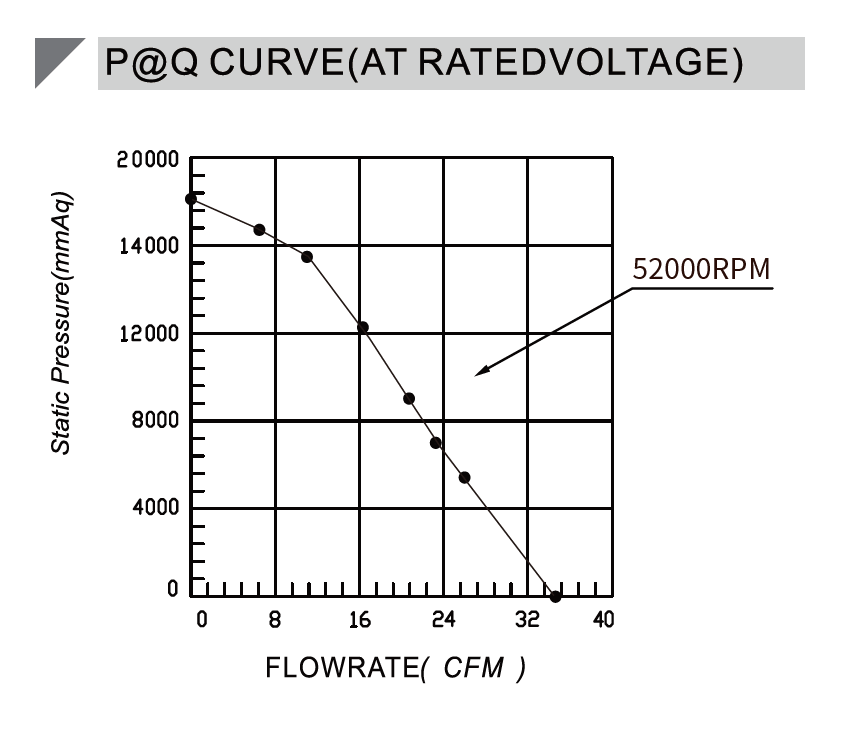

BA8060H24B | 24V DC Centrifugal Blower PQ Curve
The PQ performance curve (Pressure-Flow curve) intuitively illustrates the operational performance of this 24V DC centrifugal blower under various backpressure environments. This curve allows engineers to clearly understand the airflow output and static pressure capabilities across different operating points, facilitating accurate evaluation of system efficiency in practical applications. It serves as a core reference for validating cooling and ventilation feasibility, helping users strike the ideal balance between efficiency and noise.
Video Showcase
Looking for different sizes or specifications?
Explore our full range of Blower for air cushion machine, or choose from similar models below.
Blower for air cushion machine
Need a Custom Modification?
We can customize voltage (5V/12V), wire length, and connectors. Prototypes ready in 48 hours.
Contact Our Engineers
