BA8060H02B | 220V High-Speed Blower
Voltage 220V
52000rpm/min
Max 33.7 cfm,18.01 kpa
Request a Sample
Structure Drawing
Ultra-High Pressure Performance
18.6kPa max static pressure, delivers strong and stable airflow for air cushion machines.
All-Aluminum Durability
Full aluminum alloy construction, corrosion-resistant, waterproof, and heat-resistant for long-term use.
Efficient BLDC Motor
24V three-phase brushless DC motor, high efficiency, low power consumption, and long service life.
Precise Speed Control
Supports 0-5V/PWM speed regulation, flexible airflow adjustment to meet different working demands.
Technical Specifications

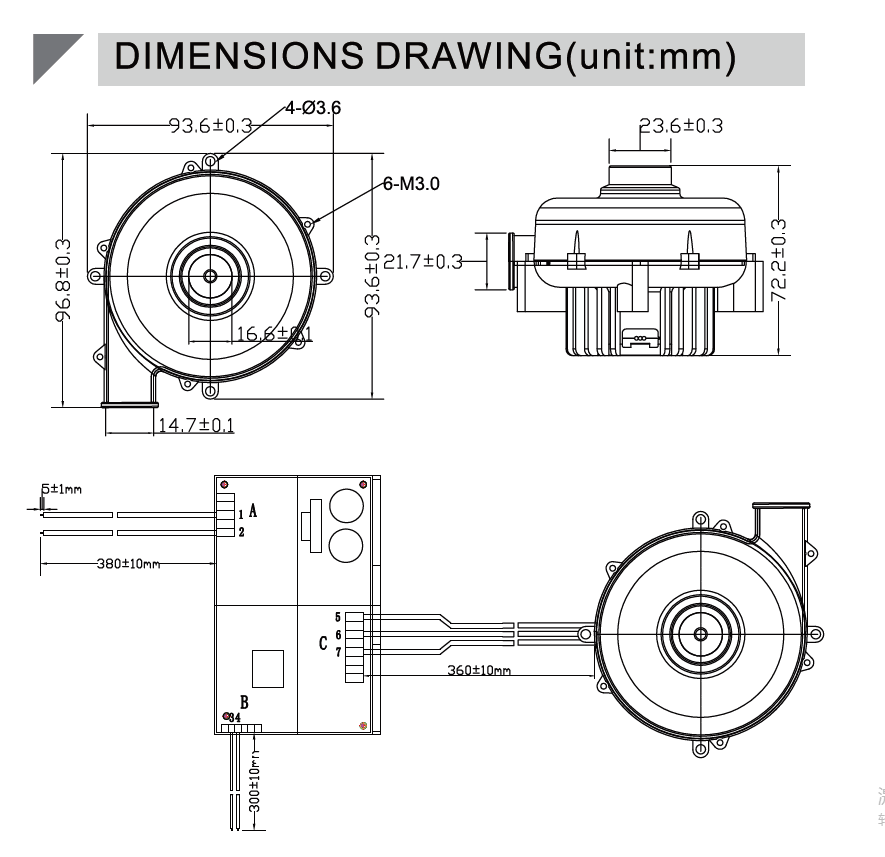

BA8060H02B | 220V High-Speed Blower dimensions drawing
This technical dimension drawing illustrates the precise mechanical specifications, mounting hole patterns, and overall structural outline of the BA8060H02B high-speed blower. Designed for seamless integration into compact industrial systems and advanced ventilation equipment.
It detailedly marks the inlet/outlet diameters, total length, width, height, and key tolerance metrics, providing engineers with accurate geometric data necessary for precise installation, spatial planning, and custom enclosure development.

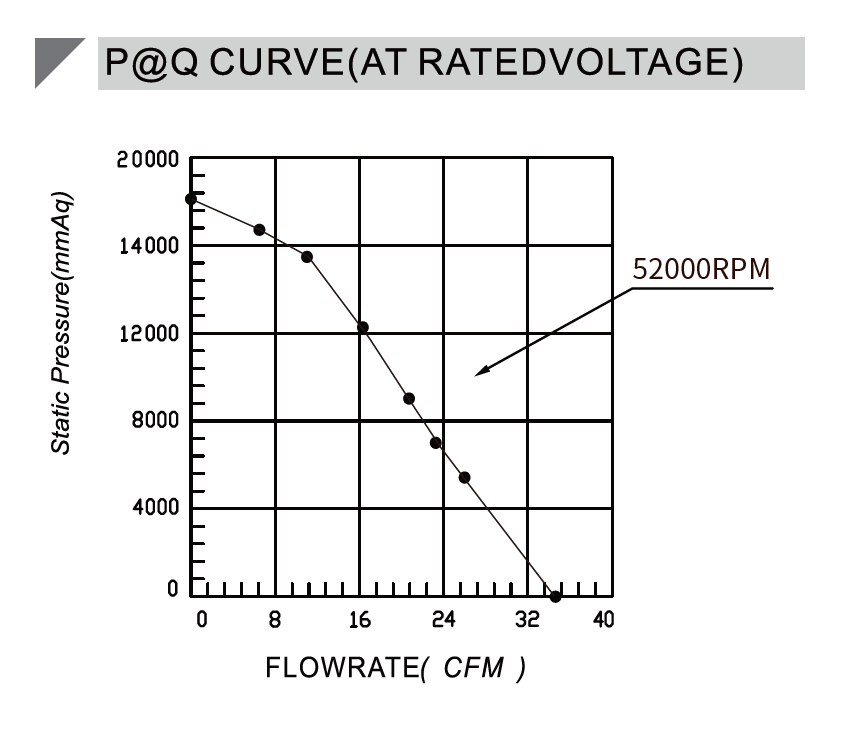

BA8060H02B | 220V High-Speed Blower PQ curve
The P-Q performance curve illustrates the dynamic relationship between static pressure and air volume for the BA8060H02B 220V High-Speed Blower operating under standard test conditions.
This graph provides essential aerodynamic metrics, helping engineers evaluate operational efficiency, maximum airflow capacity, and peak static pressure output to ensure optimal performance across various system impedance levels and demanding application scenarios.
Looking for different sizes or specifications?
Explore our full range of Blower for air cushion machine, or choose from similar models below.
Blower for air cushion machine
Need a Custom Modification?
We can customize voltage (5V/12V), wire length, and connectors. Prototypes ready in 48 hours.
Contact Our Engineers
