BA7050H24B | 24V DC brushless Blower
BA7050H24B | 24V DC brushless Blower
Voltage 24V
37000rpm/min
Max 18.36 cfm,8.68 kpa
24V BA7050H24B Brushless Air Cushion Blower
7050 high-pressure brushless blower provides stable strong airflow for fast inflation of air cushion machines.
BA7050H24B DC Blower for Air Cushion Machine
Compact 70x50mm structure with low noise, working steadily for long-time continuous air cushion operation.
High Static Pressure BA7050H24B Air Blower
Excellent air pressure performance ensures quick inflation and stable pressure maintenance for inflatable air cushions.
PWM Controllable BA7050H24B Blower
Supports PWM speed regulation to adjust airflow freely, ideal for air cushion, inflatable mattress and related inflation devices.
Technical Specifications
× ![Zoomed Image]()
BA7050H24B | 24V DC brushless Blower dimensions drawing
The mechanical structure diagram above details the precise physical dimensions, mounting hole layouts, and aerodynamic casing contours of the BA7050H24B 24V DC brushless blower. Every component is engineered to comply with strict international industrial standards.
Built with a rugged, high-density thermoplastic housing and sealed internal architecture, this blower guarantees exceptional reliability and structural integrity in demanding operational environments.
- Rigid engineering-grade PBT thermoplastic casing
- Precision-balanced dual ball bearing assembly
- Optimized volute scroll for maximum airflow efficiency

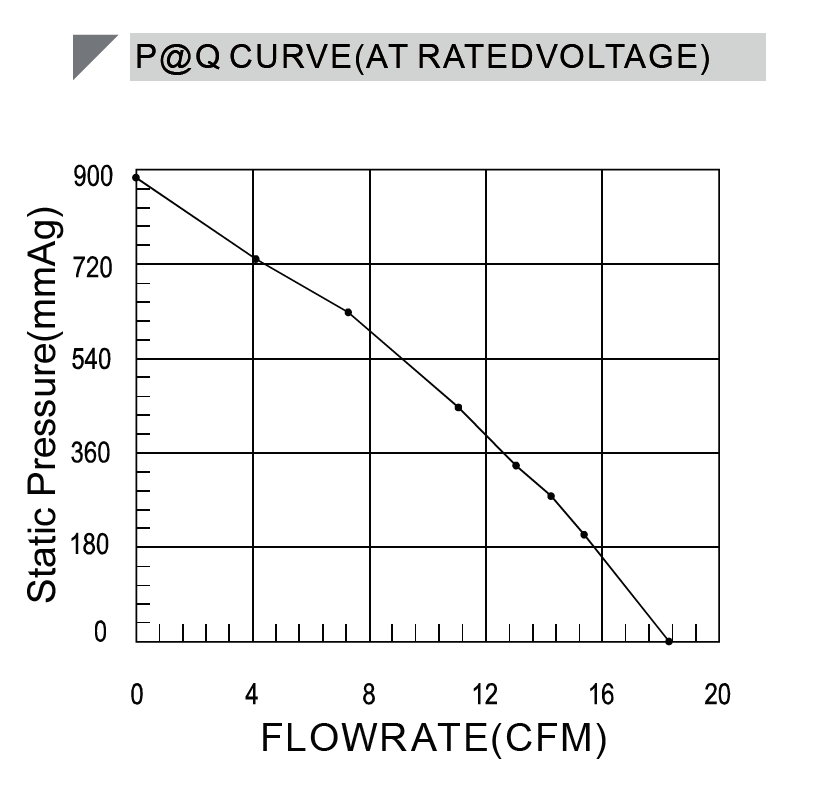

BA7050H24B | 24V DC brushless Blower PQ curve
The Performance Curve (P-Q Curve) graph maps out the precise operational correlation between static air pressure and volumetric airflow rate for the BA7050H24B model. It serves as an indispensable tool for thermal engineers evaluating system impedance.
Designed with advanced centrifugal aerodynamics, this 24V brushless blower maintains stable, high-pressure output even under heavy backpressure conditions, making it an ideal choice for high-density electronic cooling and specialized pneumatic systems.
- Delivers high static pressure capability
- Maintains smooth airflow under high resistance
- Optimized for low acoustic noise at rated speeds
High-Pressure Blower for Air Cushion Machines
The TKFAN high-pressure blower series is expertly designed to adapt to a wide variety of air cushion machines and automated packaging systems. Featuring robust airflow and high static pressure capabilities, it guarantees outstanding performance in demanding industrial sealing applications.
Its high air volume ensures that sufficient air is pumped rapidly and evenly into air cushion films, achieving film saturation levels of over 90%. Meanwhile, the high static pressure maintains exceptional stability and consistency throughout the entire inflation process.
- Compatible with major air cushion and packaging equipment
- High airflow speed for rapid film inflation
- Superior static pressure for consistent packaging quality
