Manufacturing method of miniature ultra-thin DC small fan

The minimum size cooling fan currently achievable in the industry is 9*9*3mm, with a diameter of 9mm and thickness of 3mm. The planar motor structure has become the preferred solution for ultra-thin fans.

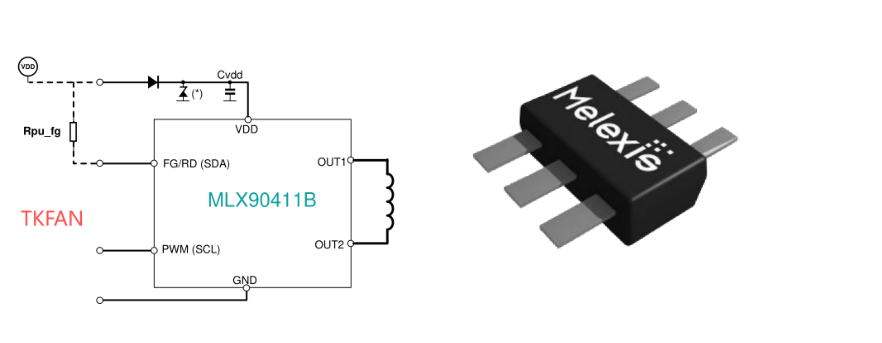

1. First, select a Hall sensor

Our company has chosen the MLX90411 model from Melexis in the United States, with a size of 3*1.2mm, meeting the small size requirement.

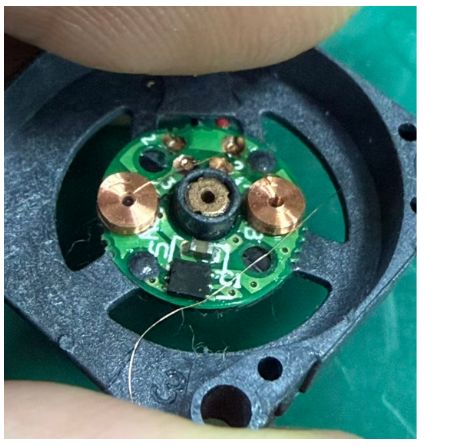

2. Select a suitable stator winding

Traditional cooling fans use enameled wire windings on silicon steel sheets, which are not suitable for ultra-thin DC small.

fan size solutions. Our company adopts the planar coil winding method.

3. Select a suitable plastic shell material

Due to the small product size and high requirements for plastic material strength, we have chosen LCP as the fan shell material.

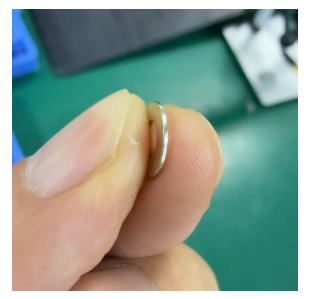

4. Select a magnet as the rotor moving part

Our company uses ultra-thin neodymium iron boron (NdFeB) material as the rotor magnet. The high magnetic properties of NdFeB can significantly reduce the motor current.

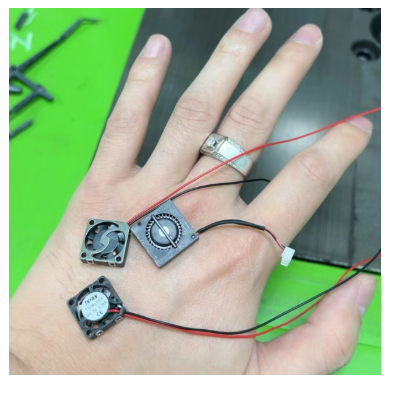

5. Finally, we can manufacture an ultra-thin DC small fan that is smaller than a fingernail
