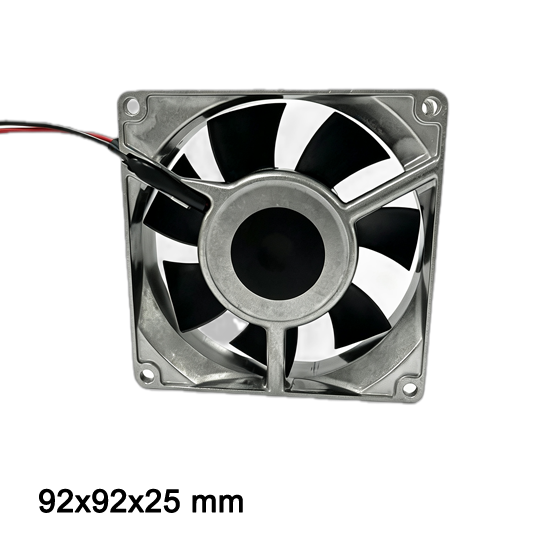

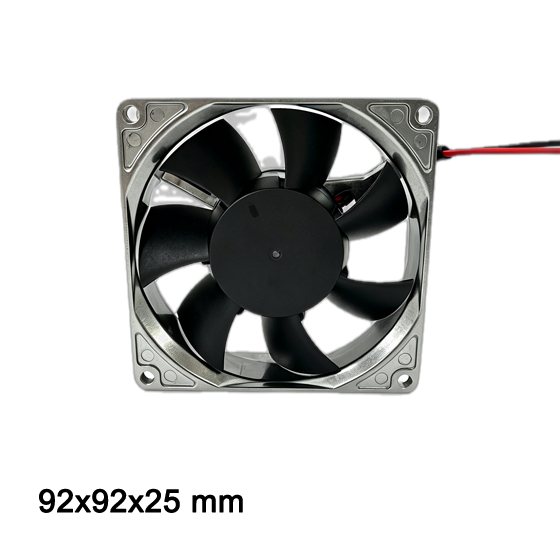

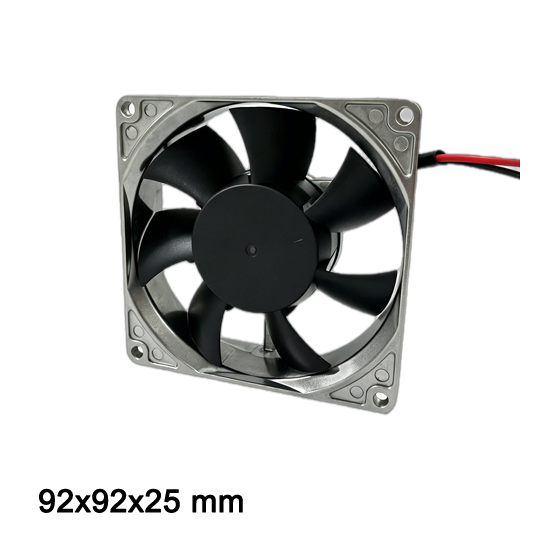

Waterproof fan for motor bike DDW9225HH12B

Voltage 12V 92*92*25mm
5000rpm/min
Max 100 cfm,0.15 kpa

Request a Sample

IP55 Waterproof Motorcycle Cooling Fan DDW9225HH12B

Engineered for bikes, it delivers reliable cooling in rain & dust. 92mm compact size fits most motorbike setups easily.

12V DC High Airflow Waterproof Fan for Motorcycle DDW9225HH12B

3000RPM high speed ensures strong airflow to cool engine fast. Low noise design avoids riding disturbance for a quiet trip.

Heavy-Duty IP55 Dustproof Waterproof Fan DDW9225HH12B

Protects against water splashes & dust for all-weather riding. Perfect for off-road, rainy days & humid environments.

Energy-Efficient 12V Motorcycle Waterproof Fan DDW9225HH12B

Low 3.6W power consumption saves bike battery effectively. Easy installation with standard connector for plug-and-play use.

Technical Specifications

ModelDDW9225HH12B
Size92*92*25mm
Operating Voltage12 VDC
Rated Current1.1 Amp
Rated Speed5000 RPM
Maximum Flow Rate110 CFM
Maximum Static Pressure0.15 kPa

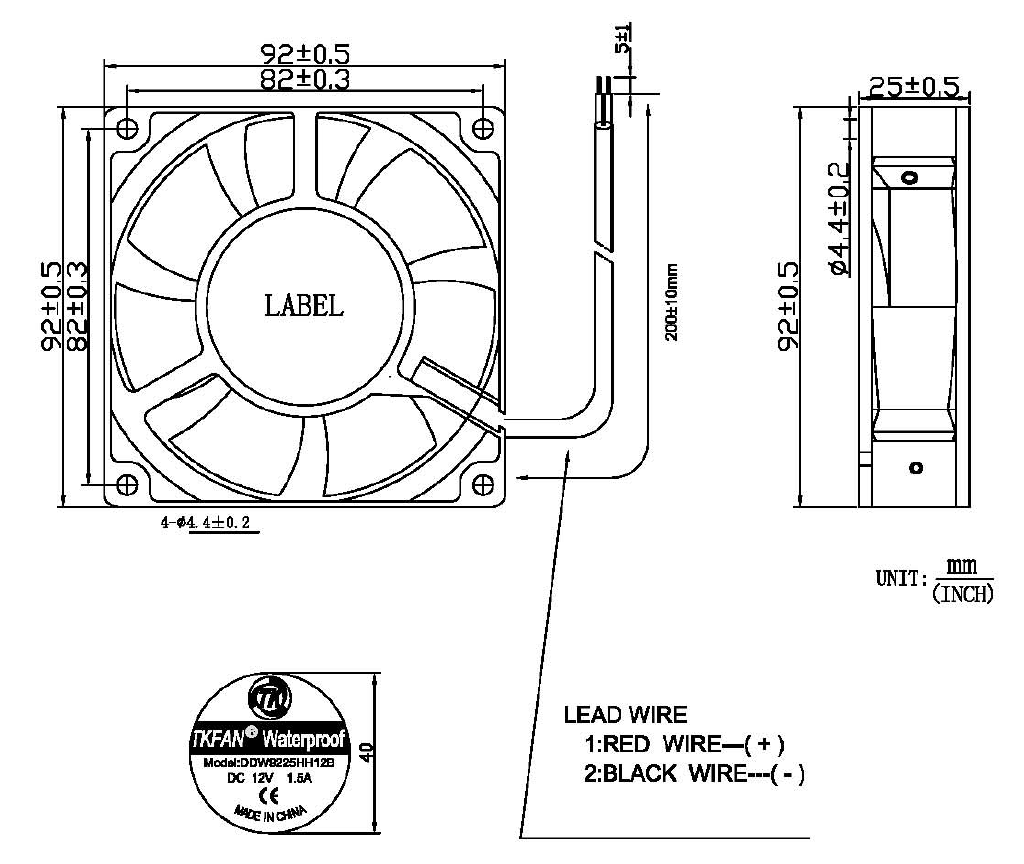

structure drawing of DDW9225HH12B.png

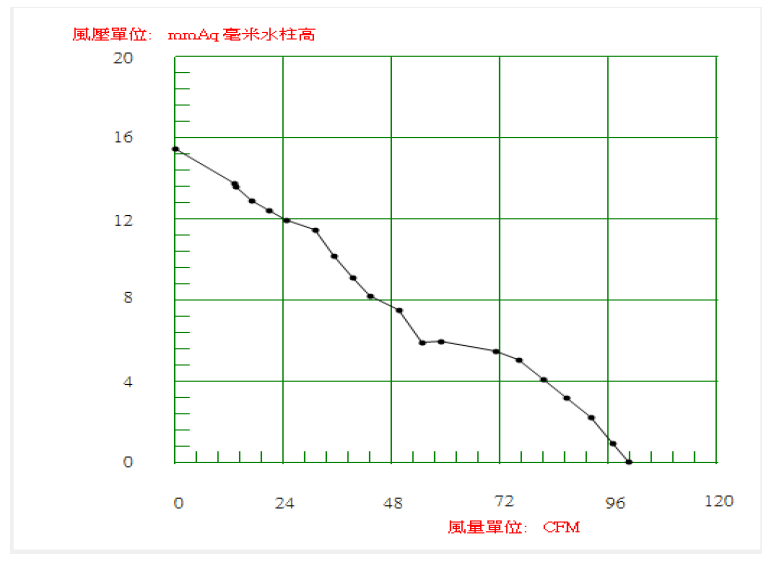

PQ curve for DDW9225HH12B.png



Video Showcase

Need a Custom Modification?

We can customize voltage (5V/12V), wire length, and connectors. Prototypes ready in 48 hours.

Contact Our Engineers
