Waterproof fan for motor bike DAH8032VH12B-A

Voltage 12V 80*80*32mm
8300rpm/min
Max 110.5 cfm,0.29 kpa

Request a Sample
Download Datasheet

12V High Speed Waterproof Motorcycle Fan DAH8032VH12B

Strong wind volume quickly dissipates engine heat efficiently. Stable operation brings safe and smooth riding experience.

IP Grade Splash Proof Motorbike Cooling Fan DAH8032VH12B

Good waterproof and dustproof performance adapts all weather use. Effectively resist road mud splashing and outdoor moisture.

Low Noise Durable Motorbike Radiator Fan DAH8032VH12B

Built-in high-quality bearing ensures long service life. Low noise running will not affect riding comfort.

Universal Energy Saving Motorcycle Waterproof Fan DAH8032VH12B

12V universal voltage matches most motorcycle power supply. Simple wiring installation, convenient and labor-saving.

Technical Specifications

ModelDAH8032VH12B
Size80*80*32mm
Operating Voltage12 VDC
Rated Current2.1 Amp
Rated Speed8300 RPM
Maximum Flow Rate110.5 CFM
Maximum Static Pressure0.29 kPa
structure drawing of DAH8032VH12B.png

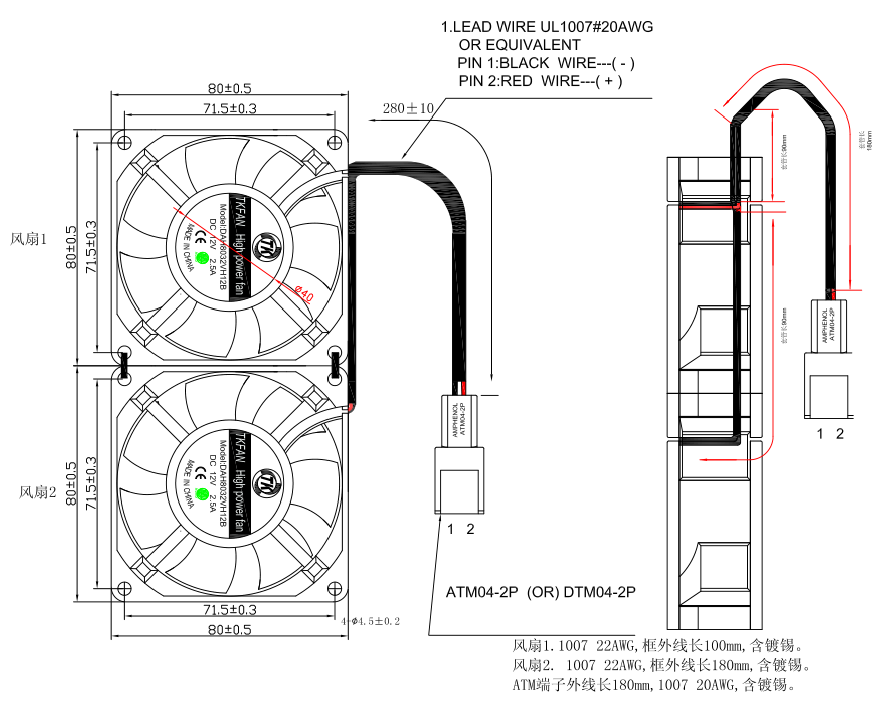

Waterproof fan for motor bike DAH8032VH12B-A dimensions drawing

This comprehensive dimensions drawing illustrates the precise structural layout and physical sizing of the DAH8032VH12B-A waterproof motorcycle cooling fan. It highlights crucial mounting hole locations, overall thickness, and frame geometry, ensuring seamless integration into restricted motorcycle spaces and custom housing designs.

PQ curve for DAH8032VH12B.png

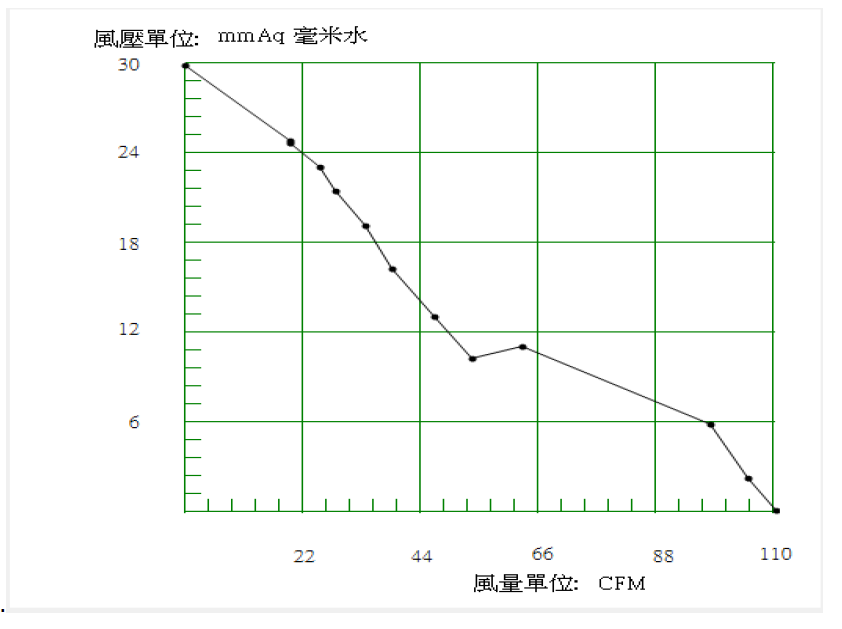

Waterproof fan for motor bike DAH8032VH12B-A PQ curve

The PQ (Performance-Pressure and Flow) curve graph delineates the exceptional aerodynamic efficiency and static pressure capabilities of the DAH8032VH12B-A fan under various operational resistances. It serves as a vital reference for engineers to evaluate airflow output against backpressure in demanding two-wheeler cooling environments.

Waterproof fan for motor bike DAH8032VH12B-A

Watch this detailed product and operational video showcasing the DAH8032VH12B-A waterproof axial fan set designed specifically for motorcycles. Discover its robust IP68 waterproof rating, high-speed 8300RPM performance, and powerful 110.5CFM airflow capacity. This video provides an immersive look at its build quality, dual-fan configuration, and real-world cooling efficiency under demanding riding conditions.
