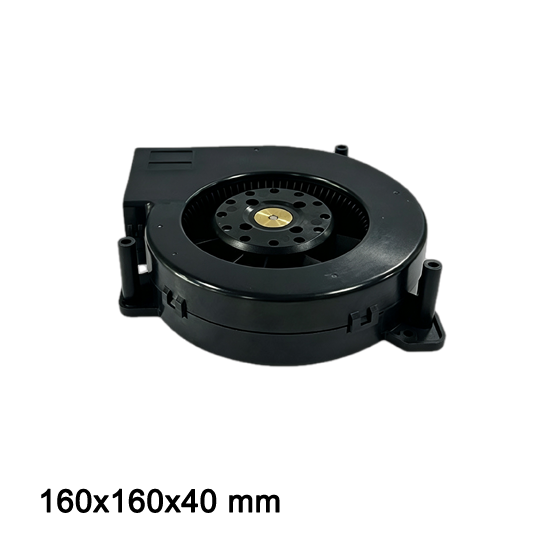

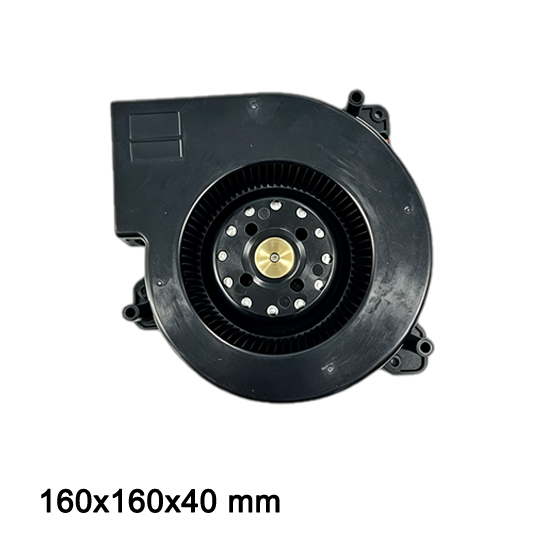

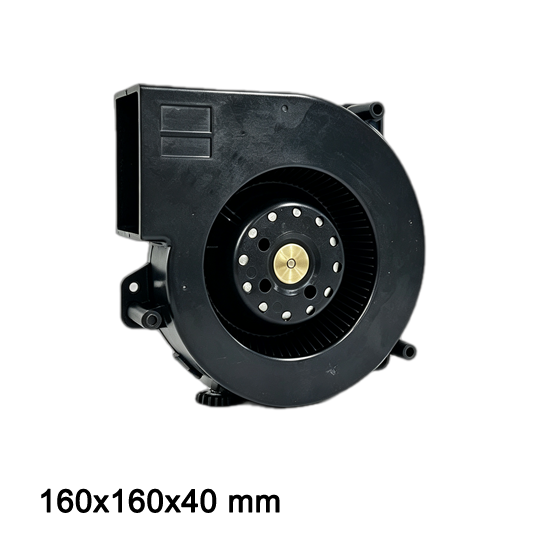

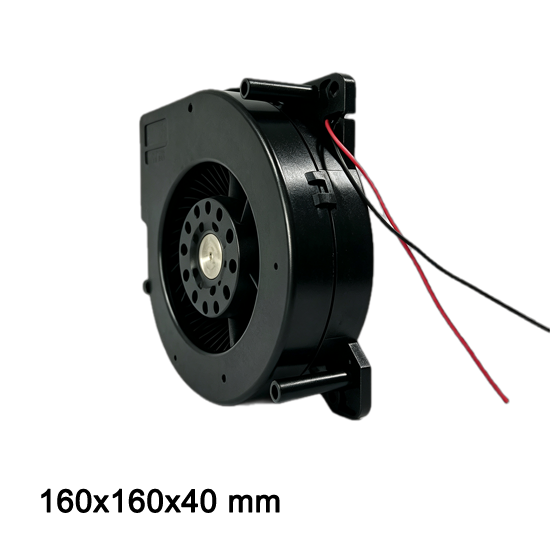

48V Air Blower BA16040HV48B-A
Voltage 48V
4500rpm/min
Max 117.1 cfm,0.9 kpa
Request a Sample
Structure Drawing
Technical Specifications

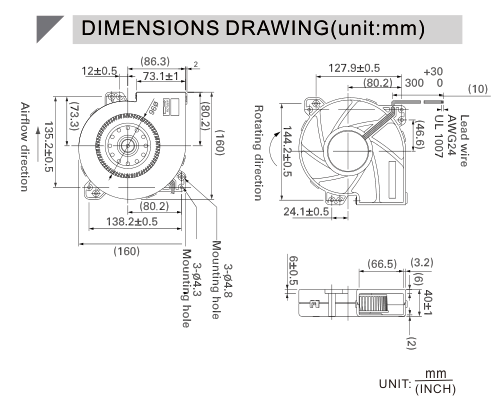

48V Air Blower BA16040HV48B-A dimensions drawing
Detailed mechanical dimensions drawing for the 48V Air Blower BA16040HV48B-A. It provides precise measurements for mounting interfaces, housing dimensions, inlet/outlet specifications, and wiring pinouts to ensure seamless mechanical integration and installation.

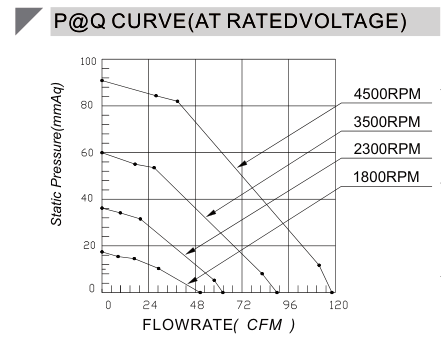

48V Air Blower BA16040HV48B-A PQ curve
Airflow and static pressure performance curve (P-Q curve) for the 48V Air Blower BA16040HV48B-A. This chart demonstrates the relationship between static pressure and airflow volume, highlighting its efficient air supply and pressure capabilities.
Air Blower BA16040-A Selection Guide
Use this specification guide to select the ideal model for your application requirements. Compare key performance parameters across different voltage options, power ratings, speed levels, maximum airflow, and static pressure to optimize cooling and air ventilation efficiency.
| Model | P/N Code | Rated Voltage | Operating Voltage Range | Rated Current | Rated Input Power | Speed | Maximum Air Flow | Maximum Air Pressure | Noise | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| VDC | VDC | Amp | Watt | R.P.M | M³/min | CFM | mmH2O | InH2O | dB-A | ||
| BA16040H12X | AY | 12 | 7.5 ~ 13.5 | 0.8 | 9.6 | 1800 | 1.45 | 50.0 | 17.2 | 0.68 | 50.9 |
| BA16040HH12X | 12 | 7.5 ~ 13.5 | 1.4 | 16.8 | 2300 | 1.74 | 61.5 | 35.8 | 1.41 | 55.3 | |
| BA16040VH12X | 12 | 7.5 ~ 13.5 | 4.8 | 57.6 | 3500 | 2.29 | 89.1 | 59.4 | 2.34 | 64.2 | |
| BA16040HV12X | 12 | 7.5 ~ 13.5 | 8.0 | 96 | 4500 | 3.31 | 117.1 | 90.1 | 3.55 | 71.4 | |
| BA16040H24X | 24 | 18 ~ 26.5 | 0.4 | 9.6 | 1800 | 1.45 | 50.0 | 17.2 | 0.68 | 50.9 | |
| BA16040HH24X | 24 | 18 ~ 26.5 | 0.7 | 16.8 | 2300 | 1.74 | 61.5 | 35.8 | 1.41 | 55.3 | |
| BA16040VH24X | 24 | 18 ~ 26.5 | 2.4 | 57.6 | 3500 | 2.29 | 89.1 | 59.4 | 2.34 | 64.2 | |
| BA16040HV24X | 24 | 18 ~ 26.5 | 4.0 | 96 | 4500 | 3.31 | 117.1 | 90.1 | 3.55 | 71.4 | |
| BA16040H48X | 48 | 36 ~ 54 | 0.2 | 9.6 | 1800 | 1.45 | 50.0 | 17.2 | 0.68 | 50.9 | |
| BA16040HH48X | 48 | 36 ~ 54 | 0.35 | 16.8 | 2300 | 1.74 | 61.5 | 35.8 | 1.41 | 55.3 | |
| BA16040VH48X | 48 | 36 ~ 54 | 1.2 | 57.6 | 3500 | 2.29 | 89.1 | 59.4 | 2.34 | 64.2 | |
| BA16040HV48X | 48 | 36 ~ 54 | 2 | 96 | 4500 | 3.31 | 117.1 | 90.1 | 3.55 | 71.4 | |
