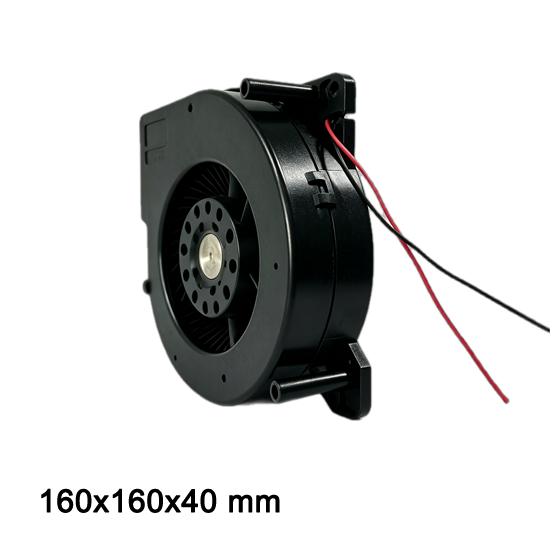

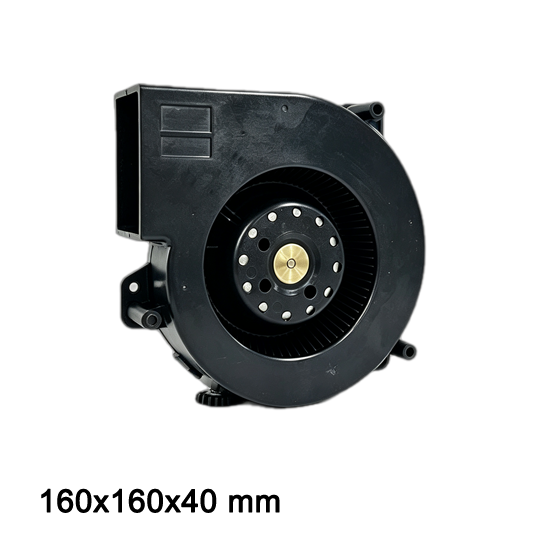

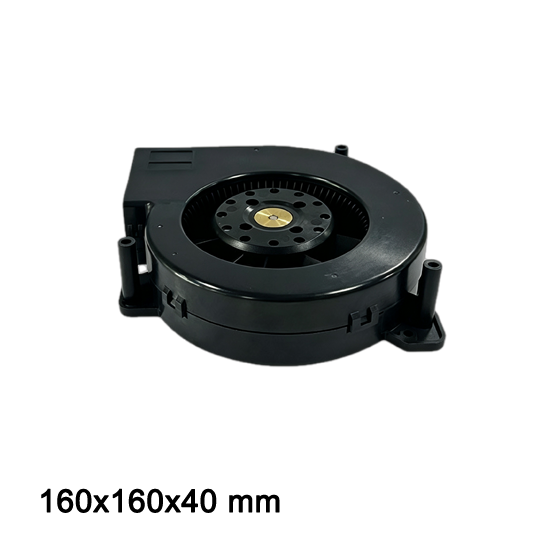

12V Air Blower BA16040HV12B-A (Sanyo Denki 109BG12HC1 / 109BG12MC1 Cross Reference)
12V Air Blower BA16040HV12B-A (Sanyo Denki 109BG12HC1 / 109BG12MC1 Cross Reference)
Voltage 12V
4500rpm/min
Max 117.1 cfm,0.9 kpa
Request a Sample
Structure Drawing
Technical Specifications
Cross Reference / Direct Replacement for Sanyo Denki 109BG12HC1 & 109BG12MC1
TKFAN BA16040HV12B-A is a high-performance 12V DC centrifugal blower designed as a direct drop-in replacement for Sanyo Denki San Ace 109BG12HC1 and 109BG12MC1. It shares identical mechanical mounting dimensions (160x160x40mm) and operating voltage, delivering higher static pressure and optimized airflow for critical cooling applications.
| Specification | TKFAN BA16040HV12B-A | Sanyo Denki 109BG12HC1 | Compatibility Advantage |
|---|---|---|---|
| Dimensions | 160 × 160 × 40 mm | 160 × 160 × 40 mm | 100% Direct Drop-in Fit |
| Rated Voltage | 12 VDC | 12 VDC | Fully Compatible |
| Max Airflow | 117.1 CFM (3.31 m³/min) | ~113 CFM | Enhanced Air Cooling Capacity |
| Max Static Pressure | 0.9 kPa (90.1 mmH2O) | ~80 mmH2O | Higher Static Pressure Output |
| Custom Options | Custom wire harness, connector types, PWM speed control, and tachometer signal options available. | ||
12V Air Blower BA16040HV12B-A Dimensions Drawing

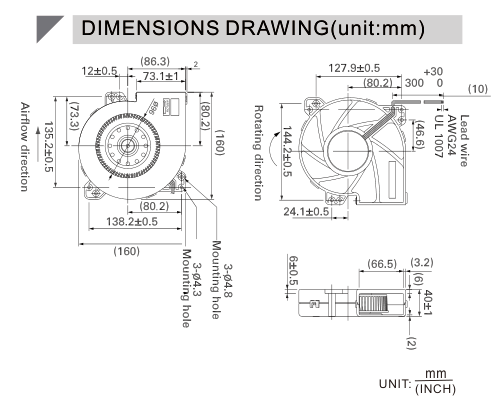

Detailed mechanical dimensions drawing for the 12V Air Blower BA16040HV12B-A (160x160x40mm). It provides precise measurements for mounting interfaces, housing dimensions, inlet/outlet specifications, and wiring pinouts—100% compatible with Sanyo Denki 109BG12HC1 for seamless mechanical integration.
12V Air Blower BA16040HV12B-A PQ Curve

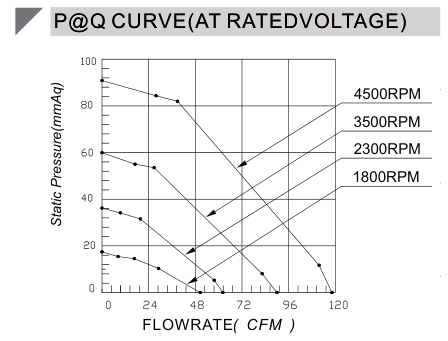

Airflow and static pressure performance curve (P-Q curve) for the 12V Air Blower BA16040HV12B-A. This chart demonstrates the relationship between static pressure and airflow volume, matching and exceeding the performance requirements of Sanyo Denki 109BG12HC1 and 109BG12MC1 models.
Air Blower BA16040-A Selection Guide & Cross Reference
Use this specification guide to select the ideal model or replacement for your application requirements. Compare key performance parameters across different voltage options, power ratings, speed levels, maximum airflow, and static pressure to optimize cooling and air ventilation efficiency.
| Model | P/N Code | Rated Voltage | Operating Voltage Range | Rated Current | Rated Input Power | Speed | Maximum Air Flow | Maximum Air Pressure | Noise | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| VDC | VDC | Amp | Watt | R.P.M | M³/min | CFM | mmH2O | InH2O | dB-A | ||
| BA16040H12B | AY | 12 | 7.5 ~ 13.5 | 0.8 | 9.6 | 1800 | 1.45 | 50.0 | 17.2 | 0.68 | 50.9 |
| BA16040HH12B | 12 | 7.5 ~ 13.5 | 1.4 | 16.8 | 2300 | 1.74 | 61.5 | 35.8 | 1.41 | 55.3 | |
| BA16040VH12B | 12 | 7.5 ~ 13.5 | 4.8 | 57.6 | 3500 | 2.29 | 89.1 | 59.4 | 2.34 | 64.2 | |
| BA16040HV12B (Replaces 109BG12HC1) | 12 | 7.5 ~ 13.5 | 8.0 | 96 | 4500 | 3.31 | 117.1 | 90.1 | 3.55 | 71.4 | |
| BA16040H24B | 24 | 18 ~ 26.5 | 0.4 | 9.6 | 1800 | 1.45 | 50.0 | 17.2 | 0.68 | 50.9 | |
| BA16040HH24B | 24 | 18 ~ 26.5 | 0.7 | 16.8 | 2300 | 1.74 | 61.5 | 35.8 | 1.41 | 55.3 | |
| BA16040VH24B | 24 | 18 ~ 26.5 | 2.4 | 57.6 | 3500 | 2.29 | 89.1 | 59.4 | 2.34 | 64.2 | |
| BA16040HV24B | 24 | 18 ~ 26.5 | 4.0 | 96 | 4500 | 3.31 | 117.1 | 90.1 | 3.55 | 71.4 | |
| BA16040H48B | 48 | 36 ~ 54 | 0.2 | 9.6 | 1800 | 1.45 | 50.0 | 17.2 | 0.68 | 50.9 | |
| BA16040HH48B | 48 | 36 ~ 54 | 0.35 | 16.8 | 2300 | 1.74 | 61.5 | 35.8 | 1.41 | 55.3 | |
| BA16040VH48B | 48 | 36 ~ 54 | 1.2 | 57.6 | 3500 | 2.29 | 89.1 | 59.4 | 2.34 | 64.2 | |
| BA16040HV48B | 48 | 36 ~ 54 | 2 | 96 | 4500 | 3.31 | 117.1 | 90.1 | 3.55 | 71.4 | |
