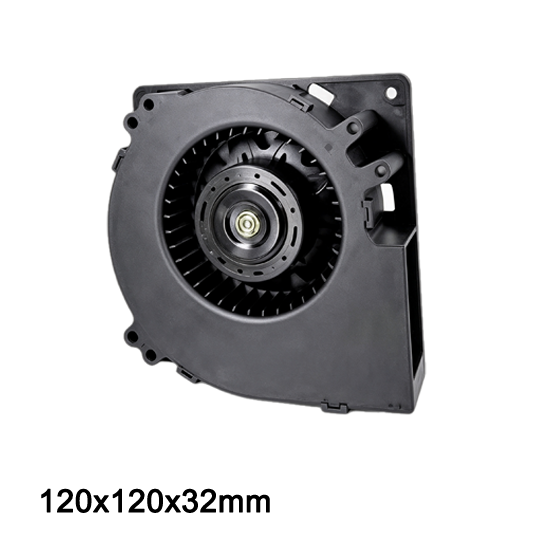

48V Air Blower BA12032HV48X-B
Voltage 48V
5000rpm/min
Max 65.96 cfm,0.83 kpa
Request a Sample

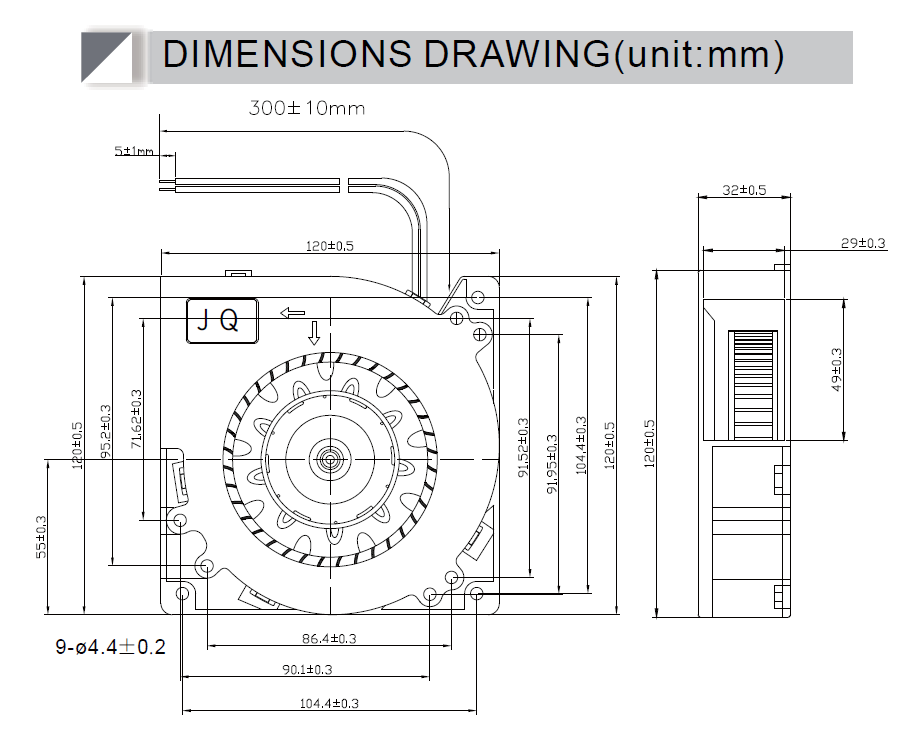

Structure Drawing
Technical Specifications
Air Blower BA12032-B Selection Guide
Compare voltage, dimensions, speed, airflow, and static pressure to select the perfect 12032 air blower for your equipment design.
| Model | P/N Code | Rated Voltage | Operating Voltage Range | Rated Current | Rated Input Power | Speed | Maximum Air Flow | Maximum Air Pressure | Noise | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| PART.NO. | VDC | VDC | Amp | Watt | R.P.M | M³/min | CFM | mmH2O | InH2O | dB-A | |
| BA12032L12X | BY | 12 | 7.5~13.5 | 0.8 | 9.6 | 2500 | 1.143 | 32.35 | 18.98 | 0.747 | 50.4 |
| BA12032M12X | 12 | 7.5~13.5 | 1.4 | 16.8 | 3000 | 1.426 | 40.35 | 29.28 | 1.153 | 52.3 | |
| BA12032H12X | 12 | 7.5~13.5 | 1.8 | 21.6 | 3500 | 1.639 | 46.38 | 40.17 | 1.581 | 58.3 | |
| BA12032HH12X | 12 | 7.5~13.5 | 2.4 | 28.8 | 4000 | 1.853 | 52.44 | 54.63 | 2.151 | 59.0 | |
| BA12032VH12X | 12 | 7.5~13.5 | 3.0 | 36 | 4500 | 2.096 | 59.32 | 73.11 | 2.878 | 62.2 | |
| BA12032HV12X | 12 | 7.5~13.5 | 3.6 | 43.2 | 5000 | 2.331 | 65.96 | 83.60 | 3.291 | 64.7 | |
| BA12032L24X | 24 | 18~26.5 | 0.4 | 9.6 | 2500 | 1.143 | 32.35 | 18.98 | 0.747 | 50.4 | |
| BA12032M24X | 24 | 18~26.5 | 0.7 | 16.8 | 3000 | 1.426 | 40.35 | 29.28 | 1.153 | 52.3 | |
| BA12032H24X | 24 | 18~26.5 | 0.9 | 21.6 | 3500 | 1.639 | 46.38 | 40.17 | 1.581 | 58.3 | |
| BA12032HH24X | 24 | 18~26.5 | 1.2 | 28.8 | 4000 | 1.853 | 52.44 | 54.63 | 2.151 | 59.0 | |
| BA12032VH24X | 24 | 18~26.5 | 1.5 | 36 | 4500 | 2.096 | 59.32 | 73.11 | 2.878 | 62.2 | |
| BA12032HV24X | 24 | 18~26.5 | 1.8 | 43.2 | 5000 | 2.331 | 65.96 | 83.60 | 3.291 | 64.7 | |
| BA12032L48X | 48 | 36~54 | 0.2 | 9.6 | 2500 | 1.143 | 32.35 | 18.98 | 0.747 | 50.4 | |
| BA12032M48X | 48 | 36~54 | 0.35 | 16.8 | 3000 | 1.426 | 40.35 | 29.28 | 1.153 | 52.3 | |
| BA12032H48X | 48 | 36~54 | 0.45 | 21.6 | 3500 | 1.639 | 46.38 | 40.17 | 1.581 | 58.3 | |
| BA12032HH48X | 48 | 36~54 | 0.6 | 28.8 | 4000 | 1.853 | 52.44 | 54.63 | 2.151 | 59.0 | |
| BA12032VH48X | 48 | 36~54 | 0.75 | 36 | 4500 | 2.096 | 59.32 | 73.11 | 2.878 | 62.2 | |
| BA12032HV48X-B | 48 | 36~54 | 0.9 | 43.2 | 5000 | 2.331 | 65.96 | 83.60 | 3.291 | 64.7 | |
48V Air Blower BA12032HV48X-B Performance Demo
Watch our high-performance 48V DC centrifugal air blower BA12032HV48X-B demonstrate outstanding volumetric airflow, static pressure, and thermal stability in high-resistance testing.
