12V Air Blower BA7050H12B-D260920
Voltage 12V
39200rpm/min
Max 14.4 cfm,8.68 kpa
Request a Sample
Download Datasheet
Technical Specifications

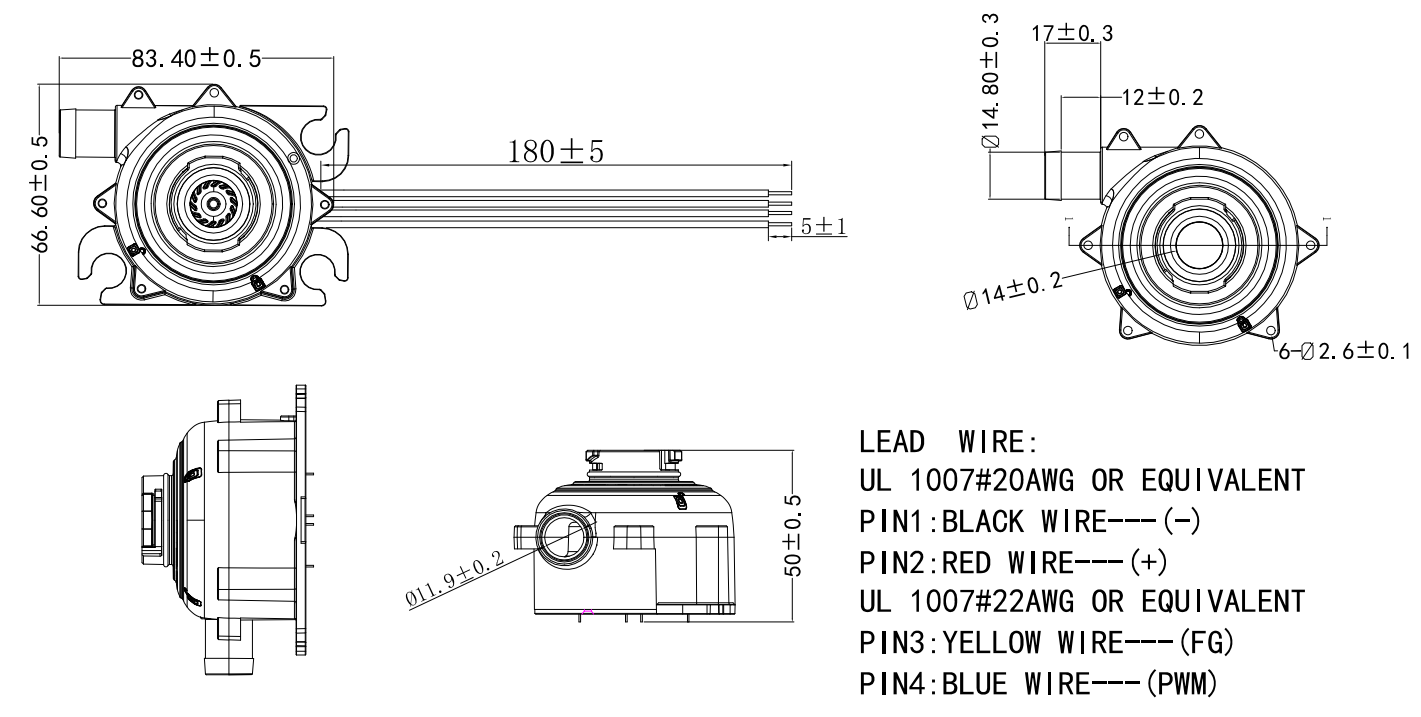

12V Air Blower BA7050H12B-D260920 Dimensions Drawing
This engineering dimensional drawing outlines the precise physical proportions, mounting hole locations, exhaust outlet dimensions, and overall structural layout of the BA7050H12B-D260920 12V micro centrifugal blower.
Key Mechanical Highlights:
- Compact Form Factor: Optimized for integration into space-limited medical devices, portable ventilators, and electronic enclosures.
- Precision Mounting: Accurate hole spacing ensures straightforward mechanical installation and secure alignment.
- Optimized Air Duct: Designed to minimize flow resistance and turbulence at the exhaust port.

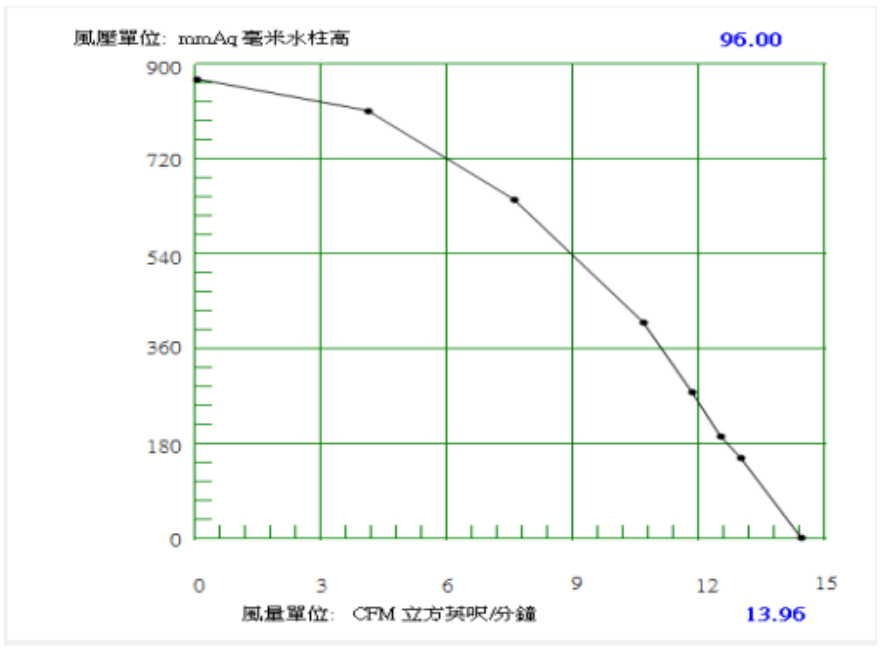

12V Air Blower BA7050H12B-D260920 PQ Curve
The performance PQ curve (Pressure vs. Flow) illustrates the aerodynamic characteristics and operational efficiency of the BA7050H12B-D260920 12V air blower across various back-pressure conditions.
Performance Insights:
- High Static Pressure: Demonstrates excellent pressure generation capabilities for demanding pneumatic systems.
- Stable Air Delivery: Maintains consistent airflow performance under changing load impedances.
- Efficiency Optimization: Helps engineers select the optimal operating point for maximum efficiency and low noise.
× ![]()
Looking for different sizes or specifications?
Explore our full range of 12V Air Blower, or choose from similar models below.
12V Air Blower
Need a Custom Modification?
We can customize voltage (5V/12V), wire length, and connectors. Prototypes ready in 48 hours.
Contact Our Engineers
