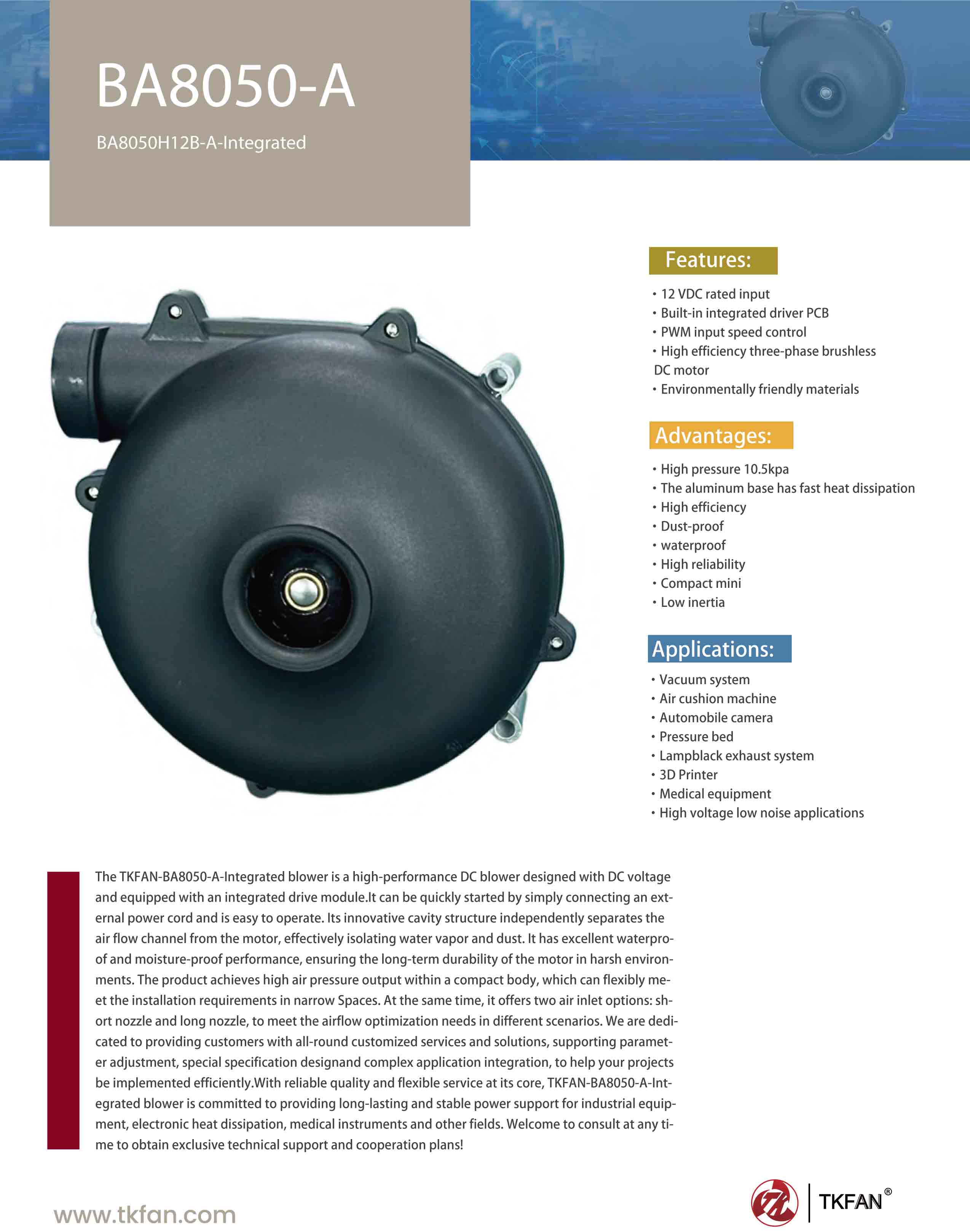

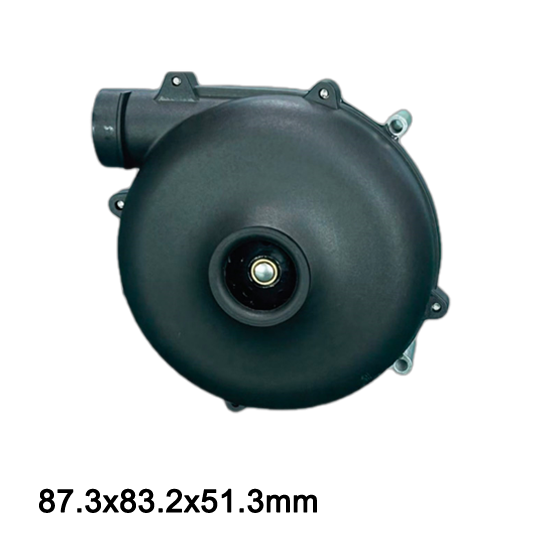

12V Air Blower BA8050H12B-A-Integrated
Voltage 12V
37000rpm/min
Max 20 cfm,10.5 kpa
Request a Sample
Integrated Design for Plug-and-Play Convenience
The BA8050H12B-A-Integrated features a fully integrated structure, integrating the blower and drive control board into one, enabling plug-and-play installation without additional assembly, greatly improving efficiency and reducing installation complexity.
12V DC Stable Power Supply & Low Power Consumption
Adopting 12V DC power input, it achieves low power consumption operation while maintaining stable airflow and pressure output, suitable for long-term continuous work and energy-saving industrial applications.
High Precision & Reliable Operational Performance
Manufactured with advanced precision technology, it has minimal vibration, low noise and strong anti-interference ability, ensuring consistent performance even in harsh industrial working environments.
Optimized Airflow & Static Pressure Performance
Equipped with a high-efficiency impeller and aerodynamic structure, it delivers strong and stable airflow as well as appropriate static pressure, perfectly matching the air supply, cooling and ventilation needs of industrial equipment.

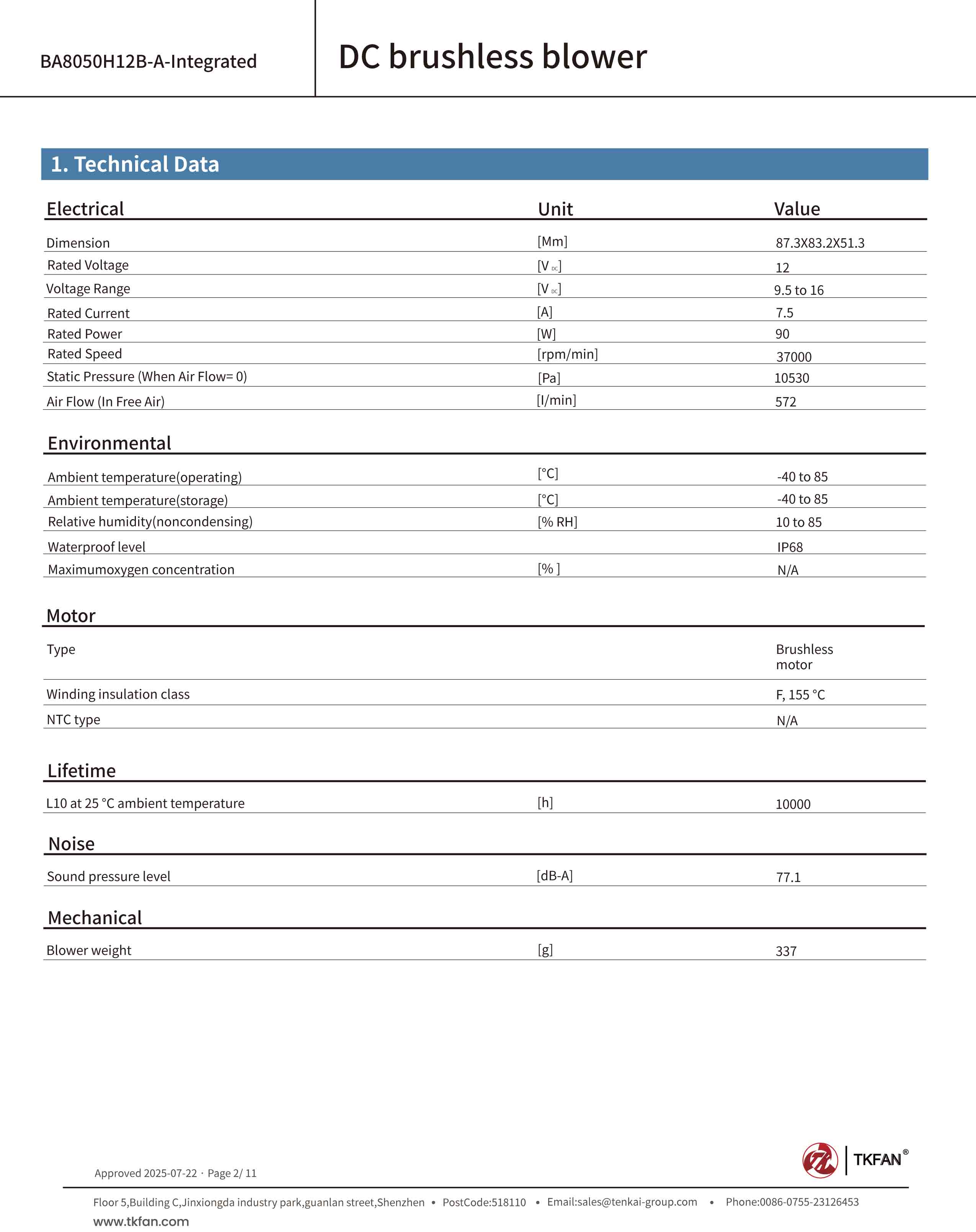

Technical Specifications
Video Showcase
Applications
Need a Custom Modification?
We can customize voltage (5V/12V), wire length, and connectors. Prototypes ready in 48 hours.
Contact Our Engineers
