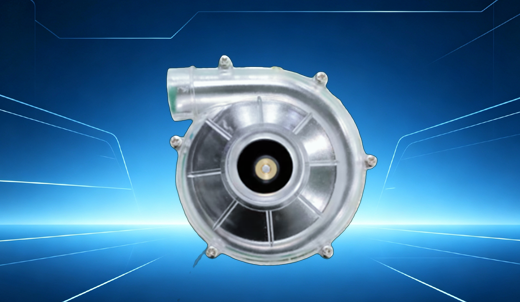

BA7050H24B-B Small High-Pressure Blower for Air Cushion Machines - TK FAN
Looking for a high-performance, compact small high-pressure blower designed specifically for air cushion machines? TK FAN proudly presents the BA7050H24B-B model, a reliable and energy-efficient small high-pressure blower that meets the demanding operating requirements of air cushion machine production. This compact blower combines powerful airflow, low noise operation, and precise speed control, making it ideal for air cushion machines, and also suitable for other industrial applications such as high-powered stoves and cotton candy machines.
BA7050H24B-B Small High-Pressure Blower Product Video
Watch the video below to learn about the performance, installation, and application of the BA7050H24B-B small high-pressure blower in air cushion machines, and how this compact small high-pressure blower can improve your production line efficiency.
This video showcases the compact design, easy installation, and stable performance of this small high-pressure blower, helping you better understand its advantages in air cushion machine applications.
BA7050H24B-B Small High-Pressure Blower Main Specifications
The BA7050H24B-B small high-pressure blower features a compact design that saves valuable space in air cushion machine installations, while delivering superior performance as a professional small high-pressure blower.
Dimensions: 70 mm diameter, 50 mm thickness – Ultra-compact size for easy integration. High-Pressure Blower for Air Cushion Machines
Inlet and Outlet: Inlet diameter 22.7mm, outlet inner diameter 17mm – Designed for efficient airflow circulation, crucial for stable inflation with this compact high-pressure blower.
Power Supply: 24V DC (12V DC optional) – Flexible voltage options to match the power configurations of different air cushion machines.
Power Consumption: Approx. 67 watts – This compact high-pressure blower offers extremely high energy efficiency, reducing long-term operating costs for air cushion production lines.
Speed: 35,000 rpm – The high-speed operation of this compact high-pressure blower ensures sufficient air pressure for rapid and stable air cushion inflation.
Airflow and Static Pressure: Maximum airflow 17.8 cfm, maximum static pressure 8 kPa – This compact high-pressure blower provides a strong and stable air supply to meet the high-pressure requirements of air cushion machines.
Noise Level: Low-noise operation – This small high-pressure blower creates a quiet working environment, suitable for indoor air cushion production equipment.
Core Features and Technical Advantages of the Small High-Pressure Blower
The BA7050H24B-B small high-pressure blower is designed with advanced technology to ensure reliability and performance, making it stand out in air cushion machine applications:
External Drive Mode with Hall Sensor
This small high-pressure blower uses an external drive design with a Hall sensor, ensuring precise control and stable operation of the blower. The blower connects to the driver via 8 leads, and the clear wiring specifications facilitate installation and maintenance. This is a key feature to adapt to different air cushion thicknesses and inflation speed requirements. A 5V 25kHz PWM signal is required for the small high-pressure blower to achieve optimal performance. Users can fine-tune the blower's speed according to real-time production needs, further improving energy efficiency and product quality.
Real-Time Speed Monitoring of the Small High-Pressure Blower
The yellow FG signal output of this small high-pressure blower is a square wave based on the speed, allowing the host computer to detect the frequency and display the actual operating speed of the small high-pressure blower. This real-time monitoring feature ensures that the small high-pressure blower operates within its optimal range, reducing equipment wear and improving production stability—a crucial advantage for continuous air cushion production lines using this small high-pressure blower.
