Cooling fan for charger CA7020H12B-A (Direct Replacement for SANYO Denki 9TD12P6G001 / 9TD12P6G)
 .png "TKFAN Cooling fan for charger CA7020H12B-A (Direct Replacement for SANYO Denki 9TD12P6G001 9TD12P6G) .png")

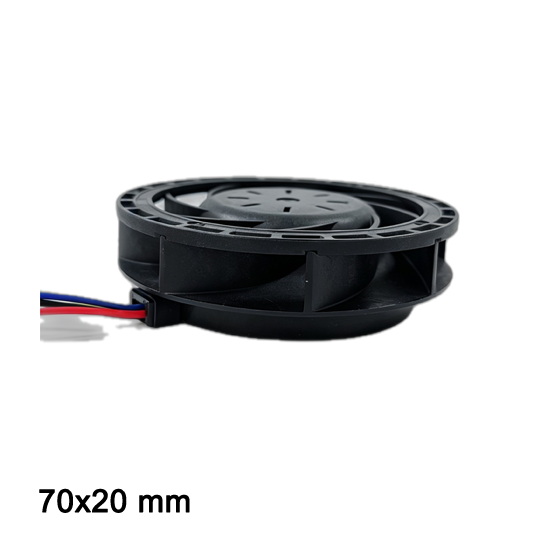

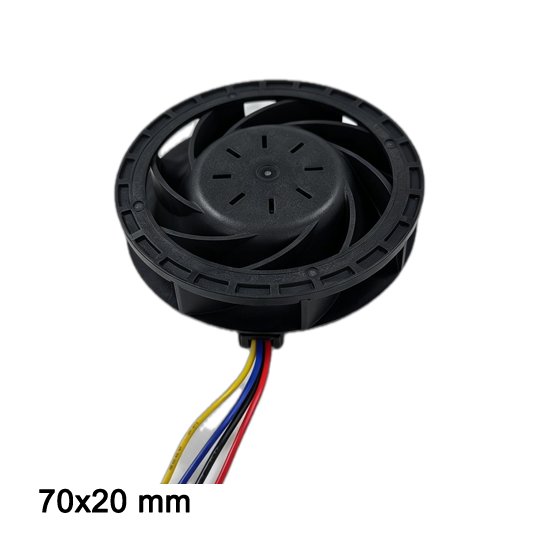

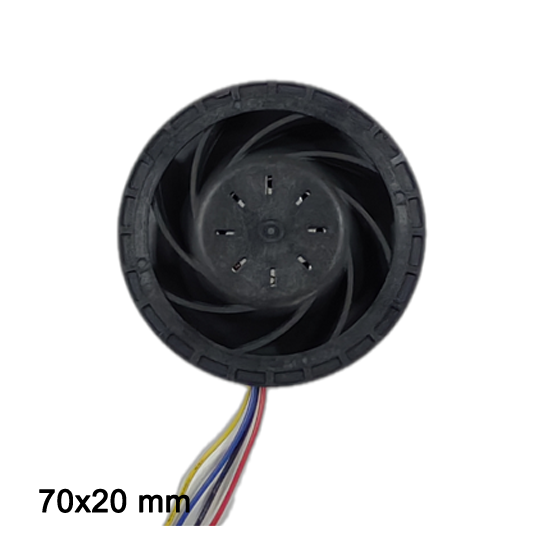

Cooling fan for charger CA7020H12B-A (Direct Replacement for SANYO Denki 9TD12P6G001 / 9TD12P6G)
Voltage 12V
9200rpm/min
Max 42.8 cfm,0.47 kpa
Technical Specifications
This is an operation video for the Cooling fan for charger CA7020H12B-A (Direct Replacement for SANYO Denki 9TD12P6G001 / 9TD12P6G)
Direct Cross-Reference & Replacement Notice:
The CA7020H12B (70x70x20mm) is designed as a high-performance, cost-effective direct replacement for the SANYO Denki San Ace 70 9TD12P6G001 (9TD12P6G series). It features identical mounting dimensions, electrical specifications (12V DC), airflow rate, and static pressure for seamless integration into your existing equipment.
Cooling fan for charger CA7020-A Selection Guide
Compare voltage, dimension, speed, air flow and static pressure to select the most suitable 70mm DC centrifugal fan for SANYO replacement or custom OEM equipment designs.
| Model | P/N Code | Rated Voltage | Operating Voltage Range | Rated Current | Rated Input Power | Speed | Maximum Air Flow | Maximum Air Pressure | Noise | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| VDC | VDC | Amp | Watt | R.P.M | M³/min | CFM | mmH2O | InH2O | dB-A | ||
| CA7020H12X | AY | 12 | 7.5~13.5 | 1 | 12 | 9200 | 1.21 | 42.8 | 48.1 | 1.89 | 60.8 |
| CA7020H24X | 24 | 18~26.5 | 0.5 | 12 | 9200 | 1.21 | 42.8 | 48.1 | 1.89 | 60.8 | |
| CA7020H48X | 48 | 36~54 | 0.25 | 12 | 9200 | 1.21 | 42.8 | 48.1 | 1.89 | 60.8 | |
Looking for different sizes or specifications?
Explore our full range of Cooling fan for charger, or choose from similar models below.
Cooling fan for charger
Need a Custom Modification?
We can customize voltage (5V/12V), wire length, and connectors. Prototypes ready in 48 hours.
Contact Our Engineers
