Cabinet cooling fan DCH12038VH48B-C
Voltage 48V

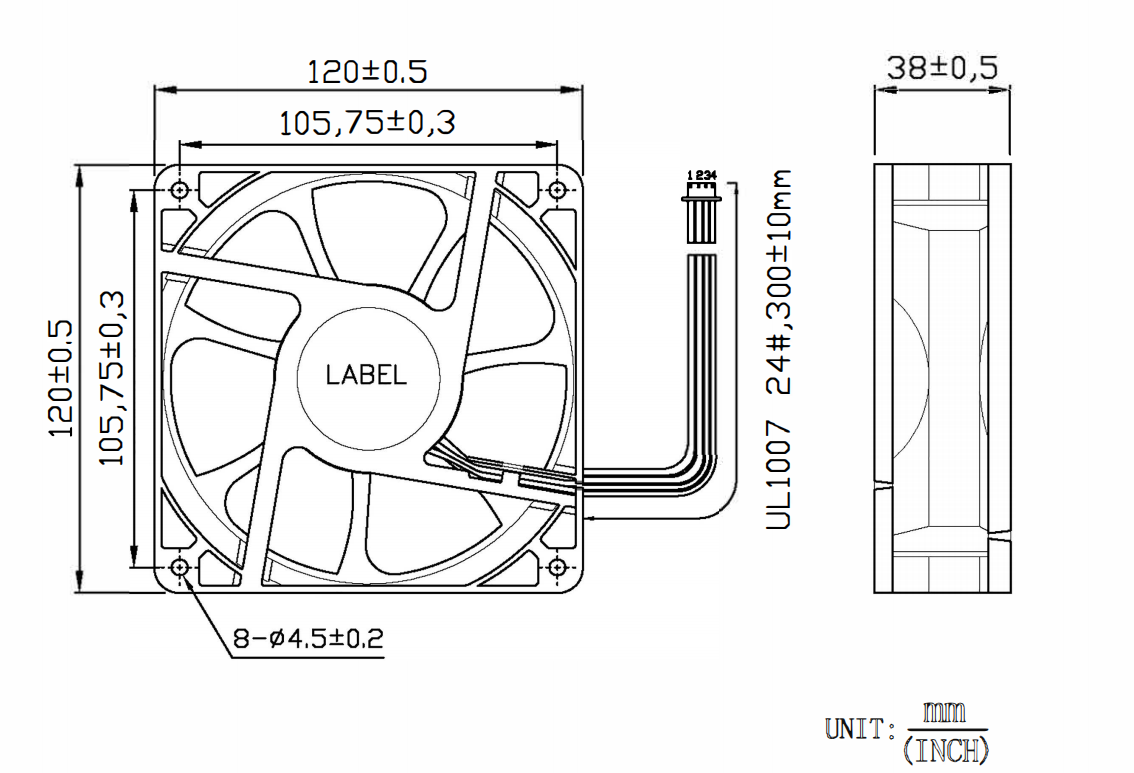

120*120*38mm
5000rpm/min
Max 183.8 cfm,0.2 kpa
Technical Specifications
DC fan DCH12038-C Selection Guide
Compare voltage, dimensions, speed, airflow, and static pressure to select the perfect DC fan DCH12038-C for your equipment design.
| Model | P/N Code | Rated Voltage | Operating Voltage Range | Rated Current | Rated Input Power | Speed | Maximum Air Flow | Maximum Air Pressure | Noise | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| PART.NO. | VDC | VDC | Amp | Watt | R.P.M | M³/min | CFM | mmH2O | InH2O | dB-A | |
| DCH12038L12X | CY | 12 | 8~13.5 | 0.45 | 5.4 | 2500 | 2.536 | 89.58 | 5.37 | 0.211 | 40.0 |
| DCH12038M12X | 12 | 8~13.5 | 0.95 | 11.4 | 3000 | 2.972 | 104.93 | 7.38 | 0.291 | 44.7 | |
| DCH12038VM12X | 12 | 8~13.5 | 1.45 | 17.4 | 3500 | 3.636 | 128.40 | 10.40 | 0.409 | 49.0 | |
| DCH12038H12X | 12 | 8~13.5 | 1.85 | 22.2 | 4000 | 4.060 | 143.36 | 13.13 | 0.517 | 51.4 | |
| DCH12038HH12X | 12 | 8~13.5 | 2.25 | 27 | 4500 | 4.647 | 164.09 | 16.86 | 0.664 | 55.8 | |
| DCH12038VH12X | 12 | 8~13.5 | 2.65 | 31.8 | 5000 | 5.205 | 183.78 | 20.32 | 0.800 | 59.7 | |
| DCH12038HV12X | 12 | 8~13.5 | 3.0 | 36 | 5500 | 5.624 | 198.60 | 24.08 | 0.948 | 61.3 | |
| DCH12038L24X | 24 | 18~26.5 | 0.225 | 5.4 | 2500 | 2.536 | 89.58 | 5.37 | 0.211 | 40.0 | |
| DCH12038M24X | 24 | 18~26.5 | 0.475 | 11.4 | 3000 | 2.972 | 104.93 | 7.38 | 0.291 | 44.7 | |
| DCH12038VM24X | 24 | 18~26.5 | 0.73 | 17.4 | 3500 | 3.636 | 128.40 | 10.40 | 0.409 | 49.0 | |
| DCH12038H24X | 24 | 18~26.5 | 0.9 | 22.2 | 4000 | 4.060 | 143.36 | 13.13 | 0.517 | 51.4 | |
| DCH12038HH24X | 24 | 18~26.5 | 1.125 | 27 | 4500 | 4.647 | 164.09 | 16.86 | 0.664 | 55.8 | |
| DCH12038VH24X | 24 | 18~26.5 | 1.33 | 31.8 | 5000 | 5.205 | 183.78 | 20.32 | 0.800 | 59.7 | |
| DCH12038HV24X | 24 | 18~26.5 | 1.5 | 36 | 5500 | 5.624 | 198.60 | 24.08 | 0.948 | 61.3 | |
| DCH12038L48X | 48 | 36~54 | 0.113 | 5.4 | 2500 | 2.536 | 89.58 | 5.37 | 0.211 | 40.0 | |
| DCH12038M48X | 48 | 36~54 | 0.24 | 11.4 | 3000 | 2.972 | 104.93 | 7.38 | 0.291 | 44.7 | |
| DCH12038VM48X | 48 | 36~54 | 0.36 | 17.4 | 3500 | 3.636 | 128.40 | 10.40 | 0.409 | 49.0 | |
| DCH12038H48X | 48 | 36~54 | 0.46 | 22.2 | 4000 | 4.060 | 143.36 | 13.13 | 0.517 | 51.4 | |
| DCH12038HH48X | 48 | 36~54 | 0.56 | 27 | 4500 | 4.647 | 164.09 | 16.86 | 0.664 | 55.8 | |
| DCH12038VH48X | 48 | 36~54 | 0.66 | 31.8 | 5000 | 5.205 | 183.78 | 20.32 | 0.800 | 59.7 | |
| DCH12038HV48X | 48 | 36~54 | 0.75 | 36 | 5500 | 5.624 | 198.60 | 24.08 | 0.948 | 61.3 | |
This video demonstrates the operation of the 120*120*38mm 48v cabinet fan DCH12038VH48B.
