Home  >   Products  >   Centrifugal fan  >   PAPR fan  >   PAPR fan U97LM-005KK

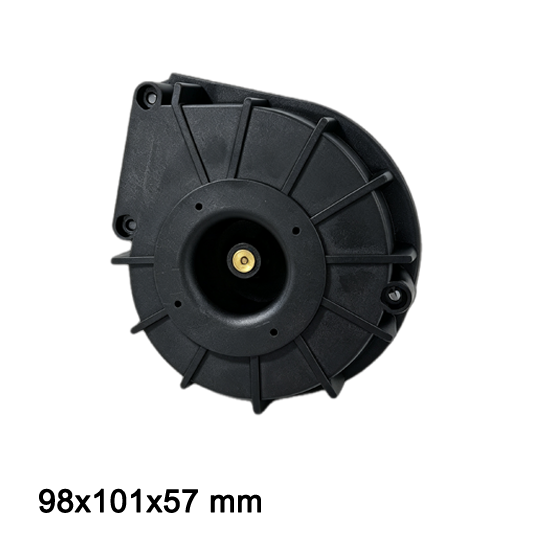

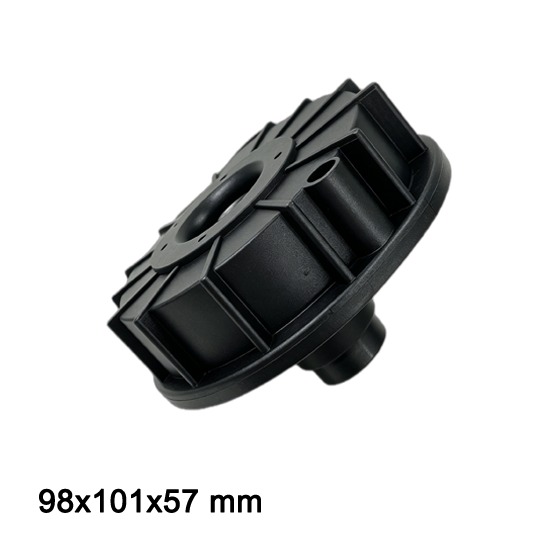

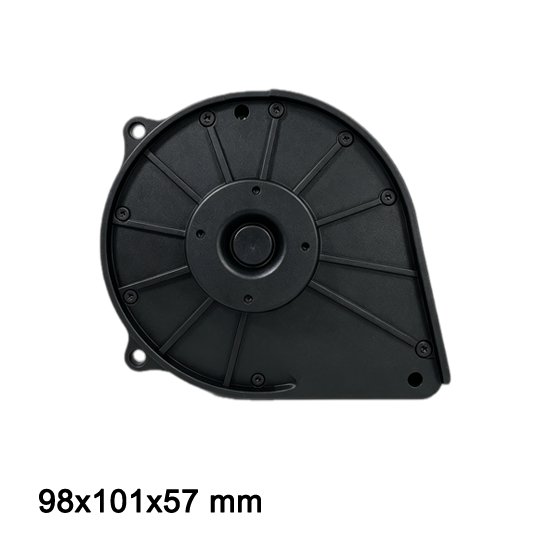

PAPR fan U97LM-005KK
PAPR fan U97LM-005KK 2.png
PAPR fan U97LM-005KK 1.png
PAPR fan U97LM-005KK 3.png
PAPR fan U97LM-005KK
PAPR fan U97LM-005KK 2.png
PAPR fan U97LM-005KK 1.png
PAPR fan U97LM-005KK 3.png

PAPR fan U97LM-005KK

Voltage 5V
8500rpm/min
Max 15.9 cfm,0.5 kpa

Request a Sample
Download Datasheet

Technical Specifications

ModelU97LM-005KK

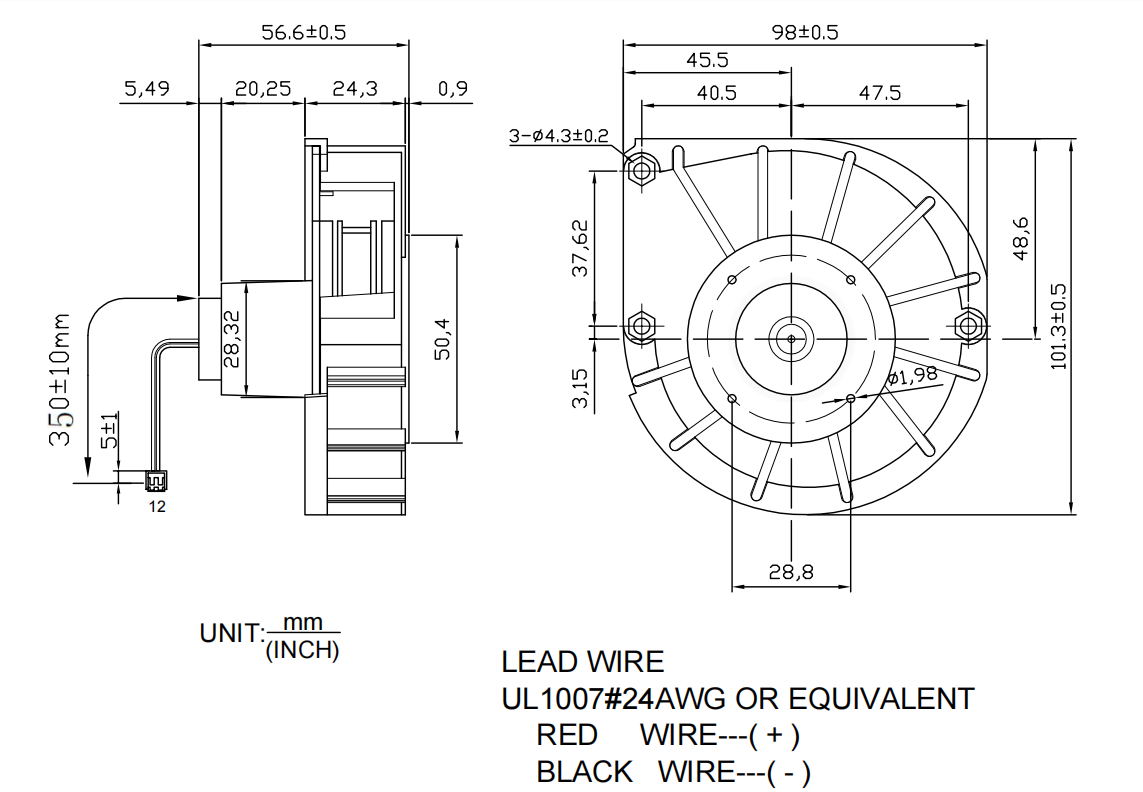

Size98*101*57 mm
Operating Voltage5 VDC
Rated Current0.62 Amp
Rated Speed8500 RPM

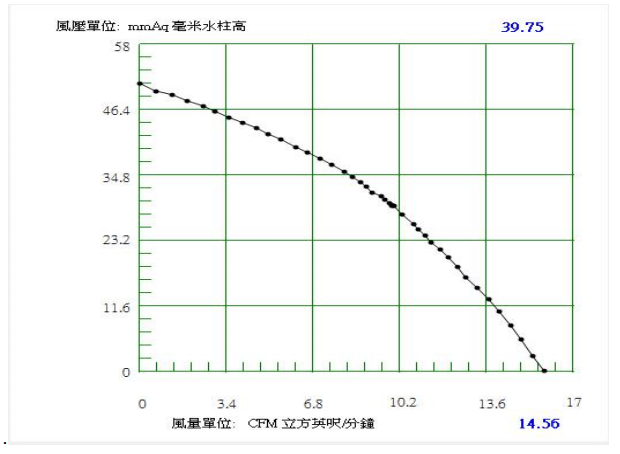

Maximum Flow Rate15.9 CFM
Maximum Static Pressure0.5 kPa





Operation video of 5V blower U97LM-005KK

GET A QUOTE

Looking for different sizes or specifications?

Explore our full range of PAPR fan, or choose from similar models below.

PAPR fan

Need a Custom Modification?

We can customize voltage (5V/12V), wire length, and connectors. Prototypes ready in 48 hours.

Contact Our Engineers
