Voltage 24V
67000rpm/min
Max 17.5cfm,11kpa

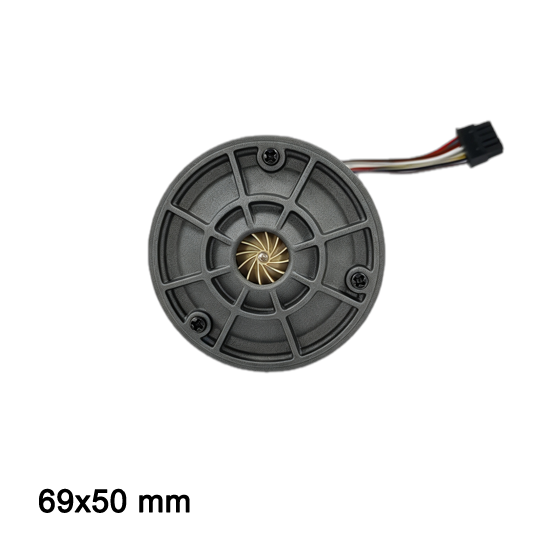

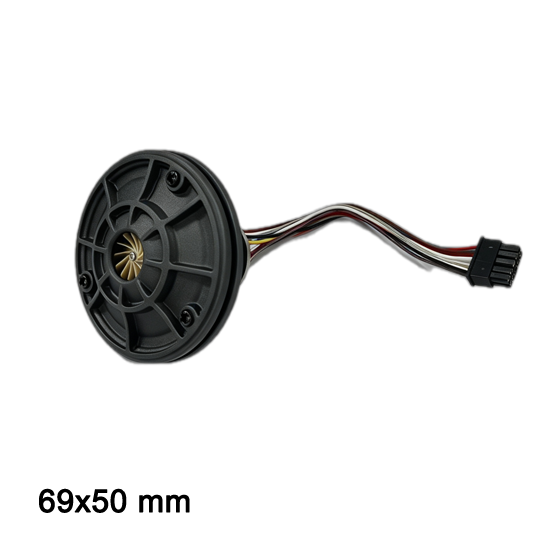

Ultra-High Static Pressure for Critical Care Ventilation
Engineered with advanced fluid dynamics, the BA6560H24B-B delivers powerful and stable high-pressure airflow instantly, perfectly meeting the rigorous demands of ICU ventilators and CPAP devices to overcome airway resistance.
Premium BLDC Motor for 24/7 Continuous Operation
Equipped with a high-performance 24V brushless DC motor and heavy-duty dual ball bearings, it minimizes mechanical wear to guarantee tens of thousands of hours of maintenance-free lifespan in critical medical environments.
Medical-Grade Quiet Operation for Patient Comfort
Through precision dynamic balancing and an optimized acoustic structure, this blower maintains exceptionally low noise and vibration levels even at peak speeds, ensuring a peaceful healing environment for patients.
Precise Speed Control with Rapid Dynamic Response
Supporting accurate PWM or voltage speed regulation, this blower features outstanding transient response to adjust airflow in real-time based on the patient's breathing patterns, significantly improving patient-ventilator synchrony.
Technical Specifications

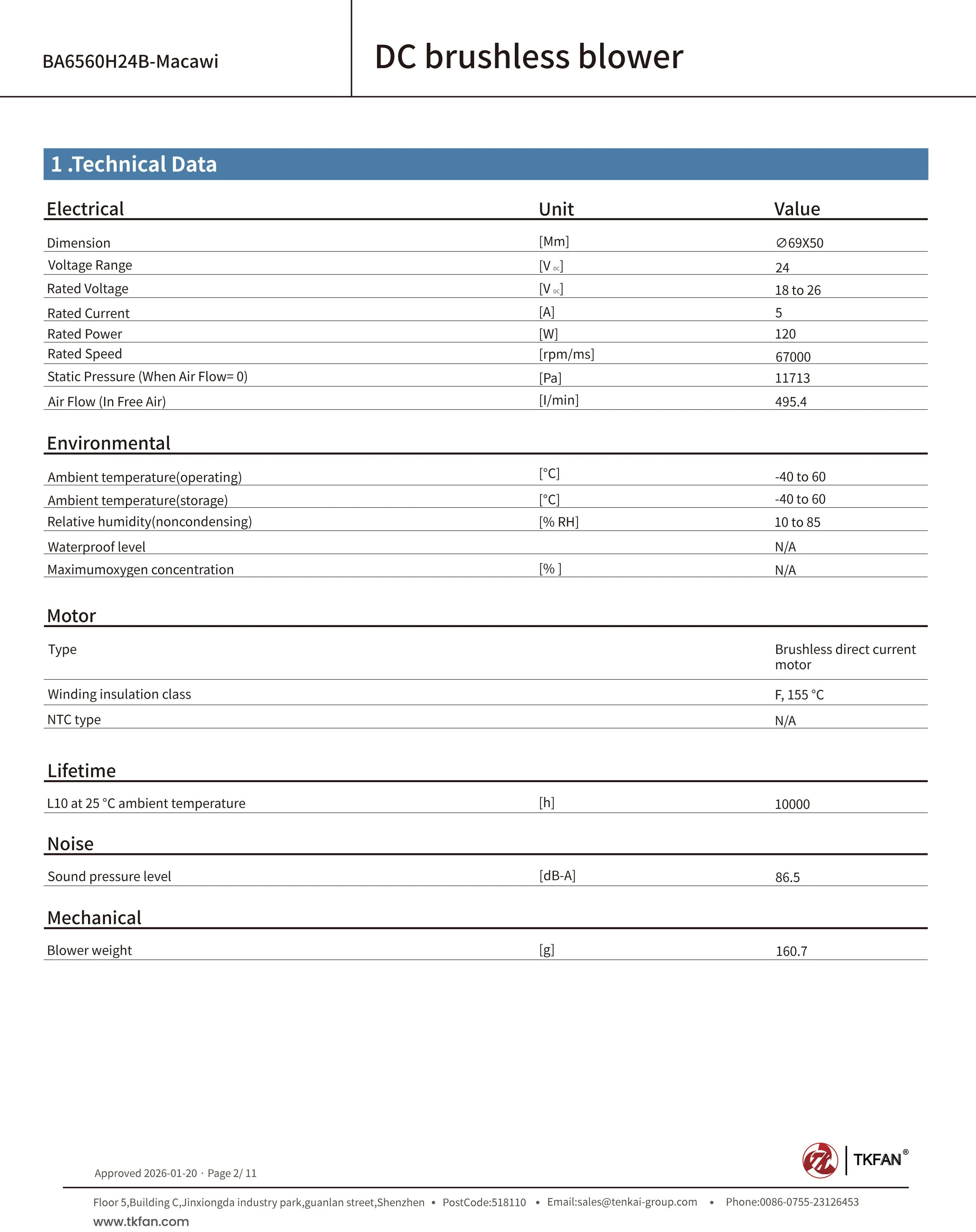

Medical ventilator blower BA6560H24B-Macawi Technical Data
| Parameter | Unit | Value |
|---|---|---|
| Electrical | ||
| Dimension | [Mm] | Ø69X50 |
| Voltage Range | [VDC] | 24 |
| Rated Voltage | [VDC] | 18 to 26 |
| Rated Current | [A] | 5 |
| Rated Power | [W] | 120 |
| Rated Speed | [rpm/ms] | 67000 |
| Static Pressure (When Air Flow=0) | [Pa] | 11713 |
| Air Flow (In Free Air) | [l/min] | 495.4 |
| Environmental | ||
| Ambient temperature(operating) | [°C] | -40 to 60 |
| Ambient temperature(storage) | [°C] | -40 to 60 |
| Relative humidity(noncondensing) | [% RH] | 10 to 85 |
| Waterproof level | N/A | |
| Maximum oxygen concentration | [%] | N/A |
| Motor | ||
| Type | Brushless direct current motor | |
| Winding insulation class | F, 155 °C | |
| NTC type | N/A | |
| Lifetime | ||
| L10 at 25 °C ambient temperature | [h] | 10000 |
| Noise | ||
| Sound pressure level | [dB-A] | 86.5 |
| Mechanical | ||
| Blower weight | [g] | 160.7 |

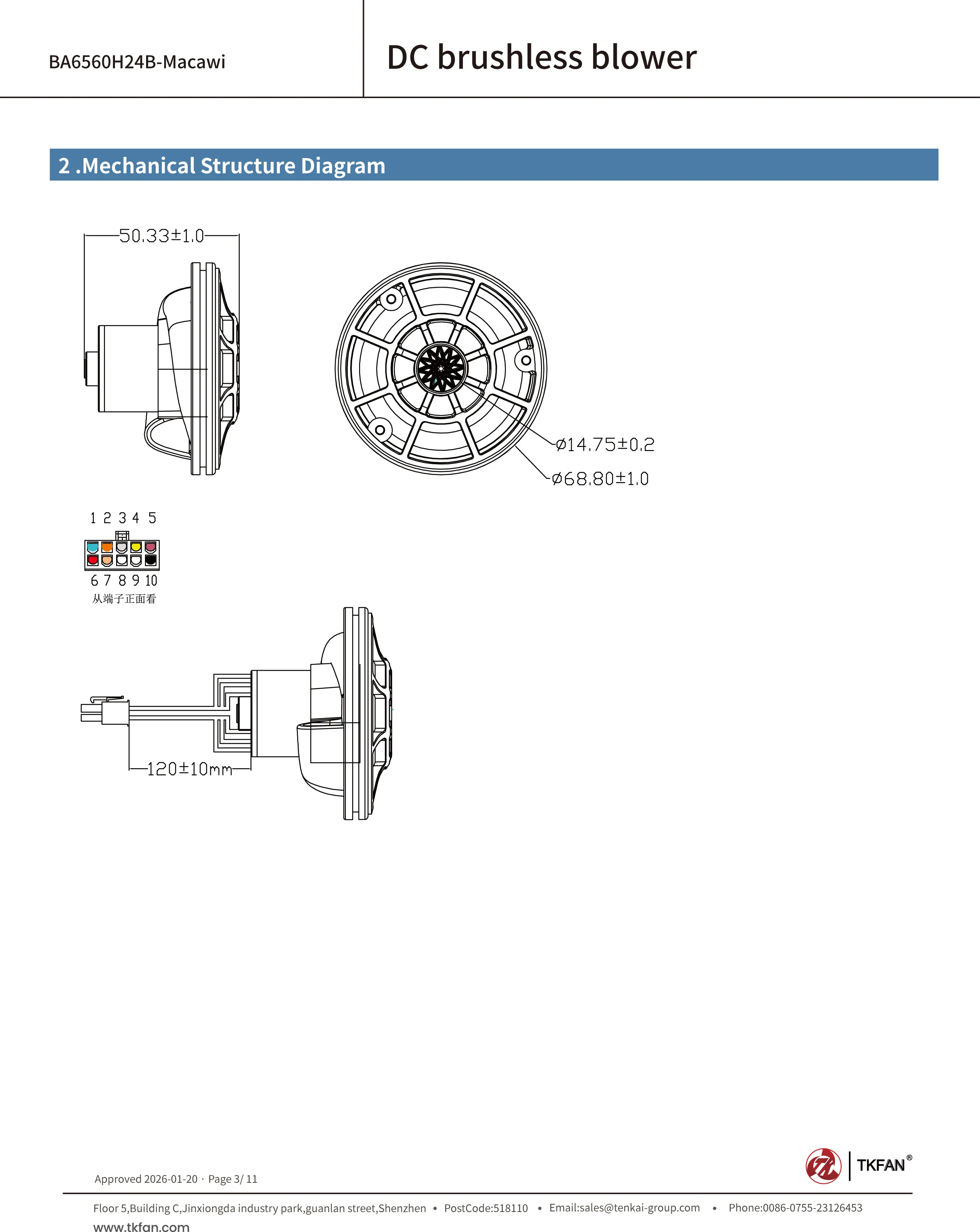

Medical ventilator blower BA6560H24B-Macawi Mechanical Structure Diagram
Engineered with extreme precision, the mechanical architecture of the BA6560H24B-Macawi medical ventilator blower integrates a dynamic dual-chamber housing designed for minimal acoustic feedback and enhanced airflow dynamics. The compact, lightweight frame utilizes high-grade, biocompatible, and heat-resistant polymer materials to withstand continuous high-speed rotation. Its internal balance calibration ensures vibration-free operation essential for critical life-support medical environments, CPAP equipment, and intensive care ICU mechanical ventilators.

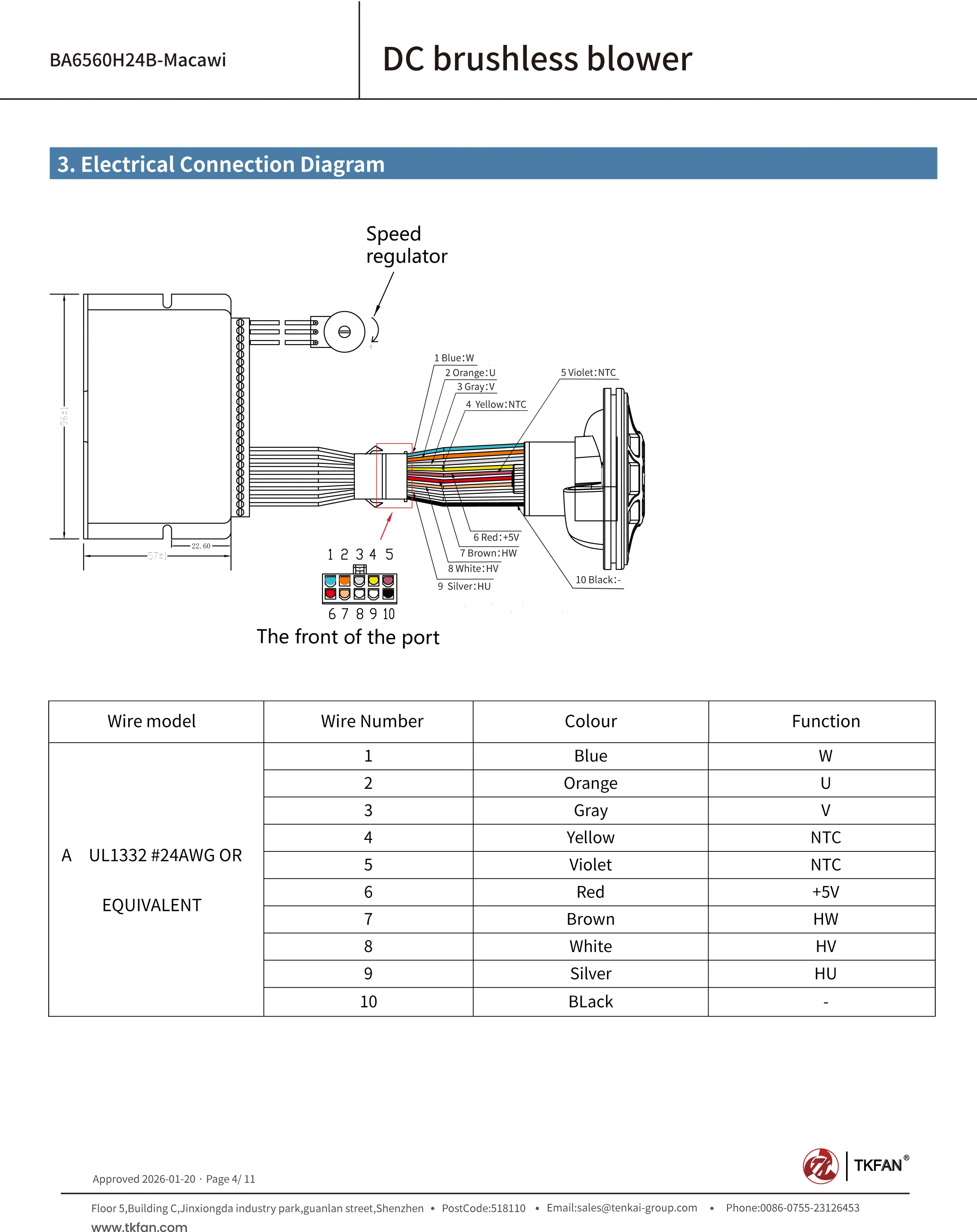

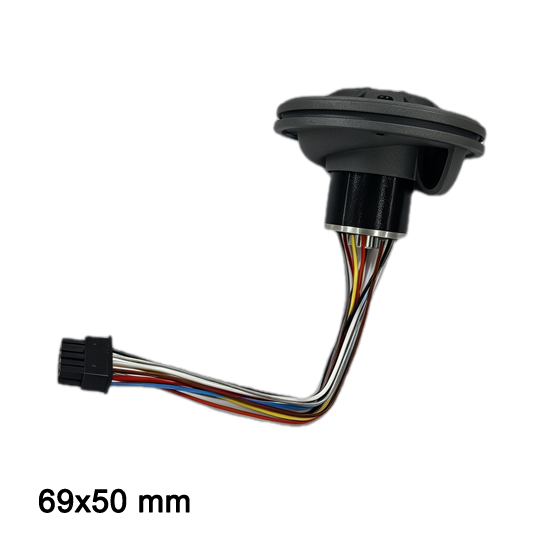

Medical ventilator blower BA6560H24B-Macawi Electrical Connection Diagram
The electrical connection scheme for the BA6560H24B-Macawi features a sophisticated 24V DC brushless motor interface engineered for rapid response and ultra-precise digital control. It includes dedicated pins for supply power (+24V DC), ground, PWM/0-5V speed regulation input, and tachometer pulse feedback output (FG signal). Built-in electrical protections—including over-current, reverse polarity, and thermal cutoff—guarantee maximum operational stability and seamless integration into modern medical electronic control units (ECU).

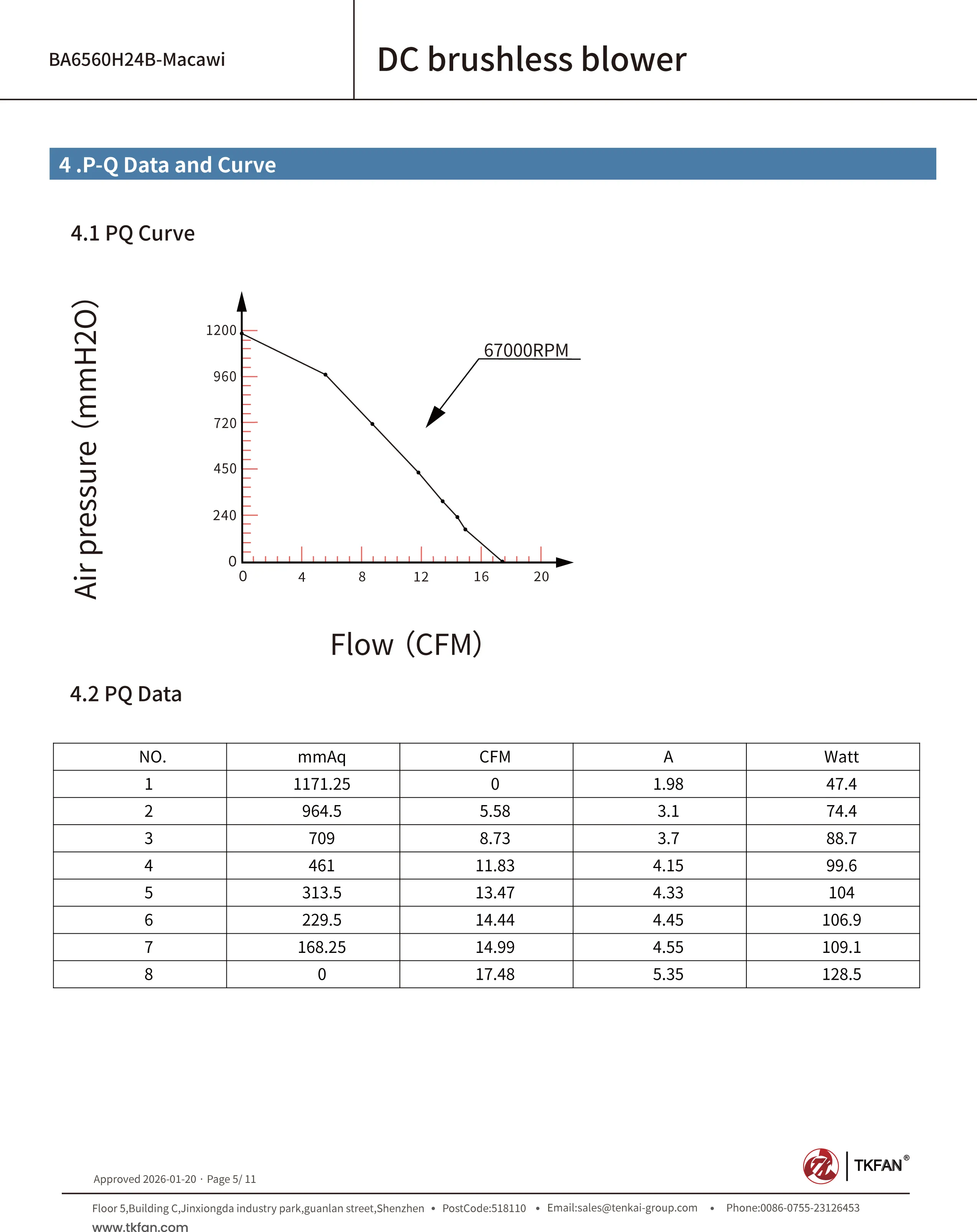

Medical ventilator blower BA6560H24B-Macawi P-Q Data and Curve
The dynamic Pressure vs. Airflow Rate (P-Q) characteristic curve demonstrates the outstanding aerodynamic capabilities of the BA6560H24B-Macawi blower. Capable of generating high static pressure combined with swift flow acceleration, this performance profile ensures immediate dynamic responsiveness to human respiratory cycles. The stable motor efficiency across varying resistance pressures enables reliable delivery of oxygenized air at prescribed pressure levels, fulfilling the demanding demands of both invasive and non-invasive ventilation therapy.
Watch Video: Practical operation demonstration and internal structure teardown of our medical ventilator blower. Learn how its high-speed 24V BLDC technology delivers stable, ultra-low noise respiratory airflow control.
