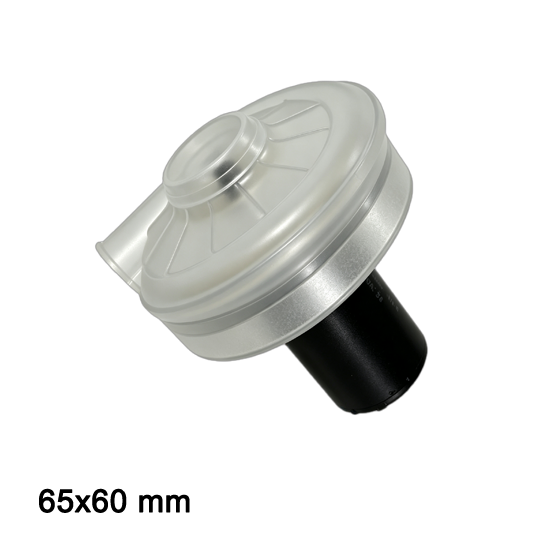

Medical ventilator blower BA6560H24B-A
Voltage 24V
48000rpm/min
Max 17.8 cfm,10.5 kpa
Request a Sample
Download Datasheet
Technical Specifications

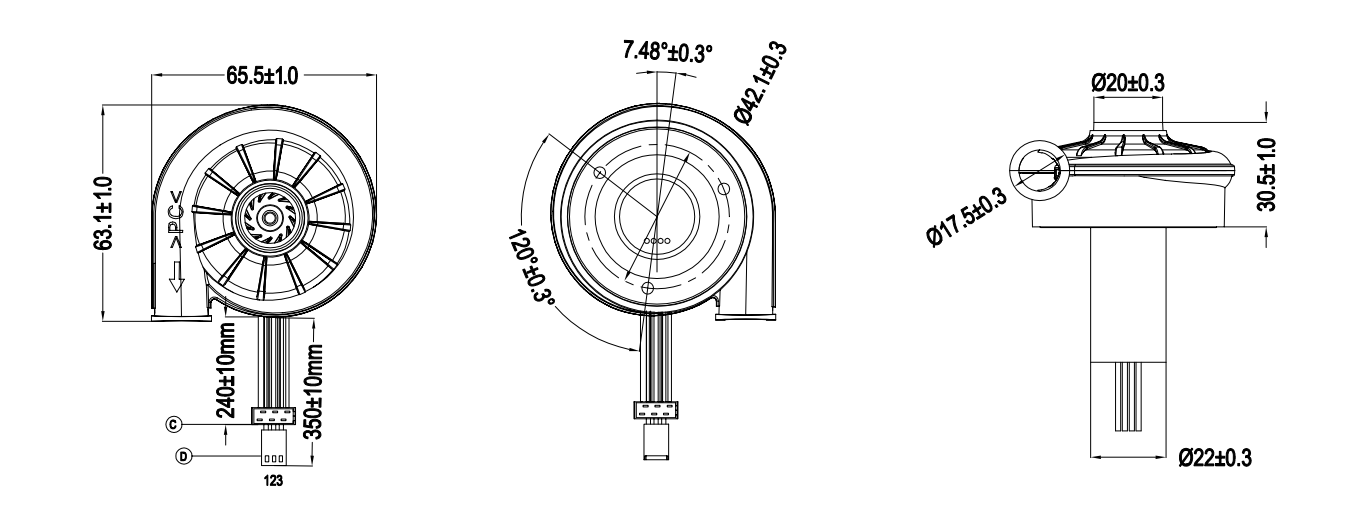

Medical ventilator blower BA6560H24B-A dimensions drawing
Detailed dimensional specifications and mechanical outline drawing for the Medical Ventilator Blower BA6560H24B-A. This mechanical drawing provides comprehensive parameters including outer diameter, mounting hole spacing, air inlet/outlet sizes, and lead wire configuration to facilitate seamless integration into medical breathing equipment and system designs.

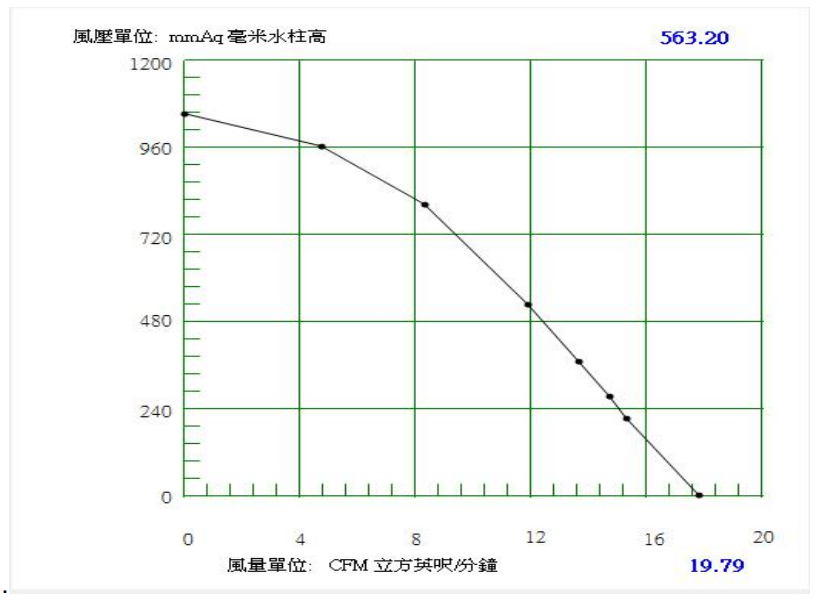

Medical ventilator blower BA6560H24B-A PQ curve
The performance curve (P-Q curve) illustrates the critical dynamic relationship between static pressure and airflow volume for the BA6560H24B-A medical ventilator blower. Engineered specifically for high-demand clinical environments, this blower delivers exceptional aerodynamic efficiency, rapid dynamic response, and stable continuous pressure output across various operational speeds.
As demonstrated in the characteristic curve, the unit maintains high static pressure capabilities even under high system resistance, ensuring consistent airflow delivery essential for critical care ventilation, CPAP/BiPAP devices, and portable emergency respiratory support systems.
Looking for different sizes or specifications?
Explore our full range of Medical ventilator blower, or choose from similar models below.
Medical ventilator blower
Need a Custom Modification?
We can customize voltage (5V/12V), wire length, and connectors. Prototypes ready in 48 hours.
