High pressure blower BA9733HV12B-B
Voltage 12V
8200rpm/min
Max 65.3 cfm,1.98 kpa
Request a Sample
Technical Specifications
× ![Zoomed Image]()
High pressure blower BA9733HV12B-B
High-performance 12V DC centrifugal blower delivering exceptional airflow and maximum static pressure. Designed with a compact 97x93x33mm frame, durable double ball bearings, and advanced PWM speed control.
(Click any image to zoom in)

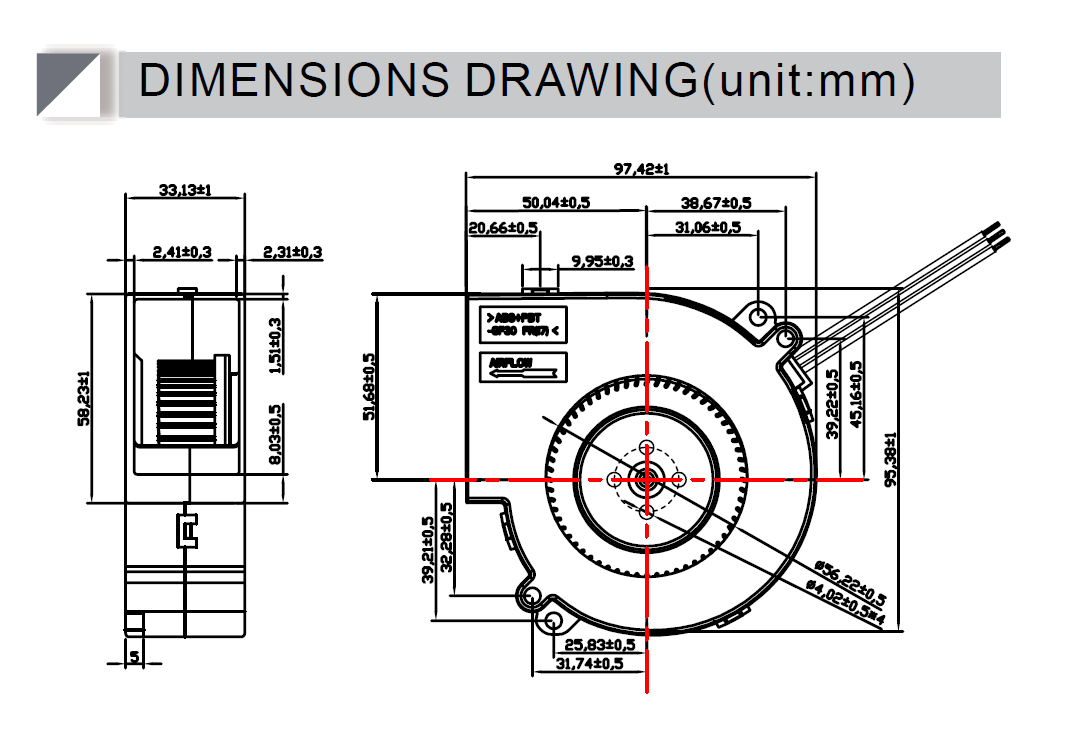

High pressure blower BA9733HV12B-B dimensions drawing
The dimensional drawing above details the precise mechanical structure and mounting specifications for the BA9733HV12B-B high-pressure blower. Standard dimensions ensure seamless integration into compact industrial enclosures and medical device assemblies.
Key mechanical features include robust PBT plastic housing, low-vibration double ball bearings, and standardized mounting holes designed to withstand heavy-duty continuously operating environments.
- Compact 97x95x33mm frame size
- High precision mechanical tolerances
- Flexible lead wire mounting options

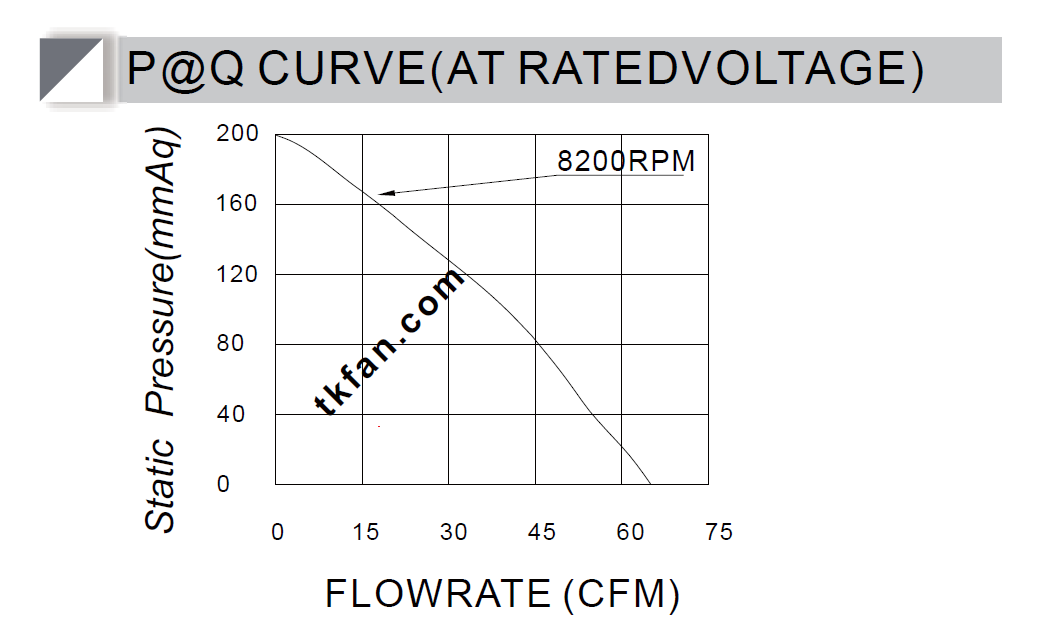

High pressure blower BA9733HV12B-B PQ curve
The Performance Curve (P-Q Curve) illustrates the relationship between static air pressure and air volume flow rate. It serves as a critical reference for system engineers to determine the ideal operating point for optimal cooling efficiency.
Engineered with advanced aerodynamics, this blower maintains exceptionally high pressure output even under restricted airflow conditions, making it perfectly suited for high-density heat dissipation applications.
- Delivers max static pressure up to 130.49 mmH2O
- Maximum airflow reaches up to 56.8 CFM
- Optimized for low-noise performance at high RPM
High pressure blower BA9733-B Selection Guide
Compare voltage, dimensions, speed, airflow, and static pressure to select the perfect High pressure blower BA9733-B for your equipment design.
| Model | P/N Code | Rated Voltage | Operating Voltage Range | Rated Current | Rated Input Power | Speed | Maximum Air Flow | Maximum Air Pressure | Noise | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| VDC | VDC | Amp | Watt | R.P.M | M³/min | CFM | mmH2O | InH2O | dB-A | ||
| BA9733VH12X | BY | 12 | 7~13.8 | 3.4 | 40.8 | 6850 | 1.61 | 56.8 | 130.49 | 5.14 | 66 |
| BA9733HH12X | 12 | 7~13.8 | 1.8 | 21.6 | 5750 | 1.34 | 47.3 | 77.47 | 3.052 | 61 | |
| BA9733H12X | 12 | 7~13.8 | 1.4 | 16.8 | 5250 | 1.22 | 43.1 | 62.18 | 2.45 | 59 | |
| BA9733M12X | 12 | 7~13.8 | 1.1 | 13.2 | 4850 | 1.11 | 39.2 | 49.95 | 1.968 | 57 | |
| BA9733L12X | 12 | 7~13.8 | 0.9 | 10.8 | 4500 | 1.04 | 36.7 | 41.79 | 1.647 | 56 | |
| BA9733VH24X | 24 | 21.6~26.4 | 1.62 | 38.88 | 6850 | 1.61 | 56.8 | 130.49 | 5.14 | 66 | |
| BA9733HH24X | 24 | 12~26.4 | 0.83 | 19.9 | 5750 | 1.34 | 47.3 | 77.47 | 3.052 | 61 | |
| BA9733H24X | 24 | 12~26.4 | 0.70 | 16.8 | 5250 | 1.22 | 43.1 | 62.18 | 2.45 | 59 | |
| BA9733M24X | 24 | 12~26.4 | 0.55 | 13.2 | 4850 | 1.11 | 39.2 | 49.95 | 1.968 | 57 | |
| BA9733L24X | 24 | 12~26.4 | 0.45 | 10.8 | 4500 | 1.04 | 36.7 | 41.79 | 1.647 | 56 | |
High pressure blower BA9733HV12B-B
Watch our comprehensive video demonstration showcasing the exceptional build quality, high-speed operation, and powerful aerodynamic performance of the BA9733HV12B-B high-pressure centrifugal blower. This video provides a close-up look at its physical dimensions, wiring configuration, and running dynamics.
Designed to deliver reliable, high-static pressure airflow in compact enclosures, this 97x33mm brushless DC blower is built with premium dual ball bearings and advanced PWM speed control to meet the rigorous demands of modern thermal management systems.
- Detailed product overview and live operation
- Demonstration of PWM speed control response
- High-pressure airflow output visualization
