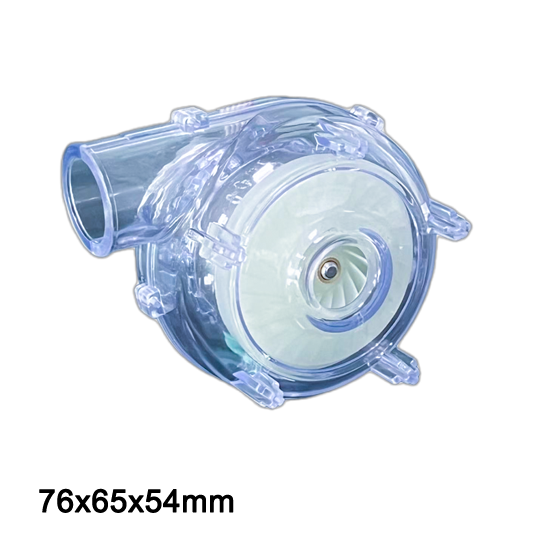

24V Cpap air blower BA7060H24B-K01
Voltage 24V
34000rpm/min
Max 15.7 cfm,5.4 kpa
Premium Quality Blower
Adopts high-performance impeller and stable motor structure, providing strong and consistent airflow to ensure stable pressure output for CPAP devices.
Ultra-low Noise Design
Optimized aerodynamic structure and precision balancing effectively reduce vibration and wind noise, creating a quiet breathing environment for comfortable sleep all night.
Perfect for CPAP Applications
Compact size, stable pressure, and low vibration make it ideal for CPAP, ventilator, and other respiratory equipment.
Safe & Energy Efficient
Low power consumption, low heat, and reliable operation, meeting the safety requirements of medical auxiliary equipment.
Technical Specifications
24V Cpap air blower BA7060H24B-K01
High-performance 24V DC medical CPAP centrifugal blower featuring compact mini design, ultra-quiet brushless motor, precise airflow delivery, and durable transparent PC housing. Engineered for medical ventilators, sleep apnea therapy, and portable respiratory support devices. (Click image to enlarge)




24V Cpap air blower BA7060H24B-K01 Production Process
Our medical-grade 24V CPAP air blowers are manufactured under strict ISO quality control systems in dust-free cleanrooms. From high-precision internal PCB dynamic balancing, o-ring sealing, automated rear cover fastening to meticulous final assembly and dynamic air testing, every step ensures reliable medical safety and ultra-quiet operational stability. (Click image to enlarge)




24V Cpap air blower BA7060H24B-K01 Internal Details and Components
Explore the precision-engineered internal components of the BA7060H24B-K01 medical CPAP air blower. Featuring a high-grade transparent PC volute casing, aerodynamic dynamic-balanced impeller, precision stainless steel shaft and dual ball bearings, airtight O-ring gasket, robust metal end cover, and advanced brushless PCB driver wiring assembly. (Click image to enlarge)

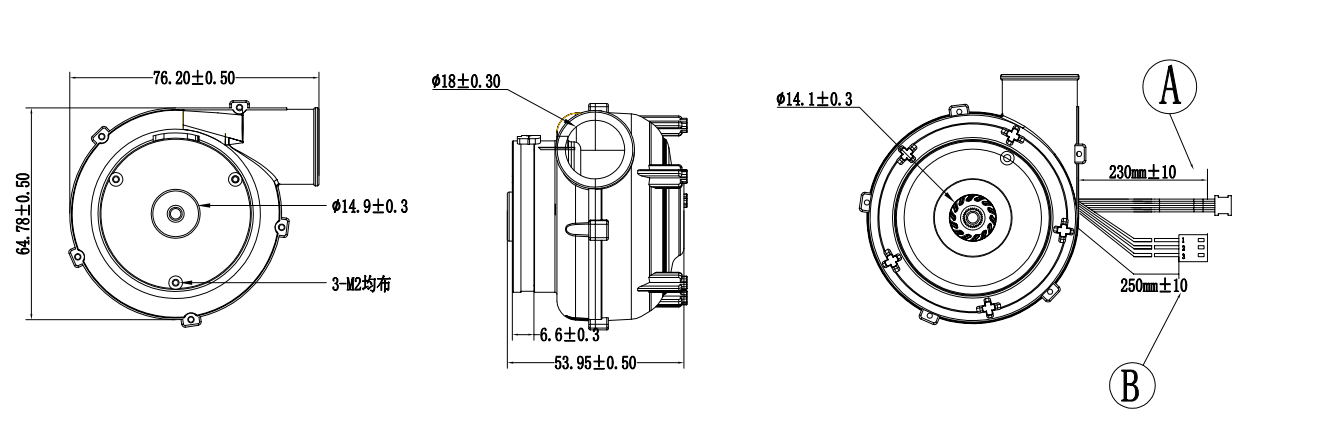

24V Cpap air blower BA7060H24B-K01 dimensions drawing
The detailed 2D and 3D installation dimensions drawing of the BA7060H24B-K01 24V CPAP air blower provides precise mechanical specifications, mounting hole locations, and overall outline sizes to ensure seamless integration into your medical respiratory devices and portable ventilator systems.

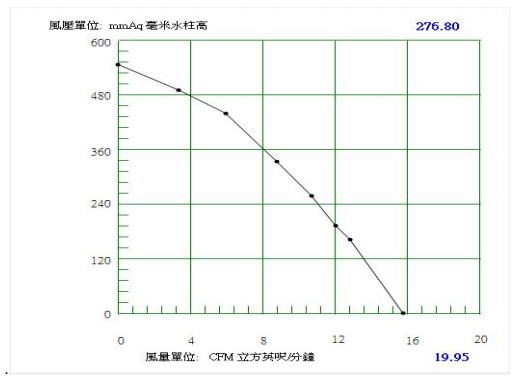

24V Cpap air blower BA7060H24B-K01 PQ curve
This performance (PQ) curve graph illustrates the exceptional aerodynamic characteristics of the BA7060H24B-K01 24V DC brushless blower. It details the precise relationship between static pressure and airflow rate across various operational voltages and speeds.
Engineered for high-pressure output and optimal efficiency, this blower delivers stable airflow performance tailored for CPAP machines, medical ventilators, and continuous positive airway pressure applications, ensuring reliable and quiet operation under varying load conditions.

Related Products
Looking for different sizes or specifications?
Explore our full range of Cpap blower, or choose from similar models below.
Cpap blower
Need a Custom Modification?
We can customize voltage (5V/12V), wire length, and connectors. Prototypes ready in 48 hours.
